INSTRUCTION MANUAL

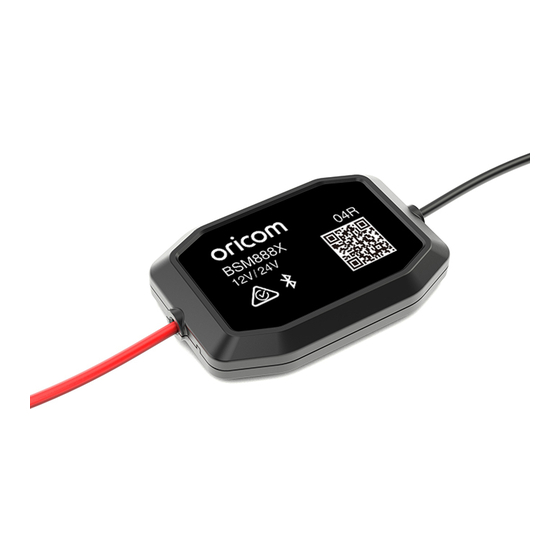

Battery Sense Monitor
INTRODUCTION
This product is used to monitor the health of your vehicle's battery, check vehicle cranking
system automatically while engine is starting and check battery charging system (alternator).
Your driving log can be viewed which includes driving time and duration.
Connect Battery Monitor to the battery and download the App.
Using Bluetooth communication, you can now monitor your battery via your smartphone.
The Battery Monitor will send you a notification when you approach your vehicle.
It will help to prevent vehicle breakdowns and maximise the performance of your battery by
giving you valuable information about the state of your battery.
This product is designed to be used on standard flooded type lead acid batteries. It may
give incorrect information on other types of battery. Voltage measurement will always be
correct on any battery.
FEATURES
• Free Battery Sense App for iOS and Android
• Monitor up to 4 batteries
• Connects to smartphone via Bluetooth
• Compatible with all 12/24 volt batteries*
• IP65 Ingress protection
• Monitors engine compartment temperature
• Tests cranking automatically on engine startup
• Manually test charging system (alternator)
• Automatically record the time / duration of each trip
• Smartphone notifications (within Bluetooth
• Short-circuit and reverse polarity protection
• Review historical data (up to 30 days)
* For full functionality, this product should be used on standard flooded type lead acid batteries.
SPECIFICATIONS
• Working Voltage: 6-30V
• Working Current: 12V 4mA, 24V 5mA
• Cable Length: 230mm x 2
• Working Temperature: -40°C ~ 85°C
• Product Size: 56x36x10mm
• Weight: 24g
The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Oricom International Pty Ltd is under license.
Model: BSM888X
®
®
range)
WARNING
Be careful not to disconnect the battery
from the vehicle while installing this
product, as you may lose some or all of
your vehicle security settings.
INSTALLATION
1. Connect the Battery Monitor to a battery
2. Download the App
Scan the QR code on the left to download
the Battery Sense Monitor App.
Battery Monitor
Battery Monitor App is available in App Store or Google Play.
APP OPERATION
1. Turn on bluetooth, click app icon. Add device.
This app supports up to 4 devices.
You can monitor 4 batteries simultaneously.
The App with automatically detect the correct battery
voltage, or this can be manually selected between 12 or
24V in the settings.
Please allow app to access location even when app not in use.
If access is not given, the product will not automatically notify you
when monitoring the battery (within bluetooth range).
Turn notifications on to receive information on the vehicle's battery,
cranking system, and fault alerts. Notifications are received when
mobile phone is within bluetooth range. If notifications are turned off
you will not receive this information.
Connect positive terminal to positive
pole, negative terminal to negative pole
or to a suitable vehicle earth point.
Attach the product to the battery with
the tape provided. Clean the area first
and make sure it in a position that the
signal is not blocked.
Warning: Make sure that if using a
metal tool, not to short the battery
terminals or touch the vehicle chassis
while fixing the terminals.
