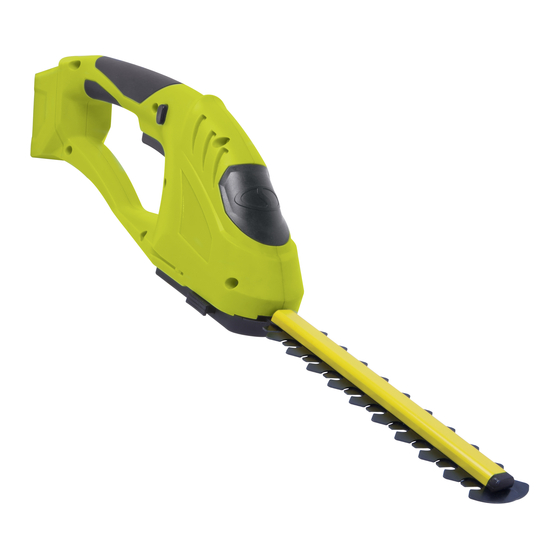

Cordless hedge trimmer
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

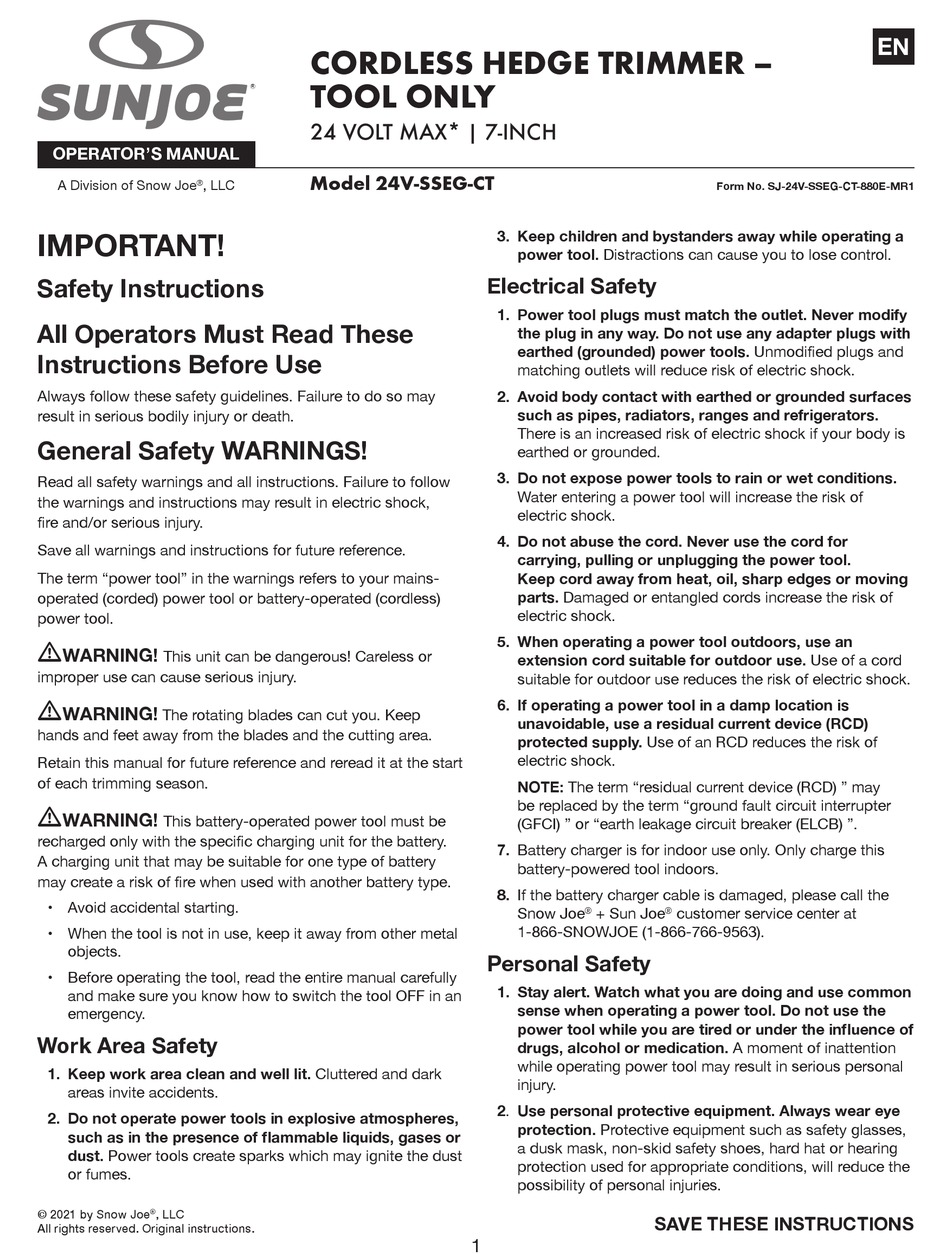

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety WARNINGS!
Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
m
WARNING!
This unit can be dangerous! Careless or
improper use can cause serious injury.
m
WARNING!
The rotating blades can cut you. Keep
hands and feet away from the blades and the cutting area.
Retain this manual for future reference and reread it at the start
of each trimming season.
m
WARNING!
This battery-operated power tool must be
recharged only with the specific charging unit for the battery.
A charging unit that may be suitable for one type of battery
may create a risk of fire when used with another battery type.
• Avoid accidental starting.
• When the tool is not in use, keep it away from other metal
objects.
• Before operating the tool, read the entire manual carefully
and make sure you know how to switch the tool OFF in an
emergency.
Work Area Safety
1. Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
© 2021 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS HEDGE TRIMMER –
TOOL ONLY
R
24 VOLT MAX* | 7-INCH
Model 24V-SSEG-CT
3. Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
NOTE: The term "residual current device (RCD) " may
be replaced by the term "ground fault circuit interrupter
(GFCI) " or "earth leakage circuit breaker (ELCB) ".
7. Battery charger is for indoor use only. Only charge this
battery-powered tool indoors.
8. If the battery charger cable is damaged, please call the
Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
Personal Safety
1. Stay alert. Watch what you are doing and use common
sense when operating a power tool. Do not use the
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tool may result in serious personal
injury.
2. Use personal protective equipment. Always wear eye
protection. Protective equipment such as safety glasses,
a dusk mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions, will reduce the
possibility of personal injuries.
1
Form No. SJ-24V-SSEG-CT-880E-MR1
customer service center at
®
SAVE THESE INSTRUCTIONS
EN
