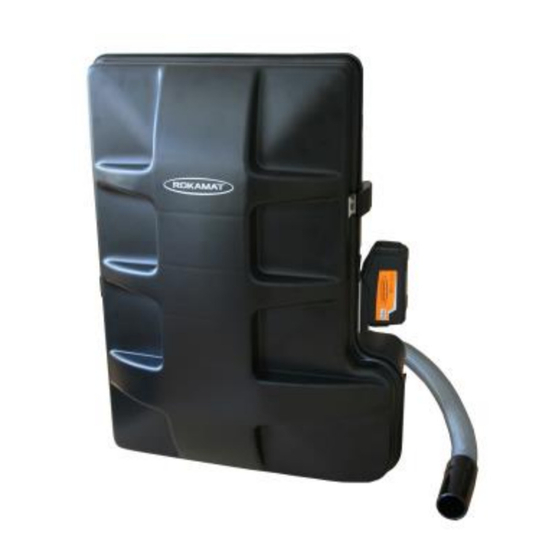

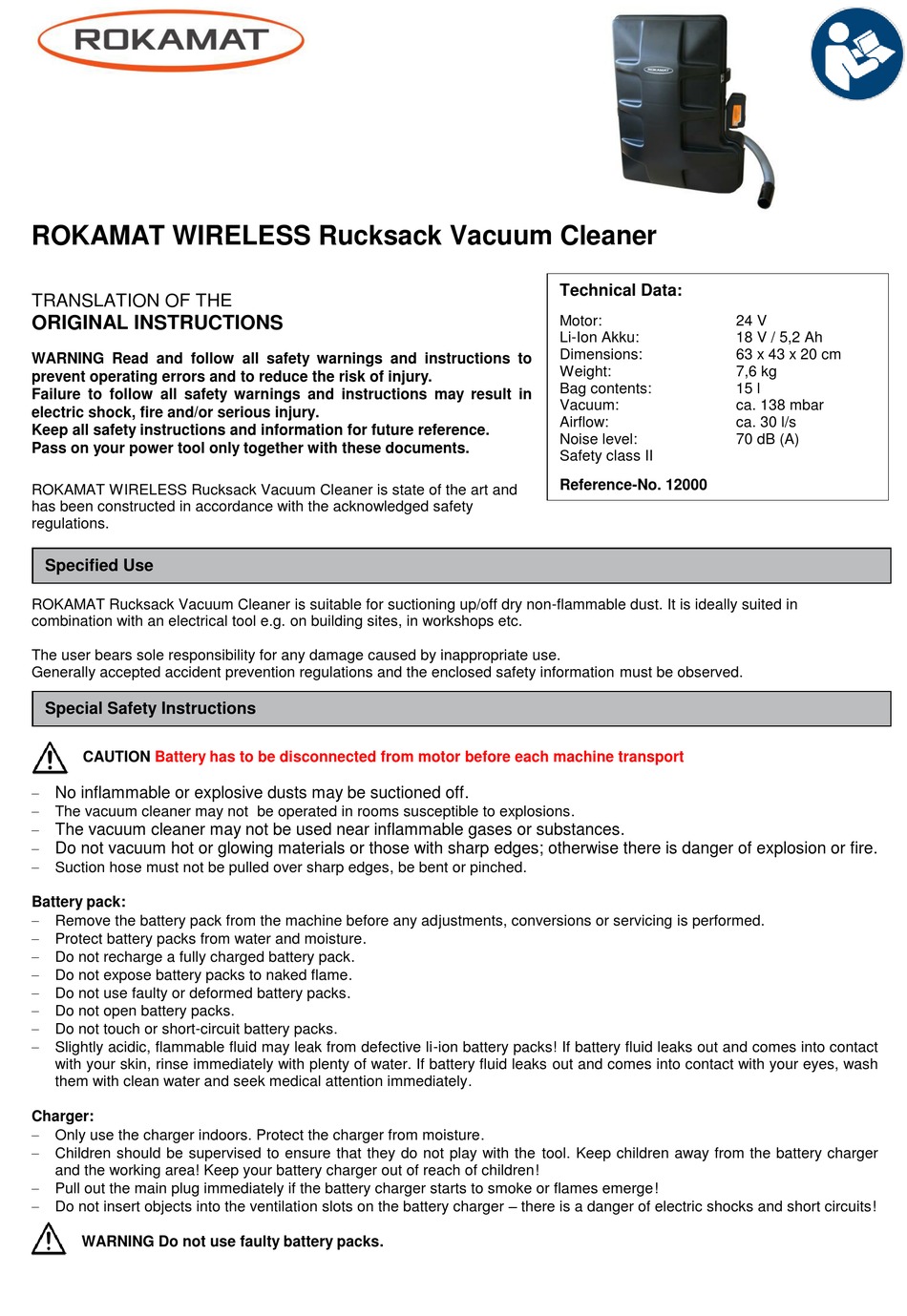

ROKAMAT WIRELESS Rucksack Vacuum Cleaner
TRANSLATION OF THE
ORIGINAL INSTRUCTIONS
WARNING Read and follow all safety warnings and instructions to
prevent operating errors and to reduce the risk of injury.
Failure to follow all safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Keep all safety instructions and information for future reference.
Pass on your power tool only together with these documents.
ROKAMAT WIRELESS Rucksack Vacuum Cleaner is state of the art and
has been constructed in accordance with the acknowledged safety
regulations.
Specified Use
ROKAMAT Rucksack Vacuum Cleaner is suitable for suctioning up/off dry non-flammable dust. It is ideally suited in
combination with an electrical tool e.g. on building sites, in workshops etc.
The user bears sole responsibility for any damage caused by inappropriate use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.
Special Safety Instructions
CAUTION
Battery has to be disconnected from motor before each machine transport
No inflammable or explosive dusts may be suctioned off.
 The vacuum cleaner may not be operated in rooms susceptible to explosions.
The vacuum cleaner may not be used near inflammable gases or substances.
Do not vacuum hot or glowing materials or those with sharp edges; otherwise there is danger of explosion or fire.
 Suction hose must not be pulled over sharp edges, be bent or pinched.
Battery pack:
 Remove the battery pack from the machine before any adjustments, conversions or servicing is performed.
 Protect battery packs from water and moisture.
 Do not recharge a fully charged battery pack.
 Do not expose battery packs to naked flame.
 Do not use faulty or deformed battery packs.
 Do not open battery packs.
 Do not touch or short-circuit battery packs.
 Slightly acidic, flammable fluid may leak from defective li-ion battery packs! If battery fluid leaks out and comes into contact
with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash
them with clean water and seek medical attention immediately.
Charger:
 Only use the charger indoors. Protect the charger from moisture.
 Children should be supervised to ensure that they do not play with the tool. Keep children away from the battery charger
and the working area! Keep your battery charger out of reach of children!
 Pull out the main plug immediately if the battery charger starts to smoke or flames emerge!
 Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!
WARNING Do not use faulty battery packs.
Technical Data:
Motor:
Li-Ion Akku:
Dimensions:
Weight:
Bag contents:
Vacuum:
Airflow:
Noise level:
Safety class II
Reference-No. 12000
24 V
18 V / 5,2 Ah
63 x 43 x 20 cm
7,6 kg
15 l
ca. 138 mbar
ca. 30 l/s
70 dB (A)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rucksack and is the answer not in the manual?

Questions and answers

Summary of Contents for ROKAMAT Rucksack

  • Page 1 Specified Use ROKAMAT Rucksack Vacuum Cleaner is suitable for suctioning up/off dry non-flammable dust. It is ideally suited in combination with an electrical tool e.g. on building sites, in workshops etc. The user bears sole responsibility for any damage caused by inappropriate use.
  • Page 2 Unpack machine and accessories and check the delivery for completeness and transport damage. CAUTION Charge the battery fully before use Emptying/exchanging filter bags Use only original ROKAMAT filter bags Do not reuse damaged material filter bags otherwise the motor may get damaged.
  • Page 3 The operating display (3) lights up continuously. Battery charger: The charger is exclusively designed for charging ROKAMAT battery packs. Before plugging in the device, check to see that the rated mains voltage and mains frequency, as specified on the rating labe l, match your power supply.
  • Page 4 Special instructions for cordless machines Battery packs must not be disposed of with regular waste. Return faulty or used battery packs to your ROKAMAT- dealer! Do not allow battery packs to come into contact with water! Before disposal, discharge the battery pack in the power tool.
  • Page 5: General Power Tool Safety Warnings

    General Power Tool Safety Warnings Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
