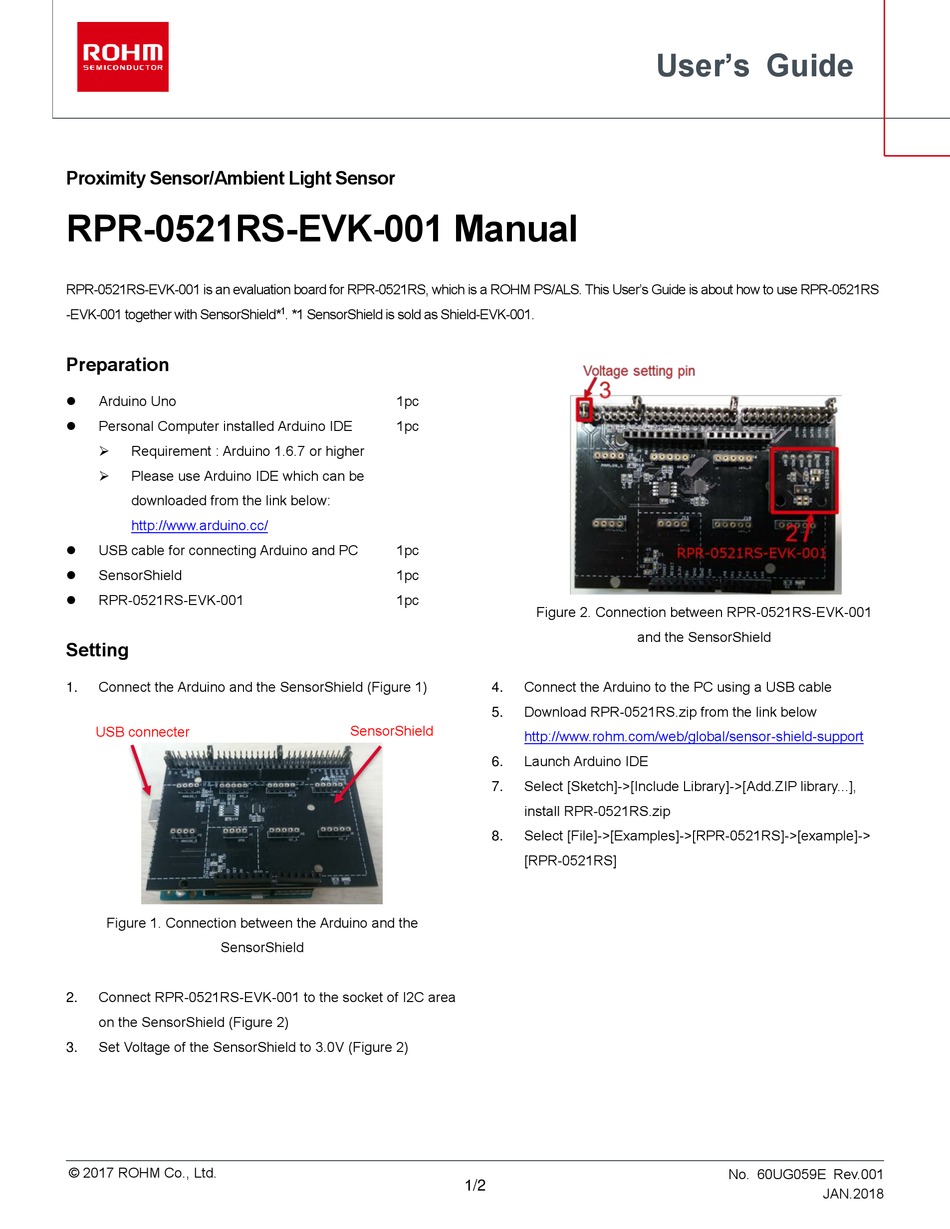

Rohm RPR-0521RS-EVK-001 Manual

Proximity Sensor/Ambient Light Sensor
RPR-0521RS-EVK-001 Manual
RPR-0521RS-EVK-001 is an evaluation board for RPR-0521RS, which is a ROHM PS/ALS. This User's Guide is about how to use RPR-0521RS
-EVK-001 together with SensorShield*
Preparation
 Arduino Uno
 Personal Computer installed Arduino IDE
 Requirement : Arduino 1.6.7 or higher
 Please use Arduino IDE which can be
downloaded from the link below:
http://www.arduino.cc/
 USB cable for connecting Arduino and PC
 SensorShield
 RPR-0521RS-EVK-001
Setting
Connect the Arduino and the SensorShield (Figure 1)
1.
USB connecter
Figure 1. Connection between the Arduino and the
SensorShield
Connect RPR-0521RS-EVK-001 to the socket of I2C area
2.
on the SensorShield (Figure 2)
Set Voltage of the SensorShield to 3.0V (Figure 2)
3.
© 2017 ROHM Co., Ltd.
1 . *1 SensorShield is sold as Shield-EVK-001.
1pc
1pc
1pc
1pc
1pc
SensorShield
Figure 2. Connection between RPR-0521RS-EVK-001
and the SensorShield
Connect the Arduino to the PC using a USB cable
4.
Download RPR-0521RS.zip from the link below
5.
http://www.rohm.com/web/global/sensor-shield-support
Launch Arduino IDE
6.
Select [Sketch]->[Include Library]->[Add.ZIP library...],
7.
install RPR-0521RS.zip
Select [File]->[Examples]->[RPR-0521RS]->[example]->
8.
[RPR-0521RS]
1/2
User's Guide
No. 60UG059E Rev.001
E Rev.001
JAN.2018
