Wizard WA15542A Owner's Manual

15.5 hp 42 inch lawn tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
For Parts Call K&T 606-678-9623 or 606-561-4983
MODEL NO. WA15542A
15.5 HP 42 INCH
LAWN TRACTOR
•
Assembly
•
For Parts and Service, contact our authorized distributor:
call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886
Operation
•
Maintenance
•
Ser vice and Adjustments
•
www.mymowerparts.com
Troubleshooting
•
Repair Parts
00273
184539 Rev. 4 9.25.03 RH/MH
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA15542A and is the answer not in the manual?

Questions and answers

Related Manuals for Wizard WA15542A

Summary of Contents for Wizard WA15542A

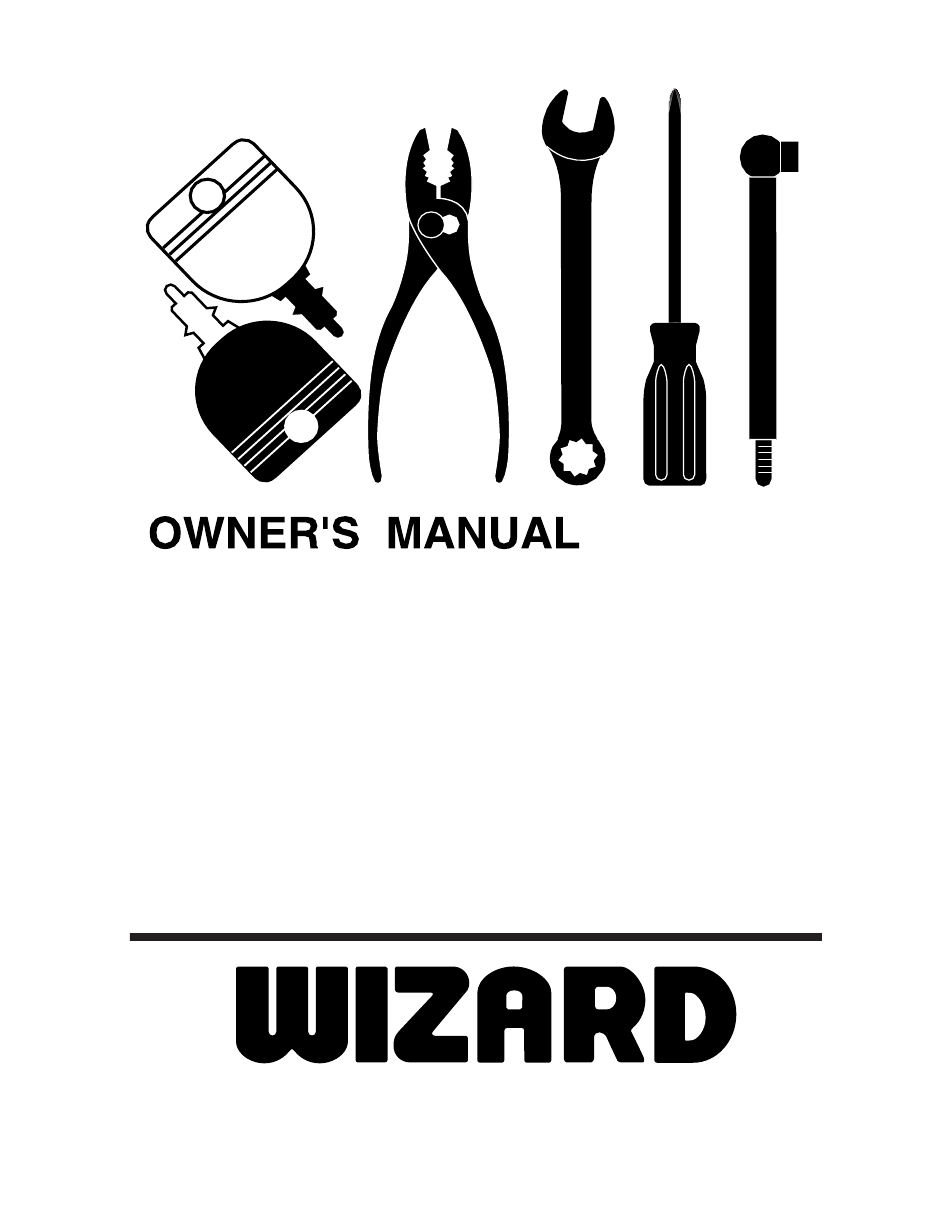

  • Page 1 For Parts Call K&T 606-678-9623 or 606-561-4983 MODEL NO. WA15542A 15.5 HP 42 INCH LAWN TRACTOR • Assembly • Operation • Maintenance • Ser vice and Adjustments • Troubleshooting • Repair Parts For Parts and Service, contact our authorized distributor:...

  • Page 2: Table Of Contents

    For Parts Call K&T 606-678-9623 or 606-561-4983 TABLE OF CONTENTS Maintenance ......... 17 Warranty ..........2 Service and Adjustments...... 21 Safety Rules ........... 3 Product Specifi cations ......6 Storage ..........27 Troubleshooting ........28 Assembly/Pre-Operation ......8 Repair Parts.......... 32 Operation..........

  • Page 3: Safety Rules

    For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES IMPORTANT: This cutting machine is ca pa ble of amputating hands and feet and throw- ing objects. Failure to observe the fol low ing safety instructions could result in serious injury or death. •...
  • Page 4 For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES • Never carry children. They may fall off • Mow up and down slopes, not across. and be seriously injured or interfere with • Remove obstacles such as rocks, tree safe machine operation. limbs, etc.
  • Page 5 For Parts Call K&T 606-678-9623 or 606-561-4983 SAFETY RULES • Remove obstacles such as rocks, tree • Be sure the area is clear of other people limbs, etc. before mowing. Stop machine if anyone • Watch for holes, ruts, or bumps. Uneven enters the area.

  • Page 6: Product Specifi Cations

    For Parts Call K&T 606-678-9623 or 606-561-4983 PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, Gasoline 1.25 engineered and manu fac tured to give Capacity and Unleaded and you the best possible dependability and Type: Regular performance.
  • Page 7 For Parts Call K&T 606-678-9623 or 606-561-4983 UNASSEMBLED PARTS Steering Wheel (1) Hex nut Steering 1/2-20 Wheel Insert (1) Large Flat Washer Locknut 1/4-28 (1) Hex Bolt 1/4-28 x 1-1/4 Steering Steering Extension Steering Wheel Shaft Boot Adapter Seat Blade (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Lock Washer 1/2...

  • Page 8: Assembly/Pre-Operation

    For Parts Call K&T 606-678-9623 or 606-561-4983 ASSEMBLY/PRE-OPERATION Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you as sem ble must be tightened securely. Use the correct tools as nec es sary to in sure proper tightness.
  • Page 9 For Parts Call K&T 606-678-9623 or 606-561-4983 4. Roll tractor forward off skid. 7. Slide seat until a comfortable position 5. Remove banding holding defl ector is reached which allows you to press shield up against tractor. clutch/brake pedal all the way down. TO DRIVE TRACTOR OFF SKID 8.
  • Page 10 For Parts Call K&T 606-678-9623 or 606-561-4983 CHECK FOR PROPER POSITION INSTALL MULCHER PLATE OF ALL BELTS NOTE: If you installed the mulching blades you will need to install the mulcher plate. See the fi gures that are shown for replac- 1.

  • Page 11: Operation

    For Parts Call K&T 606-678-9623 or 606-561-4983 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. FAST IGNITION REVERSE HIGH SLOW NEUTRAL CHOKE LIGHTS ON ENGINE START PARKING BRAKE ENGINE OFF ENGINE ON PARKING BRAKE...
  • Page 12 For Parts Call K&T 606-678-9623 or 606-561-4983 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Attachment Clutch Lever Ignition Switch...
  • Page 13 For Parts Call K&T 606-678-9623 or 606-561-4983 The op er a tion of any trac tor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Al ways wear safety glass es or eye shields while op er at ing your trac tor or per form ing any ad just ments or repairs.
  • Page 14 For Parts Call K&T 606-678-9623 or 606-561-4983 For healthier and better looking lawns, Attachemnt Lift Lever High Position mow often and after moderate growth. Attachment • For best cutting performance, grass over Clutch Lever 6 inches in height should be mowed “Engaged”...
  • Page 15 For Parts Call K&T 606-678-9623 or 606-561-4983 BEFORE STARTING THE ENGINE 2. Place gear shift lever in neutral (N) position. CHECK ENGINE OIL LEVEL 3. Move attachment clutch to dis en gaged The engine in your tractor has been po si tion. shipped, from the factory, already fi...
  • Page 16 For Parts Call K&T 606-678-9623 or 606-561-4983 • The attachments can also be used dur- MULCHING MOWING TIPS ing the engine warm-up period. IMPORTANT: For best performance, keep NOTE: If at a high altitude (above 3000 mower housing free of built-up grass and feet) or in cold temperatures (below 32 F) trash.

  • Page 17: Maintenance Schedule

    For Parts Call K&T 606-678-9623 or 606-561-4983 MAINTENANCE MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE SERVICE DATES Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling...
  • Page 18 For Parts Call K&T 606-678-9623 or 606-561-4983 4. Reassemble blade bolt, lock washer TRACTOR and fl at washer in exact order as Always observe safety rules when per- shown. form ing any main te nance. 5. Tighten blade bolt securely (27-35 Ft. BRAKE OPERATION Lbs.
  • Page 19 For Parts Call K&T 606-678-9623 or 606-561-4983 NOTE: The original equipment battery on TO CHANGE ENGINE OIL your tractor is maintenance free. Do not Determine temperature range expected attempt to open or remove caps or cov ers. before oil change. All oil must meet API Adding or checking level of elec tro lyte is service classifi...
  • Page 20 For Parts Call K&T 606-678-9623 or 606-561-4983 2. Remove cover. Clean out chaff and debris Air Screen 3. Carefully remove air fi lter cartridge and pre-cleaner from base. 4. Clean base carefully to prevent debris from falling into carburetor. NOTE: If very dirty or damaged, replace cartridge.

  • Page 21: Service And Adjustments

    For Parts Call K&T 606-678-9623 or 606-561-4983 SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER- VICE OR AD JUST MENTS: 1. Depress clutch/brake pedal fully and set parking brake. 2. Place gearshift lever in neutral (N) position. 3.
  • Page 22 For Parts Call K&T 606-678-9623 or 606-561-4983 TO LEVEL MOWER HOUSING • If links are not equal in length, adjust one link to same length as other link. Adjust the mower while tractor is parked • To lower front of mower loosen nut “E” on level ground or driveway.
  • Page 23 For Parts Call K&T 606-678-9623 or 606-561-4983 BELT INSTALLATION - With Parking Brake “Engaged” 1. Work belt around both mandrel pulleys and idler pulleys 1-1/2" 2. Make sure belt is in all pulley grooves and inside all belt guides. 3. Install mower (See “To Install Mower” in this section of this manual).
  • Page 24 For Parts Call K&T 606-678-9623 or 606-561-4983 TO REMOVE WHEEL FOR REPAIRS Engine Pulley 1. Block up axle securely. 2. Remove axle cover, retaining ring and Center washers to allow wheel removal (rear Span Clutching Idler wheels have a square key - Do not Keeper lose).
  • Page 25 For Parts Call K&T 606-678-9623 or 606-561-4983 TO REMOVE CABLES, REVERSE TO REPLACE HEADLIGHT BULB ORDER - 1. Raise hood. 2. Pull bulb holder out of the hole in the 1. BLACK cable fi rst from chassis and backside of the grill. then from the fully charged battery.

  • Page 26: Storage

    For Parts Call K&T 606-678-9623 or 606-561-4983 STORAGE Immediately prepare your tractor for stor- which leads to separation and formation of age at the end of the season or if the trac- acids during storage. Acidic gas can dam- tor will not be used for 30 days or more. age the fuel system of an engine while in storage.
  • Page 27 For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION Will not start 1. Out of fuel. 1. Fill fuel tank. 2. Engine not “CHOKED” 2. See “TO START ENGINE” in properly. Operation section. 3. Engine fl ooded. 3.

  • Page 28: Troubleshooting

    For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION Loss of power 3. Build-up of grass, leaves and 3. Clean un der side of mower (continued) trash under mower. housing. 4. Dirty air fi lter. 4. Clean/replace air fi lter. 5.
  • Page 29 For Parts Call K&T 606-678-9623 or 606-561-4983 TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION Poor grass 1. Engine speed too slow. 1. Place throttle control in discharge “FAST” position. 2. Travel speed too fast. 2. Shift to slower speed. 3. Wet grass. 3.
  • Page 30 For Parts Call K&T 606-678-9623 or 606-561-4983 SERVICE NOTES www.mymowerparts.com...
  • Page 31 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 SCHEMATIC BLACK BATTERY FUSE STARTER AMMETER (OPTIONAL) BLACK WHITE SOLENOID CLUTCH / BRAKE (PEDAL UP) WHITE SEAT SWITCH IGNITION (NOT OCCUPIED) SWITCH...

  • Page 32: Repair Parts

    For Parts Call K&T 606-678-9623 or 606-561-4983 REPAIR PARTS TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 ELECTRICAL www.mymowerparts.com...
  • Page 33 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 ELECTRICAL KEY PART NO. NO. DESCRIPTION 163465 Battery 74760412 Bolt Hex Hd 1/4-20 unc x 3/4 176689 Box Battery Fender 176138 Switch, Interlock...
  • Page 34 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 CHASSIS AND ENCLOSURES www.mymowerparts.com...
  • Page 35 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 CHASSIS AND ENCLOSURES KEY PART NO. NO. DESCRIPTION 174620 Chassis 176554 Drawbar 17060612 Screw 3/8-16 x 3/4 155272 Bumper Hood/Dash 174643X011 Saddle Slkscr Flat Lt 6 Sp...
  • Page 36 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 GROUND DRIVE www.mymowerparts.com...
  • Page 37 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 GROUND DRIVE KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION - - - - - - Transaxle Peerless 73680600 73680500...
  • Page 38 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 STEERING ASSEMBLY www.mymowerparts.com...
  • Page 39 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 STEERING ASSEMBLY KEY PART NO. NO. DESCRIPTION 184704X428 Wheel Steering Auto Black 175131 Axle Asm Front 169840 Spin dle Asm Lh 169839...
  • Page 40 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 ENGINE OPTIONAL EQUIPMENT Spark Arrester KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 19091416 Washer 9/32 x 7/8 x 16 Ga.
  • Page 41 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 SEAT ASSEMBLY KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 140117 Seat 72050412 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2...
  • Page 42 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 DECALS KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 181249 De cal Clutch/brake 156867 De cal Instruction Operat English 184943...
  • Page 43 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 LIFT ASSEMBLY 17 18 20 KEY PART NO. NO. DESCRIPTION 159460 Wire Asm Inner/Sprg w/Plunger 159471 Shaft Asm Lift 105767X Pin Groove...
  • Page 44 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 MOWER DECK 153 154 42_deck_man-t-path_3 www.mymowerparts.com...
  • Page 45 For Parts Call K&T 606-678-9623 or 606-561-4983 TRACTOR - - MODEL NUMBER WA15542A, PRODUCT NUMBER 954 56 94-17 MOWER DECK KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 165892 Mower Deck Assembly, 42" 106932X Knob 144959 V-Belt, 42" Mower...
  • Page 46 For Parts Call K&T 606-678-9623 or 606-561-4983 SERVICE NOTES www.mymowerparts.com...
  • Page 47 For Parts Call K&T 606-678-9623 or 606-561-4983 www.mymowerparts.com...
  • Page 48 For Parts Call K&T 606-678-9623 or 606-561-4983 00273 www.mymowerparts.com...
