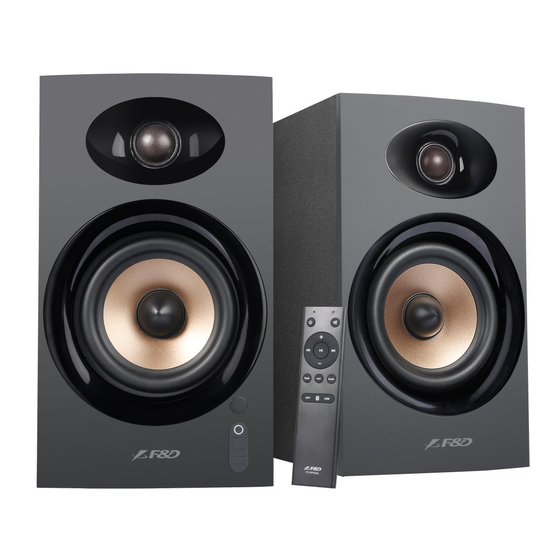

F&D R23BT Operation Manual

Locating

•
Place the speakers symmetrically to the listeners to the distance not less than one metre.
•
Port tube is located at the back panel of the speaker cabinet, please locate it about 20—30 cm
from the wall or other object.

Connection diagram

Control panel functions:

AUX IN USB Play
Optical Input
Model No.:R23BT
: a. Long press to Power ON/OFF the unit.
b. Short press to select Bluetooth,AUX,USB play and Optical mode.
: Press it to increase the volume level
: Press it to decrease the volume level

Remote Control

Standby: Short press to power on/off the unit
Mute: Short press to mute or unmute
Volume increase: Press to increase volume level
Previous song: Under USB and Bluetooth mode,
short press to select previous song
Next song: Under USB and Bluetooth mode, short
press to select next song
Volume decrease: Press to decrease volume level
Treble mode: Short press "Treble" first, then press volume
increase or volume decrease to adjust"Treble" level
BASS mode: Short press "BASS" first, then press volume
increase or volume decrease to adjust "BASS" level
AUX mode: Short press to select AUX mode
USB mode: Short press to select USB play mode
Optical mode: Short press to select Optical mode
Bluetooth mode: Short press to select Bluetooth mode
Optical cable
Model No.:R23BT
Singal Cable
100-240V
Audio output
~50/60Hz 0.3A
Power Cable
IR window
Power ON/OFF
and source function
Volume increase
Volume increase
Standby
Previous song
Treble mode
Op�cal mode
FD-SPK021
R23BT

Safety precautions

• Never push objects of any kind (needles, hair-pins, coins, insects) into this system.
• Do not put the system in damp circumstances, prevent from ingress of moisture and dust. (Do not
place flower vases and other objects on it).
• Prevent the system from heating. (Do not install the system near heat sources and prevent it from
direct sunlight).
• Do not use petrol, alcohol and other solvents when cleaning, as they may damage stained surface.
Clean only with dry soft cloth.
• In order to avoid electric shock and other accidents, never open the back cover for repair without
any professional guidance.
• Switch off the power and take off the plug from the power jack when the system is not on work.

Notes:

The specifications may be changed without preliminary notice.

Safety Instructions

1. Do not install this equipment in a confined or building-in space such as a book case or similar unit, and
remain a well ventilation conditions. The ventilation should not be impeded by covering the ventilation
openings with items such as newspaper, table-cloths, curtains etc.
2. WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with
liquids, such as vases, shall not be placed on apparatus.
3. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily
operable.
4. Correct Disposal of this product. This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for environmental safe
recycling.
5. Frequency: 2.402GHz-2.48GHz
6. The Max. transmit power: 10dBm

Bluetooth mode

1. Active "Bluetooth" function on your device and search for "Fenda R23BT" .Enter "0000" if your
device asks for the PIN code.
2. After pairing successfully, blue LED bright, and ready for playing music. Recommend to adjust
suitable volume before playing music.
Notice: After switch to Bluetooth source,the unit will automatically search the Bluetooth device and
connect it.If the device paired before. If can't find paired device,it will enter pairing mode
automatically and the blue LED will flash quickly. Bluetooth device should active "Bluetooth" function
during pairing and search for "Fenda R23BT" .

Bluetooth pairing

Switch to Bluetooth mode, R23BT will automatically search the Bluetooth device. If the device paired
before, R23BT will connect automatically. If can't find paired device, R23BT will enter pairing mode
automatically, bluetooth LED flashes quickly.
1. Active "Bluetooth" function on your device and search for "Fenda R23BT". Enter "0000" if your device
asks for the PIN code..
2. After pairing successfully, bluetooth LED will be bright, and ready for playing music.Recommend to
adjust suitable volume before playing music.

Package contents

Mute
Speakers ------------------------------- 1set
Operation Manual ------------------- 1pc
Volume increase
Play/Pause 3.5mm to 3.5mm stero cable ----- 1pc
Next song
3.5mm to RCA stero cable -------- 1pc (optional)
Volume decrease
Connection Cable ------------------- 1pc
AUX mode
Remote control ----------------------- 1pc
BASS mode
Bluetooth mode
USB mode
Specification
Power output--------------------------------- 20W x2
Driver units:
woofer ---------------------------------------------4" 6
tweeter --------------------------------------------1" 8
Separation -------------------------------------≥40dB
S/N Ratio ---------------------------------------≥70dB
Frequence Response ----------------65Hz~20KHz
Power input -------------100-240V~50/60Hz 0.3A
Product dimensions ----W162xD135xH238mm
Product net weight ----------------------------3.5kg
