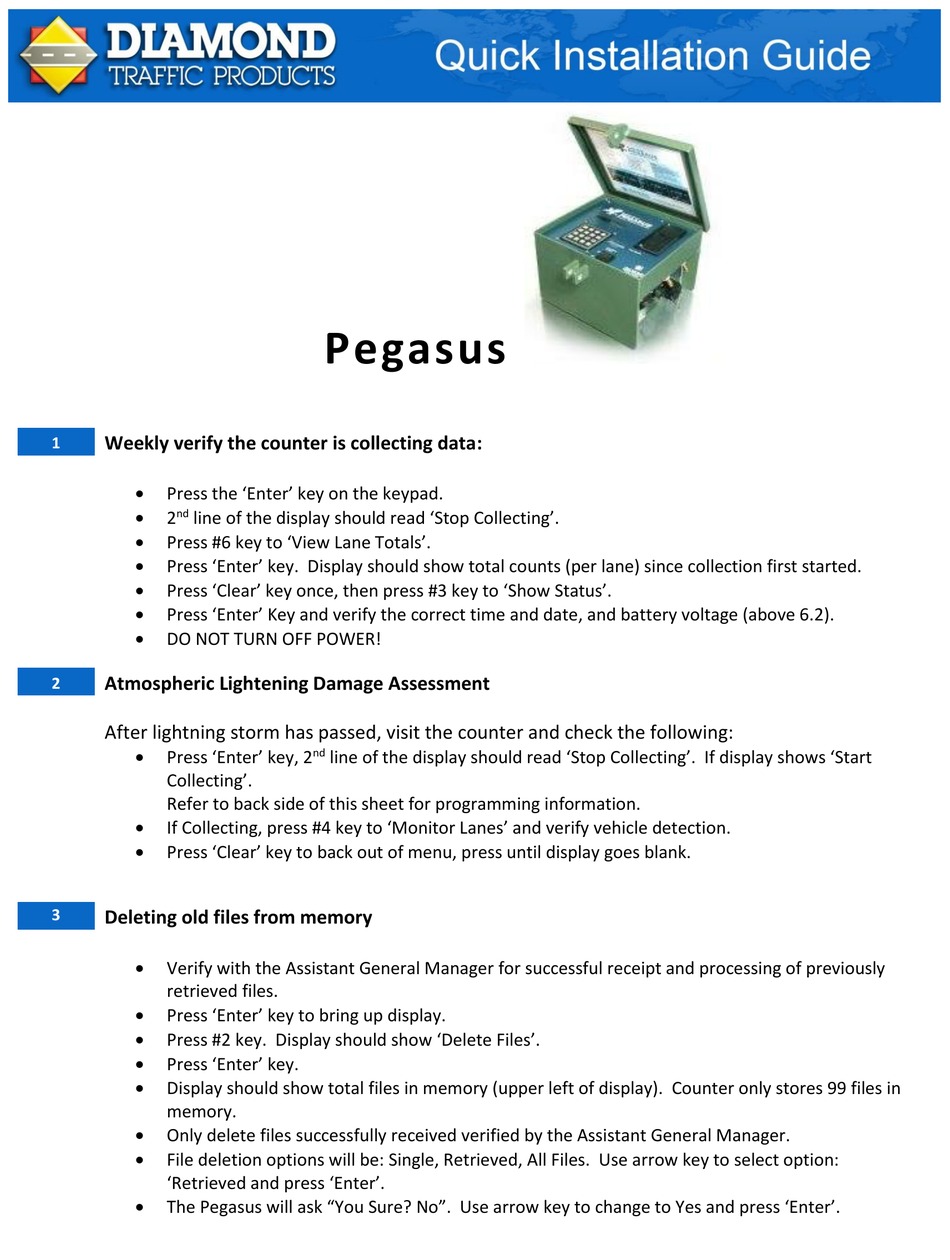

Diamond Traffic Products Pegasus Quick Installation Manual

Weekly verify the counter is collecting data:

1

Press the 'Enter' key on the keypad.

nd
2 line of the display should read 'Stop Collecting'.

Press #6 key to 'View Lane Totals'.

Press 'Enter' key. Display should show total counts (per lane) since collection first started.

Press 'Clear' key once, then press #3 key to 'Show Status'.

Press 'Enter' Key and verify the correct time and date, and battery voltage (above 6.2).

DO NOT TURN OFF POWER!

Atmospheric Lightening Damage Assessment

2
After lightning storm has passed, visit the counter and check the following:

Press 'Enter' key, 2
Collecting'.
Refer to back side of this sheet for programming information.

If Collecting, press #4 key to 'Monitor Lanes' and verify vehicle detection.

Press 'Clear' key to back out of menu, press until display goes blank.
3

Deleting old files from memory


Verify with the Assistant General Manager for successful receipt and processing of previously
retrieved files.

Press 'Enter' key to bring up display.

Press #2 key. Display should show 'Delete Files'.

Press 'Enter' key.

Display should show total files in memory (upper left of display). Counter only stores 99 files in
memory.

Only delete files successfully received verified by the Assistant General Manager.

File deletion options will be: Single, Retrieved, All Files. Use arrow key to select option:
'Retrieved and press 'Enter'.

The Pegasus will ask "You Sure? No". Use arrow key to change to Yes and press 'Enter'.
Pegasus
nd
line of the display should read 'Stop Collecting'. If display shows 'Start
