Theraband VECTOR Owner's Manual

Hide thumbs Also See for VECTOR:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VECTOR and is the answer not in the manual?

Questions and answers

Related Manuals for Theraband VECTOR

Summary of Contents for Theraband VECTOR

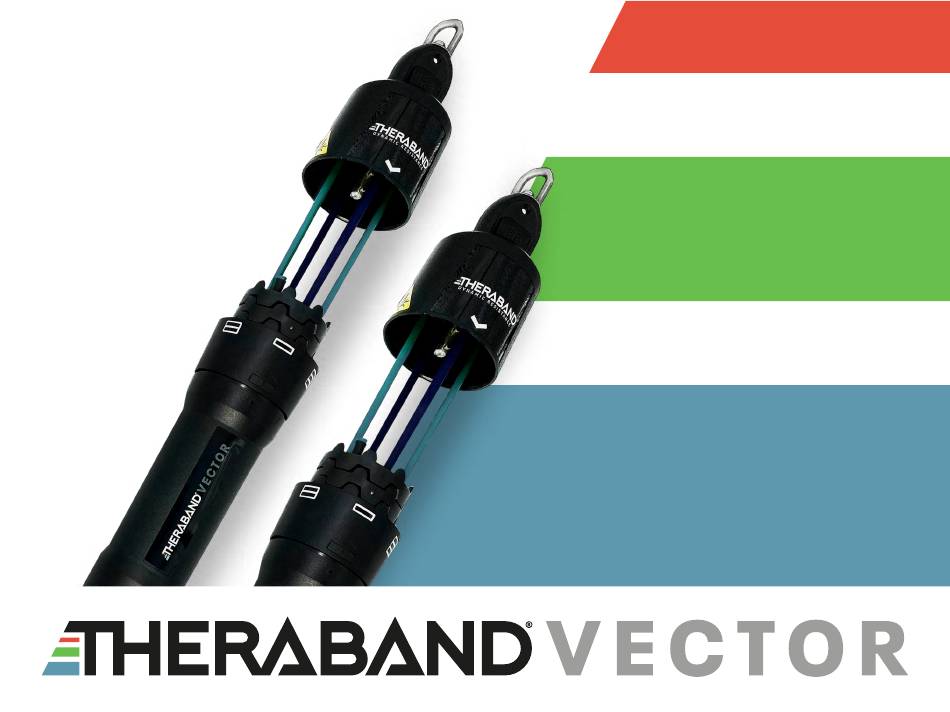

  • Page 1 OWNER'S MANUAL...

  • Page 2: Table Of Contents

    2.1 Overview 2.2 Service and Contact Information Nomenclature Operating Instructions Inspection & Part Replacement 5.1 Inspecting TheraBand VECTOR Tubes 5.2 Replacing single or multiple TheraBand VECTOR Tubes Maintenance & Troubleshooting 6.1 Preventive Maintenance Tips 6.2 Preventive Maintenance Schedule Specifications OWNER'S MANUAL...

  • Page 3: Limited Warranty

    LIMITED WARRANTY © 2021 Kayezen LLC by TheraBand. All rights reserved. TheraBand™ is a trademark of TheraBand, LLC. Any use of this trademark without the express written consent of Kayezen LLC by TheraBand, LLC or its affiliated companies is forbidden.
  • Page 4 TheraBand may elect, without charge to purchaser for may vary from state to state. Contact ΚΑΥΖΕΝ by TheraBand, either parts or labor.

  • Page 5: Safety Warnings

    SAFETY • Before each use remove cover and review all warnings on internal shaft. • The VECTOR must be attached to an anchor point that is capable of WARNINGS resisting loads of at least 91 Kg. • Connect the VECTOR to an anchor point using only carabiners load rated for at least 91 Kg or those supplied by TheraBand.
  • Page 6 CAUTION INJURY AND/OR PROPERTY DAMAGE MAY OCCUR IF THE FOLLOWING PRECAUTIONS ARE NOT FOLLOWED • Do not attempt any maintenance or repair procedure unless you are qualified and equipped to perform the procedure properly and safely. E-Mail: clientsuccess@kayezen.com • Make sure that the exercise area around the equipment is clear of any obstructions or tripping hazards prior to exercising on the equipment.

  • Page 7: Introduction

    • Before each use remove cover and review all warnings on internal shaft. • The ability to change the Weight Equivalent Pull (WEP) level by simply turning the cap at the top of the VECTOR to select one of three user configurable resistance levels.
  • Page 8 Group exercise VECTORs. The vertical axis of the chart is for the various ways the VECTOR can be configured with the first letter being the TVTs in disc 1 (L=Light, H=Heavy), second letter is the TVTs in disc 2 and third letter is the TVTs in disc 3.

  • Page 9: Service And Contact Information

    2.2 Service and Contact Information HOW TO OBTAIN PRODUCT SERVICE 1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product and its features and workouts. 2. Locate and write down the serial number of the unit, which is located on the center shaft of the product.

  • Page 10: Nomenclature

    NOMENCLATURE The following illustrations show the names for various components of the VECTOR as used in this manual. Swivel Cap Release Internal View – Cap and removable cover not shown Cap Assembly Swivel assembly (includes number of discs selected) Resistance Level Indicator...

  • Page 11: Operating Instructions

    VECTOR will depend on the particular of accessories to allow resistance to SKU purchased. A video showing how be applied to various points on the to use a VECTOR is also available at body. www.kayezen.com. OWNER'S MANUAL...
  • Page 12 Section 2.1). Picture illustrates 2 discs being selected as indicated by the 2 blue lines shown under the arrow at the bottom of the TheraBand logo. Perform the exercise by pulling the TheraBand certified accessory out to the desired range of motion and back to the start of the desired range of motion.

  • Page 13: Inspection & Part Replacement

    Remove outer removable cover by pushing the cover slightly toward the swivel end of the & PART VECTOR. The cover is shown in the picture in the locked position where REPLACEMENT the arrow on the upper portion of the base assembly aligns with the locked lock icon on the removable cover.
  • Page 14 Visually inspect each TVTs for signs of abrasion or “pilling” on the surface of the tube concentrating on the portion of the TVT nearest the swivel end of the VECTOR. Picture shows a TVT that has snapped with protective Kevlar string intact. 5.1.4 Replace any TVTs necessary following the procedure in section 5.2.

  • Page 15: Replacing Single Or Multiple Theraband Vector Tubes

    • Replace all TVTs every six months or sooner if they appear worn or abraded. Completely remove the TVT from the VECTOR. DO NOT remove more The following section provides than one TVT at a time. Removal instructions on replacing single or of multiple TVTs may cause disc multiple TVTs.
  • Page 16 5.2.3 Remove outer removable cover by pushing the cover slightly toward the swivel end of the VECTOR. The cover is shown in the picture in the locked position where the arrow on the upper portion of the base assembly aligns with the locked lock icon on the removable cover.
  • Page 17 5.2.6 Push the released TVT slightly through the discs toward the swivel end of the VECTOR until the cone end of the TVT is accessible, then pull the TVT out through the disc assembly. 5.2.7 Completely remove the TVT from the VECTOR.
  • Page 18 5.2.11 Re-install the removable cover by sliding the removable cover over the carabiner attachment loop. Align the arrow on the base assembly with the unlocked lock icon and push the removable cover against the upper portion of the base assembly until it stops. 5.2.12 Lock the cover by rotating the cover until the arrow on the base assembly aligns with the locked lock...

  • Page 19: Maintenance & Troubleshooting

    If any looseness as outlined below. The following preventive is found stop using product and maintenance tips will keep the VECTOR contact TheraBand customer service immediately. operating at peak performance: Inspect swivel and all plastic components for wear or cracks.

  • Page 20: Specifications

    Not applicable – unit is not designed to carry body weight. Maximum load Maximum WEP developed by the VECTOR is approximately 50 Kg using heavy TVTs at maximum extension. Maximum extension is defined as just prior to the internal Kevlar® cords in the TVTs becoming taut –...
  • Page 21 ©2021 Performance Health. All rights reserved.
