- Page 1 BROUGHTON PLANT HIRE & SALES 1450/850 LADDERSPAN / 1450/850 MULTI RUNG USERS GUIDE...
- Page 2 USAGE ADVICE FOR ALL TOWER VARIATIONS ERECTION DURING USE • • Check that all components are on site and they are Beware of high winds in exposed, gusty or medium breeze functioning correctly - See Quantity Schedule conditions. We recommend that in wind speeds over 7.7 metres •...
- Page 3 STABILITY: STABILISERS MOBILE OUTRIGGERS Attach one stabiliser to each corner of tower at approx. 45 degrees. Insert adjustable leg/castor assemblies into leg of each outrigger, If handle on clamp is obstructed from tightening, undo and place lock castors. handle on other side of clamp. Attach one outrigger to each corner of the tower at approx.

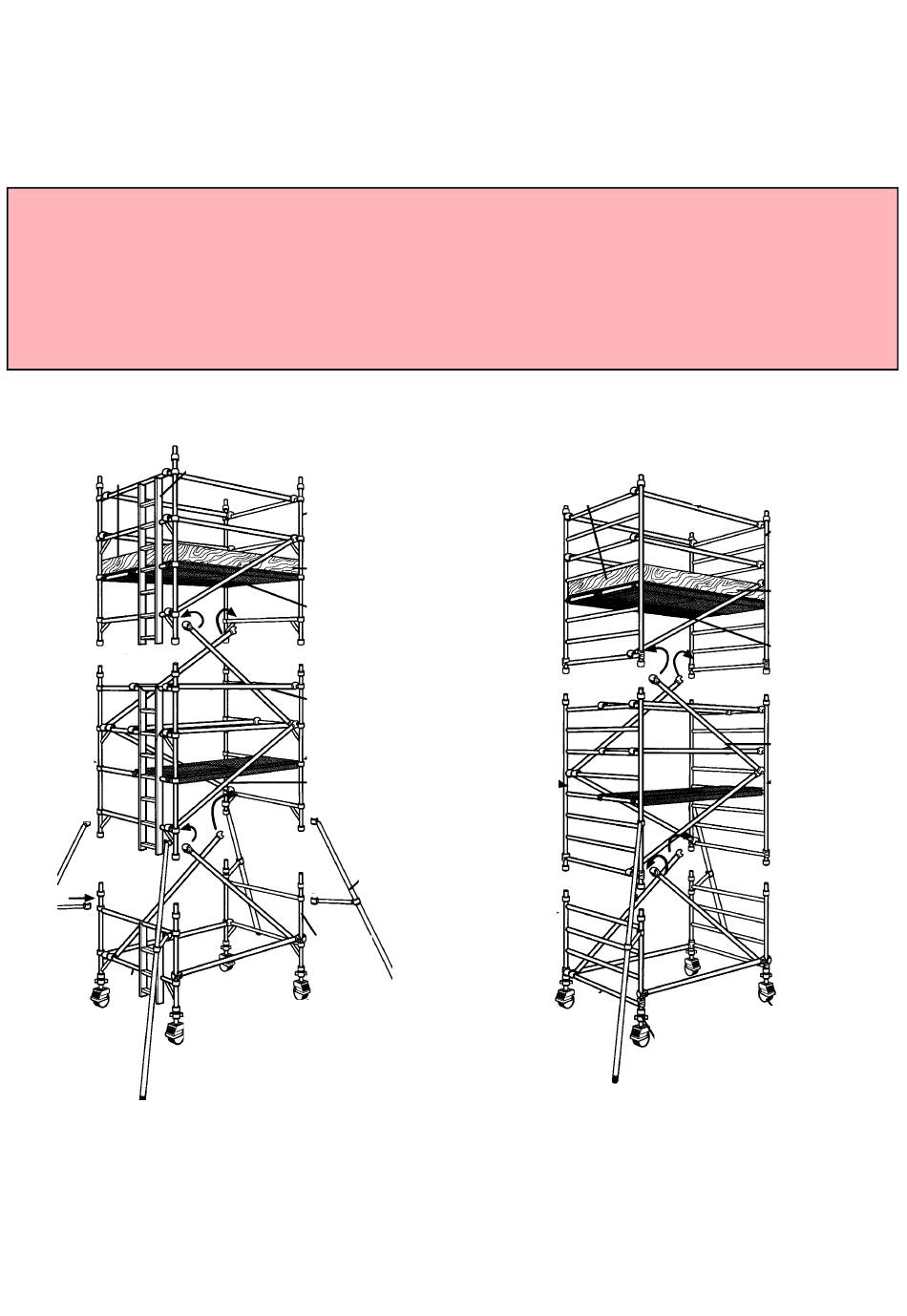

- Page 4 BROUGHTON PLAN 1450 LADDERSPAN ALL ASSEMBLY GUIDE...
- Page 5 ANT HIRE & SALES ALLOY ACCESS SYSTEM...
- Page 7 BROUGHTON PLANT HIRE & SALES 850 LADDERSPAN ALLOY ACCESS SYSTEM ASSEMBLY GUIDE Fit Toe Boards now (See over)
-
Page 9: Assembly Guide
3 rung 1.2 3.2 5.2 7.2 9.2 11.2 4 rung Broughton Plant Recommend, two persons are used to build Towers. Above 4m height it is essential that at least two persons are used. Only climb the tower from the inside. - Page 10 BROUGHTON PLANT HIRE & SALES 1450 3T THROUGH THE TRAP DOOR METHOD Fit Toe Boards now (See over)
- Page 12 BROUGHTON PLANT HIRE & SALES 850 3T THROUGH THE TRAP DOOR METHOD ASSEMBLY GUIDE Platform Heights in Metres Frame at Base 1.7 2.2 3.7 4.2 5.7 6.2 7.7 8.2 9.7 10.2 11.7 12.2 2 rung 2.7 4.7 6.7 8.7 10.7 3 rung 1.2 3.2 5.2 7.2 9.2 11.2...
- Page 14 6 rung 1.2 3.2 5.2 7.2 9.2 11.2 8 rung Broughton Plant Recommend, two persons are used to build Towers. Above 4m height it is essential that at least two persons are used. Only climb the tower from the inside.
- Page 15 BROUGHTON PLANT HIRE & SALES 1450/250 MULTI-RUNG 3T THROUGH THE TRAP DOOR METHOD Fit Toe Boards now (See over)
- Page 17 BROUGHTON PLANT HIRE & SALES 850/250 MULTI-RUNG 3T THROUGH THE TRAP DOOR METHOD ASSEMBLY GUIDE Fit Toe Boards now (See over)
- Page 19 PLATFORMS LOCATED & WINDLOCKS ON HANDRAILS IN PLACE TOEBOARDS LOCATED REFER TO THIS CHECKLIST BEFORE USING EACH TIME BROUGHTON PLANT HIRE & SALES Unit 10, Trade City, Ashton Road, Romford, Essex RM3 8UJ : 01708 383350 F : 01708 383359...
