Summary of Contents for Cerwin-Vega C480

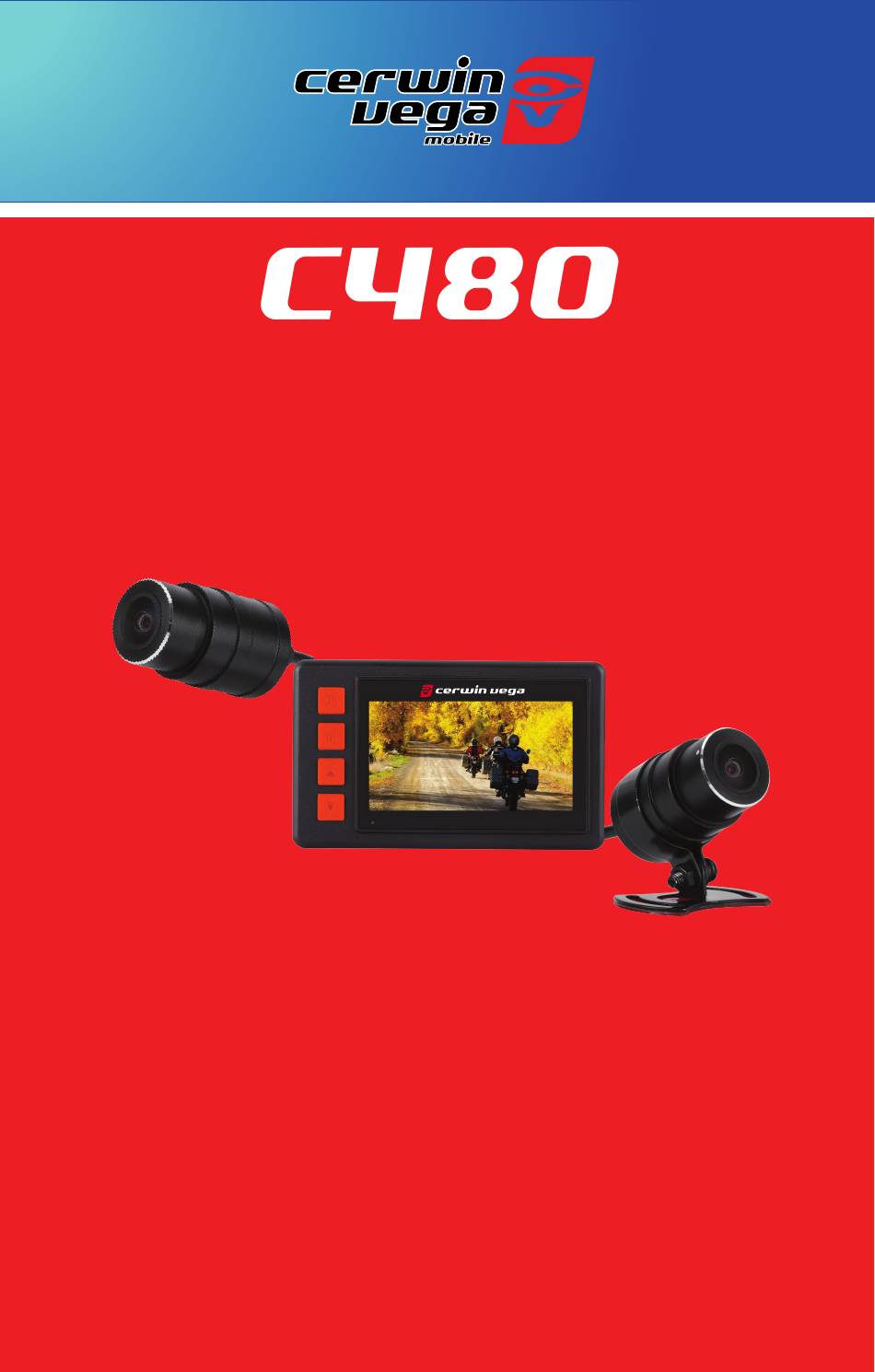

- Page 1 Motor Sport DVR MANUAL...
- Page 2 If you require additional assistance, please contact the Cerwin-Vega Mobile Technical Support Department during business hours (PST) at 213-212-3187. We reserve the right to change the products and specifications at any time without notice.
- Page 3 Operation / Installation Overview Control Panel Display Connection Ports Mounting Hole Speaker Reset Button Micro SD Card Slot...
-
Page 4: Installation
Installation Please install according to the specific motorcycle environment and connect the power cable. The installation diagram is show as below: A. Main Unit B. Front and Rear Cameras C. Power Harness (Red: Swith Power, Yellow: Battery +, Black: Ground or Battery) D. -
Page 5: Video Mode
Instructions Video mode • During recording, press the button on the remote control to lock the current recording file. Press the button again to unlock the locked video in the current recording. Press to take a photo. Press button to start recording, and the upper left side of LCD would show a recording mark and the red mark would flashes during recording. -
Page 6: Operation
Operation Movie Mode Video mode: 1920x1080 FHD 30fps Film cutting time: 3 minutes, 5 minutes, 10 minutes. Voice recording: on/off Explanatory note: record the sound simultaneously when the video is recorded. When the voice recording is closed, it can ensure the video shot is silent. General Settings Key tone: on/off Auto off: Never, 1 minute and 5 minutes... -
Page 7: Long Press
Please use your mobile phone to connect the camera’s WIFI （1） Long press down key for 3 seconds to turn on the WIFI; Camera’s WIFI name: CV-C480-XXXX ; Password: 1234567890 （2） After connecting the camera’s WIFI, users could set the camera’s setting on APP---CAR_DVR （3）... - Page 8 GPS Location and Application Plug the GPS, the display would show the red GPS mark , when the GPS locates successfully,the mark would turn to green and the time would be synchronized automatically. Video Player 1. Please download the player by below link: Google : https://drive.google.com/open?id=1Igs5EHaCsY5kkyYMKSmogYC6J5HtqrdA MediaFire Share...
-
Page 9: Specifications
Specifications Technical Speci cations 2.7” (16:9) TFT LCD Front cam 1080P-AHD English (Default) Language Spanish Russian Chinese Video 1080P 30fps Video Format Mic/Speaker Built-in Light Source 50Hz/60Hz Frequency External Power Supply 5V 2A Rearcam 1080P-AHD Battery Built-in Super capacitor. Notes: the design and specification of the product are subject to the change without notice. - Page 10 Notes...
- Page 11 Please Ship All Warranty Claims With Pre-Authorized RA Number To: CV&DA Holdings, Inc. ATTN: Customer Service Department 3761 S. Hill St. Los Angeles, CA 90007 USA Please Contact Customer Service for Further Warranty Information: U.S.A. Tel: 213-261-4161 / Fax: 213-947-4767 We reserve the right to change the products and specifications at any time without notice.
- Page 12 3761 South Hill Street Los Angeles 90007, USA P 213-261-4161 / F 213-947-4767 2021 Cerwin Vega Mobile All rights reserved. (a division of CV & DA Holdings, Inc.)
