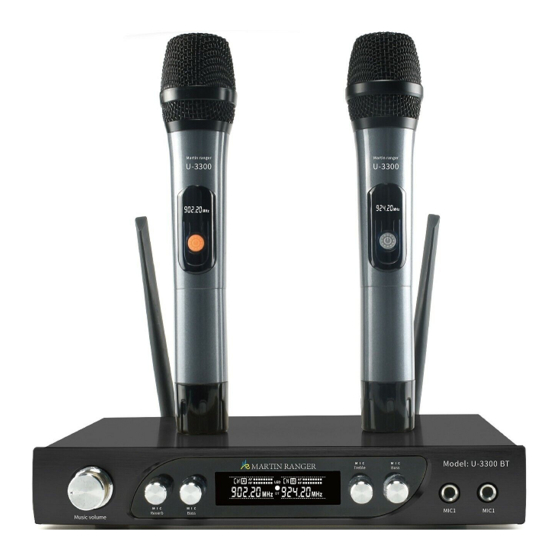

U-3300BT

 To be sure you take maximum advantage of the

features, read this manualcarefully before use.

 For purposes of improvement, specifications and

design are subject to change without notice.

 This manual has been checked carefully,if any

mistakes because of printing or other reason make

you puzzle, please call the dealer.

OWNER'S MANUAL

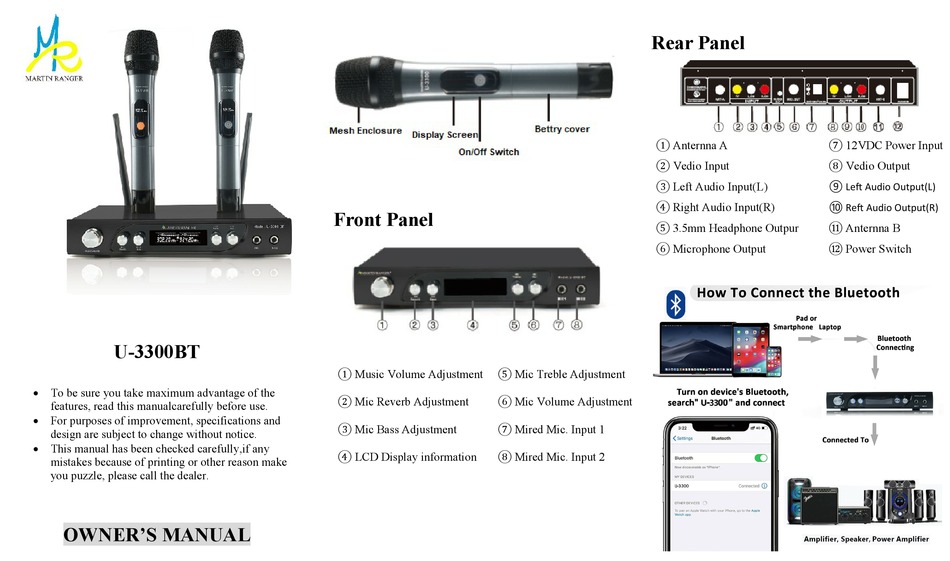

Front Panel

① Music Volume Adjustment

⑤ Mic Treble Adjustment

② Mic Reverb Adjustment

⑥ Mic Volume Adjustment

③ Mic Bass Adjustment

⑦ Mired Mic. Input 1

④ LCD Display information

⑧ Mired Mic. Input 2

Rear Panel

① Anternna A

⑦ 12VDC Power Input

② Vedio Input

⑧ Vedio Output

⑨ Le Audio Output(L)

③ Left Audio Input(L)

④ Right Audio Input(R)

⑩ Re Audio Output(R)

⑤ 3.5mm Headphone Outpur

⑪ Anternna B

⑥ Microphone Output

⑫ Power Switch

Need help?

Do you have a question about the U-3300BT and is the answer not in the manual?

Page 1 Front Panel ⑤ 3.5mm Headphone Outpur ⑪ Anternna B ⑥ Microphone Output ⑫ Power Switch U-3300BT ① Music Volume Adjustment ⑤ Mic Treble Adjustment  To be sure you take maximum advantage of the ② Mic Reverb Adjustment ⑥ Mic Volume Adjustment features, read this manualcarefully before use.
Page 2 Receiver CONNECT ION : Attention  Power: AC110~240V  Please don’t let any objects (dust, raindrop, grit) fall in  Consumed Power: 4W to the machine to cause any damage to it.  Signal To Noise Ratio: >80dB  Please avoid the machine falling onto the ground. Keep ...
