HAMPTON BAY DE2233C Use And Care Manual

Harbor point metal 2pk glider chairs - mariner blue
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item # 1005927155
Model # DE2233C

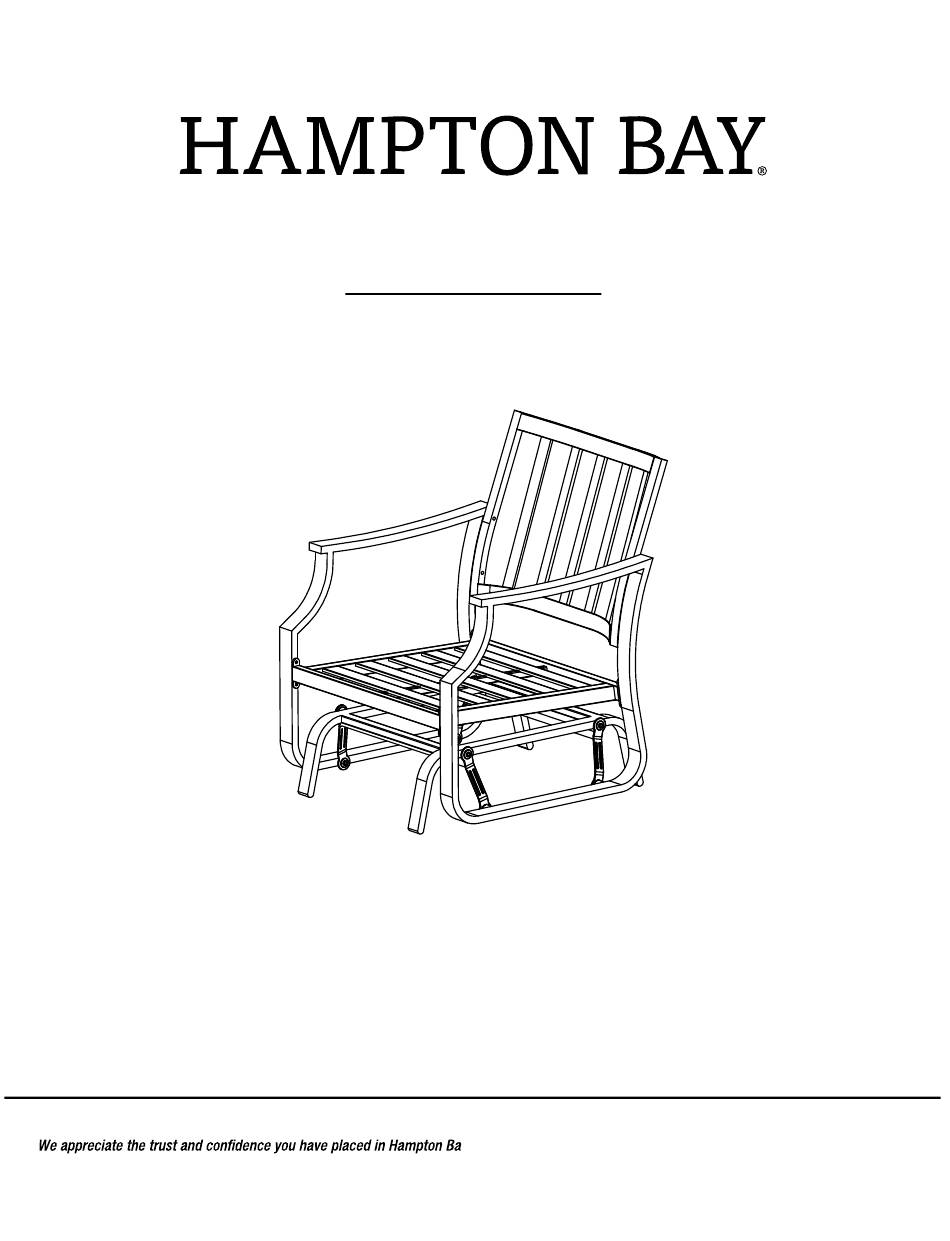

USE AND CARE GUIDE
Harbor Point Metal 2pk Glider Chairs - Mariner Blue
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
Hampton Bay (800-841-1350)
HAMPTONBAY.COM
THANK YOU
y through the p urchase of this single chair . We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading

Related Manuals for HAMPTON BAY DE2233C

Summary of Contents for HAMPTON BAY DE2233C

  • Page 1 . We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production. Contact the Customer Service Team at Hampton Bay (800-841-1350) or visit www.HamptonBay.com.

  • Page 3: Pre-Assembly-Single Chair

    NOTE: Do not tigh en bolts until all parts are assemble this product. connected. HARDWARE INCLUDED- SINGLE CHAIR NOTE: Hardware not shown to actual size. Part Description Quantity Quantity Bolt M6x15 Bolt M8x35 Bolt M6x45 Plastic Washer Hex Wrench HAMPTONBAY.COM Please contact Hampton Bay (800-841-1350) for further assistance.
  • Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Left Arm Right Arm Back Seat Base...

  • Page 5: Assembly-Single Chair

    Assem bly- Single Chair Attaching the right arm to the chair seat Attach the right arm (B) to the chair seat (D) using bolts (AA). Loosely tighten using the hex wrench (EE). HAMPTONBAY.COM Please contact Hampton Bay (800-841-1350) for further assistance.
  • Page 6 Assembly (continued) Attaching the left arm to the chair seat Attach the left arm (A) to the chair seat (D) using bolts (AA). Loosely tighten using the hex wrench (EE).
  • Page 7 Assembly (continued) Attaching the chair back to the arms Attach the back (C) to the arms (A and B) using bolts (CC). Loosely tighten using the hex wrench (EE).
  • Page 8 Assembly (continued) Attaching the base to the arms Attach the base (E) to the arms (A and B) using bolts (BB) and the plastic washers (DD). Loosely tighten using the hex wrench (EE).

  • Page 9: Care And Cleaning-Single Chair

    Assembly (continued) Checking the single chair Fully tighten all bolts. Ensure all connections are secure before use. Care and Cleaning-Single Chair For best results, clean the single chair with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday Hampton Bay (800-841-1350) HAMPTONBAY.COM Retain this manual for future use.
  • Page 11 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 12: Important Safety Instructions

    It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production. Contact the Customer Service Team at Hampton Bay (800-841-1350) or visit www.HamptonBay.com.

  • Page 13: Pre-Assembly-Loveseat

    NOTE: Do not tighten bolts until all parts are assemble this product. connected. HARDWARE INCLUDED- LOVESAET NOTE: Hardware not shown to actual size. Part Description Quantity Quantity Bolt M6x15 Bolt M8x35 Bolt M6x45 Plastic Washer Hex Wrench HAMPTONBAY.COM Please contact Hampton Bay (800-841-1350) for further assistance.
  • Page 14 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Left Arm Right Arm Loveseat Back Loveseat Seat Loveseat Base...

  • Page 15: Assembly- Loveseat

    Assem bly- Loveseat Attaching the right arm to the seat Attach the right arm (B) to the chair seat (G) using bolts (AA). Loosely tighten using the hex wrench (EE). HAMPTONBAY.COM Please contact Hampton Bay (800-841-1350) for further assistance.
  • Page 16 Assembly (continued) Attaching the left arm to the seat Attach the left arm (A) to the chair seat (G) using bolts (AA). Loosely tighten using the hex wrench (EE).
  • Page 17 Assembly (continued) Attaching the back to the arms Attach the back (F) to the arms (A and B) using bolts (CC). Loosely tighten using the hex wrench (EE).
  • Page 18 Assembly (continued) Attaching the base to the arms Attach the base (H) to the arms (A and B) using bolts (BB) and the plastic washers (DD). Loosely tighten using the hex wrench (EE).

  • Page 19: Care And Cleaning-Loveseat

    Assembly (continued) Checking the loveseat Fully tighten all bolts. Ensure all connections are secure before use. Care and Cleaning-Loveseat For best results, clean the loveseat with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 20 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday Hampton Bay (800-841-1350) HAMPTONBAY.COM Retain this manual for future use.
  • Page 21 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 22: Important Safety Instructions

    It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production. Contact the Customer Service Team at Hampton Bay (800-841-1350) or visit www.HamptonBay.com.

  • Page 23: Pre-Assembly-Coffee Table

    HARDWARE INCLUDED- COFFEE TABLE NOTE: Hardware not shown to actual size. Quantity Part Description Quantity Bolt M6x15 Bolt M6x25 Hex Wrench HAMPTONBAY.COM Please contact Hampton Bay (800-841-1350) for further assistance.
  • Page 24 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table Top Leg Connector Bracket Table Leg...

  • Page 25: Assembly-Coffee Table

    Assem bly- Coffee Table Attaching the legs to the table top Attach the legs (K) to the table top (I) using bolts (AA). Loosely tighten using the hex wrench (EE). HAMPTONBAY.COM Please contact Hampton Bay (800-841-1350) for further assistance.
  • Page 26 Assembly (continued) Attaching the leg bracket Attach the leg connector (J) to the legs (K) using bolts (FF). Loosely tighten using the hex wrench (EE).

  • Page 27: Care And Cleaning-Coffee Table

    Assembly (continued) Checking the table Fully tighten all bolts. Ensure all connections are secure before use. Care and Cleaning-Coffee Table For best results, clean the table with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 28 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday Hampton Bay (800-841-1350) HAMPTONBAY.COM Retain this manual for future use.

This manual is also suitable for:
