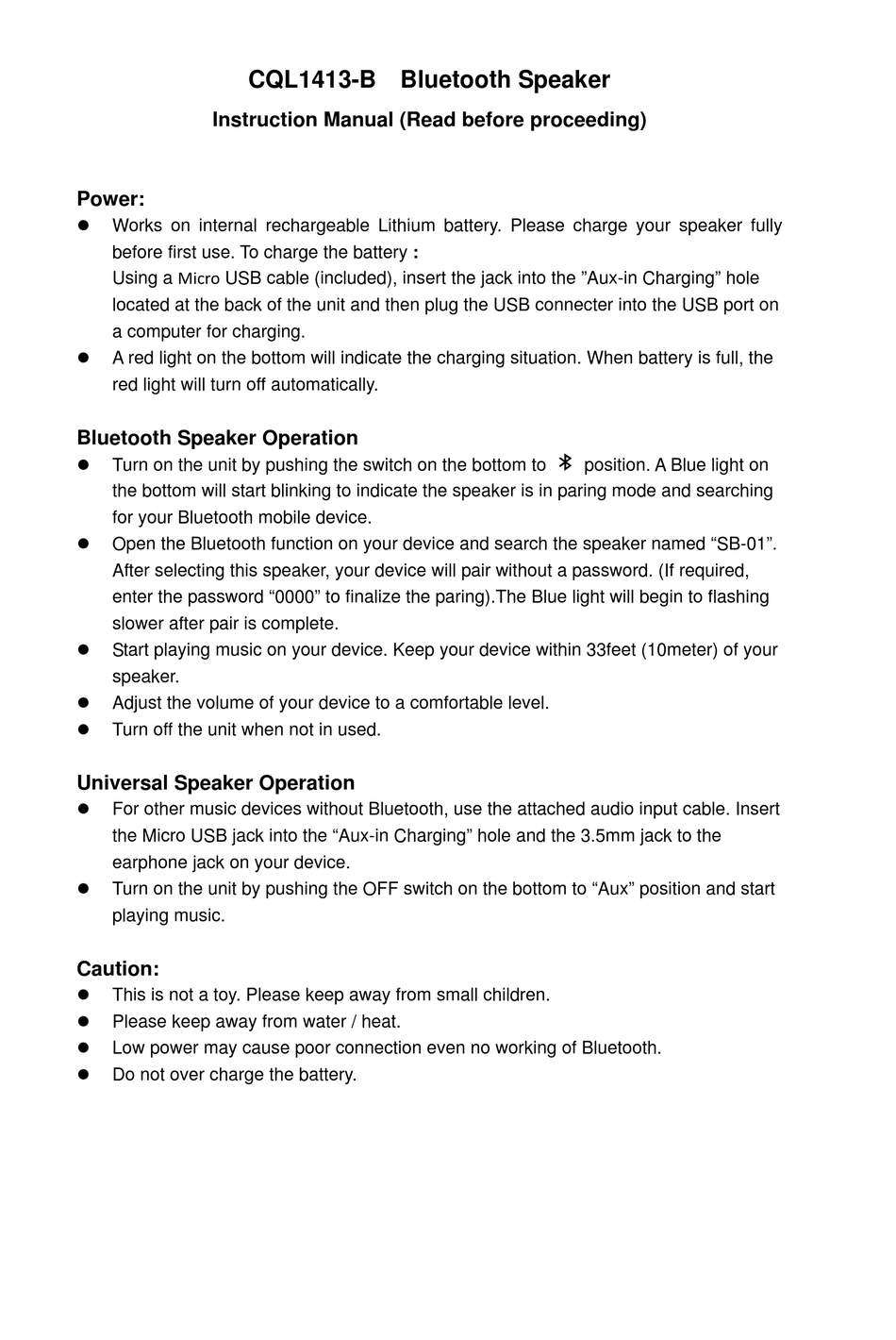

Altec CQL1413-B Instruction Manual

Instruction Manual (Read before proceeding)

Power:


Works on internal rechargeable Lithium battery. Please charge your speaker fully
before first use. To charge the battery :
Using a Micro USB cable (included), insert the jack into the "Aux-in Charging" hole
located at the back of the unit and then plug the USB connecter into the USB port on
a computer for charging.

A red light on the bottom will indicate the charging situation. When battery is full, the
red light will turn off automatically.

Bluetooth Speaker Operation


Turn on the unit by pushing the switch on the bottom to
the bottom will start blinking to indicate the speaker is in paring mode and searching
for your Bluetooth mobile device.

Open the Bluetooth function on your device and search the speaker named "SB-01".
After selecting this speaker, your device will pair without a password. (If required,
enter the password "0000" to finalize the paring).The Blue light will begin to flashing
slower after pair is complete.

Start playing music on your device. Keep your device within 33feet (10meter) of your
speaker.

Adjust the volume of your device to a comfortable level.

Turn off the unit when not in used.

Universal Speaker Operation


For other music devices without Bluetooth, use the attached audio input cable. Insert
the Micro USB jack into the "Aux-in Charging" hole and the 3.5mm jack to the
earphone jack on your device.

Turn on the unit by pushing the OFF switch on the bottom to "Aux" position and start
playing music.
Caution:

This is not a toy. Please keep away from small children.

Please keep away from water / heat.

Low power may cause poor connection even no working of Bluetooth.

Do not over charge the battery.
CQL1413-B Bluetooth Speaker
position. A Blue light on
