ALTEAM RFD-858W User Manual

Hide thumbs
1
2

Advertisement

Table of Contents

Microphone User Manual：
1、Connect the transmitter (11), the USB cable and the supplied AC 5V power adapter.
And then switch on the ON/OFF button (12). The LED light will flash (4).
2、Connect the one side of 3.5mm plug (10) to the audio output equipment (10); connect
the other side to audio input equipment.
3、Switch on the microphone, and the LED turns blue (15).
4、Hold the "Scan" button of microphone (9) and transmitter (15) for approx. 3 seconds at
the same time. The speaker will have "toot toot toot..." sound, then, release the buttons
and pair the other microphone with second Scan button of transmitter (13).
5、When the transmitter receive the signal of microphones, the SCAN1 (1) and the
SCAN2's (5) blue lights will turn on. If one of the microphones is switched off, the
corresponding SCAN light will go out.
6、The two microphones can be used at the same time. In open space, the distance could

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFD-858W and is the answer not in the manual?

Questions and answers

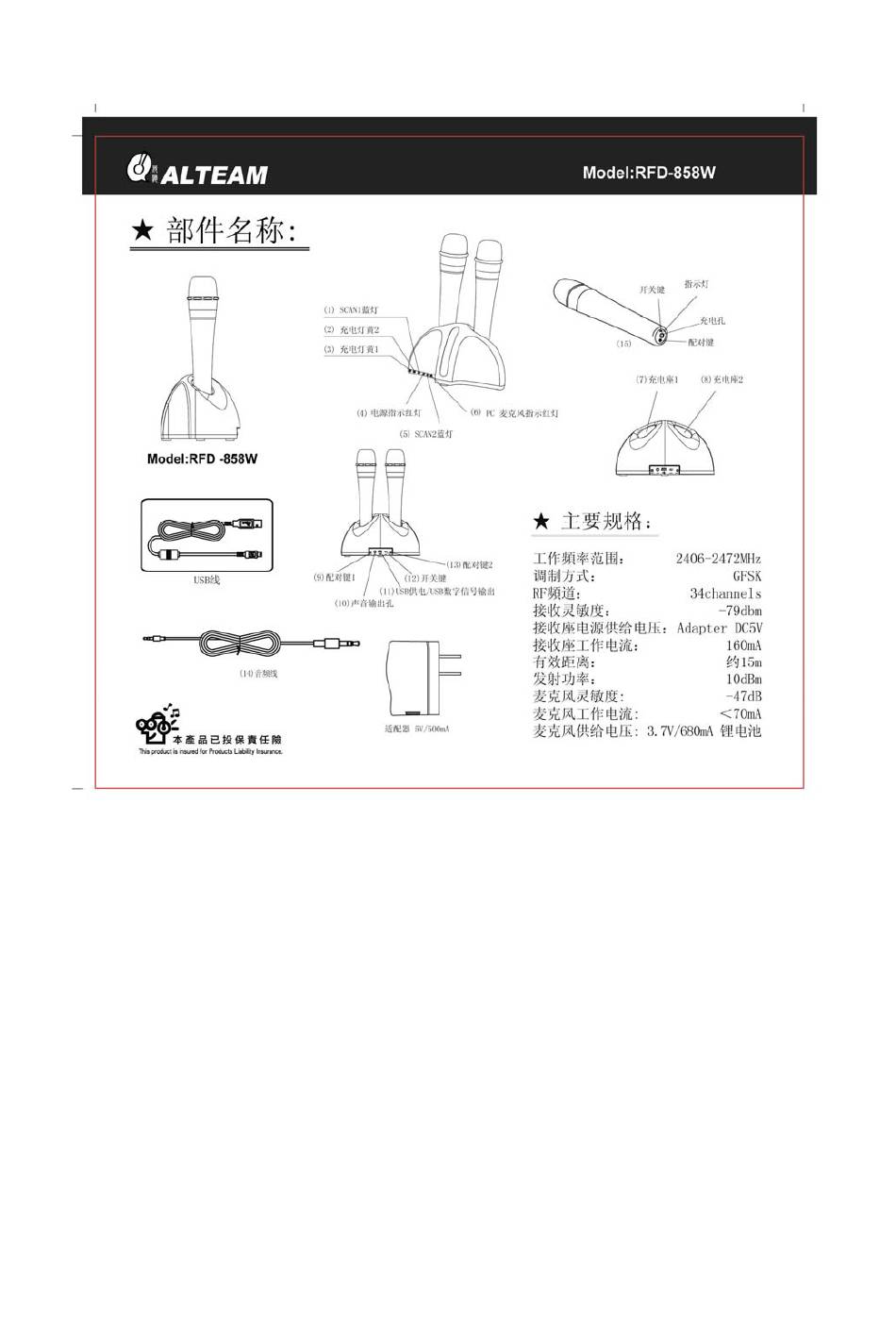

Summary of Contents for ALTEAM RFD-858W

  • Page 1 Microphone User Manual： 1、Connect the transmitter (11), the USB cable and the supplied AC 5V power adapter. And then switch on the ON/OFF button (12). The LED light will flash (4). 2、Connect the one side of 3.5mm plug (10) to the audio output equipment (10); connect the other side to audio input equipment.
  • Page 2 reach 15m. 7、Connect the USB cable and a computer. When the LED (6) turns red, use the microphone to communicate or play games on the computer. 8、If the battery goes out, to put the microphones back to the base (7) (8), and then the LED sign (2) (3) turns yellow.
