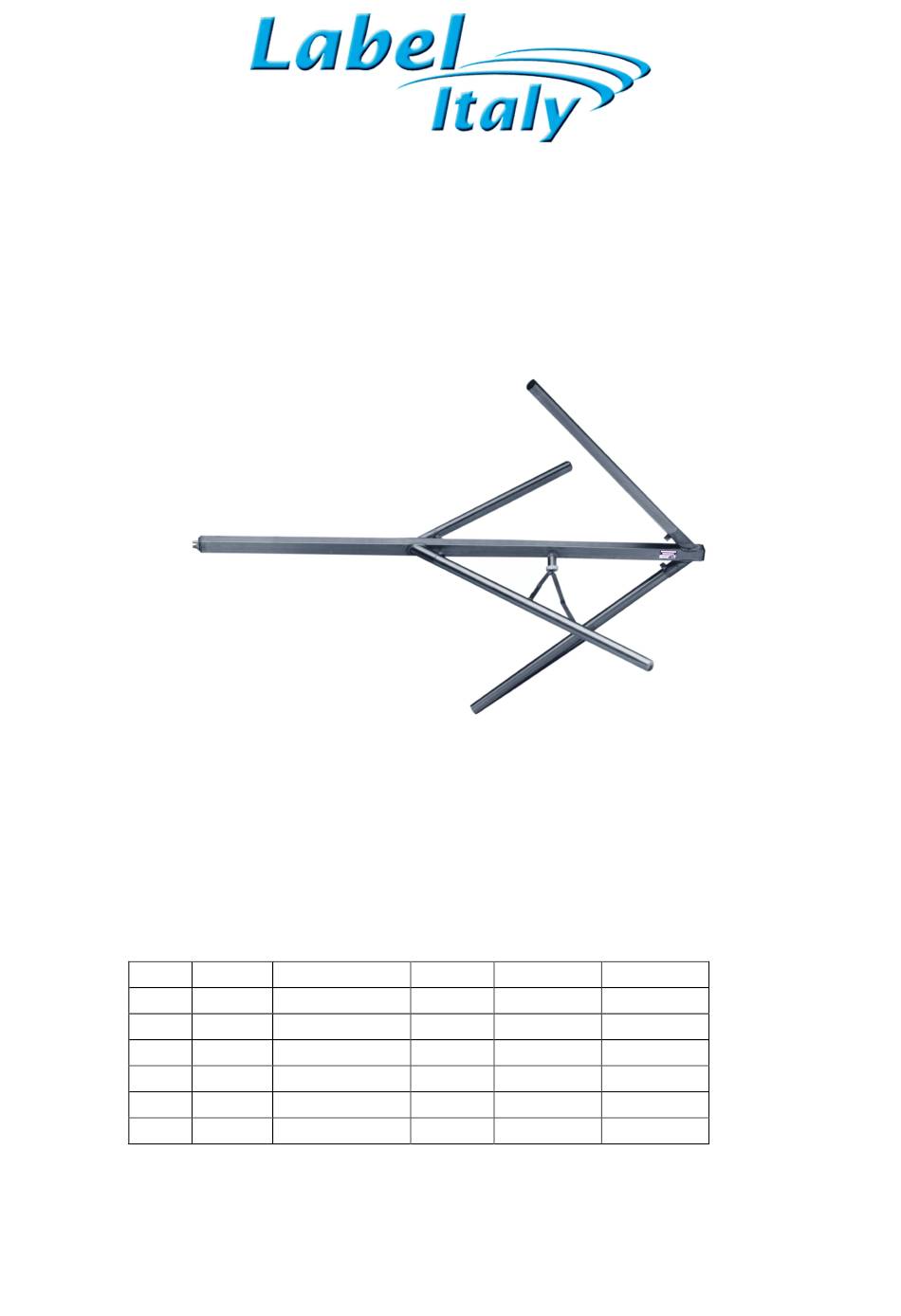

Circular Polarization FM Antenna
These wide band FM antennas, made of Stainless Steel are particularly recommended for
medium Output Power Transmitters.
AKG/7
BAYS
GAIN
1
2
4
6
8
L A B E L I T A L Y S R L - V i a S . A l l e n d e , 5 9 – 4 1 1 2 2 M O D E N A
w e b - w w w . l a b e l i t a l y . c o m
AKG/7
DB
ANTENNA
Vert. dimensions
-1.5
1,8 mt
1.5
4,3 mt
4.5
9,3 mt
6.0
14,3 mt
7.5
19,3 mt
T E L : + 3 9 - 5 9 - 3 6 2 9 9 3
N, M, F
WEIGHT
WIND VEL.
Kg
Km/h
10.50
160
21.00
42.00
63.00
82.00
F A X : + 3 9 - 5 9 - 3 7 6 0 5 6
e - m a i l - i n f o @ l a b e l i t a l y . c o m
WIND LOAD
Kg.
22
Advertisement
Table of Contents
Related Manuals for Label Italy AKG/7
Summary of Contents for Label Italy AKG/7
- Page 1 AKG/7 N, M, F Circular Polarization FM Antenna MOUNTING INSTRUCTIONS These wide band FM antennas, made of Stainless Steel are particularly recommended for medium Output Power Transmitters. AKG/7 BAYS ANTENNA WEIGHT WIND VEL. WIND LOAD GAIN Vert. dimensions Km/h -1.5 1,8 mt 10.50...
- Page 2 SUGGESTED MAST SECTION Is suggested install this Antenna over poles or guyed mast because the section higher than 110mm can increase the SWR value and modify the radiation pattern. DISTANCE ESTIMATION BETWEEN FM ANTENNA BAYS λ Wave Length = 300 : f(MHz) Distance between antenna bays (any antenna types) = λ...
- Page 3 MOUNTING INSTRUCTIONS AKG/7 The antenna must be assembled with the central insulator down. The elements without the hole must be mounted looking to the high while the elements with the hole must be mounting looking down. The elements with the hole have different length and for this reason have been marked with different letters , pay attention to follow the A- B - C - D letters.
