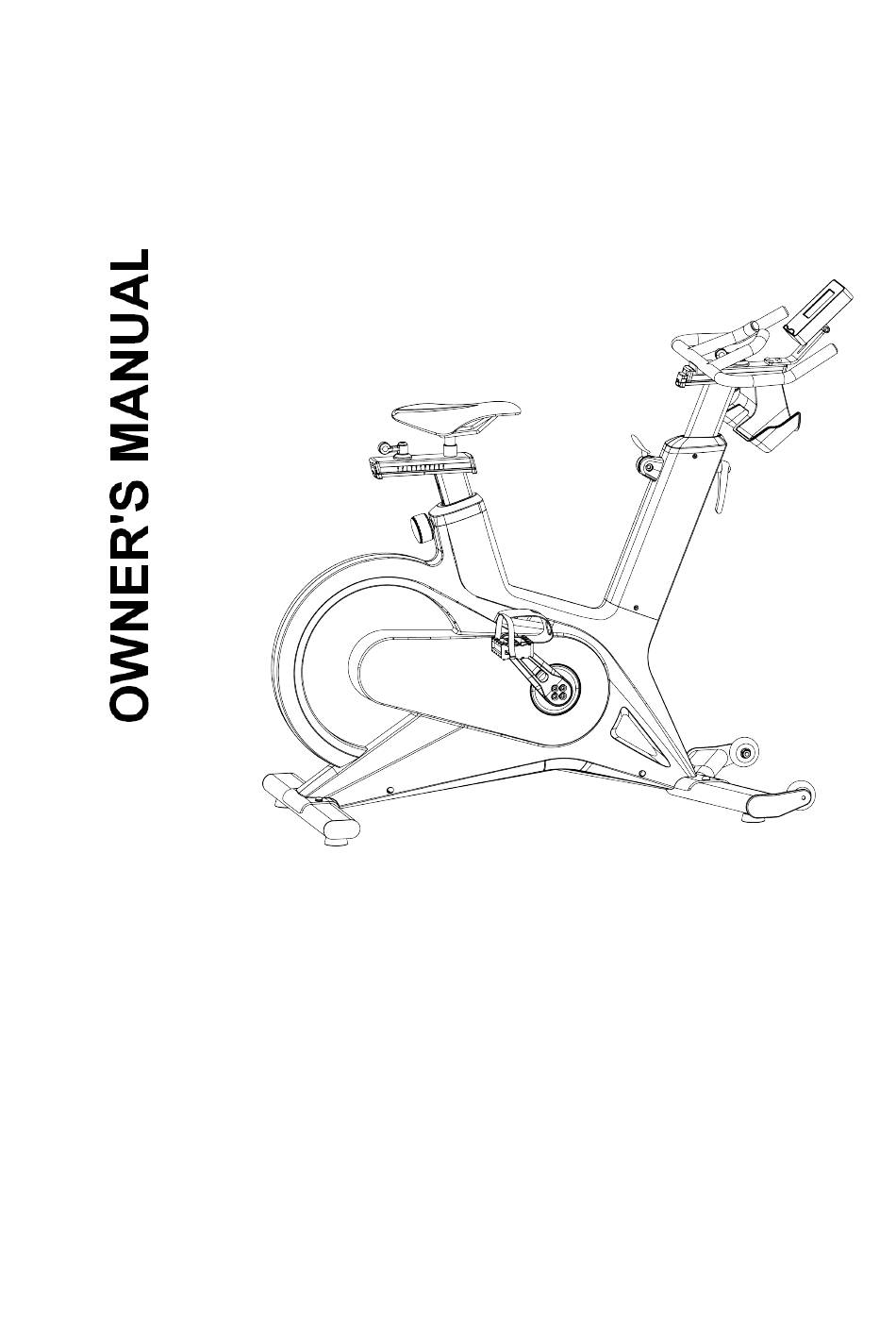

- Page 1 Metagenics Fitness Smart Spin Bike Owner's Manual Company Address: 4640 Caulfeild Drive, West Vancouver, British Columbia, V7W1E8 Canada Company Name: METAGENICS FITNESS INC. www.metagenics.ca Tel: 604-921-2098 Fax: 604-921-2386...
-
Page 2: Safe Use Instructions
Maximum user weight: 350 lbs u The minimum space for this device: 3000x1200x2400mm (LxWxH) u Product parameters are as follows: Metagenics Fitness Smart Spin Bike Model Smart phone, tablet Connectable terminal IOS、Android... - Page 3 1、 Plastic-absorbing tool plate Figure 1 2、Bill of materials Seri Name Quantit Semicircular head cross flower screw M5*12 Numbe Pad Φ5 Nylon mat S1151 Spring Pad Φ5...
-
Page 4: Assembly Steps
Semicircular head cross flower screw M5*16 Cross flower self-tapping screws ST3.5*12 Semicircular head inner hexagon screws M10*60 Pad Φ10 Spring Pad Φ10 Self-locking nuts M10 Inner hexagonal wrench（4mm） Inner hexagonal wrench（5mm） Inner hexagonal wrench（6mm） Inner hexagonal wrench（8mm） cross screwdriver 10-13,15-17 open wrench Assembly Steps STEP1: Please confirm the parts are complete first:... - Page 5 Name quantity Name quantity handle frame adjustment saddle console adjustment bottle cage pedal console rear saddle cover support Plastic-absorb front foot tube ing bag rear foot tube Adapter handle STEP2: Use semicircular head inner hexagon screws M10*60(A1)、pad Φ10(A2)、spring pad Φ10(A3)、self-locking nuts M10 (A4) to fix front foot tube (5) and rear foot tube (6) on the frame(1) ;...
- Page 6 STEP4: Connect exposed end of wire in STEP3 through console rear cover support (11) with console(2), then use semicircular head cross flower screwM5*12(A88) and pad Φ5(A87) to fix console(2) on the handle adjustment(8); and use flat countersunk head cross flower self-taping screw ST3.5*12(A86) to fix console rear cover support (11) on the console(2), and then use nylon mat S1151(A14), washerΦ5(A87), spring washerΦ5（A15）...
- Page 7 STEP5: Insert saddle adjustment (9) into frame (1), and adjust to the proper height, and fix saddle(4) on the saddle adjustment(9). ...
- Page 8 Verification after Assembly 1) The joint parts are connected normally, and the adjustment handles are tightened without looseness. 2) The handle assembly and the saddle assembly are securely fastened with no signs of relative sloshing. 3）The pedals are fixed and there is no looseness. 4）The brakes are properly connected and used normally.
- Page 9 Instruction 1、Adjustment of the position of the handle and the saddle Before exercise, adjust the position of the handle and the saddle as well as display degree according to your height. Loosen the part when you turn the adjustment handle counterclockwise and fix the part when you turn the adjustment handle clockwise.
-
Page 10: Exploded View
Use a 5mm wrench to loosen the two locking screws counterclockwise (turn clockwise to lock, counterclockwise to loosen) as figure 9; adjust a proper console angle and lock it down clockwise. Figure 9 3、Tighten and loosen safe belt on pedal 1) Put your foot into the pedal and tighten the safe belt upward to the right place as shown in Figure 10. - Page 11 S300L Spinning Bike Company Address: Yinhe Economic Development Zone, Ningjin County, Shandong Province, China Company Name: Shandong Dahuzi Fitting Equipment Co.,Ltd Tel:(0086) 534-5534588 (0086) 534-5060988 Fax:(0086)534-5060988 Owner's Manual Part list Serial No. Name Quantity Serial No. Name Quantity Hexagon socket head screws A60 magnet Washer A61 Hexagon socket head screws Spring washer...
- Page 12 Non-slip nut A69 sliding reducer Hexagon socket countersunk head A10 A70 pull-out in 7 shape screws Hexagon socket countersunk head A11 A71 pull-out knob screws A13 Half-round head cross screw A72 reducing sleeve A14 nylon ring A76 nozzle a A15 spring washer A77 nozzle b A16 washer A78 saddle lock pad semicircular head cross A17 Hexagon socket head screws A79 flower screw A18 brake shell 1 A80 washer A19 brake shell 1 A82 speed sensor flat countersunk head cross...
- Page 13 A39 pulley pedal A40 Hexagon socket head screw console base A41 spring washer handlebar slider A45 bearing U-shape plate A46 wave washer idler tighten-up set A47 C ring short sleeve A48 bearing crank A49 washer aluminium decorative shell A50 Non-slip nut rear axle Hexagon socket countersunk head A51 saddle plate screws A52 spring washer flywheel Hexagon socket countersunk head A53 magnet fixing plate screws A54 washer resistance rotating block A55 Non-slip nut...
- Page 14 1.After the bike is powered the console will look like Figure 1. At this point to you can press START to start pedaling and you can increase the magnetic resistance to challenge yourself. This is the quick mode. When you want to stop, you have to press STOP first and then RESET for 5 seconds to erase everything from the console so that the bike is ready to be used again.
- Page 15 6. If you press UP and DOWN to select H01~H03, press MODE to confirm that HRC function is the main function to enter. If no modification is made, the default value is the main function. Press START/STOP to START directly. OR press RESET to return to IDLE MODE. If you press MODE to confirm the setting, set AGE→WEIGHT→TIME→THR in sequence, which can be set cyclically.
- Page 16 Connect to Zwift 1. Where to get Zwift Zwift has mobile and computer versions 0.1.Computer version Windows:http://www.zwift.com/download/pc MAC:http://www.zwift.com/download/mac On PC and MAC, Zwift supports ANT+connection which our consoles does not support. Our console only supports BLE connection to Zwift. 0.2.Mobile devices Be noted: Our consoles only support BLE connection to Zwift. Please use Zwift mobile apps on iOS or Andorid or 4K Apple TV.
- Page 17 After picking up a user, Zwift will ask you to select devices to connect to. Please select POWER SOURCE as circled in the below screen. Zwift will show nearby compatible BLE devices. To pair your phone or tablet via Bluetooth to Zwift select your bike-04668 and then press OK.
- Page 18 Connection successful Upon connection, you shall see screen like below. Power source, cadence and controllable. Make sure these 3 options are connected in green check.
- Page 19 Click ride or training. If you click ride, the road you choose will select the resistance level. In training mode you will be able to change the resistance on the console itself if you want too. Start Zwift Change the resistance level Different from iConsole+app, the console will enable resistance level change at Zwift connection. You can change resistance level by UP to increase or DOWN to decrease.
-
Page 20: Warranty Card
Warranty card Metagenics Smart spin bike Thank you for purchasing the intelligent Metagenics Fitness Smart Spin Bike. Thank you! We will provide warranty service after seeing your proof of purchase according to the relevant terms on the warranty card. Please keep this warranty card in good condition and show it at the time of repair.
