Summary of Contents for Kamasa-TOOLS K 12170
- Page 1 Portable K 12170 Inspection Camera...

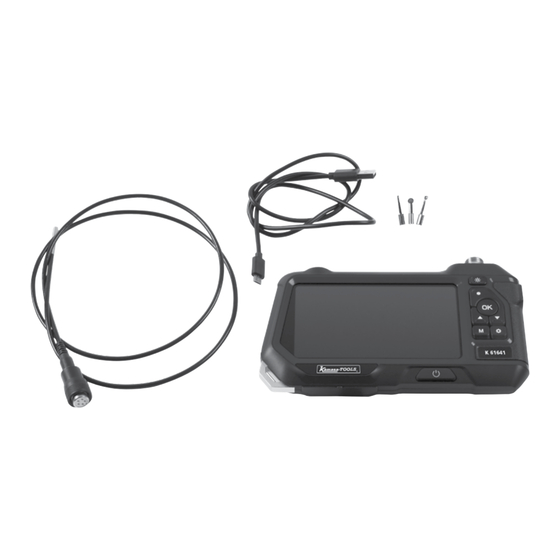

- Page 3 INTRODUCTION The K 12170 is a high performance industrial endoscope with a high resolution five-inch colour LCD display. This is a fully-featured instrument, ergonomically designed so that the main function buttons can be controlled with one hand. The extremely flexible, semi-rigid camera probe is 1 metre long an d just 3.9mm in diameter.
- Page 4 CONTROLS Ref. Description Power button (ON / OFF) Camera probe socket Camera probe LED control Record (take K 12170 photo or start/ stop video) K 12170 OK Enter button (confirm selection) UP and DOWN selection Settings (enter or exit settings...
- Page 5 INSTRUCTIONS Set-up: • Refer to Figure 2: pull back the charging port cover (I) and carefully insert the Micro SD card in socket (P). (32 GB Micro SD card is provided with instrument). Do not remove or refit the Micro SD card if the instrument is switched ON.
- Page 6 INSTRUCTIONS Charging: The internal battery is charged via the USB lead (supplied). Refer to Figure 2: pull back the charging port cover (I) and plug the micro-USB connector of the lead into the micro-USB socket (O). Now connect the USB connector of the lead into a suitable USB port on a PC or 5V USB mains adaptor (not supplied).
- Page 7 The instrument has three separate modes of operation: photo, video and playback. These are selected by pressing the Mode button (H). Refer to Figure 4: The mode symbol (1) on the top left of the screen displays the selected mode. K 12170 00:16 2019-05-24 23:52:16...
-
Page 8: Video Recording
INSTRUCTIONS Recording a still photo image: When the instrument is in photo mode, press the Record button (D) to take a still photo of the camera probe image currently being displayed on the screen. The image will be stored on the Micro SD card. Video recording: When the instrument is in video mode, press the Record button (D) to start video recording. - Page 9 Then refer to Figure 5 and follow the instructions below to access the specific mode settings menu. K 12170 2019-05-24 23:52:16 K 12170...
-
Page 10: Available Settings
INSTRUCTIONS Refer to Figure 5: 1 Press Setting Button (G) to enter the Setting Menu pages. The specific mode settings menu is displayed: (photo / video / playback). 2 Use UP and DOWN selection buttons (F) to navigate through the menus. 3 Confirm the selection by pressing the OK enter button (E). -
Page 11: Main Settings Menu
Date / Time Format Default Setting Version K 12170 2019-05-24 23:52:16 • Auto Power Off: Off / 3 minutes / 5 minutes / 10 minutes. • Language: Default is English, but seven other languages can be selected: Chinese, German, Japanese, Spanish, French, Italian and Russian. -
Page 12: Reset Button
INSTRUCTIONS Copying image and video files to the PC or Laptop: There are two methods of transferring files from the instrument to your PC or laptop: 1 Remove the Micro SD card (instrument switched OFF), and using a suitable card reader, transfer the files to the PC or laptop. 2 With the instrument switched ON, connect the USB lead (supplied) to the instrument and the PC;... -
Page 13: Specifications
SPECIFICATIONS Screen 5-inch colour LCD Screen resolution 1280 x 720 Probe resolution 1280 x 720 Saved image resolution 1920 x 1080 Video recording resolution 1280 x 720 Ports Micro USB (charging port) + Micro SD card port LED torch 4 LED torch Battery 3500mAh rechargeable Lithium battery Operating temperature... - Page 14 PRECAUTIONS • Always refer to instructions before use. • Do not remove or refit the Micro SD card if the instrument is switched ON. Power OFF the instrument before removing or refitting the Micro SD card. Failure to carry out this advice will damage the instrument. •...
- Page 16 Kamasa Tools is a registered trademark of KG Knutsson AB, 191 81 Sollentuna, Sweden K 12170 www.kamasatools.com...
