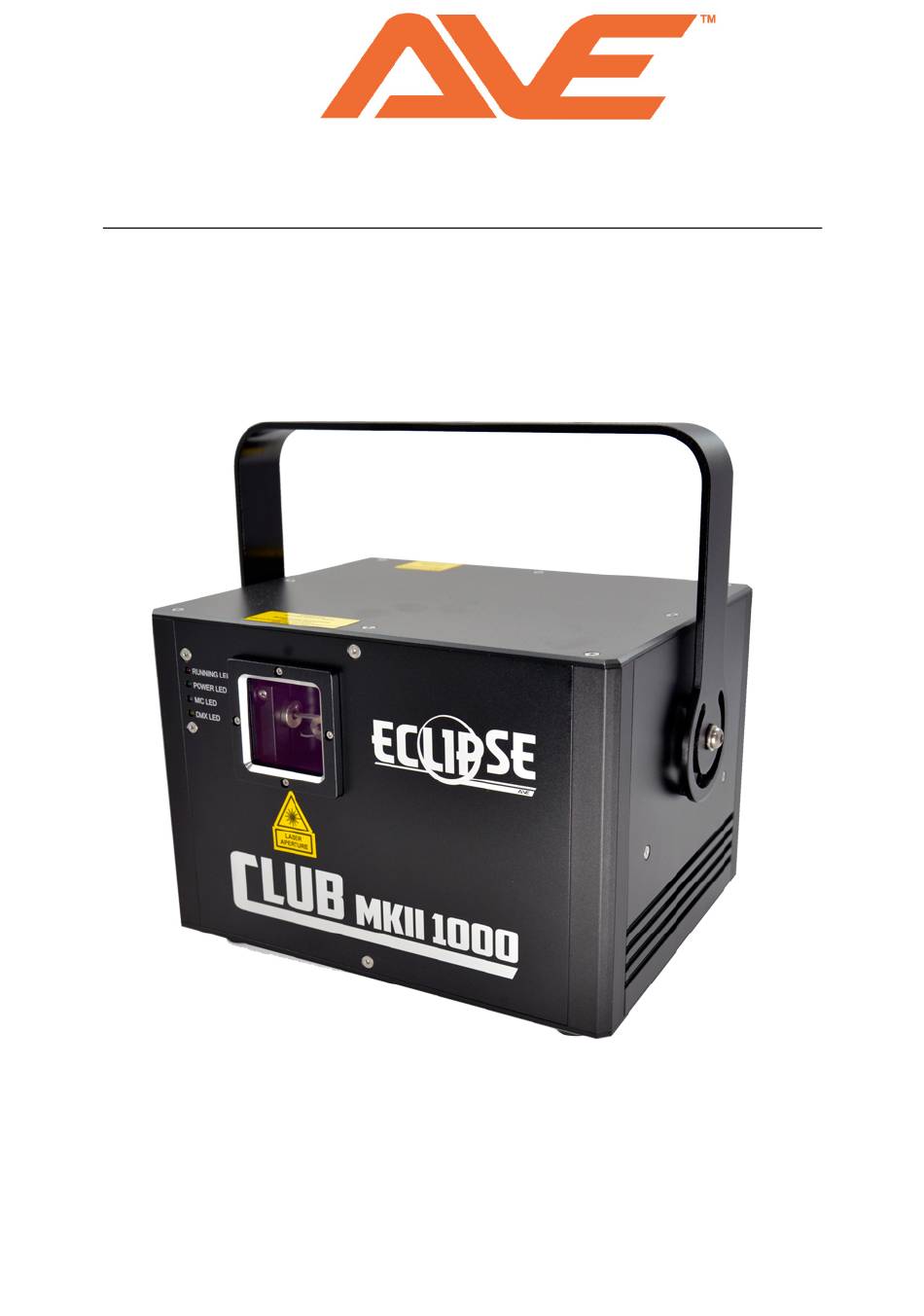

- Page 1 ECLIPSE CLUB 1000MKII User Manual...
-
Page 2: Table Of Contents
T able of Contents Safety ..................3-5 Important Safety Information ............3 Precautions..................4 Safety Recommendations ............... 4 Suspension ..................5 Mounting ..................5 Description ................6 ................Features Setup ..................7-8 ................Operation ................Menu Map ..............DMX Channel .............. -
Page 3: Safety
Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR ATTEMPT TO OPEN THE LIGHTING FIXTURE. -
Page 4: Precautions
Precautions If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C. -
Page 5: Suspension
Mounting The Eclipse Club 1000mkII includes a hanging bracket that can be fitted using a hex tool (not included) allowing you to hang the fixture upside down. It is strongly advised to install the safety loop and fit an appropriate safety cable* when hanging the fixture. -
Page 6: Description
Description Eclipse Club 1000mk2 is a professional series RGB animation laser designed for club, events, and parties. The Club 1000 is great for smaller venues and for mobile entertainers wanting a great looking laser effect. Capable of functioning as a standalone unit with loads of built in laser shows and patterns, or controllable with both DMX and ILDA (for those who want to customise their own laser show). -
Page 7: Setup
Setup To set up your AVE Eclipse Club 1000mk2 follow the below steps; 1. Mount the item on your lighting stand or on the floor 2. Connect the AC power cord from a grounded mains 240v power source 3. Turn the fixture on. -
Page 8: Menu Map
Menu Map DMX512 Running A001 DMX Address display (value is set in the setting menu) AUTO Running Effect 1 Graphics and beams Effect 2 Beams only Effect 3 Graphics only SOUND Running Effect 1 Graphics and beams Effect 2 Beams only Effect 3 Graphics only Setting... -
Page 9: Dmx Channel
DMX Channels 12 CH Control Laser Off 0 - 41 Laser Off 42 – 83 DMX Mode (CH2 to CH12 active) Mode Auto 84 – 125 Built-in Animations and Graphics Active 126 – 167 Built-in Beams and Patterns Sound 168 - 209 Built-in Beams and Patterns Active 210 - 251... -
Page 10: Specifications
Specifications Type: RGB Laser System Laser Class: Maximum Output: 1000mW Scanner Speed: 25kpps @ 8° Modulation: RGB Module: Red- 638nm Green- 532nm Blue- 520nm ILDA Connection: 25-pin ILDA cable DMX Channels: Power Supply: 240V AC / 50Hz Dimensions: 26 x 32 x 26cm Weight: 5.5kg... -
Page 11: Notes
Notes...
