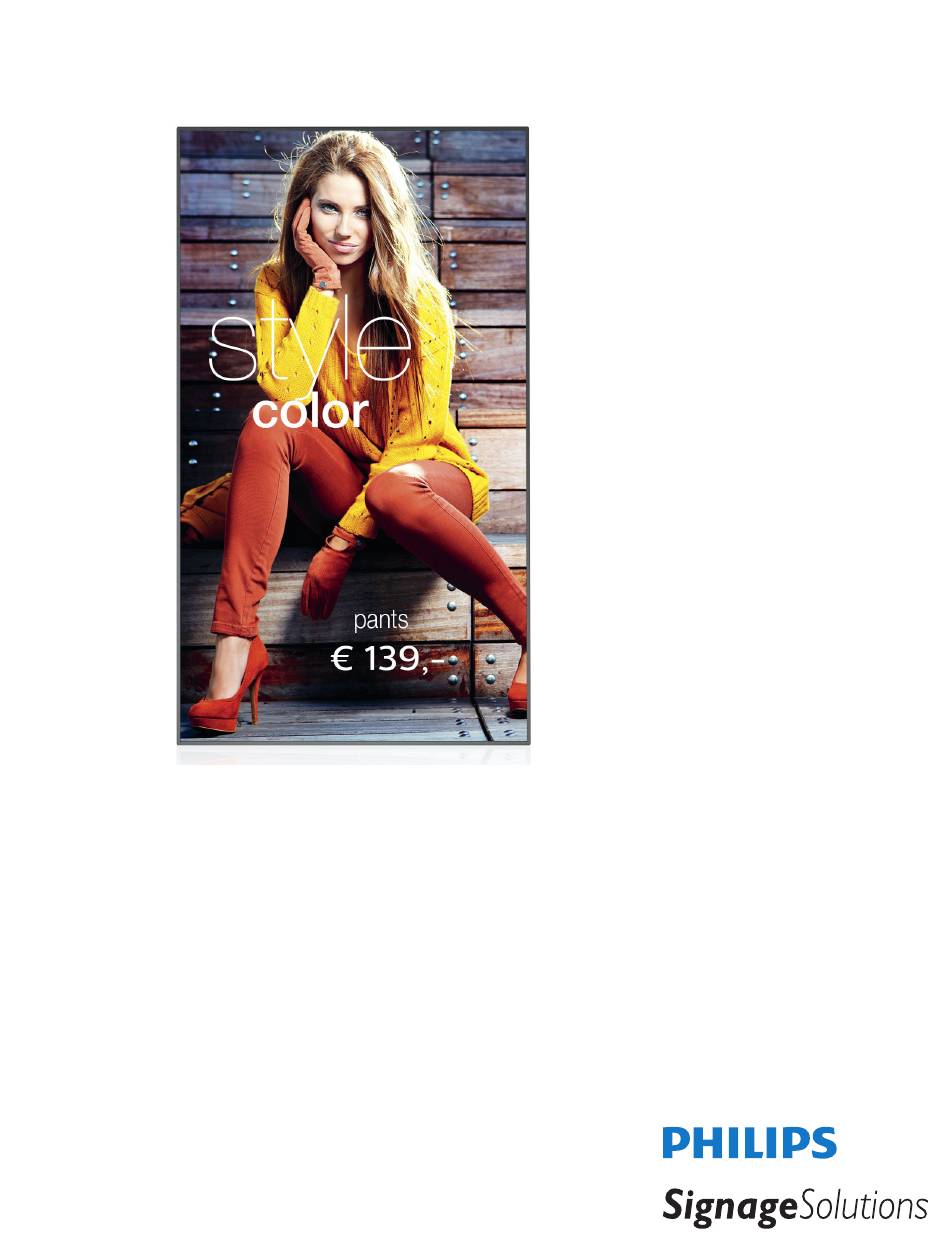

- Page 1 75BDL3003H V1.00 www.philips.com/welcome User Manual (English)
- Page 2 Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. • The eye bolt is for usage in short-time maintenance and installation. We suggest not to use the eye bolt for more than 1 hour. Prolong usage is prohibited. Please keep a clear safety area under the display while using the eye bolt. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.
- Page 3 75BDL3003H Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.
- Page 4 75BDL3003H Canada: Industry Canada statement: This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement in Brazil: ANATEL RF STATEMENT Per Article 6 of Resolution 506, equipment of restricted radiation must carry the following statement in a visible location “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário. ”...
- Page 5 75BDL3003H Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. 2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. 3. We are committed to develop, produce and market products that cause no adverse health effects. 4. We confirm that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. 5. We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization for early integration in its products. Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED.
- Page 6 75BDL3003H Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. Plassering/Ventilasjon ADVARSEL: NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ. China RoHS 根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了本产品中可能包含的有害物 质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 ○ ○ ○ ○ ○ ○ 液晶显示屏/灯管 × × ○ ○...
- Page 7 75BDL3003H 《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 －...
- Page 8 75BDL3003H End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
- Page 9 75BDL3003H Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes. For Switzerland: The used battery is to be returned to the selling point. For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery. According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Após o uso, as pilhas e/ou baterias deverão ser entregues ao...
-
Page 10: Table Of Contents
75BDL3003H Table Of Contents Operation ................. 14 4.1. Watch the Connected Video Source ......14 4.2. Play multimedia files from USB device ......14 Unpacking and Installation ............1 4.3. Play options ..................14 1.1. Unpacking ..................1 4.3.1. Playing music files ..........14 1.2. Package Contents ................1 4.3.2. Playing movie files ..........14 1.3. Installation Notes .................1 4.3.3. -
Page 11: Unpacking And Installation
75BDL3003H Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display • Quick start guide NORMAL SOURCE FORMAT • Remote control with AAA batteries LIST INFO • Power cord (1.8 m) ADJUST OPTIONS • HDMI cable (1.8 m) • RS232 cable (3 m) -
Page 12: Mounting On A Wall
75BDL3003H 1.4. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard. Protective Sheet VESA Grid Table Carrying handle 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. 4. For the wall-mounting kit, use M8 mounting screws (having a length 15 mm longer than the thickness of the mounting bracket) and tighten them securely. -
Page 13: Mounting In Portrait Position
75BDL3003H 1.5. Mounting in Portrait Position This display can be installed in portrait position. 1. Remove the table stand, if attached. 2. Rotate 90 degrees anticlockwise when facing the display at the back. 1.5.1. How to use the logo guider for portrait position 1. Put the guider on the lower-left corner of the front bezel of the display. Fold down both of its edges. 2. Peel off the protective film at the back of the “ ” logo sticker. Hold and press the guider with your left hand. Put the “ ” logo sticker with its adhesive side down into the logo hole with your right hand, and press to make it stick tightly onto the front bezel. -
Page 14: Parts And Functions
75BDL3003H Parts and Functions 2.1. Control Panel MUTE INPUT MENU [ ] button Use this button to turn the display on or put the display to standby. [MUTE] button Switch the audio mute ON/OFF. [INPUT] button Use this button to select the input source. [ ] button Increase the adjustment while OSD menu is on, or increase the audio output level while OSD menu is off. • Used as [ ] button in the On-Screen-Display menu. [ ] button Decrease the adjustment while OSD menu is on, or decrease the audio output level while OSD menu is off. [ ] button Move the highlight bar up to adjust the selected item while OSD menu is on. -
Page 15: Input/Output Terminals
75BDL3003H 2.2. Input/Output Terminals RS232 IN RS232 OUT HDMI2 IN HDMI3 IN Y/CVBS HDMI1 IN DVI(DVI-D) IN 9 10 11 AC IN VGA IN (D-Sub) AC power input from the wall outlet. VGA video input. MAIN POWER SWITCH IR IN / IR OUT Switch the main power on/off. IR signal input / output for the loop-through function. RJ-45 NOTES: LAN control function for the use of remote control signal from • This display’s remote control sensor will stop working if the jack... -
Page 16: Remote Control
75BDL3003H 2.3. Remote Control [ ] POWER button Turn the display on or put the display to standby. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose from NORMAL DisplayPort DVI-D HDMI 1 HDMI 2 HDMI 3 Component Video BROWSER SmartCMS , or Card OPS . -
Page 17: Id Remote Control
75BDL3003H 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the ID You can set the remote control ID when you want to use this remote Mode. The red LED lights up. control on one of several different displays. Press the [ID SET] button again will exit the ID Mode. The red LED lights off. Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255]. 2. Not pressing any button within 10 seconds will exit the ID Mode. 3. If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again. -
Page 18: Inserting The Batteries In The Remote Control
75BDL3003H 2.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3. Replace the cover. Caution: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions: • Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment. • Do not mix battery types. • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries. • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin. -
Page 19: Connecting External Equipment
75BDL3003H Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using COMPONENT video input RS232 IN RS232 OUT HDMI2 IN HDMI3 IN Y/CVBS HDMI1 IN [COMPONENT IN] (YPbPr) [AUDIO IN] COMPONENT Out Audio Out (YPbPr) DVD / VCR / VCD 3.1.2. -
Page 20: Using Hdmi Video Input
75BDL3003H 3.1.3. Using HDMI video input RS232 IN RS232 OUT HDMI1 IN HDMI2 IN HDMI3 IN DVI(DVI-D) IN [HDMI IN] HDMI Out DVD / VCR / VCD 3.2. Connecting a PC 3.2.1. Using VGA input Audio Out [VGA AUDIO IN]... -
Page 21: Using Hdmi Input
75BDL3003H 3.2.3. Using HDMI input RS232 IN RS232 OUT HDMI1 IN HDMI2 IN HDMI3 IN DVI(DVI-D) IN [HDMI IN] HDMI Out 3.2.4. Using DisplayPort input DisplayPort Out [DisplayPort IN] 3.3. Connecting Audio Equipment 3.3.1. Connecting external speakers External speakers... -
Page 22: Connecting An External Audio Device
75BDL3003H 3.3.2. Connecting an external audio device Audio In [AUDIO OUT] Stereo Amplifier [SPDIF OUT] 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: M aximum 25 displays (5x5) can be used in a daisy-chain configuration. 3.4.1. Display control connection Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C] [RS-232C IN]... -
Page 23: Ir Connection
75BDL3003H 3.5. IR connection External IR Receiver [IR OUT] DISPLAY 1 DISPLAY 2 NORMAL [IR IN] [IR IN] SOURCE FORMAT LIST INFO ADJUST OPTIONS ID SET ENTER NOTE: 1. This display’s remote control sensor will stop working if the [IR IN] is connected. 2. IR loop through connection can support up to 9 displays. 3.6. IR Pass-through Connection [IR OUT]... -
Page 24: Operation
75BDL3003H Operation 7. Press [PLAY] buttons ( H F G I J ) to control playing. NOTE: T he control button described in this section is mainly on the 4.3. Play options remote control unless specified otherwise. 4.3.1. Playing music files 4.1. Watch the Connected Video Source Music 1. Choose in the top bar. See page 13 for external equipments connection. 1. Press [ ] SOURCE button. -
Page 25: How To Use Opera Browser (Html5)
75BDL3003H 4.4. How to use Opera browser (HTML5) BROWSER ] SOURCE button, choose 1. Press [ , and press ] button. 2. Move the cursor to URL address bar. Press [ ] button and it will pop out the on-screen keyboard. You can move the cursor to enter the URL address. After finishing the URL address, choose Done Internet Web Address： http:// History www.google.com... -
Page 26: Osd Menu
75BDL3003H OSD Menu 5.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 5.2.1. Picture menu below. You can use it as a reference for further adjusting your display. 5.1. Navigating the OSD Menu Brightness Picture Contrast Sharpness 5.1.1. Navigating the OSD menu using the Screen Black level remote control Tint Audio SOURCE FORMAT Color... -
Page 27: Screen Menu
75BDL3003H Color control NOTES: You can adjust the color tones of the image precisely by changing the • V position adjustment is functional for VGA input only. User-R (Red), User-G (Green) and User-B (Blue) settings independently • V position cannot be adjusted when {Pixel Shift} is activated. when the following condition: Clock {Picture} - {Color temperature} - {User} setting to [User 1] Adjust the width of the image. Or, you can adjust the color tones per 100K in the range of 2000K to NOTE: T his item is functional for VGA input only. 10000K when the following condition: Clock phase {Picture} - {Color temperature} - {User} setting to [User 2] Adjust to improve the focus, clarity and stability of the image. Smart picture NOTE: T his item is functional for VGA input only. -
Page 28: Audio Menu
75BDL3003H 5.2.4. PIP menu H position Moves the horizontal position of the image left or right. Sub mode Picture PIP size Small V position PIP position Bottom-Left Screen Moves the vertical position of the image up or PIP change Cancel down. PIP reset Cancel Audio Screen reset Reset all settings in the Screen menu to factory preset values. Configuration 1 5.2.3. Audio menu Balance Sub mode... -
Page 29: Configuration1 Menu
75BDL3003H Panel saving • The PIP function is available only for certain signal source combinations as shown in the table below. Choose to enable the panel saving functions and thus reduce the risk of “image persistence” or “ghost-imaging”. Main • {Cooling Fan} - Choose to adjust the cooling fan’s speed of Sub rotation. Select {Auto} to turn on/off the cooling fan according to the display’s temperature. Choose from: {Auto} / {Off} / {Low} / {Medium} / {High}. HDMI1 NOTES: • The default {Auto} option will start running the cooling fan if HDMI2 the temperature of 40°C (104°F) is reached, and stop running HDMI3 the cooling fan if the temperature of 38°C (100°F). COMP VIDEO • A temperature-warning message will be shown on the screen if the temperature reaches 68°C (154°F). All key functions except BROWSER [ ] key will then be disabled. -
Page 30: Configuration2 Menu
75BDL3003H OSD rotation Receive multimedia files from the connected device by your network. Rotate the OSD Menu. The options are: Clear internet memory • {Landscape} (Default) Clear all the cookies, bookmarks, history list and text used for filling automatically. • {Portrait} Configuration1 reset Monitor ID Reset all settings in Configuration1 menu to the factory preset values. Set the ID number for controlling the display via the RS232C connection. Each display must have a unique ID number when multiple Factory reset sets of this display are connected. Monitor ID number range is between Reset all settings in the OSD menus of {Picture}, {Screen}, {Audio}, {PIP}, 1 to 255. -
Page 31: Advanced Option Menu
75BDL3003H IR control Select the operation mode of the remote control when multiple displays are connected via an RS232C connection. • {Normal} - All displays can be operated normally by the remote control unit. • {Primary} - Designate this display as the primary display for remote control operation. Only this display can be operated by the remote control. DP Version • {Secondary} - Designate this display as the secondary display. This The option are: {DP 1.1} / {DP 1.2} / {DP 1.2 multi}. The default is {DP display can not be operated by the remote control, and will only 1.1}. - Page 32 75BDL3003H Example: 2 x 2 screen matrix (4 displays) Frame comp. - No H monitors = 2 displays V monitors = 2 displays H monitors Position Example: 5 x 5 screen matrix (25 displays) • {Enable} - Choose to enable or disable the Tiling function. If enabled, H monitors = 5 displays the display will apply the settings in {H monitors}, {V monitors}, V monitors = 5 displays {Position}, and {Frame comp.}.
- Page 33 75BDL3003H 5. Press [ ] or [ ] button to select item, press [ ] or [ ] button to Select or leave an empty “__” for both the hour and minute slot if you do not want to use this power-on or power-off schedule. adjust. Input-source selection: Press [ ] or [ ] button to select an • {Daylight saving start date} - Select {1st / 2nd / 3rd / 4th / last} input source. If no input source is selected, the input source Sunday of the month {Jan ~ Dec}. will remain the same as last selected. • {Daylight saving stop date} - Select {1st / 2nd / 3rd / 4th / last} Date schedule: Press [ ] button to select which day in a Sunday of the month {Jan ~ Dec}.
-
Page 34: Input Menu
75BDL3003H DDC/CI Advanced option reset Choose to turn on or off the DDC/CI communication function. Select Reset all settings except {Date and Time} in the Advanced option menu {On} for normal use. to factory preset values. 1. Press [OK] or [ ] button to enter the submenu. DDC/CI (Command Interface) specifies a means for a computer to send commands to the monitor, as well as receive sensor data from the 2. Press [ ] or [ ] button to select {Reset} and press the [OK] monitor, over the bidirectional link such as DDC2Ab/Bi/B+. button to restore settings to factory preset values. Specific commands to control monitors are defined in a separate 3. Press the [ ] button or select {Cancel} and press the [OK] Monitor Control Command Set (MCCS) standard. button to cancel and then return to the previous menu. DDC/CI monitors are sometimes supplied with an external color sensor to allow automatic calibration of the monitor’s color balance. Some tilting... -
Page 35: Usb Device Compatibility
75BDL3003H Choose from: {Analog} / {Displayport} / {Audio1} / {Audio2} / {Media}. PIP audio Select the audio source the PIP (Picture-in-Picture) mode. • {Main} - Select audio from the main picture • {Sub 1} - Select audio from the sub1 picture. • {Sub 2} - Select audio from the sub2 picture. • {Sub 3} - Select audio from the sub3 picture. Card OPS audio Select the analog or digital audio mode for card OPS. Input reset Reset all settings in the Input menu to factory preset values. USB device compatibility USB Video Subtitle Formats (for language subtitles, etc.) File Max. Bit Rate... - Page 36 75BDL3003H MPEG-4 ASP 1920x1080 25p,30p,50i,60i H.264 1920x1080 AAC/HE-AAC(v1&v2), 1920x1080i@field rate=50, 60Hz .mp4 AC3,E-AC3,WMA, 1920x1080p@frame rate=24, 25,30Hz WMA-PRO 1280x720p @ frame rate=50, 60Hz WMV9/VC1 1920x1080 30p,60i MPEG-4 ASP 1920x1080 25p,30p,50i,60i MPEG-1(L1&L2), MPEG-1,2,2.5 L3, .mkv AAC/HE-AAC (v1&v2), .mk3d H.264 1920x1080 AC3,E-AC3, WMA, WMA-PRO USB Multimedia Formats Frequency Max.Bit Rate...
-
Page 37: Input Mode
75BDL3003H Input Mode UHD Preset Mode (DP/HDMI timing support): Item Resolution H.Freq. (KHz) V.Freq. (Hz) BW(MHz) FHD Preset Mode (VGA/DVI timing support): 3840x2160 53.946 23.900 296.703 3840x2160 24.000 297.000 Item Resolution H.Freq. (KHz) V.Freq. (Hz) BW(MHz) 3840x2160 56.25... -
Page 38: Pixel Defect Policy
We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 8.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue. -
Page 39: Dark Dot Defects
Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 8.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 8.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table. -
Page 40: Cleaning And Troubleshooting
75BDL3003H Cleaning and Troubleshooting 9.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. -
Page 41: Troubleshooting
75BDL3003H 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. 3. Connect a signal connection to the display. 3. The selected input has no connection. 4. The display is in standby mode. Interference displayed on the display or audible... -
Page 42: Technical Specifications
75BDL3003H Technical Specifications Display: Item Specifications Screen Size (Active Area) 74.5 inches (189.3 cm) Aspect Ratio 16:9 Number of pixels 3840 (H) x 2160 (V) Pixel pitch 0.429 x 0.429 mm Color depth 10 bit(D) 1.07 Billion colors Brightness 3000 cd/m (typ.) Contrast ratio 1200:1 Viewing angle 89 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω External Speakers 1 Way 1 Speaker System 82 dB/W/M/160 Hz ~ 13 KHz SPDIF Output SPDIF Port Serial digital audio output when input is HDMI Audio Output 3.5 mm Stereo x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input RCA Jack x 2 0.5V [rms] (Normal) / 2 Channel (L+R) - Page 43 75BDL3003H Gross Weight (Without Stand) 65.5 Kg Product Fiche : Item Specifications Energy Efficiency Class Visible Screen Size 189.3 cm / 74.5 inch On Mode Power Consumption (W) 382 W Annual Energy Consumption (kWh) 558 kWh Standby Power Consumption (W) 0.50 W Off Mode Power Consumption (W) 0.50 W Display Resolution (Pixels) 3840 x 2160p Network Standby (W) 31 W Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% (without condensation) Storage 5 ~ 95% (without condensation) Altitude Operational 0 ~ 3,000 m...
- Page 44 2017 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
