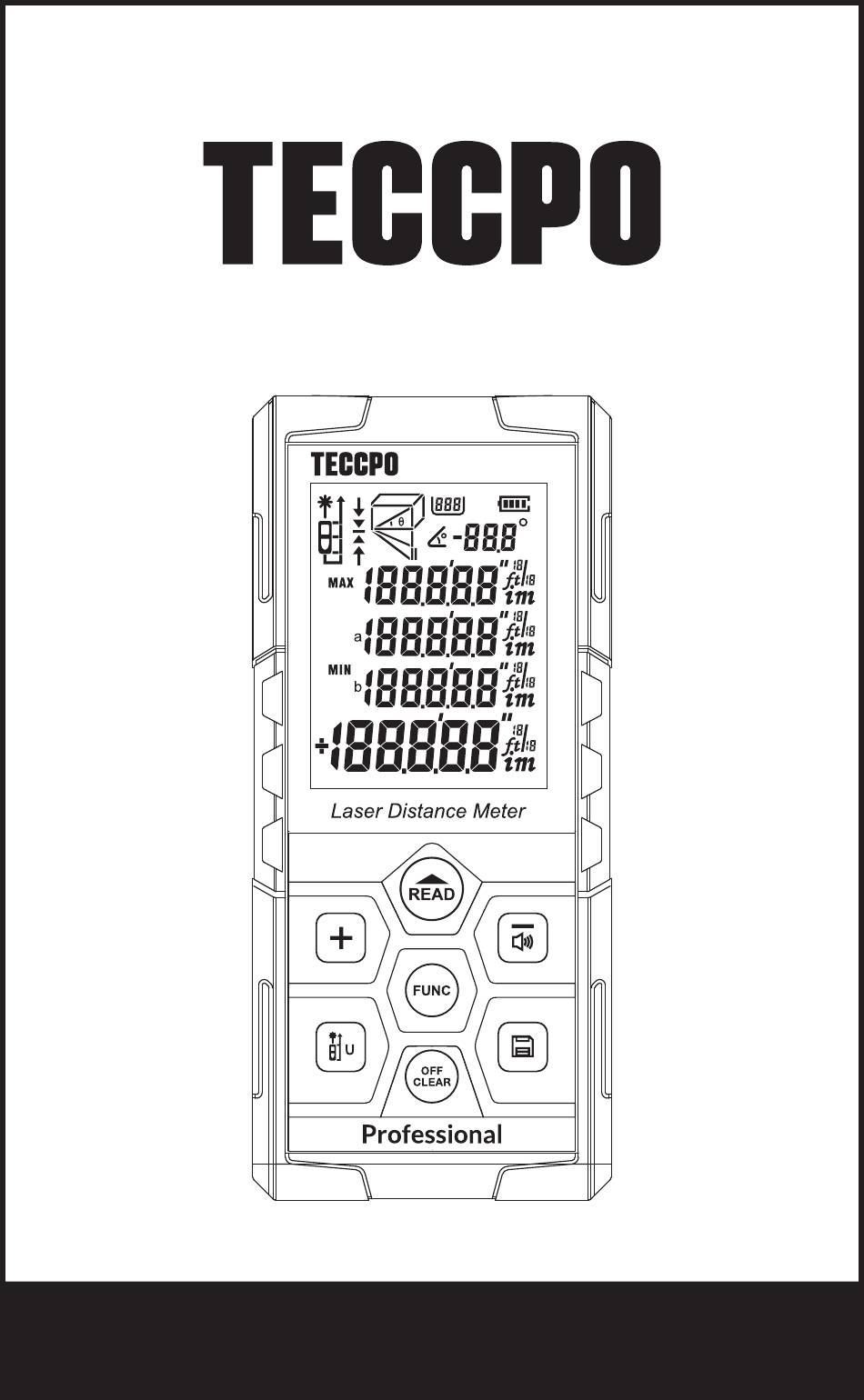

- Page 1 Laser Distance Meter www.teccpotools.com...
-
Page 2: Warranty
3 Months to 24 Months Within 24 months, we will provide timely and effective online after-sales service after your purchase. Please be noted that accesories are free, not included. How to Return Your TECCPO Products – Contact support@teccpotools.com with your order number. –... -
Page 3: Safety Regulations
Safety regulations Please read the safety regulations and operation guide carefully before operating. Please read all of the operational guide and safety regulations in this manual before operation . Improper operations without complying with this manual guided could cause damage to the device, influence measurement result or bodily injury to the user. - Page 4 DISPLAY/KEYBOARD Display Power Supply Record Length,Area, Volume and Pythagorean Laser on Angle Maximum Auxiliary Display Minimum Major Display Keyboard Turn on/ Measuring Addition Subtraction/ Sound Area/Volume/ Pythagorean Measuring Reference Point/ Unit Switch Turn off/ Remove Save - 02 - Technology Creates Power...
-
Page 5: Batteries Installation
Batteries Installation The product is equipped with 3.7V/850mAh lithium battery which is built-in and non-removable Please charge it if it can not be turned on or there is no power indication after starting up. Please use charging adapter with DC5V and 1A to charge it, the charging port is the Type C port. -
Page 6: Self-Calibration
Units: Length Area Volume 0.000 m 0.000 m 0.000 m 0.00 m 0.00 m 0.00 m 0.0 in 0.00 ft 0.00 ft 0 1/16 in 0.00 ft 0.00 ft 0'00"1/16 0.00 ft 0.00 ft 0.00 ft 0.00 ft 0.00 ft ●... - Page 7 accuracy of the meter. Adjusting range: -9 to 9mm, then, long press button to save the calibration result. Length Measurement & Calculation ● Single Distance Measuring: Turn on the laser beam by short press of the button under measuring mode, press the button again for single measure- ment of length, then the measured results displayed in the major display area.
- Page 8 Press three times for height The device calculates and shows the result in the major display area. Press , clear off the result and measuring again if necessary. Press again to exit the mode. Painter Function ● When the meter is in area mode, you can use the add / subtract function to total up the area of several surfaces.
- Page 9 ● Pythagoras There are four Pythagoras modes in case that user gets hard to reach the target. Calculate the length of two legs by measuring the hypote- nuse and the angle. Short press four times, when the hypotenuse of blinking, Press ,measure the length of hypotenuse (a),and calculates the angle (α) between the bevel and the bottom at...
- Page 10 Press seven times till the hypotenuse of blinking on the screen. Press ,measure the length of one hypotenuse (a) Press ,measure the length of another hypotenuse (b) Press ,measure the length of one leg (c) Device calculates the length of the leg in full line (x) Legs must short than hypotenuse, or there will be "err"...
-
Page 11: Record Function
PIC1 PIC2 PIC3 Record Function Long press button for 3s to record your measuring result under measuring mode. It can also record the result under Area, Volume and Pythago- ras mode. All the calculating records can be saved by the device. -
Page 12: Troubleshooting
Troubleshooting You may get some warning information as below: Info message Cause Solution Out of distance Use the device measurement range within the range Chose the surface with stronger Err1 Signal is too weak reflectance. Use the reflecting plate. Chose the surface with weaker Err2 Signal is too strong... -
Page 13: Technical Data
Technical Data Item Specifications Working Range 50m/60m/100m Distance measurement precision ±2mm* Continuous measurement function Area measurement function Volume measurement function Pythagorean proposition Full mode measurement function Add and subtract measurement function Min/Max value Delay Measurement Self-Calibration Laser level Laser type 635nm,<1mW Max storage 99 units... -
Page 14: Instrument Maintenance
Note: Use a target plate to increase the measurement range during daylight or if the target has poor reflection properties. Typical Tolerance: ±2mm, when reflectivity 100% (white surface), environment light <2000 LUX. 25 °C Tolerance is usually affected by the distance, reflectivity, and environment light etc. - Page 15 Shenzhen Allsight E-business Co., Ltd Website: www.teccpotools.com E-mail: support@teccpotools.com ADD: Room 104, Building P09, South ChinaCity Electronic Trading Center, Longgang District, Shenzhen, CHINA www.teccpotools.com...
