6

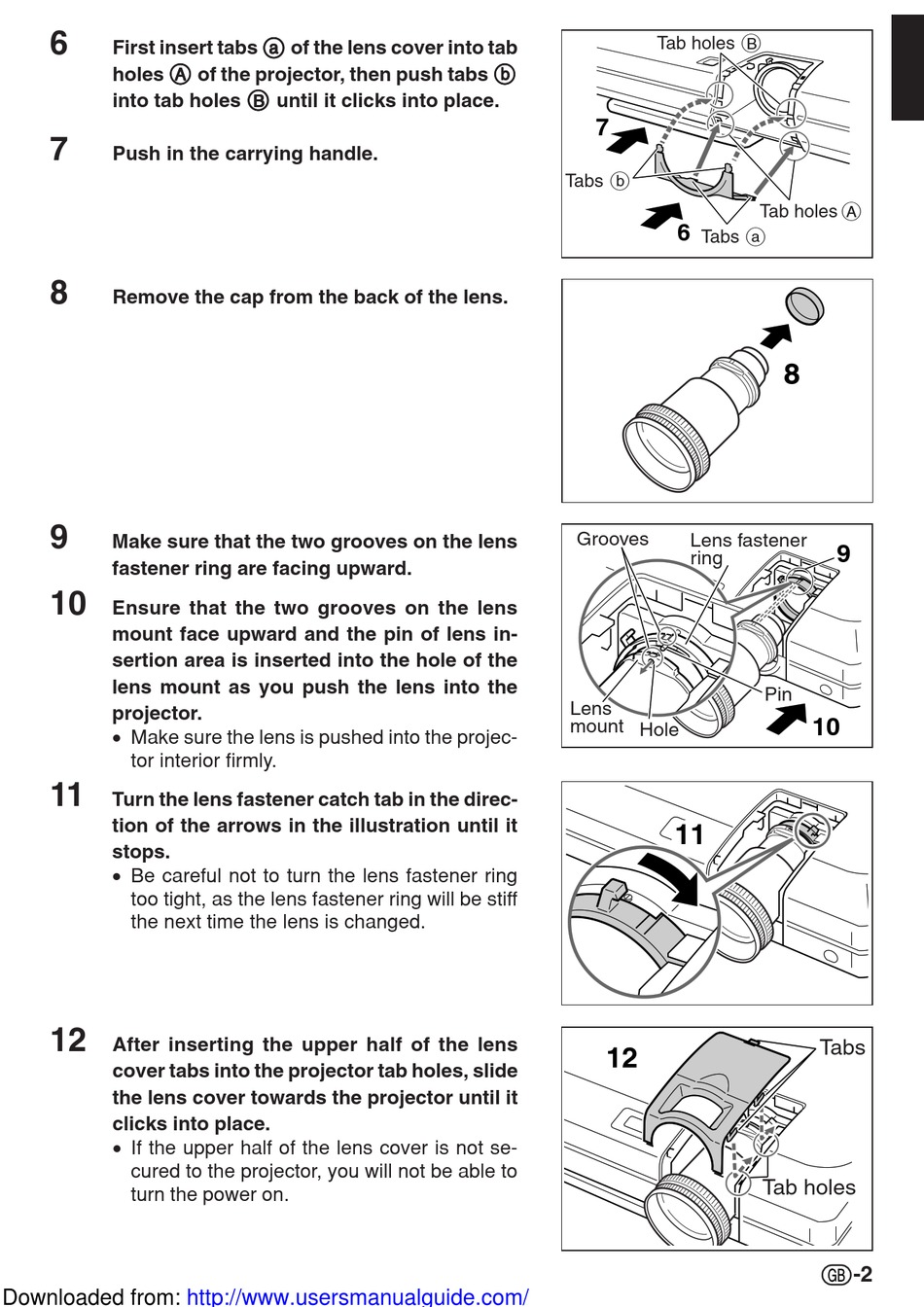

First insert tabs a
A
A
holes A
A
A of the projector, then push tabs b
into tab holes B
7
Push in the carrying handle.
8
Remove the cap from the back of the lens.
9
Make sure that the two grooves on the lens
fastener ring are facing upward.
10
Ensure that the two grooves on the lens
mount face upward and the pin of lens in-
sertion area is inserted into the hole of the
lens mount as you push the lens into the
projector.
• Make sure the lens is pushed into the projec-
tor interior firmly.
11
Turn the lens fastener catch tab in the direc-
tion of the arrows in the illustration until it
stops.
• Be careful not to turn the lens fastener ring
too tight, as the lens fastener ring will be stiff
the next time the lens is changed.
12
After inserting the upper half of the lens
cover tabs into the projector tab holes, slide
the lens cover towards the projector until it
clicks into place.
• If the upper half of the lens cover is not se-
cured to the projector, you will not be able to
turn the power on.
Downloaded from:
a
a
a
a of the lens cover into tab
B
B
B until it clicks into place.
B
http://www.usersmanualguide.com/
Tab holes B
b
b
b
b
7
Tabs b
Grooves
Lens
mount
Hole
12
Tab holes A
6
Tabs a
8
Lens fastener
9
ring
Pin
10
11
Tabs
Tab holes
-2
