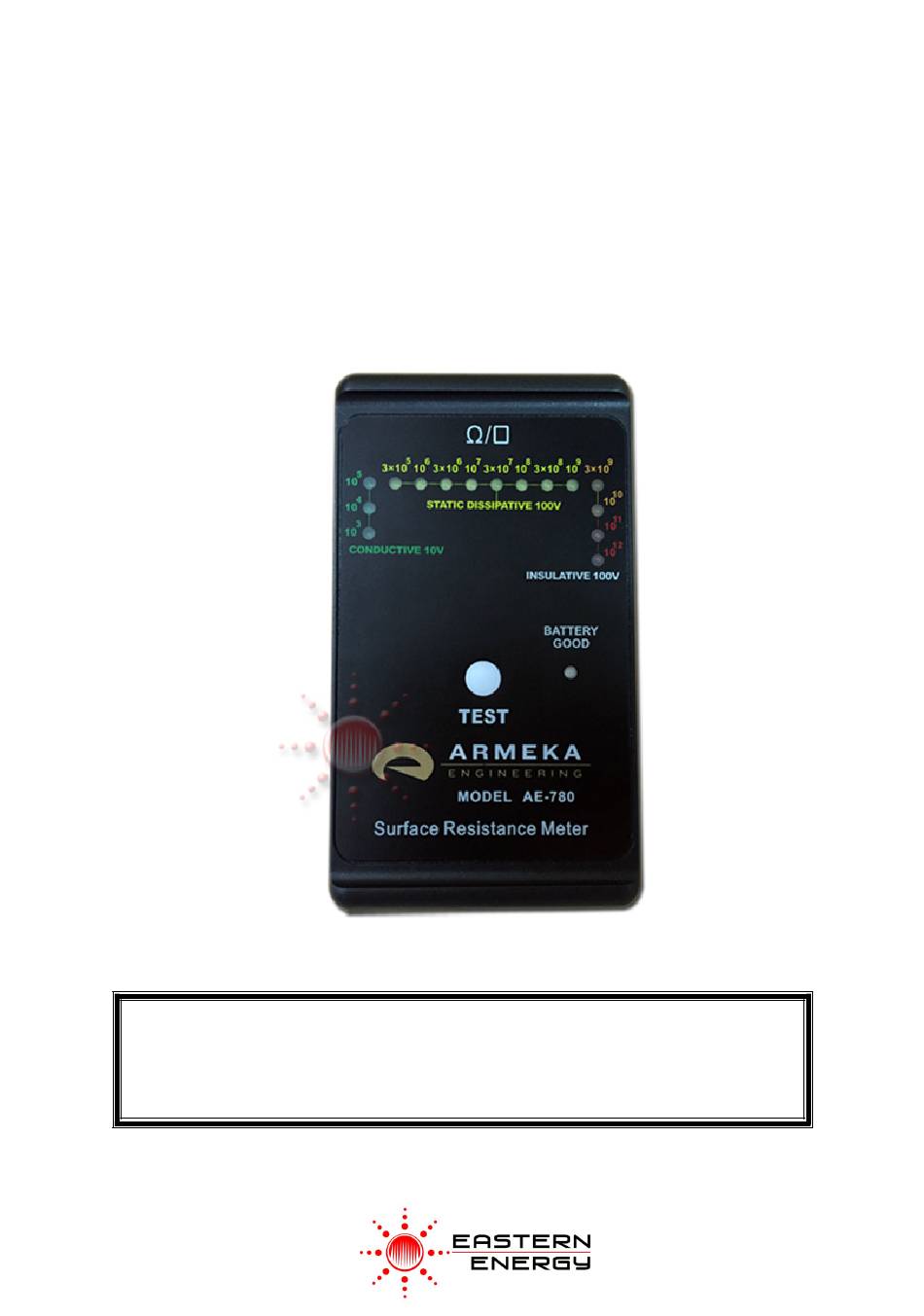

AE-780 Operation Manual
Rev. 11/30/12 MKB
AE-780 Resistance Meter
OPERATION MANUAL
Meter is warranted for one year from the date of purchase on parts and
labor. Calibration is recommended every 12 months.
Eastern Energy Co., Ltd.
Tel: 66-3844-6117
40/4 Vitoondumri Rd., Banbueng
Page 1 of 13
sale@ete.co.th
Banbueng, Chonburi, Thailand
www.eastern-energy.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AE-780 and is the answer not in the manual?

Questions and answers

Related Manuals for Armeka Engineering AE-780

Summary of Contents for Armeka Engineering AE-780

  • Page 1   AE-780 Operation Manual Rev. 11/30/12 MKB AE-780 Resistance Meter OPERATION MANUAL Meter is warranted for one year from the date of purchase on parts and labor. Calibration is recommended every 12 months. Eastern Energy Co., Ltd. Tel: 66-3844-6117 40/4 Vitoondumri Rd., Banbueng Page 1 of 13 sale@ete.co.th...
  • Page 2 Rev. 11/30/12 MKB AE-780 Resistance Meter The AE-780 is a lightweight, pocket-sized, auto-ranging surface resistance meter. It is designed to test conductive, dissipative, and insulative surfaces for electrical resistance according to the ESDA’s parallel resistivity probe method DIN EN 100 015/1 & ASTM D257.
  • Page 3 NTRODUCTION The AE-780 Resistance Meter is an easy-to-use tester for measuring surface resistance. When used with the AE-781 Accessory Kit, the AE-780 Resistance Meter is a dependable audit kit for conductive and dissipative surfaces. This meter is designed for use in all facets of material production including engineering, maintenance, quality...

  • Page 4: Test Voltage

    The ESDA standardized the test procedures so that lower volts could be used within specific ranges. The AE-780 meter uses a 9-volt battery. Some meters with 9-volt batteries do not give the accuracy needed to perform the tests, especially at values higher than 10 .
  • Page 5 National Standards and CAD-generated techniques. Meters can be sent back to Armeka Engineering Ltd. for calibration for a lab fee or they can be sent to a certified calibration lab. (See page 12 for calibration instructions.) The meters also come with a CE mark approval.

  • Page 6: External Probes

    XTERNAL ROBES When the measurement is taken using the 5-lb external probes from the AE-780 accessory kit, the tester will indicate the resistance of the material in ohms. The external probes are used to give fast electrical resistivity measurements on flat homogeneous materials.
  • Page 7 AE-780 Operation Manual Rev. 11/30/12 MKB By connecting the 5-lb probes to the AE-780’s sockets, it is possible to measure Resistance Point to Point (RTT), Resistance to Ground (RTG), and Volume Resistance. Using these external probes will allow compliance with various standards including ANSI/ESDA S4.1 for Work surface –...
  • Page 8   AE-780 Operation Manual Rev. 11/30/12 MKB XAMPLE OF EASURING ISSIPATIVE LOORING Taking routine measurements of tiles coated with dissipative floor finish is a key component of proper floor maintenance. Any problems that arise with the floor will be easily detected. Keeping a record of temperature, humidity and electrical properties will provide a reference, and will point toward a blueprint of traffic patterns on the floor.
  • Page 9   AE-780 Operation Manual Rev. 11/30/12 MKB (RTG) EASURING ESISTANCE TO ROUND RTG measurements can be used for the evaluation of floors, chairs, carts, work surfaces and other ESD-controlled materials and products. Keeping a record of test results for temperature, humidity and electrical properties will provide a reference.
  • Page 10   AE-780 Operation Manual Rev. 11/30/12 MKB XAMPLE OF EASURING ISSIPATIVE ABLE A. To test RTG on a workstation, connect the first lead to the meter and to a 5-lb probe. Place the probe on the work surface. Connect the second lead to the meter and to a groundable point (RTGP).
  • Page 11   AE-780 Operation Manual Rev. 11/30/12 MKB Volume Resistance Measurement Volume Resistance measures the electrical path through a material. Connect one end of each of the banana test leads into the sockets of the meter. Connect the other end of the test coil cords into the 5-lb probes.

  • Page 12: Specifications

    This meter should be calibrated every twelve months. To verify if the tester is within specification, a test resistance can be applied across the parallel bars using a resistance decade box. Calibration can be obtained by contacting Armeka Engineering Ltd..

  • Page 13: Test Equipment

      AE-780 Operation Manual Rev. 11/30/12 MKB QUIPMENT * Resistance Decade Box * Test Leads The resistance decade box required will need a range of from 1 kilohm (10 ) to 999 meg ohms (10 ). Measurements greater than 10...
