MAGMATIC MAGRF User Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

MAGRF

User Manual

Table of Contents

Summary of Contents for MAGMATIC MAGRF

Page 1 MAGRF User Manual...
Page 2 MAGMATIC EFFECTS logo and identifying product names and numbers herein are trademarks of MAGMATIC EFFECTS. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
Page 3 MAGMATIC EFFECTS 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax www.elationlighting.com sales@magmaticeffects.com Elation Professional B.V. Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax www.elationlighting.eu...
Page 4 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online. Please check www.elationlighting.com the latest revision/update of this manual before beginning installation and/or programming. Document Software Date Channel Notes Version Version Mode Initial 10/11/21...
Page 5: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Overview Operation Specifications | Ordering Information FCC Statement...
Page 6: General Information
Please do not return this device to your dealer without first contact- ing customer support. Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS MagRF Module (x1) Wireless Remote Control (x1)
Page 7 GENERAL INFORMATION CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com...
Page 8: Limited Warranty (Usa Only)
B. For warranty service, send the product only to the Magmatic Effects factory. All shipping charges must be pre-paid. If the requested repairs or service...
Page 9 D. This is not a service contract, and this warranty does not include any main- tenance, cleaning or periodic check-up. During the periods as specified above, Magmatic Effects will replace defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in mate- rial or workmanship.
Page 10: Warranty Returns (Usa Only)
WARRANTY RETURNS (USA ONLY) To obtain warranty service, a Return Material Authorization (RMA) number must first be obtained from MAGMATIC. It is the Customer’s responsibility to provide product proof of purchase and serial num- ber by acceptable evidence such as an invoice copy or an approved MAGMATIC Extended Warranty Certificate (“EWC”) and any rel-...
Page 11 If the requested warranty repairs or service (including parts replacement) are within the terms of this warranty, MAGMATIC will pay return ground trans- portation shipping charges to a single designated point within the...
Page 12: Safety Guidelines
SAFETY GUIDELINES • In order to prevent the risk of fire or electrical shock, do not expose this device to rain or moisture. • After bringing the device from outdoors into a warm indoor envi- ronment, allow the device time to reach the same temperature as its surroundings.
Page 13 SAFETY GUIDELINES • If serious problems arise, discontinue use of the device immedi- ately, and contact your dealer or Magmatic Effects immediately for advice. • In the event that the device needs to be returned for service, use only the original packaging for transportation.
Page 14: Overview

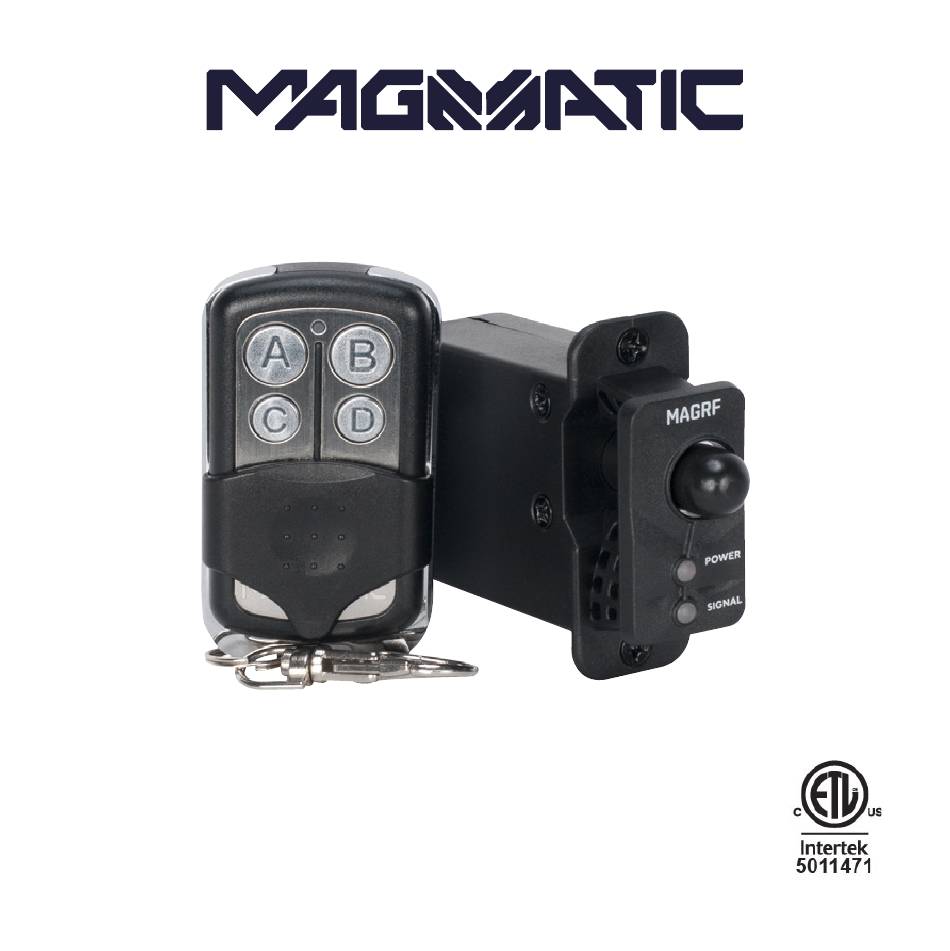

OVERVIEW RECEIVER...
Page 15 OVERVIEW TRANSMITTER...
Page 16: Operation
OPERATION 1. Locate the card input slots on your Magmatic device. Use a screw- driver to remove the slot cover for one of the input slots, then insert the MagRF module and fasten it in place with the module’s mount-...
Page 17 OPERATION 2. Check the display screen on your Magmatic device. The Bluetooth icon and the letters “RF” should appear at the top of the screen, as shown below.
Page 18 OPERATION 3. Select the Personality icon on your Magmatic device’s touch screen, then select the “RF Learn” option. Press any of the four keys on the transmitter to pair the transmitter. If pairing is successful, a notifica- tion reading “Complete” will appear. On the other hand, if no action is taken within 20 seconds, or if pairing is unsuccessful, a prompt reading “Failed, Try Again”...
Page 19: Specifications | Ordering Information
433 MHz Wireless Frequency 50m Effective Distance (open space with clear line of sight from transmitter to receiver) Function varies with Magmatic fixture model 27A / 12V Transmitter Battery Receiver Dimensions (LxWxH): 3.4” x 2.2” x 0.8” (86mm x 56mm x 21mm) Receiver Weight: 1.1 oz (32g)
Page 20: Fcc Statement
FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer- ence received, including interference that may cause undesired operation.
Page 21 FCC STATEMENT If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following methods: •...
