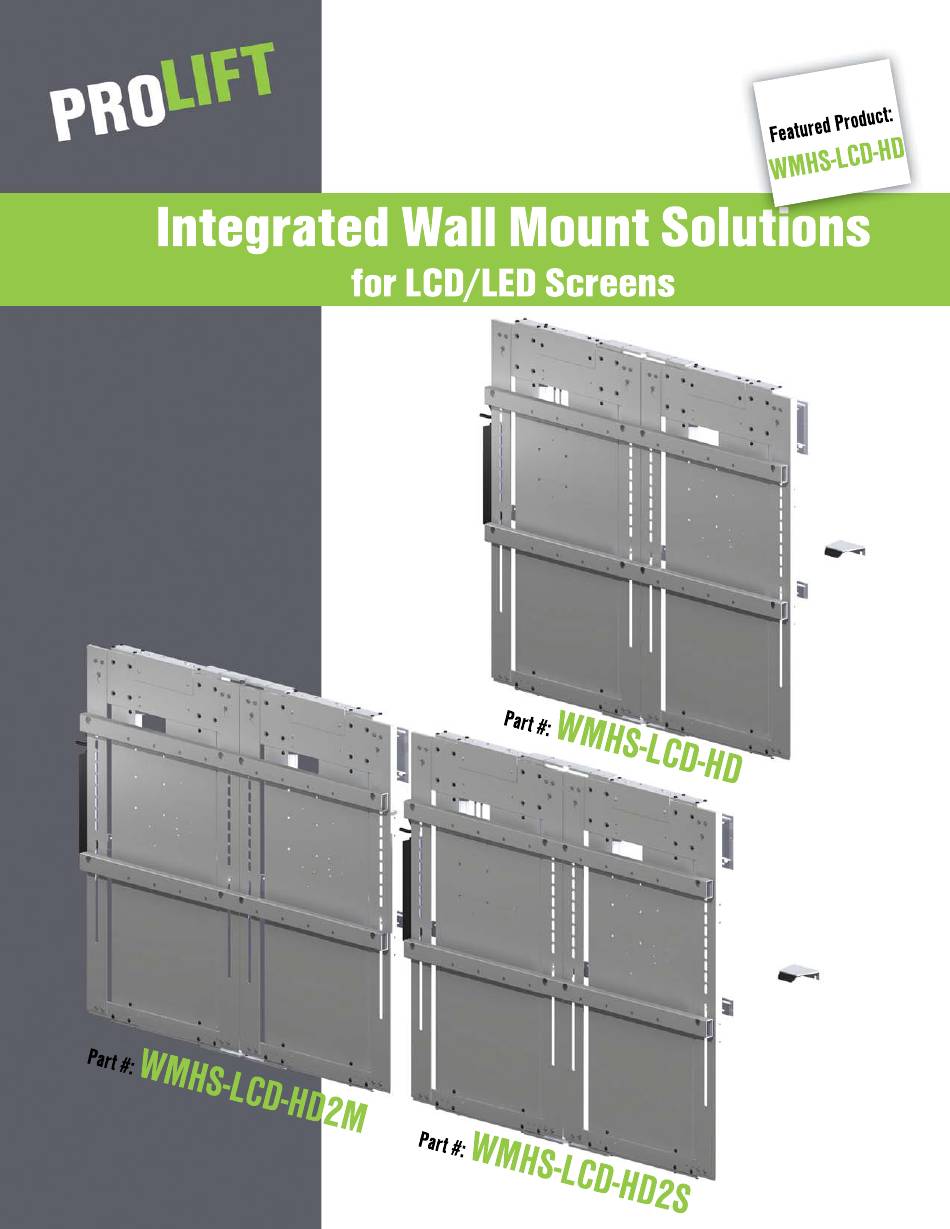

Joro PROLOIFT WMHS-LCD-HD Manual

Integrated wall mount solutions for lcd/led screens

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROLOIFT WMHS-LCD-HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Joro PROLOIFT WMHS-LCD-HD

  • Page 2       Thank you for purchasing a Pro‐LIFT WMHS‐LCD‐HD. The Pro‐LIFT product line is designed to enhance  your interactive whiteboards and projectors or LCD. Please follow all assembly instructions correctly to  provide optimal use.   Only a qualified contractor should install the Pro‐LIFT WMHS‐LCD‐HD. If you do not understand any of  the assembly instructions, please contact your local re‐seller or visit www.proliftstand.com.  IMPROPER INSTALLATION CAN CAUSE DAMAGE TO YOUR Pro‐LIFT AND LEAD TO SERIOUS PHYSICAL  INJURY. JORO Manufacturing cannot take any responsibility for damage or injury resulting from  improper installation.  Do not operate Pro‐LIFT WMHS‐LCD‐HD if there are any obstructions below or  above the board. Doing so may cause unit malfunction or lead to serious  physical injury.  The supplied mounting hardware is for use on the Pro‐LIFT stands only. If you encounter any problems  or insufficient hardware during installation, please contact your local re‐seller.  ...
  • Page 3 WMHS Main Frame Kit Nylon Cable Clip 5/16'' Nylon Cable Clip 1/4'' 5/32" Allen (Hex) Key LCD Mount Fastener Kit 3/16" Allen (Hex) Key 5/32" Allen (Hex) Key LCD-HD Kit LCD Mount Fastener Kit LCD TV Kit WM-ACC-LCP Note: Parts may not be exactly as shown and not to scale www.joromfg.com www.proliftstand.com COPYRIGHT 2014...
  • Page 4 1  Panel Window Power Cable - Male End Switch Assembly For ease of installation, do this step prior to mounting WMHS Carefully ease out the power cable and switch assembly through panel window Do NOT pull with excessive force www.joromfg.com www.proliftstand.com COPYRIGHT 2014 WMHS - WMHS-LCD-HD ASSY Instructions : 0.002...
  • Page 5 2  Note: Cut out faces front panels Matching Frame WMHS-LCD-HD WMHS-LCD-HD Master Network WMHS-LCD-HD Slave Network Motor Cable Motor Cable WM-ACC-LCP M6x12mm SILVER Button Head Join WMHS-LCD together (see table) To join a WMHS-LCD-HD2M (Master) and WMHS-LCD-HD2S (Slave) together see step 3 before continuing Use WM-ACC-LCP to join the WMHS-LCD Use the M6x12mm SILVER Button Heads supplied...
  • Page 6 3  The provided network cable ends allow the WMHS-LCD-HD2M (MASTER) and the WMHS-LCD-HD2S (SLAVE) frames to be no more than 1.8m (72in) apart. Before connecting frames with part WM-ACC-LCP, ensure the switch position from WMHS-LCD-HD2M (MASTER) has been determined. This will confirm position of WMHS-LCD-HD2S (SLAVE). If WMHS-LCD-HD2M (MASTER) and the WMHS-LCD-HD2S (SLAVE) frames must be positioned further apart than the provided network cable ends will reach.
  • Page 7 4  Sacrificial Surface (recommended 3/4" thick) Fasten Sacrificial Surface to at least three joists www.joromfg.com www.proliftstand.com COPYRIGHT 2014 WMHS - WMHS-LCD-HD ASSY Instructions : 0.002...
  • Page 8 5  WMS - Sacrificial Backer Slotted Hex Washer Head Screw Slotted Hex Washer Head Screw Mark out the two screw locations to hang the WMHS Pre-drill pilot holes at the two locations Be sure both points are horizontal and level Fasten the two Slotted Hex Washer Head Screws in the pre-drilled holes www.joromfg.com www.proliftstand.com...
  • Page 9 Slotted Hex Washer Head Screw Slotted Hex Washer Head Screw Hang the WMHS on the two Slotted Hex Washer Head Screw 6  Slotted Hex Washer Head Screw Slotted Hex Washer Head Screw Temporarily plug in WMHS and raise the mechanism to Add the Slotted Hex Washer Head Screws to lower flat bar access upper flat bar slots (2 per either side of each WMHS is recommended)
  • Page 10 7  Nylon Cable Clip 1/4'' Thread-Cutting Screw (8-32 x 3/8" Lg.) Mount the Cable Clamp for wire management Switch can be mounted on either side of frame Run the switch wire through the cable clamp prior to fastening Do NOT over tighten Washer #8 x 3/4"...
  • Page 11 Tube1020 End Cap 5/16 Hex Nut Tube1020 End Cap 5/16x1" SILVER Button Head 8  JORO Button Head Tube1020 End Cap WMHS LCD Support Block 5/16 Hex Nut G5-ACC-THD 5/16x1" SILVER Button Head Tube1020 End Cap Fasten the 5/16x1" SILVER Button Heads to the G5-ACC-PT5...
  • Page 12 Power bar can be mounted on either the left or right side **NOTE: Prior to mounting ensure both WMHS-LCD-HD power cords can reach the power bar. Use the JORO Button Head Screws provided Use a cable strain relief loop using Nylon Cable Clip 5/16'' Do NOT over tighten www.joromfg.com...
  • Page 13 10  Please use the appropriate mounting holes for your LCD (not included) as shown above G5-ACC-THD G5-ACC-THD LCD Fastener from LCD TV Kit provided Fasten the G5-ACC-THD to your LCD (not included) using the fasteners from the LCD TV Kit Use the appropriate fasteners supplied, as specified in the LCD owners manual Please note spacers/washers may be required to acheive length.
  • Page 14 NOTE: PRIOR TO STEP 11 (ATTACHING THE FOUR (4) WMHS-ACC-LA3 TO THE G5-ACC-THD), PLEASE CONFIRM A PROPER FIT (NO CABLE INTERFERENCE) OF WMHS-ACC-LA3 BY ATTACHING SCREWS IN STEP 12 AND HANGING ON EACH KEYHOLE (4) 5/16 Hex Nut 5/16" Washer Narrow 11 ...
  • Page 15 12  M6 x 12mm Socket Cap Screw SILVER M6 x 12mm Socket Cap Screw SILVER Hang the LCD assembly Fasten the four (4) M6 x 12mm Socket Cap Screw SILVER provided Do NOT tighten to be able to hang LCD assembly Hang LCD assembly on all M6 x 12mm Socket Cap Screw SILVER www.joromfg.com www.proliftstand.com...
  • Page 16 13  M6 x 12mm Socket Cap Screw SILVER M6 x 12mm Socket Cap Screw SILVER M6 x 12mm Socket Cap Screw SILVER Secure the LCD assembly to the main frame Use the M6 x 12mm Socket Cap Screw SILVER screws provided Do NOT over tighten www.joromfg.com www.proliftstand.com...
  • Page 17    12   ...
  • Page 18   IRR-Remote Control Setup (Ordered Separately) IRR-Remote Control package contains: A. Mounting Instructions Mount the IR-receiver In Line OF-sight of the Remote in an appropriate position. Use the adhesive disk to secure to frame. 1. Put the batteries into the IR remote control, Caution: Be aware of the correct polarity of the batteries! 2.
  • Page 19   C. Functions of the IRR-Remote Control Upwards adjustment ---- push Motorgroup 1 button for Up Downward adjustment ----push Motorgroup 1 button for Down -----Repeat for Motor group 2 -------- Advanced Functions D.Storing a MEMORY position Using this function you are able to store a Unit-height Position. Note: Only one Position per button is allowed.
