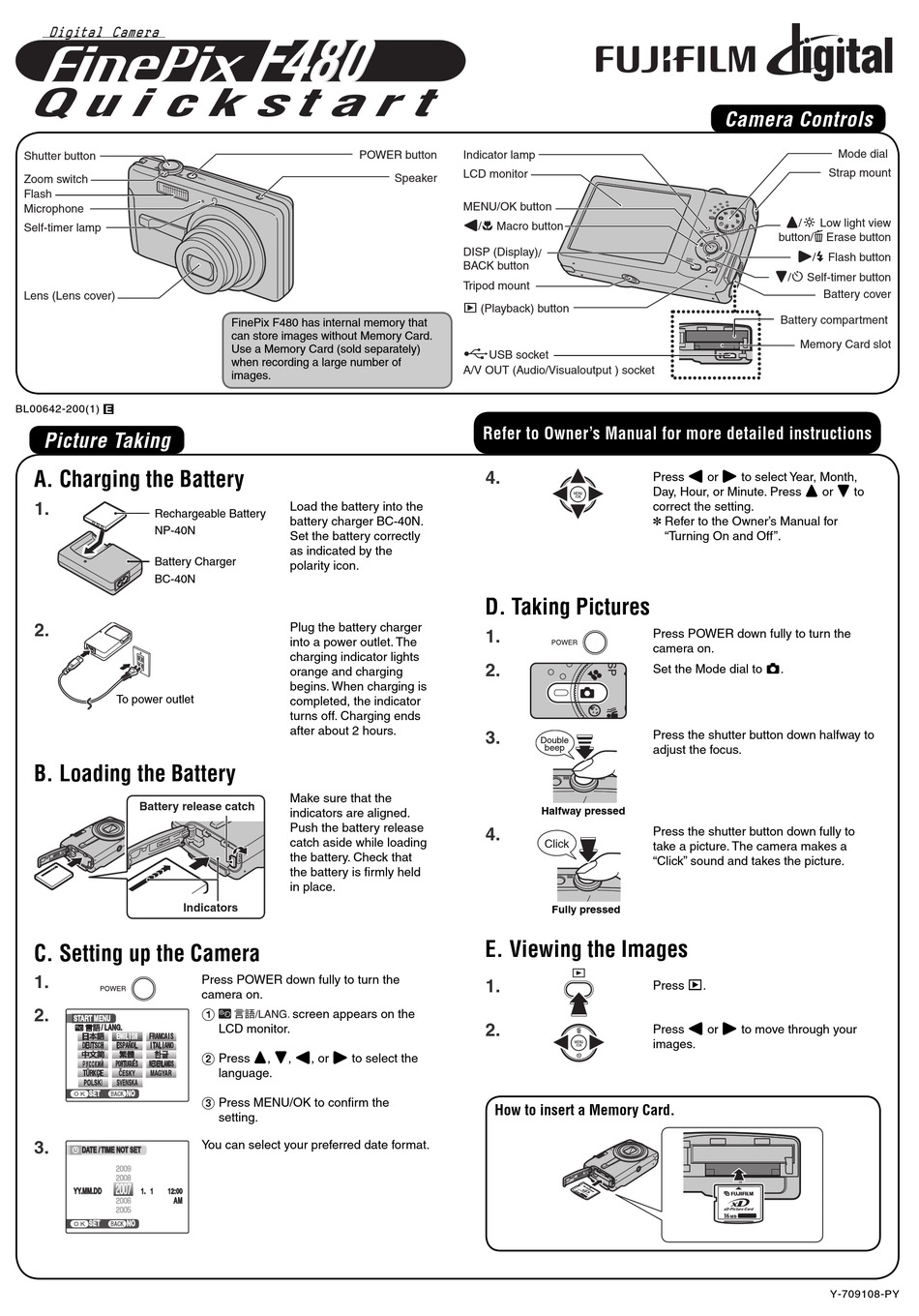

FujiFilm Finepix F480 Quick Start

Shutter button
Zoom switch
Flash
Microphone
Self-timer lamp
Lens (Lens cover)
BL00642-200(1)
E

Picture Taking

A. Charging the Battery

1.
Rechargeable Battery
NP-40N
Battery Charger
BC-40N
2.
To power outlet

B. Loading the Battery

Battery release catch
Indicators

C. Setting up the Camera

1.
2.
START MENU START MENU
/ LANG. / LANG.
SET SET NO NO
3.
DATE / TIME NOT SET DATE / TIME NOT SET
YY.MM.DD YY.MM.DD 1. 1 1. 1 12:00 12:00
AM AM
SET SET NO NO
F480 F480
POWER button
FinePix F480 has internal memory that
can store images without Memory Card.
Use a Memory Card (sold separately)
when recording a large number of
images.
Load the battery into the
battery charger BC-40N.
Set the battery correctly
as indicated by the
polarity icon.
Plug the battery charger
into a power outlet. The
charging indicator lights
orange and charging
begins. When charging is
completed, the indicator
turns off. Charging ends
after about 2 hours.
Make sure that the
indicators are aligned.
Push the battery release
catch aside while loading
the battery. Check that
the battery is firmly held
in place.
Press POWER down fully to turn the
camera on.
A
screen appears on the
LCD monitor.
B Press n, o, p, or q to select the
language.
C Press MENU/OK to confirm the
setting.
You can select your preferred date format.
Indicator lamp
LCD monitor
Speaker
MENU/OK button
p/e Macro button
DISP (Display) /
BACK button
Tripod mount
w (Playback) button
;
USB socket
A/V OUT (Audio/Visualoutput ) socket
Refer to Owner's Manual for more detailed instructions
4.

D. Taking Pictures

1.
2.
3.
Double
beep
Halfway pressed
4.
Click
Fully pressed

E. Viewing the Images

1.
2.
How to insert a Memory Card.

Camera Controls

n/j Low light view
button/
q/d Flash button
o/ *
Self-timer button
Battery cover
Battery compartment
Memory Card slot
Press p or q to select Year, Month,
Day, Hour, or Minute. Press n or o to
correct the setting.
✽ Refer to the Owner's Manual for
"Turning On and Off".
Press POWER down fully to turn the
camera on.
Set the Mode dial to q.
Press the shutter button down halfway to
adjust the focus.
Press the shutter button down fully to
take a picture. The camera makes a
"Click" sound and takes the picture.
Press w.
Press p or q to move through your
images.
Mode dial
Strap mount
Erase button
Y-709108-PY
