Page 2 No part of this document may be reproduced or transmitted in any form, in any fashion, electronically or mechanically, without the express, written permission of Regin. COPYRIGHT  AB Regin. All rights reserved. TRADEMARKS ©...
Page 3: Table Of Contents
Table of contents CHAPTER 1 ABOUT THE MANUAL ....................6 More information ........................6 CHAPTER 2 ABOUT CORRIGO E ...................... 7 2.1 News in version 3.2 ........................ 7 2.2 Application choice ......................... 8 2.3 Technical data ........................11 CHAPTER 3 INSTALLATION AND WIRING ..................14 3.1 Installation ...........................
Page 4 13.4 Extended running ......................70 13.5 Timer outputs 1…5 ......................70 13.6 Holidays ..........................71 CHAPTER 14 MANUAL / AUTO ..................... 72 CHAPTER 15 SETTINGS ......................... 75 15.1 Control temp ........................75 15.2 Control pressure ........................ 76 15.3 Control flow ........................76 15.4 Humidity control ........................
Page 5 APPENDIX FREQUENCY CONVERTERS ..................117...
Page 6: Chapter 1 About The Manual
Chapter 1 About the manual This manual covers all the models in the Corrigo E series used with the ventilation application. This revision covers program revisions from 3.2. More information More information about Corrigo E can be found in: •...
Page 7: Chapter 2 About Corrigo E

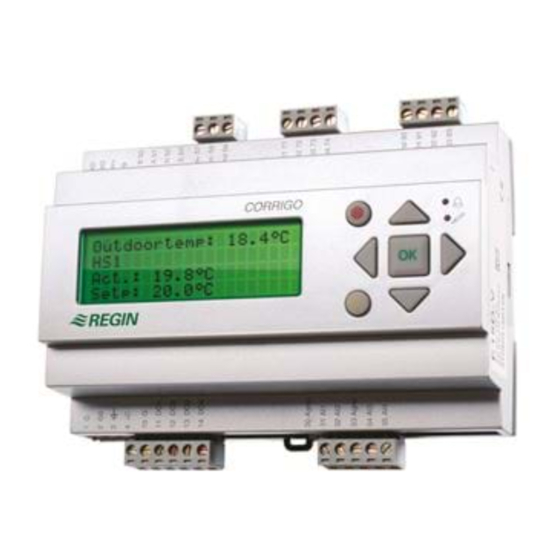

Corrigo E series comprises three model sizes: 8, 15 or 28 in-/outputs. In each model of Corrigo E generation 2, all applications are loaded in a separate memory area. The models have article number E...-S (where S stands for Second generation). From version 3.0, there are models with two communication ports.
Page 8: Application Choice
After another few seconds, the display text will change to the selected language, if another language than English has been selected. Regulator vent. sys 08:06:03 09:32 System:Stopped Sp: 19.5 Act: 20.1°C About Corrigo E Manual Corrigo E Ventilation, revision Q...
Page 9 For starting and stopping the unit. Up to five timer outputs for control of external functions such as lighting, doorlocks etc. Demand control In buildings with strongly varying occupancy the fan speeds or mixing dampers can be controlled by the air quality measured by a CO /VOC sensor. Manual Corrigo E Ventilation, revision Q About Corrigo E...
Page 10 Step controllers Heating/Cooling As an alternative to the analogue control of ”Actuator heating Y1” or ”Actuator cooling Y3”, step controllers can be used to control heating or cooling in steps using digital control. About Corrigo E Manual Corrigo E Ventilation, revision Q...
Page 11: Technical Data
Climatic conditions according to IEC 721-3-3 ............Class 3k5 Ambient temperature ....................0...50°C Ambient humidity ....................Max 95% RH Mechanical requirements according to IEC721-3-3 ..........Class 3M3 Vibration ............IEC60068-2-6, Test FC, vibration Sinusoidal Shock ....................IEC60068-2-27, Test Ea Manual Corrigo E Ventilation, revision Q About Corrigo E...
Page 12 EXOline Port 2, insulated via a built-in RS485 contact (only 2-port Corrigo models). The basic version of Corrigo E can communicate with Modbus. You do not need an activation code. Corrigo E can be ordered with a communication port for TCP/IP or LON.
Page 13 Position of the terminals on Corrigo E Manual Corrigo E Ventilation, revision Q About Corrigo E...
Page 14: Chapter 3 Installation And Wiring
Chapter 3 Installation and wiring 3.1 Installation Corrigo E can be mounted in a DIN-standard casing (minimum 9 modules), on a DIN-rail in a cabinet or, using a suitable front-mounting kit, in a cabinet door or other control panel. Ambient temperature: 0…50°C.
Page 15 10…0 V DC 10…2 V DC If the Corrigo E and the actuators connected to it share the same transformer it is essential that the same transformer-pole is used as reference for all the equipment. Failure to do so will prevent the equipment from functioning as intended and may also lead to damages.
Page 16 24 VAC 24 V AC 24 V DC supply and 24 V DC relays 24 V DC 24 V AC supply and 24 V DC relays 24 VAC 24 V AC Installation and wiring Manual Corrigo E Ventilation, revision Q...
Page 17 External control SAF SAF ext. Ctrl External control extract air fan External control EAF EAF ext. Ctrl Pressure transmitter supply air 2 SAF Pressure 2 SAF pressure 2 Intake temperature Intake Temp Intaketemp Manual Corrigo E Ventilation, revision Q Installation and wiring...
Page 18 The universal inputs on Corrigo E28 can be individually configured as either analogue inputs, using any of the analogue input signals above, or as digital inputs using any of the digital inputs above. Installation and wiring Manual Corrigo E Ventilation, revision Q...
Page 19 Exhaust air close-off damper Exhaust Air Damper Exhaust air d Fresh air close-off damper Outdoor Air Damper Fresh air dam Recirculation damper Recirculation Air Damper Recirc. damper Heating 3-position actuator, increase Heating Increase Heat-inc Manual Corrigo E Ventilation, revision Q Installation and wiring...
Page 20 Free cooling operation Free cool run Free cool run Pretreatment Pretreatment Pretreatment Split sequence active Split Sequence Split sequence Run indication Run indication Run ind. Pulse modulated heating output Heating PWM Heating PWM Installation and wiring Manual Corrigo E Ventilation, revision Q...
Page 21 DI Run indication / Motor protection SAF Not used DI Run indication / Motor protection EAF Not used Agnd Reference pole for universal inputs UI De-icing sensor, heat exchanger Frost protection sensor Manual Corrigo E Ventilation, revision Q Installation and wiring...
Page 22 Outdoor temperature sensor Run indication /alarm, Circ. pump Heating Supply air temperature sensor High temp. limit switch / Frost prot. thermostat Agnd Reference pole for analogue outputs AO Y1 Actuator Heating Installation and wiring Manual Corrigo E Ventilation, revision Q...
Page 23 Reference for digital outputs DO. Net+ Net- LON-connection (LON-versions only) Egnd Agnd Reference pole for analogue inputs AI Agnd Reference pole for analogue inputs AI Agnd Reference pole for analogue outputs AO Manual Corrigo E Ventilation, revision Q Installation and wiring...
Page 24 Reference pole for analogue inputs AI Agnd Reference pole for analogue inputs AI Agnd Reference pole for analogue outputs AO Agnd Reference pole for universal inputs UI Agnd Reference pole for universal inputs UI Installation and wiring Manual Corrigo E Ventilation, revision Q...
Page 25 Reference for digital outputs DO. RS485 EXOline / Modbus (Port 2) Agnd Reference pole for analogue inputs AI Agnd Reference pole for analogue inputs AI Agnd Reference pole for analogue outputs AO Manual Corrigo E Ventilation, revision Q Installation and wiring...
Page 26: Chapter 4 Commissioning
E-DSP. © E tool © The best way however, is to configure the Corrigo E by using E tool © E tool is a PC-based configuration program specially developed to simplify the commissioning of the Corrigo E series.
Page 27 Display, buttons and LEDs Read chapter 7 on how to use the front panel buttons to navigate the Corrigo E menu system. Access rights Chapter 8. Learn how to log on to the Corrigo E.
Page 28 Other functions Chapter 18 Alarm handling etc. Commissioning Manual Corrigo E Ventilation, revision Q...
Page 29: Chapter 5 Functional Description
Chapter 5 Functional description 5.1 Temperature control General Corrigo E has a choice of the following control modes: Supply air control Outdoor temperature compensated supply air control Cascaded room temperature control Cascade connected extract air temperature control Outdoor temperature dependent switching between supply air control and room...
Page 30 The supply air temperature is kept at the setpoint value by controlling the output signals for "Heating Y1", "Exchanger Y2", "Cooling Y3", "Extra sequence Y4" and “Extra sequence Y5”. A single PI control loop is used. Functional description Manual Corrigo E Ventilation, revision Q...
Page 31 The room temperature can be compensated when the outdoor temperature increases. One can, for instance, imagine accepting a slightly higher room temperature if it is warm outside or, conversely, a slightly lower temperature if it is chilly. This function is included to conserve energy. Manual Corrigo E Ventilation, revision Q Functional description...
Page 32 The unit is restarted when the alarm has been acknowledged and the temperature for the frost protection sensor has risen above “Alarm limit frost” + “P-Band”. Frost protection control is available on Y1 Heating, Y4 Extra sequence or on both Y1 and Y4. Functional description Manual Corrigo E Ventilation, revision Q...
Page 33 "Split". Split (see the section Split of optional temp sequence) must always be set to "Heating". On increasing heat demand, the water heating is first activated and then, if needed, the electric heating. Manual Corrigo E Ventilation, revision Q Functional description...
Page 34 A PI-controller compares the de-icing setpoint with the signal ”De-icing Exchanger”. The lesser of the output signal from this controller and the output from the ordinary controller is used as output to the dampers. Functional description Manual Corrigo E Ventilation, revision Q...
Page 35 Y2, Y4 or on both outputs. Minimum limit An outdoor air minimum limit for can be set using the front panel. The limit value is settable between 0 and 100 %. Manual Corrigo E Ventilation, revision Q Functional description...
Page 36 The load connected to the analogue signal should have the same size as the smallest of the binary groups. In the example below there are 4 heater groups (1:1:2:4) and the total number of heating steps is eight. Y1 = 1 Functional description Manual Corrigo E Ventilation, revision Q...
Page 37 DX cooling step. When two DX cooling steps are used with binary function, the cooling effect is divided into three steps. The desired blocking level can be set individually for each of these steps. Manual Corrigo E Ventilation, revision Q Functional description...
Page 38 (FS=15°C) as setpoint. Support control cooling stops when the temperature falls below the stop value and the minimum run time has been exceeded or the running mode changes to ”On”. Functional description Manual Corrigo E Ventilation, revision Q...
Page 39 The function also activates the heating function “Free heating”: if heating is required and the outdoor temperature is higher than the extract air temperature, outdoor air will primarily be used. Manual Corrigo E Ventilation, revision Q Functional description...
Page 40 (Extractairtemp – Outdoortemp) * 100 Alarm An alarm is activated if the efficiency falls below the set alarm level (50 %). In- and outputs Outdoor temperature sensor Extract air sensor Exhaust air sensor Functional description Manual Corrigo E Ventilation, revision Q...
Page 41 Three digital output signals, "Heat/Cool Step 1", "Heat/Cool Step 2" and "Heat/Cool Step 3", are also connected with change-over. The signals can be used for reversing a step controlled heating pump etc. See also section 5.1.4 Step controller Heating/ DX cooling. Manual Corrigo E Ventilation, revision Q Functional description...
Page 42: Extra Control Circuit
Dehumidification An analogue output is used to control a dehumidifier. The output will increase on increasing humidity. A digital output can also be used to start a dehumidifier. Functional description Manual Corrigo E Ventilation, revision Q...
Page 43: Fan Control
The fans are normally controlled by the timer channels for normal and reduced speed. At very low outdoor temperatures, "2-speed fans" or "pressure controlled fans" can be forced to "reduced speed". The limit temperature is settable and the function has a differential of 2K. Manual Corrigo E Ventilation, revision Q Functional description...
Page 44 It is possible to select whether the compensation (0...100) should increase or decrease the pressure setpoint. The 0...100 compensation follows the current control quantity for the fans, in this case pressure. Functional description Manual Corrigo E Ventilation, revision Q...
Page 45 It is possible to select whether the compensation (0...100) should increase or decrease the pressure setpoint. The 0...100 compensation follows the current control quantity for the fans, in this case pressure. Manual Corrigo E Ventilation, revision Q Functional description...
Page 46 The supply air flow is the setpoint used for control of the extract air fan. A scaling factor can be added if the extract air fan does not have the same characteristics as the supply air fan. Functional description Manual Corrigo E Ventilation, revision Q...
Page 47 CO /VOC-sensor. You can choose to activate the function "1. Always", "2. Only when the running mode is On", "3. Only when the running mode is Off". Manual Corrigo E Ventilation, revision Q Functional description...
Page 48 If demand controlled ventilation is activated in combination with mixing dampers, and the CO value rises above the setpoint value, the dampers will let in more outdoor air. The function is controlled by a PI-controller. See section 5.1.3 Heat exchanger types. Functional description Manual Corrigo E Ventilation, revision Q...
Page 49: Pump Control
The pump will be exercised once daily at 3 p.m. for 1 minute, or the set stop delay, whichever is the longest. Corrigo E can be configured to block DX cooling if a ”Malfunction P1-Cooling” alarm should occur. In- and outputs Heating Exch.
Page 50: Damper Control
If not an alarm will be triggered. Then, within the set time, "Fire damper end-switch monitoring" must change again to indicate that all the dampers are back to their normal positions. If not an alarm will be triggered. Functional description Manual Corrigo E Ventilation, revision Q...
Page 51: Extended Running And External Switch
Extra time channel 5 5.9 Alarms Alarm handling Alarms are indicated by the red alarm LED on the front or on E-DSP. All alarms can be monitored, acknowledged and blocked using the display and buttons. Manual Corrigo E Ventilation, revision Q Functional description...
Page 52 The alarm text that should be shown in the display when there is an alarm can be changed using E © © tool . For more information, see the E tool manual. In- and outputs Sum alarm A + B Sum alarm A Sum alarm B/C Functional description Manual Corrigo E Ventilation, revision Q...
Page 53: Chapter 6 Starting And Stopping The Unit
The unit will be started and will run when any one of the following conditions is met: Timer output for normal speed or timer output for reduced speed is ON The unit is started manually using the Corrigo E front panel Digital input for extended running is activated...
Page 54: Start Sequence
In order to maintain an acceptable supply air temperature as long as possible, the heat exchanger will continue to run during the stop sequence until everything else is stopped. Starting and stopping the unit Manual Corrigo E Ventilation, revision Q...
Page 55: Chapter 7 Display, Leds And Buttons
Chapter 7 Display, LEDs and buttons This section is applicable to Corrigo E units with display and buttons but also to the hand terminal E-DSP which can be connected to Corrigo E units without display and buttons. Room units are available with or without display, or as a touch display (see instructions and product sheets for ED-RU..., ED-RU-D...
Page 56 If there are further settable values displayed the cursor will automatically move to the next one. To pass a value without changing it, press RIGHT. To abort a change and return to the initial setting, press and hold the C-button until the cursor disappears. Display, LEDs and buttons Manual Corrigo E Ventilation, revision Q...
Page 57: Chapter 8 Access Rights
If the access level is Operator, Service or Admin, the user will automatically be logged off to Normal after a settable time of inactivity. See also the section "Automatic logoff". It is possible to remove the automatic logoff, see 8.4 below. Manual Corrigo E Ventilation, revision Q Access rights...
Page 58: Change Password
Note: This should be done with consideration, since no alarm is continuously given that a certain level has been activated. However, it is very useful in certain cases, if the unit is intended to be used by educated personnel or for instance at commissioning. Access rights Manual Corrigo E Ventilation, revision Q...
Page 59: Chapter 9 Running Mode
Fan control 1-speed. Heating: Water Exchanger: Plate exc Cooling: Water Free cool active: No Support control Active: CO2/VOC active If time channel on Fire damper function Not active Operation when alarm Stopped Manual Corrigo E Ventilation, revision Q Running mode...
Page 60: Alarm Events
Analogue inputs and digital outputs are shown here as examples. Analogue inputs AI1: 18.5 Outdoortemp AI2: 20.3 Supplytemp AI3: 28.2 Extracttemp AI4: 19.9 Roomtemp1 Digital outputs DO1:Off SAF 1/1-speed DO2:Off EAF 1/1-speed DO3: On P1-Heating DO4:Off Sum alarm Running mode Manual Corrigo E Ventilation, revision Q...
Page 61: Chapter 10 Temperature
Both the outdoor and supply air temperatures are changeable for the curve. Outdoor comp. setp. -20.0°C = 25.0°C -15.0°C = 24.0°C -10.0°C = 23.0°C Outdoor comp. setp. -5.0°C = 23.0°C 0.0°C = 22.0°C 5.0°C = 20.0°C Manual Corrigo E Ventilation, revision Q Temperature...
Page 62 In control mode six, the setpoint is used when cascade connected extract air control is active. Submenu for setting the min. and max. limitation temperatures for the supply air. If cascade control max/min supply setp. Max: 30.0°C Min: 12.0°C Temperature Manual Corrigo E Ventilation, revision Q...
Page 63 Start: 15.0°C Stop: 21.0°C Support control cooling Support cooling Room temp for Start: 30.0°C Stop: 28.0°C Frost protection temperature Frost protection Actual: 30.9°C De-icing exchanger De-icing exchanger Actual: 11.2°C Setpoint: -3.0°C Hysteresis: 1.0°C Manual Corrigo E Ventilation, revision Q Temperature...
Page 64 Enthalpy outdoor: 35.0 KJ/Kg Submenus Outdoortemp Act.: 12.8 °C Humidity Outdoor Act.: 98.7% RH Indoortemp Act.: 17.2 °C Humidity indoor Act.: 55.7 % RH Status enthalpy control Override cool Recovery due to Enthalpy: Active Temperature Manual Corrigo E Ventilation, revision Q...
Page 65: Chapter 11 Air Control
Controller output comp if heating at HCOUT= 0% 100 at HCOUT= 0% The compensation follows the current control quantity, in this case pressure. Submenu “Controller output compensation” Controller output compensation Not active Manual Corrigo E Ventilation, revision Q Air control...
Page 66 100 at HCOUT= 0% The compensation follows the current control quantity, in this case pressure. Submenu “Controller output compensation” Controller output compensation Not active Submenu “Compensation only when” Compensation only when: 1/1-speed: No defrosting: No Air control Manual Corrigo E Ventilation, revision Q...
Page 67 Compensation only when: 1/1-speed: No defrosting: No Flow units can be measured in both m /h (cubic meters per hour) and in CFM (cubic feet per minute). CO2 / VCO Actual:920ppm Setp:850pm Manual Corrigo E Ventilation, revision Q Air control...
Page 68: Chapter 12 Humidity Control
60 % RH. When halfway to 80 % RH (i.e. when at 70 % RH), half the output signal will be damped. If the humidity in the duct still reaches 80 % RH, the entire output signal will be damped. Humidity control Manual Corrigo E Ventilation, revision Q...
Page 69: Chapter 13 Time Settings
To inactivate a period, set the time to 00:00 – 00:00. If both periods of a day are set to 0:00 – 0:00, the unit will not run at 1/1-speed that day. Normal speed Monday Per 1: 07:00 – 16:00 Per.2: 00:00 - 00:00 Manual Corrigo E Ventilation, revision Q Time settings...
Page 70: Timer Reduced Speed
Timer output 2 Wednesday Per.1: 05:30 – 08:00 Per.2: 17:00 – 23:00 If the function "Recirculation" has been configured (see 5.1.11), "Timer output 5" can be used to control start/stop of the recirculation function. Time settings Manual Corrigo E Ventilation, revision Q...
Page 71: Holidays
When the present date falls within a holiday period, the scheduler will use the settings for the weekday “Holiday”. Holidays (mm:dd) 1: 01-01 – 02-01 2: 09-04 – 12-04 3: 01-05 – 01-05 Manual Corrigo E Ventilation, revision Q Time settings...
Page 72: Chapter 14 Manual / Auto
With pressure controlled fans you get the following menu: Can be set to "Auto", "Manual normal", "Manual reduced", "Manual" and "Off". In "Manual" mode the output signal can be set 0…10 V. Pressure SAF: Auto Manual set: 0.0 Manual / Auto Manual Corrigo E Ventilation, revision Q...
Page 73 Auto P1-Cooling Auto Dampers: Outdoor air, Recirculation air, Exhaust air and Fire dampers Outdoor air damper Auto Exhaust air damper Auto Extra control circuit Extra ctrl. unit Auto Manual set: 0.0 Manual Corrigo E Ventilation, revision Q Manual / Auto...
Page 74 Extra sequence Y4 Extra sequence Y4 Auto Manual set: 0.0 Extra sequence Y5 Extra sequence Y5 Auto Manual set: 0.0 Manual / Auto Manual Corrigo E Ventilation, revision Q...
Page 75: Chapter 15 Settings
The split values are set in the configuration submenu Other parameters. See section 16.24.6. If cascade control max/min supply setp. Max: 30°C Min: 12°C Room controller Room control P-band: 100.0 °C I-time: 300.0 Extract air controller Extract air control P-band: 100.0 °C I-time: 300.0 Manual Corrigo E Ventilation, revision Q Settings...
Page 76: Control Pressure
Pressure control EAF Pressure control EAF P-band: 500 Pa I-time: 60 sec Min Output: 0 15.3 Control flow Flow control SAF Flow control SAF P-band: 1000 m3/h I-time: 60 sec Min Output: 0 Settings Manual Corrigo E Ventilation, revision Q...
Page 77: Humidity Control
High temp: 30.0 °C Low temp: 10.0 °C Alarm limits, room Al. lim. room air High temp: 30.0 °C Low temp: 10.0 °C Alarm limit frost protection Alarm limit frost protection 7.0 °C Manual Corrigo E Ventilation, revision Q Settings...
Page 78 Alarm delay Frost prot.: 0 sec Frost risk: 0 sec Alarm delay control SAF and EAF Alarm delay control dev. pressure SAF: 30 EAF: 30 Alarm delay, Humidity Alarm delay control deviation humidity 30 Settings Manual Corrigo E Ventilation, revision Q...
Page 79: Save And Restore Settings
Save user settings: No The present configuration can be saved in a separate memory area and can later be restored using the previous menu, "Restore user settings". Manual Corrigo E Ventilation, revision Q Settings...
Page 80: Chapter 16 Configuration
Delivery setting On delivery all the physical in- and outputs have already been bound to a signal. The delivery settings are suggestions only and can easily be changed. Configuration Manual Corrigo E Ventilation, revision Q...
Page 81 When configured as digital inputs they can be bound to any of the digital signals described under "Digital signals".  Choose AI or DI sign AI sign: SAF pressure DI sign: Not used Manual Corrigo E Ventilation, revision Q Configuration...
Page 82: Control Function
Cascade connected extract air temperature control. Outdoor temperature dependent switching between outdoor compensated supply air temperature control and room temperature control Outdoor-temperature controlled switching between Outdoor-temperature compensated supply air control and Cascade connected extract air temperature control. Configuration Manual Corrigo E Ventilation, revision Q...
Page 83: Fan Control
If fan slave operation and flow control has been configured, there are submenus for setting the flow calculation factors for "SAF" and "EAF", and the CAV factor for "SAF/EAF". SAF flow control factors K-constant: 100 X-constant: 0.50 EAF flow control factors K-constant: 100 X-constant: 0.50 Manual Corrigo E Ventilation, revision Q Configuration...
Page 84: Extra Control Circuit
Mode Extra Seq- uence Y4 Not active 16.6 Extra sequence Y5 "Extra sequence Y5" can be configured to “Active” or “Not active”. Mode Extra Seq- uence Y5 Not active 16.7 Heating coil Heating water Configuration Manual Corrigo E Ventilation, revision Q...
Page 85: Exchanger
Lowering of min limit for supply air control on active DX cooling: 5.0°C This parameter is also used for setting the lowering of the cooling setpoint when running "DX cooling with exchanger control". See 5.1.4. Manual Corrigo E Ventilation, revision Q Configuration...
Page 86: Pump Control
If, for any of the control circuits, no output is configured for pump control these settings will be ignored. P1 Heating Pump stop: Yes Stop delay: 5 min Outd. Temp stop: 10°C Differential: 1.0°C P1 Exchanger P1-Exchanger Stop delay: 5 min P1 Cooling P1-Cooling Stop delay: 5 min Configuration Manual Corrigo E Ventilation, revision Q...
Page 87: Free Cooling
See more in section 5.1.5. Support control Active: Yes EAF running during support contr: Yes Minimum running time Min. run time for support ctrl: 20 min For detailed description, see 5.1.5 Support control. Manual Corrigo E Ventilation, revision Q Configuration...
Page 88: Co2/Voc Demand Control
Running time is the time the damper actuator needs to open or close. Hour for exercise is the hour of the day at which you want the function to be run. For detailed description of damper exercising, see the section Damper control. Configuration Manual Corrigo E Ventilation, revision Q...
Page 89: Humidity Control
For a detailed description, see section 5.1.8 Enthalpy control. 16.20 External setpoint An external setpoint device, for example TBI-PT1000 or TG-R4/PT1000 can be connected. The setpoint device must follow the PT1000 resistance curve. The setting range can be restricted. Manual Corrigo E Ventilation, revision Q Configuration...
Page 90: Run Indication / Motor Protection
Choose output signals to the actuators connected to the analogue control outputs: 0…10 V DC, 2…10 V DC, 10…0 V DC or 10…2 V DC. Actuator type Y1 Heating: 0-10V Y2 Exchan.: 0-10V Y3 Cooling: 0-10V Configuration Manual Corrigo E Ventilation, revision Q...
Page 91: Running Time, 3-Position Actuators
Step contr. heating  Activation levels  Binary steps Step controller Heating activation levels for sequential control. For binary control the activation levels are calculated by the controller depending on the number of steps involved Manual Corrigo E Ventilation, revision Q Configuration...
Page 92 The blocking level is individually settable for each DX cooling step. At lower SAF-output block step 1: block step 2: block step 3: For a more detailed description, see section 5.1.4 Step controllers. Configuration Manual Corrigo E Ventilation, revision Q...
Page 93: Recirculation
If the outdoor temperature exceeds the set heating start limit by more than 1°C (fixed), preheating will be aborted, as well as if the outdoor temperature falls below the cooling start limit by 1°C. Manual Corrigo E Ventilation, revision Q Configuration...
Page 94: Alarm Setting
Filter guard Filter guard pressure switch activated Flow switch Flow switch activated External frost guard External Frost protection thermostat activated Deicing pressure guard Exchanger de-icing pressure switch activated 10 Fire alarm Fire alarm activated Configuration Manual Corrigo E Ventilation, revision Q...
Page 95 The EAF is in manual mode 41 Manual Heater Control The heater is in manual mode 42 Manual exchanger Heat exchanger output in manual control control 43 Manual cooler control Cooling output in manual control Manual Corrigo E Ventilation, revision Q Configuration...
Page 96 Malfunction of connected sensor sensor 2 69 Sensor error Extra Malfunction of connected sensor sensor 3 70 Sensor error Extra Malfunction of connected sensor sensor 4 71 Sensor error Extra Malfunction of connected sensor sensor 5 Configuration Manual Corrigo E Ventilation, revision Q...
Page 97 87 Manual Y4-Extra Y4-Extra sequence in manual control Sequence control 88 Restart blocked after Restart blocked due to earlier power failure power on 89 Manual Y5-Extra Y5 Extra sequence in manual control Sequence control Manual Corrigo E Ventilation, revision Q Configuration...
Page 98: Communication
16.28 Communication 16.28.1 Modbus communication Corrigo E can be connected to a network for Modbus communication. You do not need an activation code. Modbus slave com- munication, Port 1 Not Active If Modbus communication is activated, you can set the address etc.
Page 99 Type of frequency converter connected via Modbus: None 16.28.3 Dial-up modem With the help of a dial-up modem, Corrigo E can be connected to a supervisor EXO-system. We recommend the modem Modem56kINT485kit. The default password is exo. DialUpModem: No Number: Password:...
Page 100: Other Parameters
This function should not be combined with the function ”Outdoor compensation of pressure setpoint”. See the section Demand control. Both functions need an outdoor temperature sensor. Outd.temp for heat start: 3.0°C Blocking of 1/1-speed: -10°C Configuration Manual Corrigo E Ventilation, revision Q...
Page 101 Split settings Exchanger 0% at HCOut= 32% 100% at HCOut= 50% Split settings Heating 0% at HCOut= 54% 100% at HCOut= 100% Split settings Cooling 0% at HCOut= 30% 100% at HCOut= 0% Manual Corrigo E Ventilation, revision Q Configuration...
Page 102 Y1 Y2 Y3 No split 16.29.9 Fast stop on overheating If this function is active, the fans will be immediately stopped when there is an overheating alarm, regardless of the set cool-down time. Configuration Manual Corrigo E Ventilation, revision Q...
Page 103: System
System: Running Sp:22.0°C Act:21.8°C Type 2 The first line shows the date and time. The second line shows the present running status. The third line shows the present temperature setpoint and actual values. Manual Corrigo E Ventilation, revision Q Configuration...
Page 104 16.30.4 Address © Corrigo E uses the addresses below when connecting to Corrigo E tool , and when multiple © controllers are connected in an EXO network. E tool normally uses the addresses below, so if an ©...
Page 105 The start-up wizard is a special program which at the first start-up guides the operator through a number of start-up menus where you set certain operation parameters. For more information, see the section Start-up wizard. Activate wizard Manual Corrigo E Ventilation, revision Q Configuration...
Page 106: Chapter 17 Expansion Model
If set as slave, port 2 can also be used with E tool . The controllers must be of the type Corrigo E. There is no point in utilising slave units with display since the display cannot be used or show anything. However, an external display is required when starting ©...
Page 107 17.3.3 Expansion units LON For a 2-port Corrigo to be able to communicate via LON, the first expansion unit must have a LON port. Communication between the master and expansion units takes place via EXOline. Manual Corrigo E Ventilation, revision Q Expansion model...
Page 108: Chapter 18 Other Functions
If RIGHT is pressed twice when the start-menu is shown, a menu showing the program revision number, i.e. the date on which the program was created, and the Corrigo ID number (not to be confused with its serial number) is displayed. Other functions Manual Corrigo E Ventilation, revision Q...
Page 109: Language
The replacement battery must be of the type CR2032. Remove the cover by pressing down the locking torques at the edge of the cover using a small screwdriver, and at the same time pulling the edges outwards. Manual Corrigo E Ventilation, revision Q Other functions...
Page 110: Start-Up Wizard
After the controller has been configured, the manufacturer of the air handling unit will activate the start-up wizard, which will help the operator to set setpoint values, running times etc. without having to log on. In the first menu, the language is chosen. Other functions Manual Corrigo E Ventilation, revision Q...
Page 111 The last menu is used to turn off the wizard, and the Corrigo will switch to normal running mode. The selected values will be used. The wizard will not be shown again during further use. Manual Corrigo E Ventilation, revision Q Other functions...
Page 112: Energy Calculation
A daily and a monthly average (always 30 days) are also computed and presented in the display and © in E tool . SFP for the average values is calculated only when the unit is running. The display image can be located under the menu Running modeRunning mode unit: Other functions Manual Corrigo E Ventilation, revision Q...
Page 113: Index
Index Access rights, 57 Humidity control, 89 Actuator type, 90 In- and outputs, 80 Address, 104 Objects, 83 Air control, 65 Other parameters, 100 Alarm Pump control, 86 Setting, 94 Run indication / Motor protection, 90 Alarm events, 60 Running time, 3-position actuators, 91 Alarm forwarding, 100 Step controllers, 91 Alarm list, 94...
Page 114 Extra flow sensors supply air and extract air, 42 Digital inputs, 15 Extra sequence Y4, 84 Digital outputs, 15 Extra sequence Y5, 84 Input and output lists, 17 Extra temperature sensor, 42 Universal inputs, 15 Intermittent drift, 87 Fans Control, 43 Language, change, 103, 109 Delays, 100 LEDs, 55, 109...
Page 115 Summer time, 104 Supply air control, 30 Recirculation, 41, 93 Support control, 38, 87 Remote control, 105 Cooling, 38 Restore alarm, 79 Heating, 38 Revision number, 108 Rotating exchanger, 35 Run indication / Motor protection, 90 Running mode, 59 Temperature, 61 Running mode, unit, 59 Temperature control, 29 Running time, 3-position actuators, 91...
Page 116 Appendix...
Page 117 Appendix Frequency converters When communicating via frequency converters through Modbus, it is sometimes necessary to change certain settings in the frequency converter. Below are described what settings are necessary in the various models: Vacon NXL No settings necessary. Lenze No settings necessary. Omron V1000 Connected via RS485: •...
Page 118 Emerson Commander Connections RS485-RJ45: • RJ45:2 (orange) is connected to B on port 2 • RJ45:7 (white/brown) is connected to A on port 2 • Eventual termination resistor is connected between RJ45:1 (white/orange) and RJ45:8 (brown). If Modbus communication is not initialised after powering up, disconnect the termination resistor and try again.
Page 119 EBM frequency converters are controlled via Modbus. Communication, alarms and certain indications can be read. The following signals can be read from the frequency converter: Address Modbus register Name Scaling Type 30027,40027 FB Status word Binary 3051140511 Cumulative output 30527,40527 Motor frequency +/- Hz 30508,40508...
Page 120 C H A L L E N G E R B U I L D I N G A U T O M A T I O N AB Regin Head office Box 116, S-428 22 Kållered, Phone: +46 31 720 02 00 info@regin.se...
