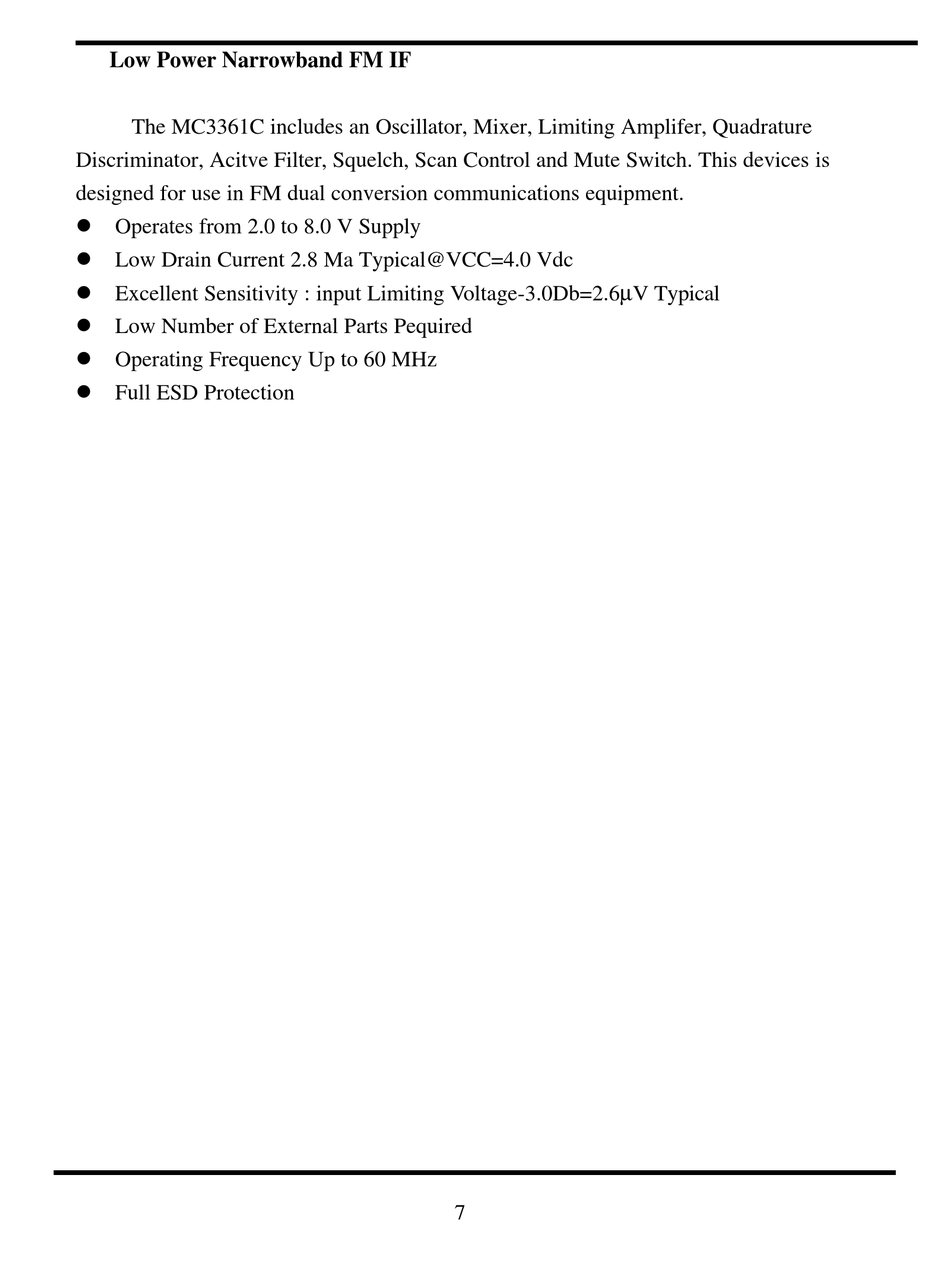

Low Power Narrowband FM IF
The MC3361C includes an Oscillator, Mixer, Limiting Amplifer, Quadrature
Discriminator, Acitve Filter, Squelch, Scan Control and Mute Switch. This devices is
designed for use in FM dual conversion communications equipment.
l Operates from 2.0 to 8.0 V Supply
l Low Drain Current 2.8 Ma Typical@VCC=4.0 Vdc
l Excellent Sensitivity : input Limiting Voltage-3.0Db=2.6µV Typical
l Low Number of External Parts Pequired
l Operating Frequency Up to 60 MHz
l Full ESD Protection
7
