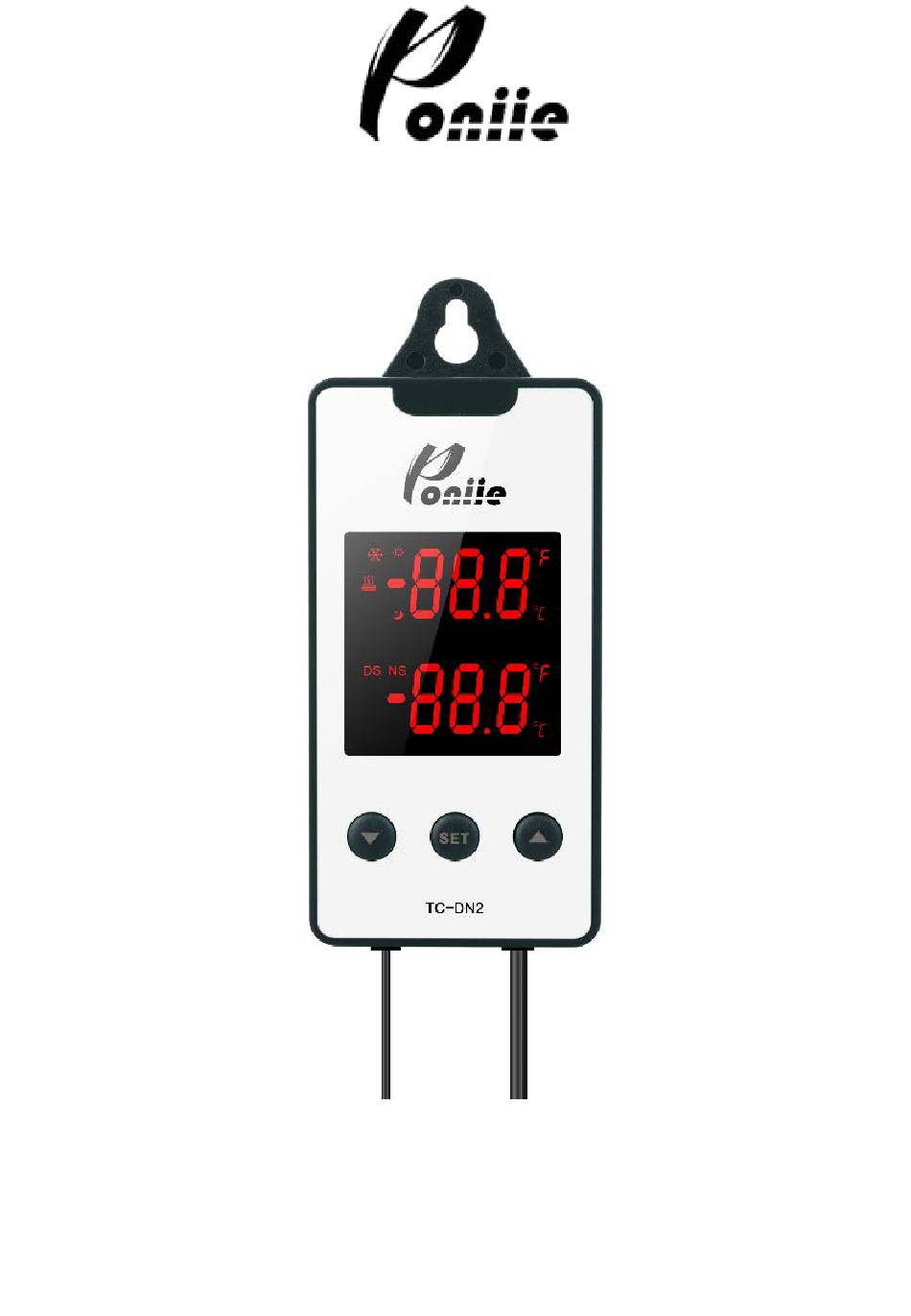

- Page 1 User Manual Model No: TC-DN2 Thank you for purchasing the Thermostat Controller by Poniie. Please read this manual carefully before using this product.
- Page 2 1. Be sure to read, understand and comply with all the instructions in this manual. 2. Before using this product, check to see if there is any crack or short of plastic parts on the shell, pay attention to the insulation around the connectors. Please do not use the product if it is damaged.
- Page 3 1. Real-time Temperature: under running mode, display current temperature; under setting mode, display start hour or menu code. 2. Setting Centering Temperature: under running mode, display setting temperature; under setting mode, display setting value.
- Page 4 3. Cooling Indicator: when the light is ON, start refrigeration; FLASHING, refrigeration is in compressor delay protection; OFF, not working. 4. Heating Indicator: when the light is ON, start heating; OFF, not working. 5. Day Time Indicator: when the light is ON, it is working in day time mode. 6.
- Page 5 1. Check and Set Your Time Figure 1 Plug the TC-DN2 into the power supply socket to start controller. Short press “▼” or “▲” key to view current time (as shown in Figure 1). The screen will return to normal display after 2 seconds.
- Page 6 2.1-Set Day Time Start Hour (DT) Press “SET” key-- to enter Basic Settings (as shown in Figure 2). The upper ▲ window number will flicker, press “▼” or “ ” key to adjust DT value (default 6 o'clock). From day time start hour to night time start hour, controller will working at dS centering temperature.
- Page 7 2.3-Set Daytime Temperature Setpoint (dS) Press “SET” key-- to switch to dS Setting (as shown in Figure 4). The lower ▲ window number will flicker, press “▼” or “ ” key to adjust dS value (default 77℉). This temperature setpoint works during day time period. Figure 4 2.4-Set Nighttime Temperature Setpoint (nS) Press “SET”...
- Page 8 Now the controller programming works as below: Daytime Period: DT to NT, temperature controlled at (dS ±dF) ℉ Nighttime Period: NT to DT, temperature controlled at (nS ±dF) ℉ Note: The default dF (differential value) is 2.0℉, you can adjust the dF value in Advanced Setting.
- Page 9 Figure 7 3.3 Set Alarm Low Point (AL) Press “SET” key-- to switch to AL Setting (as shown in Figure 8). The lower ▲ window number will flicker, press “▼” or “ ” key to adjust AL value (default -40℉). Figure 8 3.4 Set Alarm High Point (AH) Press “SET”...
- Page 10 Figure 9 3.5 Set Compressor Delay/Protect Time (Pt) Press “SET” key-- to switch to Pt Setting (as shown in Figure 10). The lower ▲ window number will flicker, press “▼” or “ ” key to adjust Pt value (default 0 minute). Adjustable Range: 0-10 minutes. Figure 10 When cooling, compressor delay function can keep the refrigeration off between cycles to protect your compressor.
- Page 11 3.6 Temperature Calibration (CA) Press “SET” key-- to switch to CA Setting (as shown in Figure 11). The lower ▲ window number will flicker, press “▼” or “ ” key to adjust CA corrected value (default 0.0℉). Adjustable Range: -20-20℉. Figure 11 Note: Do not recommand to calibrate temperature if the discrepancy is under 1.5℉, because it may affect the NTC sensor’s overall range accuracy.
- Page 12 When all settings are complete, hold down “SET” button 3 seconds or leave controller with no operation 15 seconds, system will save setting changes and return to normal working mode. Menu Setting Default Function Code Range Setting Day Time Start Hour 0-24H Night Time Start Hour 0-24H...
- Page 13 -4.0 ~ 130℉ Ambient Temperature Ambient Humidity 20~85% (No Condensate) •1 x TC-DN2 Thermostat •1 x User Manual 1) Testing temperature seems not very accurate. Please check whether the probe is completely placed in the same medium or not, contacting with different media at the same time may cause an inaccurate temperature reading.
