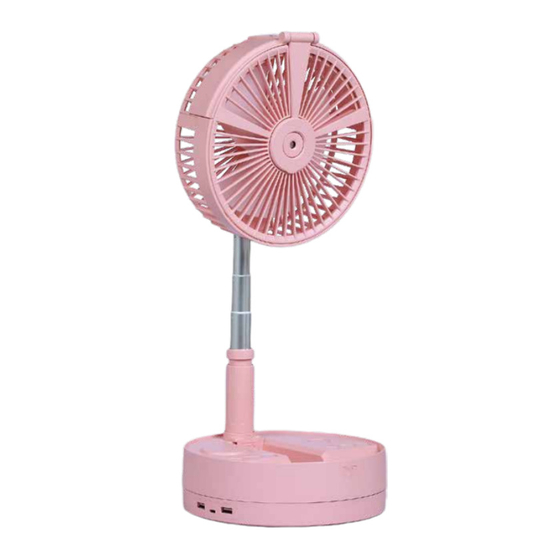

Summary of Contents for Videsur VSBFN55

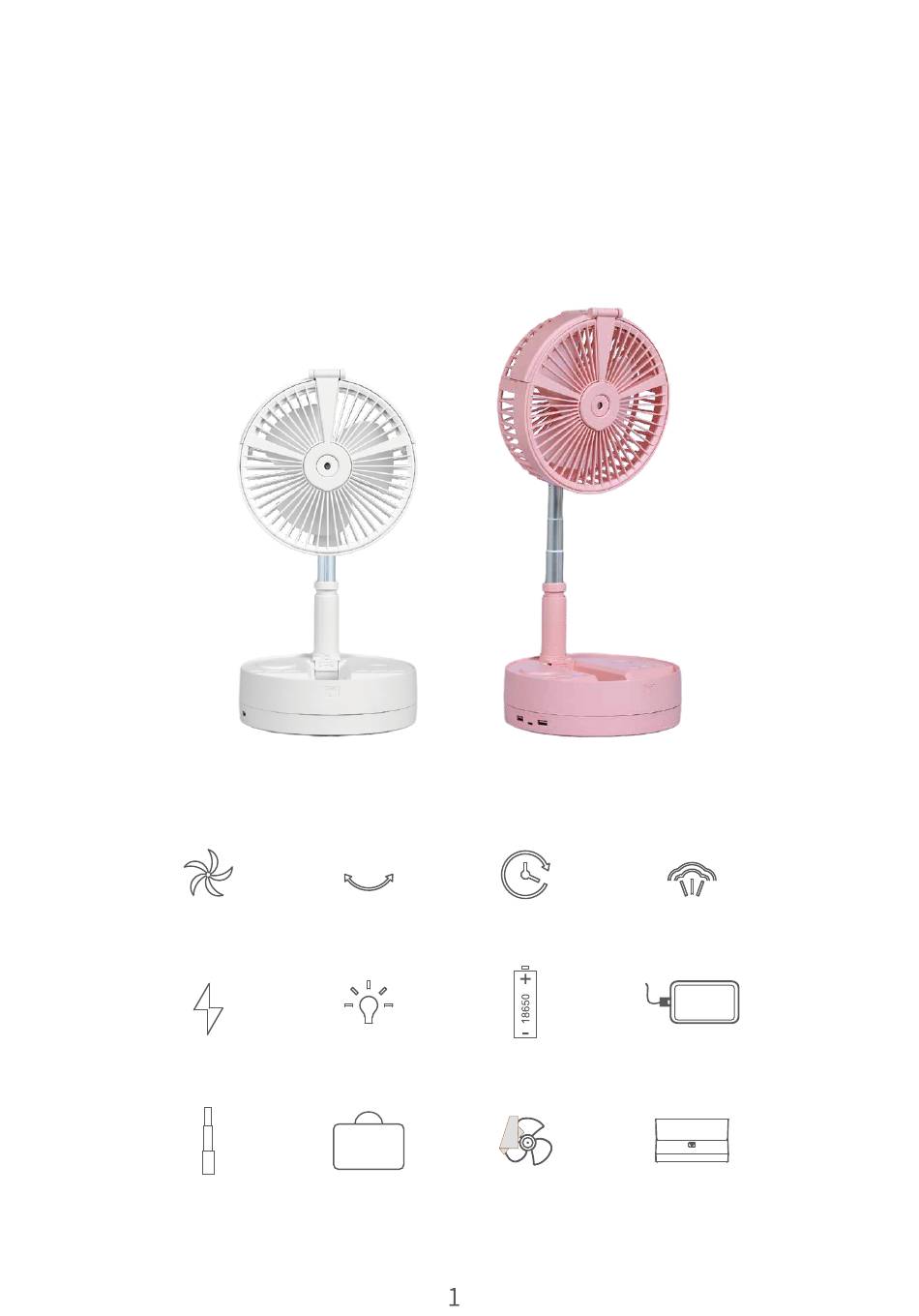

- Page 1 Portable Fan User Manual White Pink Spray Wind Speed Shake head Timer Wireless charging Lamp Replaceable Power Bank Telescopic Portable Clean up Folding storage...
- Page 2 Package list 1. Portable Fan 2. Tote bag 3. User manual 4. Power 5V 2.1A 5. USB Cable 6. Water bottle 7. Dishcloth Place the batteries Fan included 6 pcs 18650 batteries, Cell capacity is 15600mAh. Users can change batteries by themselves, battery capacity up to 21600mAh. Flat Top vs.
- Page 3 Open the fan 3. Adjusted up to 185° 2. Push up to vertical Before - After 1. Put your fingers on the upper 4. Rotate down until the compact state of "Open" then push up. Fan height: 40 ~ 105cm 105cm 40cm Desktop...
- Page 4 Parts introduction Water inlet Lamp Fan mask Spray port Telescopic Rod Battery indicator Fixed rod Fan on/off Fix/Relax Wind speed Shake head Timer Wireless charging Lamp on/off location Spray Output: 5V 1A Wireless charging Input: 5V 2.1A...
- Page 5 Mobile powerbank Output 5V 1A Charged two mobile phones at the same time Input 5V 2.1A When charging the fan, the green light keeps flashing, and 4 green lights are on after full charge. The battery indicator will on when working, will go out after 33 seconds if the light is off and the fan is off.
- Page 6 Brightness and Angle of Light Press "Lamp" button to switch brightness 1 High 2 Medium 3 Normal 4 Off Gentle lighting, opaque on the back Adjusted and stopped Spray 1. Pull up the cap of the water tank 3. Water tanks capacity: 70ml, press "Spray"...
- Page 7 Shake head and Timer, Wind speed Timer The green light will show the time level. 0.5, 1, 2, 4 hours Shake head 90°C rotation Wind speed 1 Level: Gentle wind 2 Level: Medium wind 3 Level: Strong wind 4 Level: Natural wind When adjusting wind speed, green lights means wind speed level, turn off after 3s.
- Page 8 Clean fan 1 Turn off Fan 2 Raise the lamp 3 CCW remove the fan mask 4 Clean fan mask, leaf blade and frame 5 Clockwise to install the fan cover Folding storage 1. Turn off fan and lamp, adjust the lamp to the original position and the telescopic rod to lowest.
