MODEL NO. RH550INT

Advertisement

loading
Need help?

Need help?

Do you have a question about the RH550INT and is the answer not in the manual?

Questions and answers

Related Manuals for NCE RH550INT

Summary of Contents for NCE RH550INT

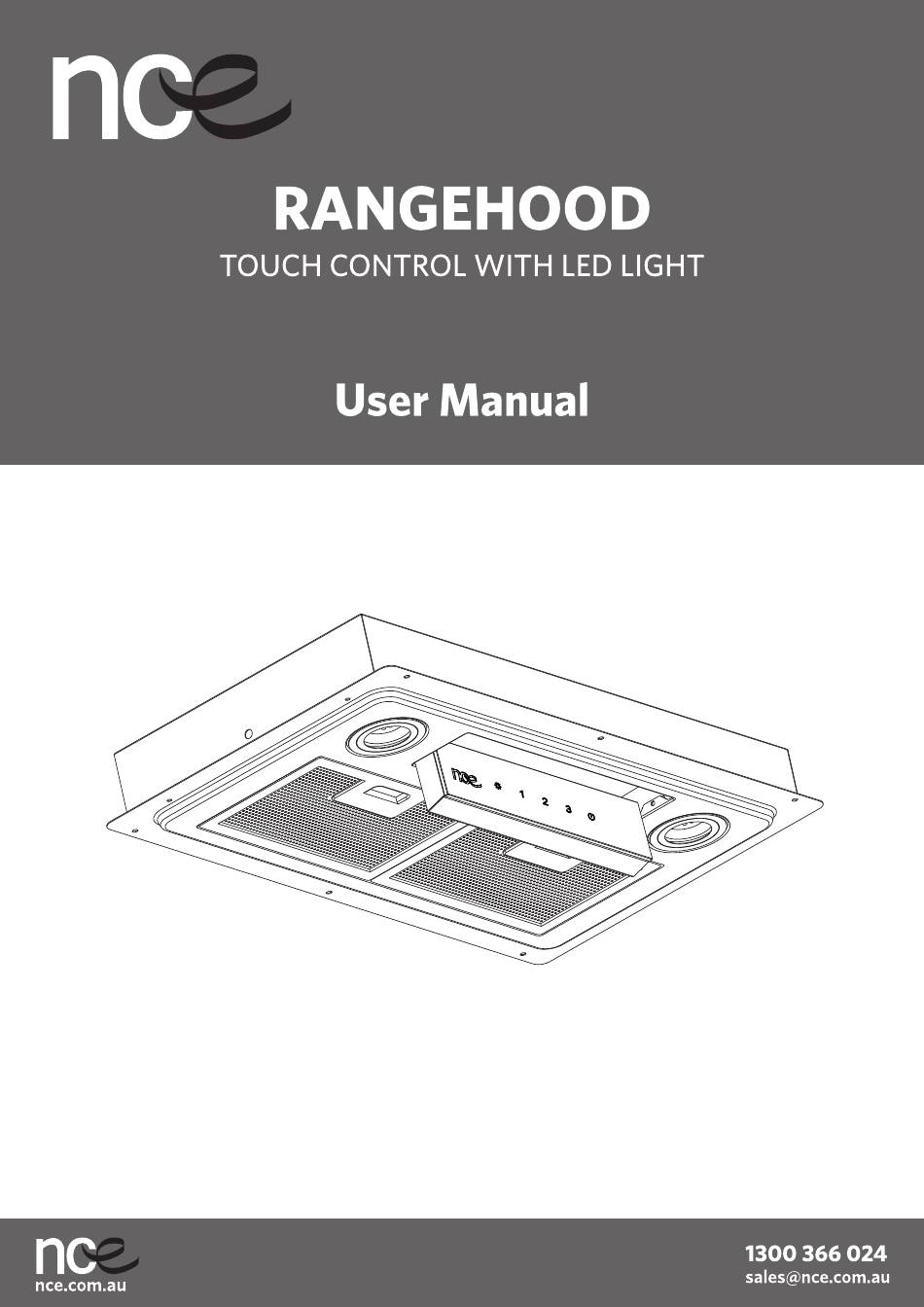

  • Page 1 MODEL NO. RH550INT...
  • Page 2 Model NO. RH550INT Touch Sensitive Control Panel Concealed Control Panel Tempered Glass Front 3 Speed settings 12 Volt DC Power input 2 x Extractor Fans 2 x LED Light fittings 2 x Removable 6-Layer Filters Stainless Steel Body Rear Ventilation...
  • Page 3 RH550INT Remove 4 screws on the surface of the panel, and remove the connecting wire connected with the panel, and remove the panel.
  • Page 4 Body Housing Air Flue Power Assembly w/Box FAN *2 Micro Switch Stainless Steel Housing Filters *2 Switch Assembly Cover Switch Switch Holder Switch Fixing Panel LED Lamp *2 Control Panel Protective Box Door catch Power Board NOTE: Before use, press the middle part of the control panel, then the control panel pops up. After use, press the middle part of the control panel to close it.
  • Page 5 RH550INT...
