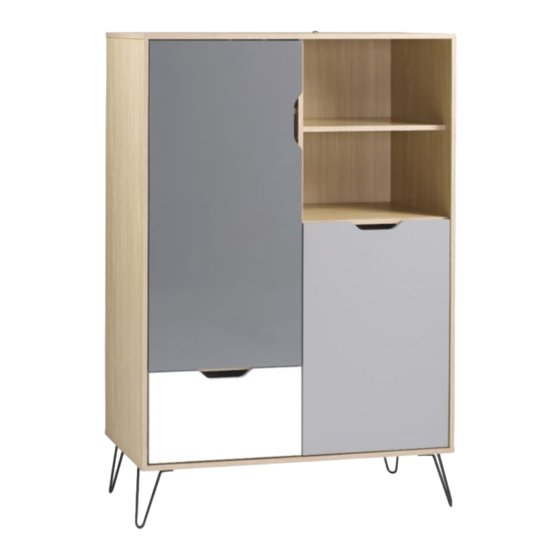

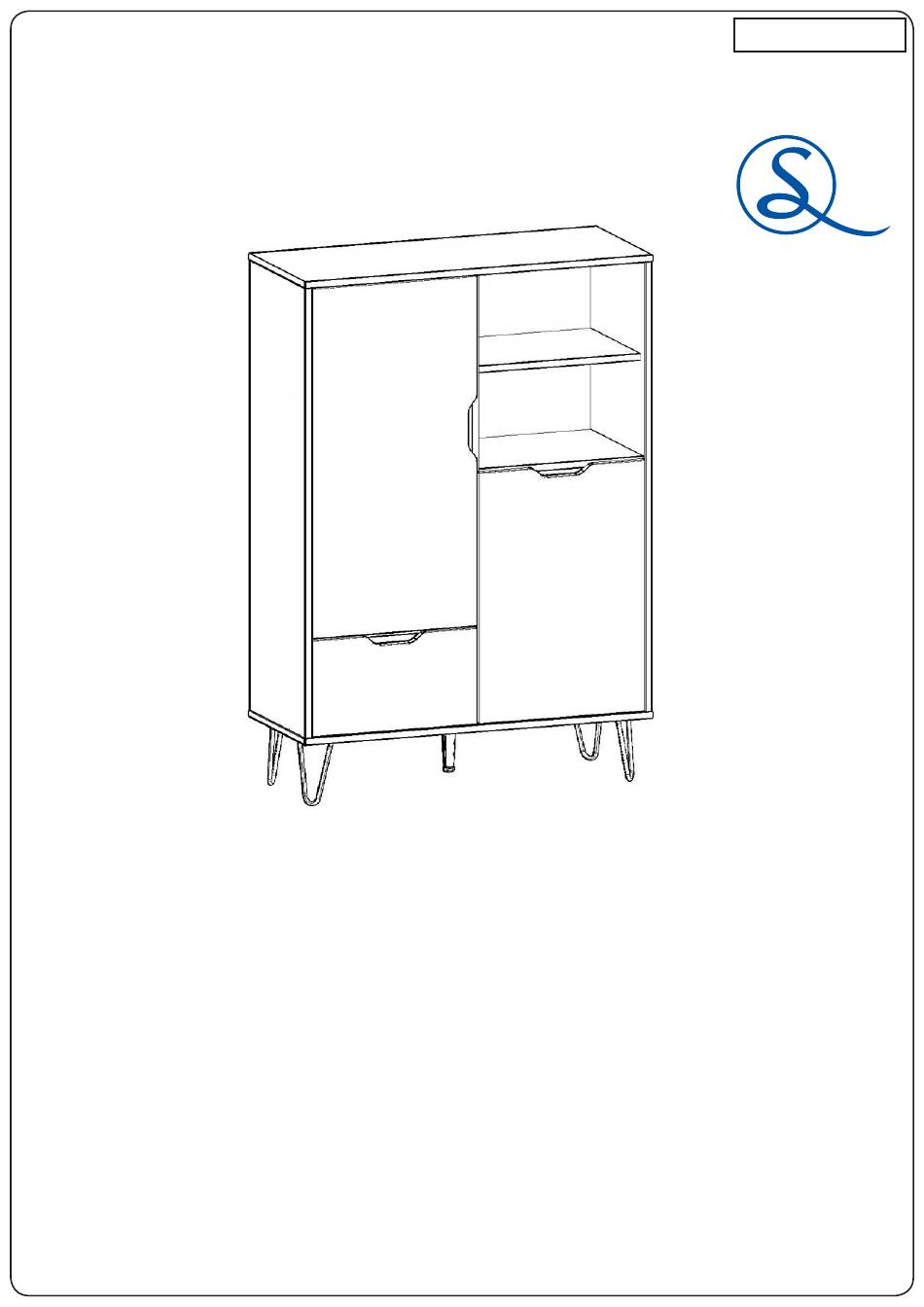

BERGEN TALL SIDEBOARD/WINE RACK
OAK EFFECT/WHITE/GREY
ASSEMBLY INSTRUCTIONS
PLEASE READ BEFORE YOU CONTINUE FURTHER
CARE AND MAINTENANCE
After unpacking this product please keep the original packaging in case it needs to be returned for any reason.
Please ensure all fi ttings and parts are present before commencing with assembly.
Never drag or push products as this could cause damage to the joints making it inferior.
We strongly recommend that you keep children away from your work area.
Assemble this product as close to its fi nal position as possible.
Do not place this product next to a radiator or in direct sunlight.
Do not drag or push items across your high gloss furniture as this may cause the surface to scratch.
Wood is a natural product and may expand if subjected to damp and may shrink or crack if subjected to heat.
Therefore it is recommended that room temperature is maintained, with no sudden temperature fl uctuations.
Make sure any spillage is wiped off immediately.
Do not place hot or chilled items directly on to the surface, use a place mat or marking will occur.
For general cleaning use a soft cotton or micro fi bre cloth, and do not use detergents of any kind.
From time to time it may be necessary to tighten fi ttings, regular inspections should be carried out.
Do not place on a wet or damp fl oor as staining may occur to your fl oor.
IMPORTANT
FOR DOMESTIC USE ONLY
SEC/AY/12/19/HN1
2327HN
2327HN
1
