OwlTech MW450 Installation Manual

MW450 INSTALLATION MANUAL

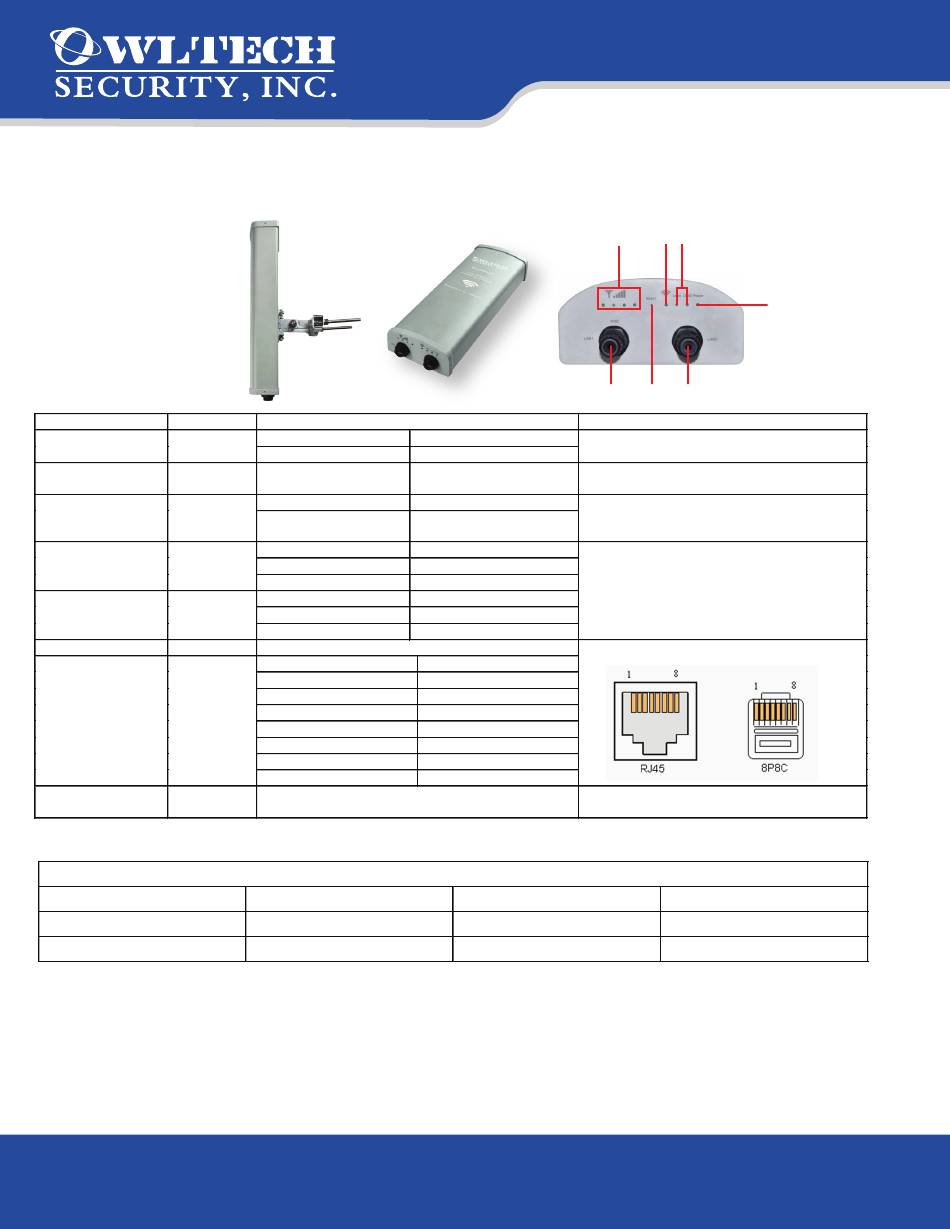

Interface Description
Item Part
Power-On LED E
Microwave Signal
H1 H2 H3 H4
Strength Indicator
Microwave Working
I
LED
LAN1 Working LED J
LAN1 Working LED K
LAN1 Port M
LAN2 Port N
Reset R
Transmission Distance Reference
Distance
IPC qty.
Bandwidth
1. Bandwidth and IPC quantity are reference only, above data are based on the tested data with this product and IPC at steady
operation, if there is an obstruction at site, or other microwave interference, then IPC quantity may need to be decreased in
according to the live situation.
2. 1 set of MW450R is able to receive up to 4 set MW450T data, please refer to above data table for the IPC total quantity with 4
set MW450 transmission, if there is an obstruction at site, or interference, 1 to 1 connection is recommended for stability.
3. Microwave relay is required if there is long distance, the total amount of data transferred depends on the distance in between
the last MW450T and MW450R.
Feature
On Power normal
Off Power abnormal
H1 to H4 Flashing Cycle Receiving normal
Flash Microwave signal normal
Always On or Off Microwave signal abnormal
Flash LAN1 working properly
Always Off LAN1 no access to network
Always On LAN1 exception
Flash LAN2 working properly
Always Off LAN2 no access to network
Always On LAN2 exception
1 x RJ-45 for 10/100 Mbps（802.3at/802.3af 48V POE）
1 RX +
2 RX -
3 TX +
4 DC6V – 24V
5 DC6V – 24V
6 TX -
7 GND
8 GND
Reset to factory default status, default IP address is
192.168.188.253, status as MW450 mode (AP mode)
1 set MW450 Data Receiving Capability
0.8km
16 1080P
80M
http://www.owltechcctv.com
H1 H2 H3 H4 I
M
Should power supply irregular occurs, check if POE
switches are working properly, wiring is correct.
If the microwave power indicate abnormal, you need
to contact the engineers, returned to factory for
repair.
When LED is Always Off & Always On, please check if
network wiring and connectors are proper.
1.2km
8 1080P
50M
J K
E
R N
Remark
2km
1 1080P
10M
-1-
