Summary of Contents for Astin Trew AT2-2100

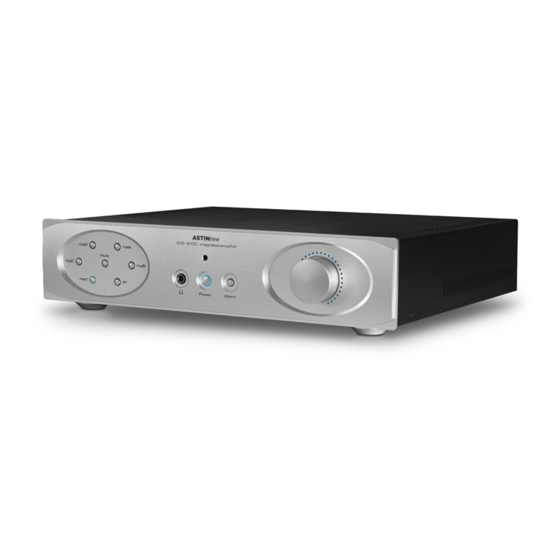

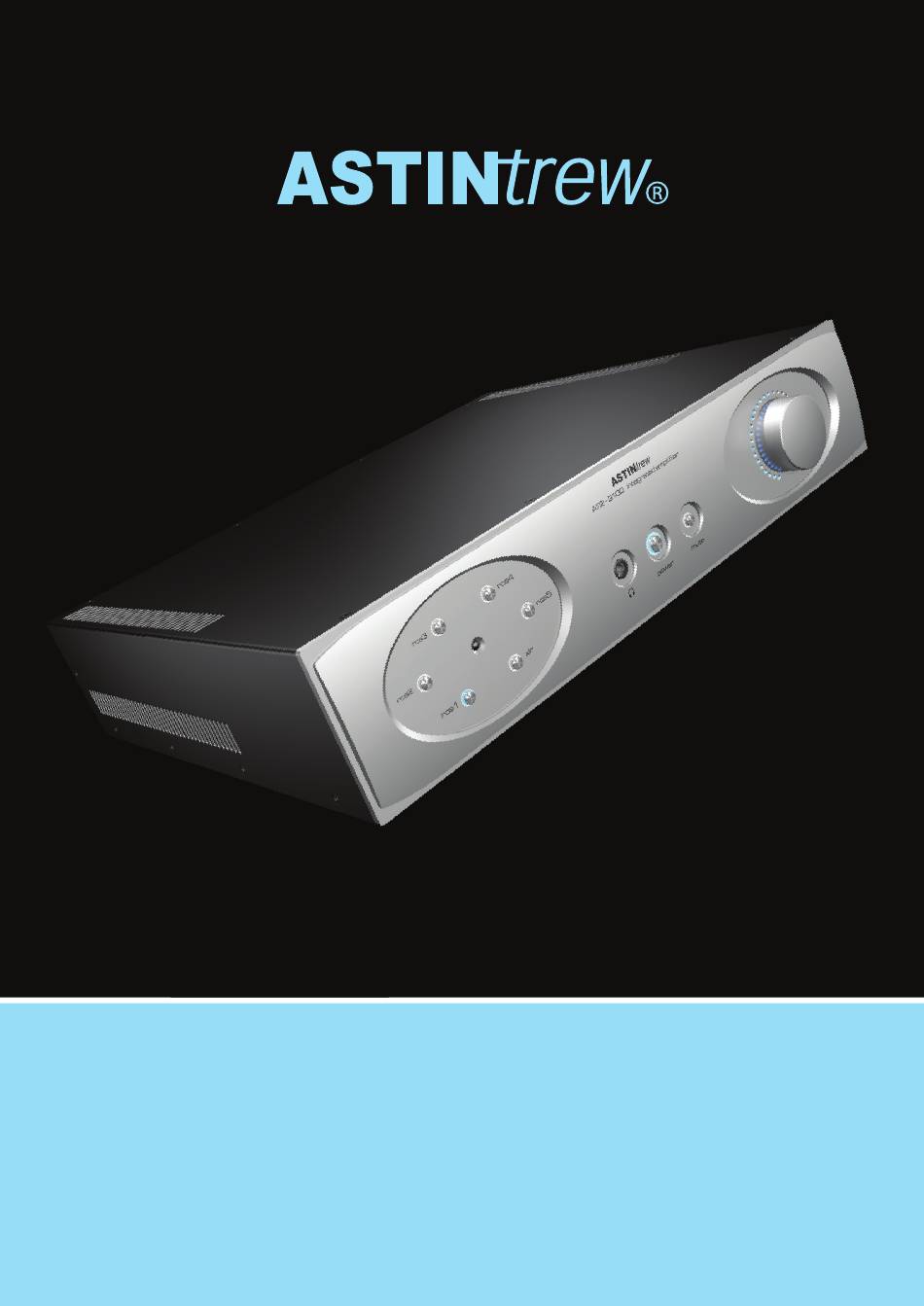

- Page 1 Astin Trew AT2-2100 integrated amplifier Y OU R P E RSON AL US E R GU I DE...
-
Page 2: Table Of Contents
Contents Section Description Page No 1. Introduction to the Astin Trew AT2-2100 Integrated Amplifier 2. Brief product overview 3. Getting started, Unpacking, location and power/signal connections 4. Front fascia and rear panel illustrations 5. Remote control Illustration 6. Product Specifications 7. -
Page 3: Introduction To The Astin Trew At2-2100 Integrated Amplifier
AT2-2100 Integrated Amplifier Thank you for purchasing the Astin Trew AT2-2100, a multi-input home audio integrated amplifier. The AT2-2100 is a world class audio product, designed to offer very high quality audio amplification from analogue line level inputs (RCA and XLR type), to your loudspeakers. - Page 4 The supporting feet are designed to offer isolation from vibration. Packaging for transit: The AT2-2100 is boxed with a foam inner to protect it from all but the worst abuse during third party transit. Your local Dealer will ensure your amplifier arrives in perfect condition.
-
Page 5: Getting Started, Unpacking, Location And Power/Signal Connections
Once cooled down, it will re-set and start again. Do not site near or below any liquids that could spill onto your AT2-2100. If any liquids do come in contact with the unit, turn the mains power off at the wall switch immediately and pull plug out of the wall socket, as there is serious potential for electric shock or fire hazard. - Page 6 The Loudspeaker output terminals (L/R pairs) will accept banana plugs, spade end connectors or bare wires. Power / signal connections and use: Position your AT2-2100 where it will be used, ensuring you have adequate room to make connections at the rear, or move the amplifier and/or stand so you have access.
-
Page 7: Front Fascia And Rear Panel Illustrations
5 1 x RCA mono sub bass output 6 ‘Warm’ output pre-amplifier 6 IEC mains power input socket 7 LED visual volume level indication 7 Mains fuse holder. 8 Volume control knob 8 Loudspeaker connection, Left channel 5. Remote control Illustration AT2-2100 V1.0/17.01.2018... -
Page 8: Product Specifications
13Kg (inc. accessory items) 7. Troubleshooting Your Astin Trew AT2-2100 should give you many years of trouble free musical pleasure. However, if it does not seem to be working properly, please ensure you have tried these ‘simple’ tests before you contact your Dealer for further advice. 99% of problems tend to be simple to rectify. -
Page 9: Guarantee
More specifically: No power to the amplifier: Check the power cord fuse (UK) and AT2-2100 Mains input fuse. Poor speaker imaging, low bass output: Check the loudspeaker wiring is not connected out of phase. No sound output. Check the mute is not switched on. -
Page 10: Ce, Rohs And Weee
In the event of a product failure, neither Astin Trew Ltd. or its Distributor or Dealer/ re-seller shall be liable for any injury, loss or damage caused to property or products other than the product under guarantee. -
Page 11: Customer Notes
11. Customer Notes AT2-2100 V1.0/17.01.2018... - Page 12 E-mail: info@astintrew.co.uk | Website: www.astintrew.co.uk Astin Trew, Bills Park, Wallis, Haverfordwest, SA62 5RA, UK...
