Summary of Contents for SAS E3

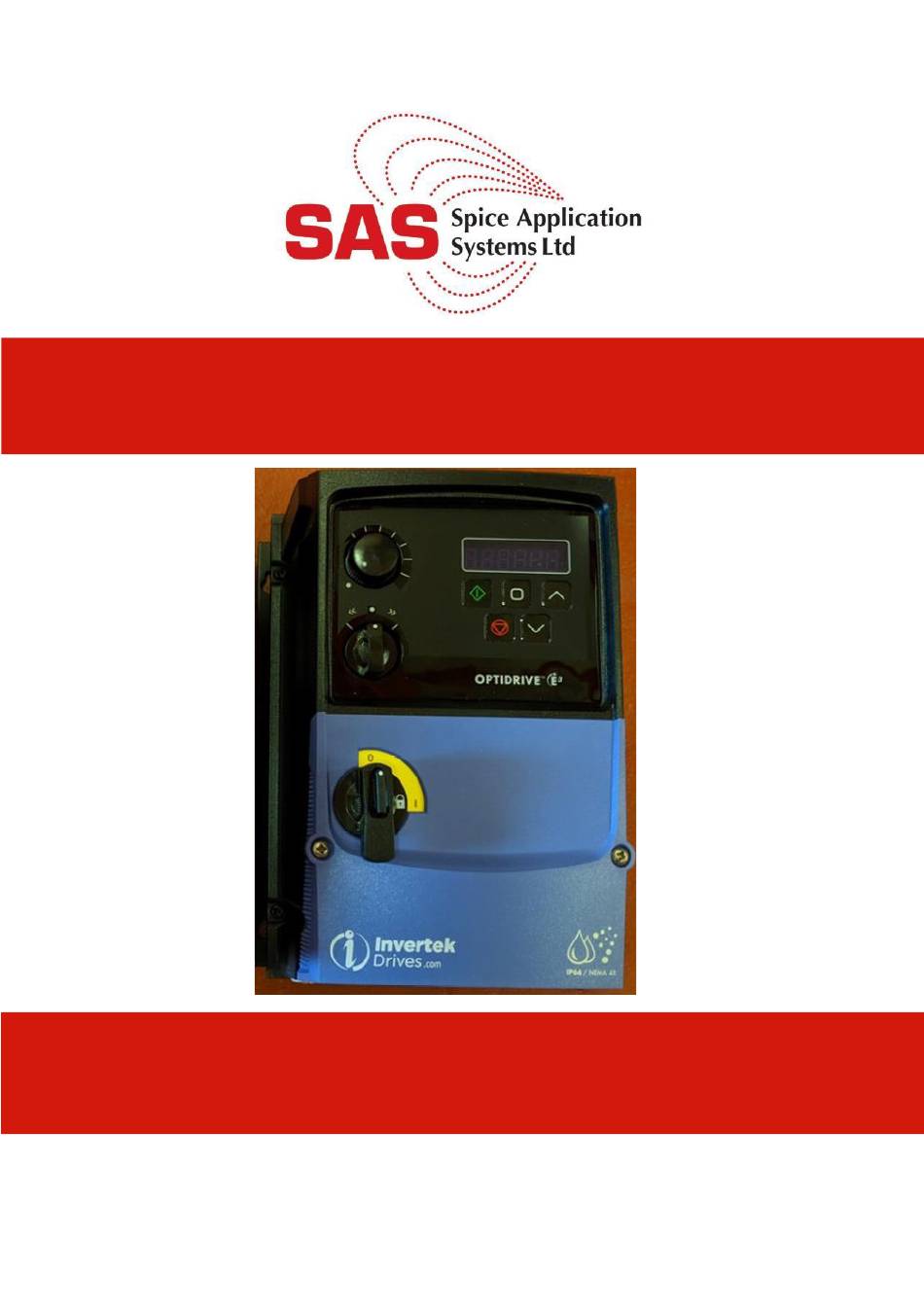

- Page 1 SAS E3 – Invertor Control Basic Set-up & Connections Unit 3 Hawksworth, Didcot, OX11 7HR, England, UK Tel: 00 44 1865 747 634 Fax: 00 44 8701 602 755 info@spiceapplications.com www.spiceapplications.com SAS E3 - Invertor Control - APRIL 2020...
-
Page 2: Table Of Contents
The Invertek manuals used in the content of this manual are as follows: Optidrive E3 IP66 Indoor Model – Version 2.00 Optidrive E3 IP66 Outdoor Model – Version 1.21 To obtain the best performance and reliability from this equipment it is strongly recommended to read the Invertek instruction manual thoroughly before attempting to use the equipment. -
Page 3: Warnings Overview
• The people responsible for the use of the machine have to check and provide the correct use of the equipment according to the requests, the regulations, the laws and the European community Standards. SAS E3 - Invertor Control - APRIL 2020... -
Page 4: Declaration Of Conformity For Machinery
DECLARATION OF CONFORMITY Invertek Compliance Documents Additional Information for UL Compliance SAS E3 - Invertor Control - APRIL 2020... -
Page 5: Product Introduction
PRODUCT INTRODUCTION AC Variable Speed Drive Type: SAS E3 Invertor Control The SAS E3 AC variable invertor drive is the motor speed controller used within our SAS coating system products. We standardise upon two IP66 Optidrive models, as manufactured and supplied by Invertek Drives Limited. - Page 6 E3 IP66 Indoor Version (1.5Kw) ODE-3-120070-1F1Y E3-100-177-IN E3 IP66 Indoor Version (0.75Kw) ODE-3-120043-1F1Y E3-100-282-IN E3 IP66 Outdoor Version (1.5Kw) ODE-3-120070-1F1B E3-100-177-OUT E3 IP66 Outdoor Version (0.75Kw) ODE-3-120043-1F1B E3-100-282-OUT Understanding the Rating Label Fig 3 SAS E3 - Invertor Control - APRIL 2020...
-
Page 7: Installation
INSTALLATION The following information is in regard to the wiring connections utilised for specific SAS product installations only. For full and complete Installation instructions, please refer to the relevant Invertek User Guide, which are obtainable upon the Invertek Limited web site: www.invertekdrives.com... - Page 8 CONNECTIONS LOCATIONS Fig 4 Position Description Manual Reference Incoming Power See Pages 8-9, Fig 5 Motor Connections See Pages 10-13, Fig 6 to Fig 9 Control Terminal Connections See Page 14, Fig 10 SAS E3 - Invertor Control - APRIL 2020...
- Page 9 • A Type B Device must be used. • The device must be suitable for protecting equipment with a DC component in the leakage current. • Individual ELCBs should be used for each Optidrive. SAS E3 - Invertor Control - APRIL 2020...
- Page 10 • The maximum permissible short circuit current at the Optidrive Power terminals as defined in IEC60439-1 is 100kA. 200-240V - Single Phase Input Fig 5 SAS E3 - Invertor Control - APRIL 2020...
- Page 11 This is indicated on the nameplate of the motor. This operational voltage is normally selected when installing the motor by selecting either STAR or DELTA connection. For SAS Equipment installations, please wire in DELTA Fig 6 SAS E3 - Invertor Control - APRIL 2020...
- Page 12 SAS 1SF - MOTOR CONNECTIONS Fig 7 PARAMETER SETTINGS – SCREW FEEDER Terminal Mode P 12 = 0 (Responds to commands applied directly to the control terminals) P 15 = 5 (Allows Forward direction only) SAS E3 - Invertor Control - APRIL 2020...
- Page 13 Fig 8 PARAMETER SETTINGS – OIL PUMP Terminal Mode (Factory Settings) P 12 = 0 (Responds to commands applied directly to the control terminals) P 15 = 0 (Allows Forward & Reverse direction) SAS E3 - Invertor Control - APRIL 2020...
- Page 14 If Drum Stop CCT is engaged, the following reset procedure must be followed:- o Ensure both Drum Stop CCT buttons are reset. o Select the “OFF” position on the E3 Invertor switch. o Then select the desired direction of rotation (Forward or Reverse).
- Page 15 The Invertek manuals used in the content of this manual are as follows: Optidrive E3 IP66 Indoor Model – Version 2.00 Optidrive E3 IP66 Outdoor Model – Version 1.21 Spice Application Systems do not accept any responsibility for any misinterpretation or non fulfilment of the above mentioned instructions.
-
Page 16: Operating Principle
The drive is configured and its operation monitored via the keypad and display. Fig 11 OPERATING DISPLAYS Fig 12 Please Note For all other detailed information of Parameter settings, Analog and Digital Input functions, Modbus communications, etc. please refer to the relevant Invertek Manual. SAS E3 - Invertor Control - APRIL 2020... -
Page 17: Start Up
Before starting the equipment, by turning the main switch on the ON position, it is necessary to: Nobody is nearby the equipment. • The safety devices are present and functioning. • The safety guards are completely closed. SAS E3 - Invertor Control - APRIL 2020... - Page 18 START UP E3 INVERTOR DRIVE QUICK START Fig 13 SAS E3 - Invertor Control - APRIL 2020...
-
Page 19: Cleaning
Before switching the electrostatic back ON, please check: Check that the equipment plus all hoses and cables are completely dry. Check that all equipment within the application area is correctly installed and positioned. SAS E3 - Invertor Control - APRIL 2020... -
Page 20: Troubleshooting
FAULT CODE MESSAGES NOTE Following an over current or overload trip (3, 4, 5, 15) the drive may not be reset until the reset time delay has elapsed to prevent damage to the drive. SAS E3 - Invertor Control - APRIL 2020... -
Page 21: Dimensions
DIMENSIONS E3 INVERTOR DRIVE - IP66 Outdoor SAS Part Number: E3-100-177-OUT (1.5Kw) E3-100-282-OUT (0.75Kw) Fig 14 E3 INVERTOR DRIVE - IP66 Indoor SAS Part Number: E3-100-177-IN (1.5Kw) E3-100-282-IN (0.75Kw) Fig 15 SAS E3 - Invertor Control - APRIL 2020... -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS E3 INVERTOR DRIVE – IP66 (Indoor & Outdoor) Operational ambient temperature range : -10 ... 40°C (frost and condensation free) : -40 … 60°C Storage ambient temperature range Maximum altitude : 2000m. De-rate above 1000m: 2.5% / 100m... -
Page 23: Warranty
WARRANTY Dear Customer, Thank you for buying a SAS products and systems. Every care has been taken, from design to manufacture, to ensure that this product gives you complete satisfaction. Spice Application Systems Ltd guarantees that all equipment manufactured by them will be free from defective workmanship or materials for a period of 12 months or 3000 working hours, from the date of delivery of the equipment, whichever comes first. - Page 24 Unit 3 Hawksworth, Didcot, OX11 7HR, England, UK Tel: 00 44 1865 747 634 Fax: 00 44 8701 602 755 info@spiceapplications.com www.spiceapplications.com SAS E3 - Invertor Control - APRIL 2020...
