Summary of Contents for Sam QUICK HITCH

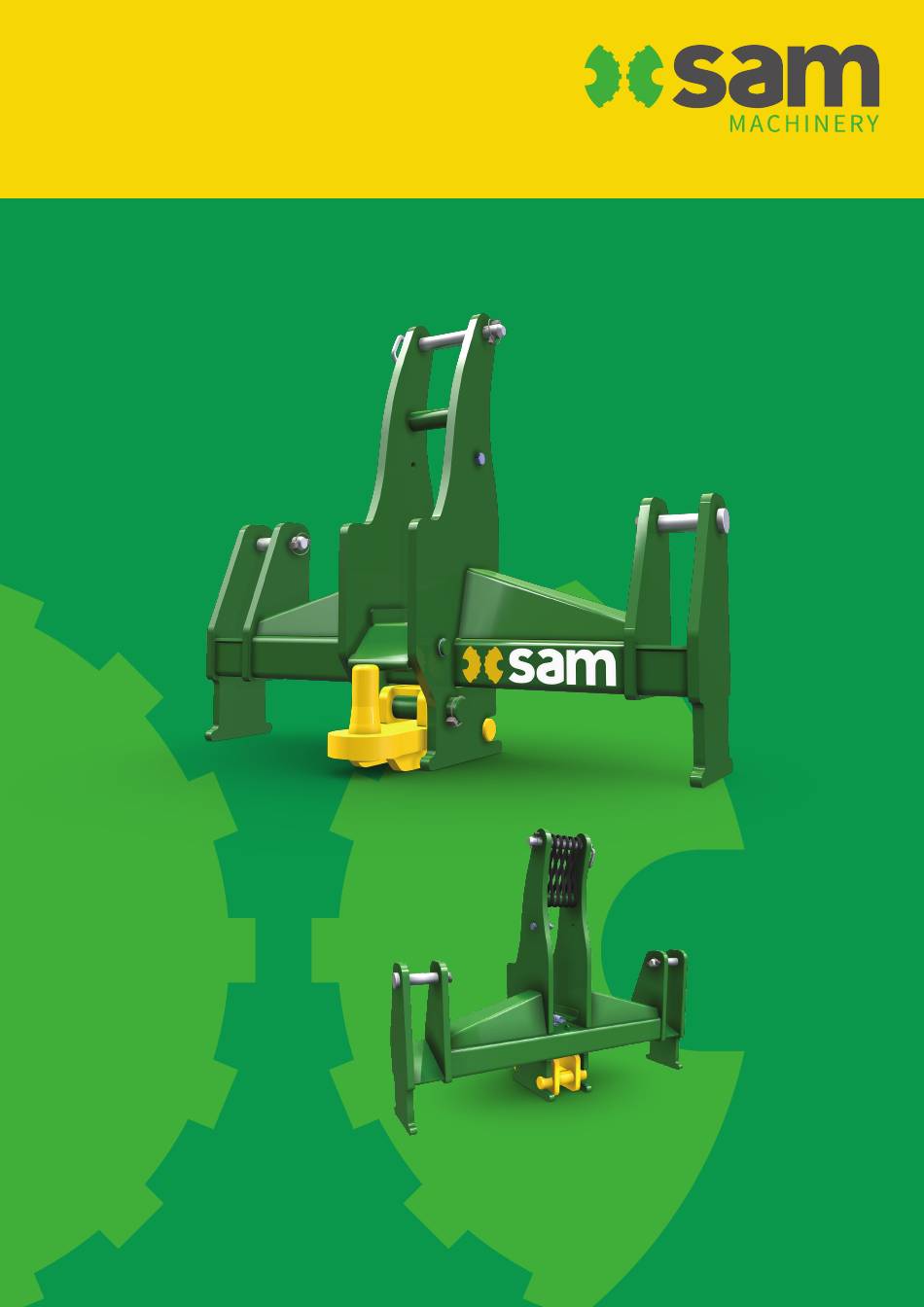

- Page 1 INSTRUCTION AND PARTS MANUAL Strong. Simple. Smart. QUICK HITCH All models SAM QUICK HITCH BACK VIEW - (SMALL & LARGE PIN) Ph 07 847 8492 or 0508 726 726 www.sammachiner y.co.nz...
-
Page 2: Model Details
SERIAL NUMBER All SAM Machinery products are identified with a unique serial number located on the back of the Quick Hitch (e.g. ‘18 AH 1234’). Please include this number with all parts and servicing enquiries so we can provide you with fast and accurate assistance. -
Page 3: Basic Maintenance
Remember; Read ALL warning labels on the machine or accessory and ensure you understand operating instructions. Do not use the Quick Hitch in steep areas where there is a high-risk of undue stress occurring on componentry or roll-over. Loads are not to exceed the recommended rating. -
Page 4: Troubleshooting
HEALTH & SAFETY RISK ASSESSMENT A hazard identification, assessment and control procedure has been conducted on a representative SAM Hydraulic Quick Hitch and where necessary appropriate risk control measures have been outlined below; HAZARD HARM CONTROLS You can use the tractor to lift the quick hitch into position ready for coupling to the tractor. -
Page 5: Parts Manual
PARTS MANUAL HYDRAULIC TRAILER SIDE-VIEW REFERENCE PART NO. DESCRIPTION QTY. 3661 D shackle 6335 Label - SAM - yellow/white small 3592 Linch pin 6317 Pin - top link 6318 Pin - lift arm 3664 Rope 3645 Spring P4847 Tow pin - large 40mm Tow pin - small 32mm *Please include the serial number with all parts and servicing enquiries. -
Page 6: Quality Guarantee
QUALITY GUARANTEE SAM Machinery products are guaranteed against any defects in either material or manufacture for a period of 24 months from delivery date, provided that the equipment has not been subject to abuse or misuse, operated incorrectly, over-loaded or used for purposes other than for which the equipment is designed. Or is not maintained correctly or if fitted with other than genuine parts.
