R&S

TSMA6B-BP

Battery Pack Unit

Getting Started

(a0èÊ2)

4900906002

Version 01

Table of Contents

Need help?

Do you have a question about the R&S TSMA6B-BP and is the answer not in the manual?

Questions and answers

Summary of Contents for Ronde & Schwarz R&S TSMA6B-BP

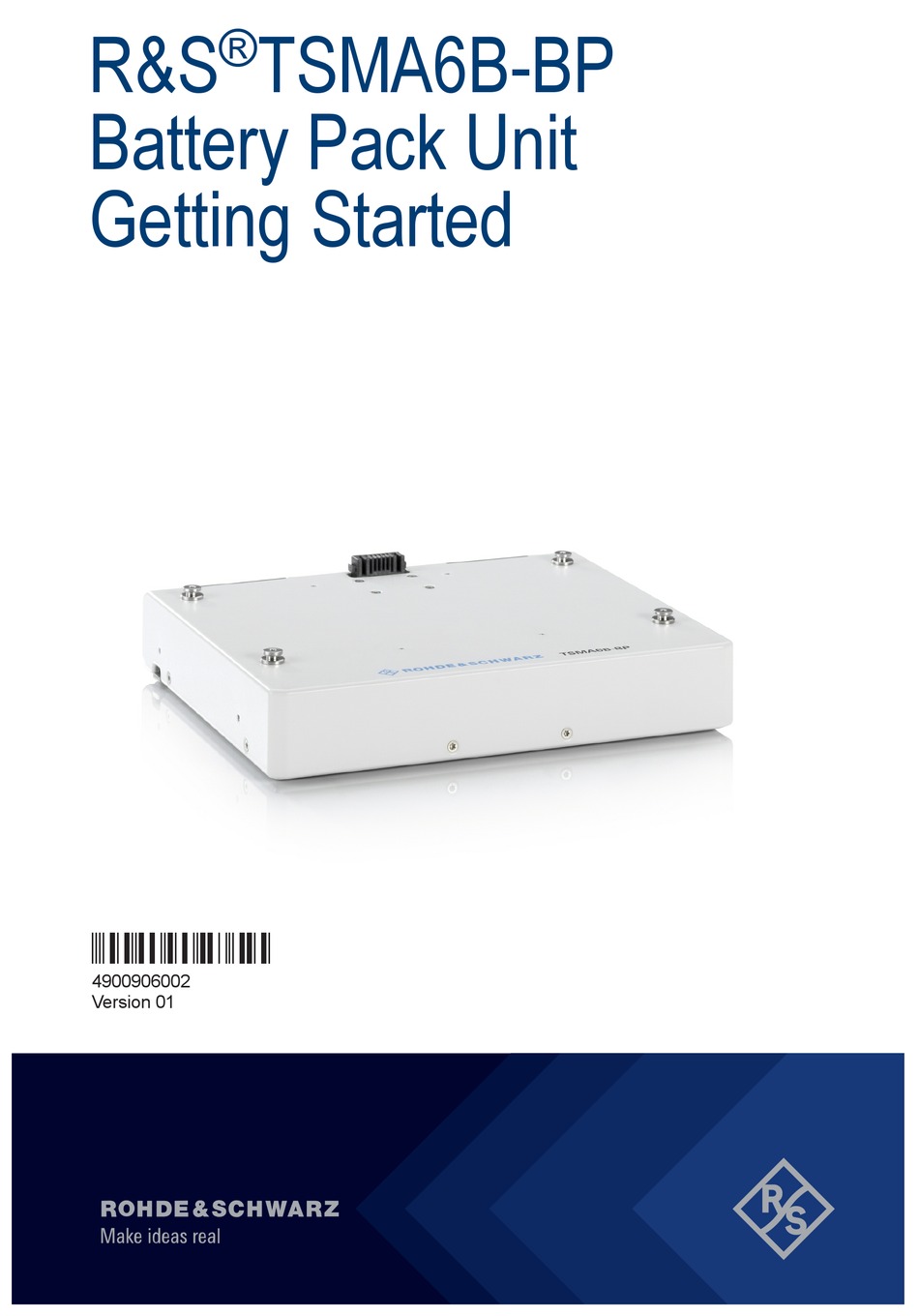

Page 1 ® R&S TSMA6B-BP Battery Pack Unit Getting Started (a0èÊ2) 4900906002 Version 01...
Page 2 ® This document describes the following R&S TSMA6B accessory: ● R&S ® TSMA6B-BP Battery Pack Unit (4900.9001.20) ● R&S ® ® MNT-BP99WH Batteries (3660.9109.02) for R&S TSMA6B-BP © 2021 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Email: info@rohde-schwarz.com...
Page 3: Table Of Contents
® Contents R&S TSMA6B-BP Contents 1 Safety Information..............5 2 Documentation Overview............6 2.1 Getting Started Manual.................6 2.2 Basic Safety Instructions..............6 2.3 Li-Ion Batteries Safety Instruction............6 2.4 Data Sheets and Brochures..............6 3 Key Features................8 4 Preparing for Use..............9 4.1 Unpacking the Instrument..............9 4.1.1 Hardware....................
Page 4 ® Contents R&S TSMA6B-BP 6.2 Power On/Off..................30 6.2.1 Auto Power On..................30 6.2.2 Standby / Power On/Off................ 30 6.3 Battery Charging.................30 6.4 Automatic Power Path Switching............31 6.5 Monitoring Battery Charge State............31 6.5.1 Battery Charge Display................. 31 6.5.2 Rear Panel LEDs.................. 33 6.5.3 R&S TSMA6/6B web-GUI / Tray Icon (Only Host-Controlled Mode)..
Page 5: Safety Information
® Safety Information R&S TSMA6B-BP Safety Information The product documentation helps you use the R&S TSMA6B-BP safely and effi- ciently. Follow the instructions provided here and in the printed "Basic Safety Instructions". Keep the product documentation nearby and offer it to other users. Intended use The R&S TSMA6B-BP is intended for the development, production and verifica- tion of electronic components and devices in industrial, administrative, and labo-...
Page 6: Documentation Overview
® Documentation Overview R&S TSMA6B-BP Data Sheets and Brochures Documentation Overview This section provides an overview of the R&S TSMA6B-BP user documentation. Unless specified otherwise, you find the documents on the R&S TSMA6B-BP product page at: www.rohde-schwarz.com/manual/tsmx Getting Started Manual Introduces the R&S TSMA6B-BP and describes how to set up and start working with the product.
Page 7 ® Documentation Overview R&S TSMA6B-BP Data Sheets and Brochures www.rohde-schwarz.com/brochure-datasheet/tsmx Getting Started 4900.9060.02 ─ 01...
Page 8: Key Features
® Key Features R&S TSMA6B-BP Key Features The R&S TSMA6B-BP enhances the R&S TSMA6/6B device to a portable mea- surement solution based on a battery powered system. Key Features ● Power supply for R&S TSMA6/6B in portable applications ● Power supply for up to 4 additional devices (mobile network scanner R&S TSME6 resp.
Page 9: Preparing For Use
® Preparing for Use R&S TSMA6B-BP Unpacking the Instrument Preparing for Use Risk of injury and instrument damage The instrument must be used in an appropriate manner to prevent electric shock, fire, personal injury, or damage. ● Do not open the instrument casing. ●...
Page 10: Hardware
® Preparing for Use R&S TSMA6B-BP Unpacking the Instrument Check the equipment for completeness using the delivery note and the accessory lists for the various items. Check the instrument for any damage. If there is dam- age, immediately contact the carrier who delivered the instrument. Make sure not to discard the box and packing material.
Page 11: Standard Accessory
® Preparing for Use R&S TSMA6B-BP Unpacking the Instrument Figure 4-1: R&S MNT-BP99WH 4.1.2 Standard Accessory The following items are included with shipment of the R&S TSMA6B-BP: ● DC power cable with a cigarette lighter adapter ● 4 x collar screws M2.5 for connecting R&S TSMA6/6B resp. R&S TSME6 / TSMExxDC ●...
Page 12: Connecting With External Power Supply
® Preparing for Use R&S TSMA6B-BP Connecting with External Power Supply NOTE: Customer must provide country-specific power supply cable for IEC60320 / C6 socket. – R&S TSMA6-BC4, R&S No. 3630.7708.02 4-bay charger for R&S TSMA6B-BP batteries ● Collar screws (as a spare part) (R&S No. 4900.0804.00) To power TSMEx devices (scanner, downconverter), the following accessory cables are necessary.
Page 13: Charging The Batteries
® Preparing for Use R&S TSMA6B-BP Charging the Batteries Figure 4-3: Supplied power cable with cigarette lighter adapter ● AC power supply via R&S TSMA6-Z1 (optional accessory) Charging the Batteries The batteries are not charged on delivery. Before initial operation, the batter- ies must be fully charged without connected load (R&S TSMA6/6B, R&S TSME6 reps.
Page 14 ® Preparing for Use R&S TSMA6B-BP Charging the Batteries Charging starts automatically when DC power is connected. For checking the charging state, see Chapter 6.5.2, "Rear Panel LEDs", on page 33. Charging with an external battery charger (optional accessory) The external recharging of the batteries is only allowed via the following charger types: ●...
Page 15: Connecting R&S Tsma6B-Bp With R&S Tsma6/6B
® Preparing for Use R&S TSMA6B-BP Connecting R&S TSMA6B-BP with R&S TSMA6/6B Connecting R&S TSMA6B-BP with R&S TSMA6/6B Before initial operation, the batteries must be fully charged without an R&S TSMA6/6B connected (see Chapter 4.2, "Connecting with External Power Supply", on page 12).
Page 16 ® Preparing for Use R&S TSMA6B-BP Connecting R&S TSMA6B-BP with R&S TSMA6/6B Figure 4-4: Collar screws 1 = Collar screws 3. Align the collar screws with the snap-in holes on the bottom of an R&S TSMA6/6B and press the device down. Figure 4-5: Aligning R&S TSMA6B-BP and R&S TSMA6/6B Getting Started 4900.9060.02 ─...
Page 17: Connecting R&S Tsma6B-Bp With R&S Tsme6 And R&S Tsmexxdc
® Preparing for Use R&S TSMA6B-BP Connecting R&S TSMA6B-BP with R&S TSME6 and R&S TSMExxDC 1 = R&S TSMA6B-BP 2 = Collar screws 3 = R&S TSMA6/6B 4 = Snap in holes on the bottom pane of R&S TSMA6/6B 4. Move the R&S TSMA6/6B to the rear side (2) until you hear a click when the collar screws are locked in.
Page 18 ® Preparing for Use R&S TSMA6B-BP Connecting R&S TSMA6B-BP with R&S TSME6 and R&S TSMExxDC Additional cabling may be necessary for proper operation. For complete cabling instructions, refer to the R&S TSME6 User Manual and the R&S TSMExxDC Getting Started. 1.
Page 19: Connecting The R&S Tsma6B-Bp With Multiple Devices
® Preparing for Use R&S TSMA6B-BP Connecting the R&S TSMA6B-BP with Multiple Devices 1 = R&S TSMA6B-BP 2 = Collar screws 3 = R&S TSME6/TSMExxDC 4 = Snap-in holes on the bottom pane of R&S TSME6/TSMExxDC 3. Move the R&S TSME6/TSMExxDC to the back side, until you hear a click when the collar screws are locked in.
Page 20 ® Preparing for Use R&S TSMA6B-BP Connecting the R&S TSMA6B-BP with Multiple Devices ● For up to 4 devices, 2 x R&S TSMA6-BP2T dual power cables are required. Per device, 4 collar screws are required. 4 collar screws are part of the standard accessory of the R&S TSMA6B-BP. Additional collar screws are part of the R&S TSME6/TSMExxDC accessory or can be ordered as spare parts (R&S no.
Page 21 ® Preparing for Use R&S TSMA6B-BP Connecting the R&S TSMA6B-BP with Multiple Devices Figure 4-10: TSMA6B-BP + TSME6 + TSMExxDC To connect the R&S TSME6 and the R&S TSMExxDC with the R&S TSMA6B-BP, the following steps must be performed. 4 collar screws are part of the standard accessory of the R&S TSMA6B-BP. Additional collar screws are part of the R&S TSME6/TSMExxDC accessory or can be ordered as spare parts (R&S no.
Page 22 ® Preparing for Use R&S TSMA6B-BP Connecting the R&S TSMA6B-BP with Multiple Devices Figure 4-11: Collar screws 1 = 8 x Collar screws (R&S No.4900.0804.00) 2. Align the collar screws with the snap-in holes on the bottom of the R&S TSME6 and R&S TSMExxDC and press these devices down.
Page 23 ® Preparing for Use R&S TSMA6B-BP Connecting the R&S TSMA6B-BP with Multiple Devices 1 = R&S TSMA6B-BP 2 = Collar screws 3 = R&S TSME6 4 = Snap-in holes on the bottom pane of R&S TSME6 and R&S TSMExxDC 5 = R&S TSMExxDC 3.
Page 24 ® Preparing for Use R&S TSMA6B-BP Connecting the R&S TSMA6B-BP with Multiple Devices Figure 4-14: Aligning R&S TSMA6B-BP, 2x R&S TSME6 and R&S TSMExxDC 1 = Collar screws 3. Align the collars with the snap-in holes on the bottom of the additional devices and press these devices down.
Page 25: Disconnecting The R&S Tsma6B-Bp From R&Stsmx Devices
® Preparing for Use R&S TSMA6B-BP Disconnecting the R&S TSMA6B-BP from R&S TSMx Devices 4. Connect DC power cable R&S TSMA6-BPP1 resp. R&S TSMA6-BP2T from AUX1 / AUX2 to the DC IN socket of the devices (seeFigure 4-13 Setup with TSMA6B-BP + TSMA6/6B + TSME6 + TSMExxDC Figure 4-16: TSMA6B-BP + TSMA6/6B + TSME6 + TSMExxDC Disconnecting the R&S TSMA6B-BP from R&S TSMx Devices...
Page 26 ® Preparing for Use R&S TSMA6B-BP Disconnecting the R&S TSMA6B-BP from R&S TSMx Devices 5. Only for R&S TSMA6/6B: Lift the release button (1) on both sides of the R&S TSMA6/6B and slide it in direction (2) until the device is released. Figure 4-17: Disconnect R&S TSMA6/6B Getting Started 4900.9060.02 ─...
Page 27: Instrument Tour
® Instrument Tour R&S TSMA6B-BP Rear Panel View Instrument Tour Front Panel View The front panel of the R&S TSMA6B-BP does not provide any connectors or con- trol elements for operation. Figure 5-1: R&S TSMA6B-BP - Front panel Rear Panel View The following figure provides an overview of the control elements and the connec- tors on the rear panel of the instrument.
Page 28 ® Instrument Tour R&S TSMA6B-BP Rear Panel View Battery bay 1 / 2 The battery bays are suitable for batteries of type R&S MNT-BP99WH. DC Output Aux 1 / Aux 2 Aux 1 / Aux 2 are used as DC output. ●...
Page 29: Operation
® Operation R&S TSMA6B-BP Operation Modes Operation For portable operation powered from the batteries, it is recommended to use the R&S TSMA6B-BP always with 2 batteries in the bay. The batteries should have a comparable charging state as they are discharged simultane- ously.
Page 30: Power On/Off
® Operation R&S TSMA6B-BP Battery Charging Power On/Off 6.2.1 Auto Power On The output voltage at the docking connector TSMA6/6B and AUX1 / AUX2 is automatically switched on if any of the following conditions is fulfilled: ● Fully charged batteries are inserted in the empty battery bays and no external DC power supply is connected.
Page 31: Automatic Power Path Switching
® Operation R&S TSMA6B-BP Monitoring Battery Charge State Charging time for the batteries may differ depending on the connected load as the maximum power consumption of the R&S TSMA6B-BP is limited. Automatic Power Path Switching Seamless switching of the output power is done automatically. As long as suffi- cient DC IN power is available, the connected devices are supplied from the external power supply and the batteries are charged.
Page 32 ® Operation R&S TSMA6B-BP Monitoring Battery Charge State 3. You can read the charge state from the display. When the batteries are charged, the upper segment of the LED display is blinking. To control the battery LED charge display during measurement without con- nected DC power supply, remove the batteries alternately to avoid output power interruptions.
Page 33: Rear Panel Leds
® Operation R&S TSMA6B-BP Monitoring Battery Charge State 6.5.2 Rear Panel LEDs Figure 6-1: R&S TSMA6B-BP - status LEDs 1 = Status LED for battery 1 2 = Status LED for battery 2 Table 6-1: LED states and their meaning (LED 1 and LED 2) in standalone mode (no R&S TSMA6/6B connected resp.
Page 34: R&S Tsma6/6B Web-Gui / Tray Icon (Only Host-Controlled Mode)
® Operation R&S TSMA6B-BP Battery Exchange - Hot Swapping Mode Color State Comment Battery pow- blue BLINKING (2 Hz) Charging state < ered / Critical charge External green Battery 1/2 charg- Power / ing in progress Charging External green BLINKING (2 Hz) Battery 1/2 charg- Power / ing completed...
Page 35 ® Operation R&S TSMA6B-BP Battery Exchange - Hot Swapping Figure 6-2: Open battery cover 2. Remove the battery by the tab. 3. Insert the batterie(s) in the correct way (charge indicator facing up). Take care of the nut in the battery and the pin inside the battery bay. Figure 6-3: Battery orientation 4.
Page 36: Contacting Customer Support
® Contacting Customer Support R&S TSMA6B-BP Contacting Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, program- ming or applications of Rohde &...
Page 37: Index
® Index R&S TSMA6B-BP Index Brochures ..........6 Customer support ........36 Data sheets ..........6 Getting started ........... 6 Hot swap ..........34 LED display ..........31 LED states host-controlled mode ......33 standalone mode ........ 33 Operation mode Standalone ..........29 TSMA6-controlled .......
