Evaporative
cooling
works on the principle of
heat
absorption
by
moisture
evaporation.
Simply
put,
heat
is
removed from the air as
water evaporates. You
feel this principle in
action when you step out
of a swimming pool or
shower and feel cool as
water evaporates from
the surface of your skin.
Your evaporative cooler
works
on
the
same
principle. The fan pulls
hot outside air through
the wet cooling pads,
where the air is cooled by
evaporation
and
then
discharged
from
the
cooler

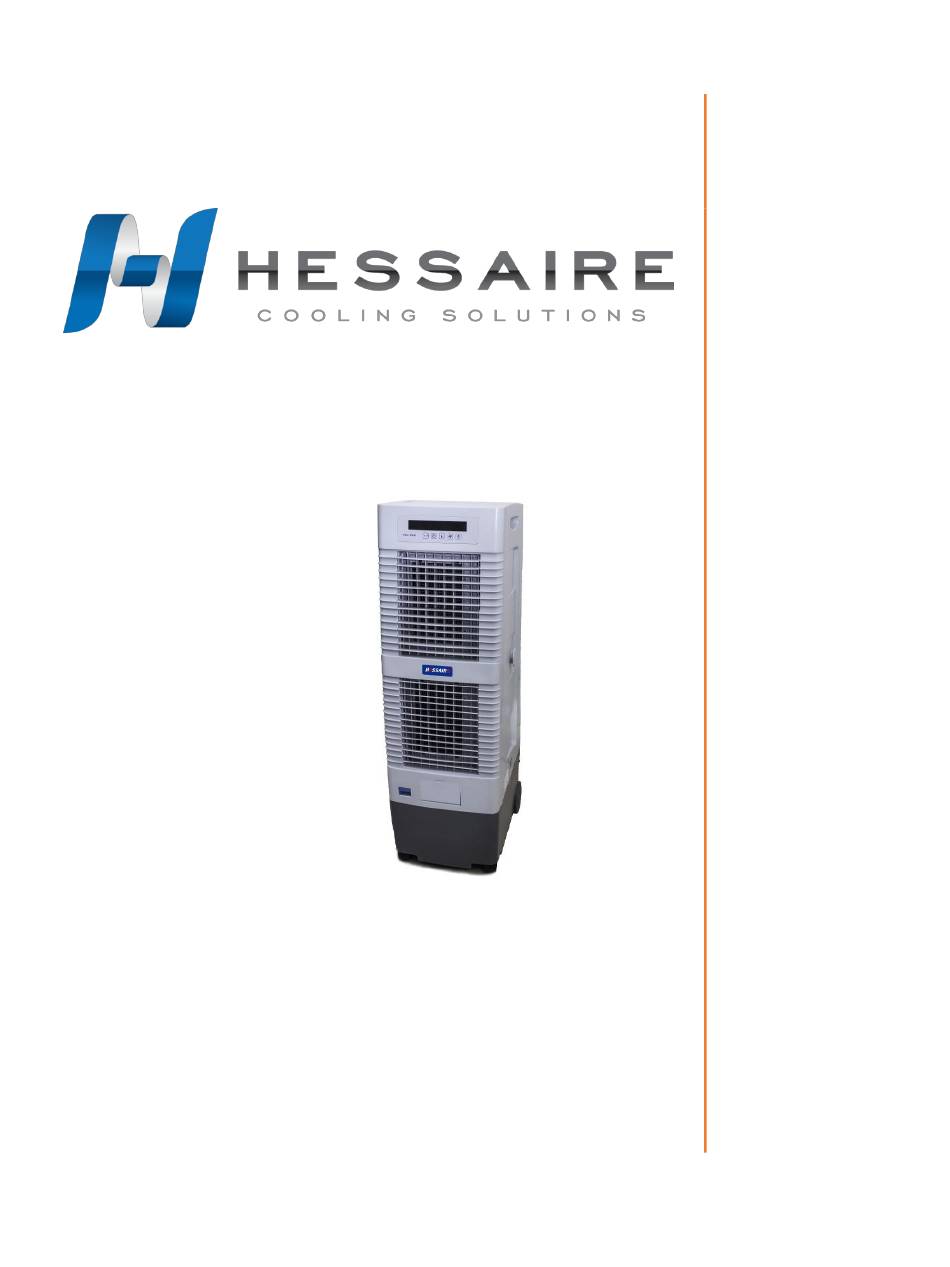

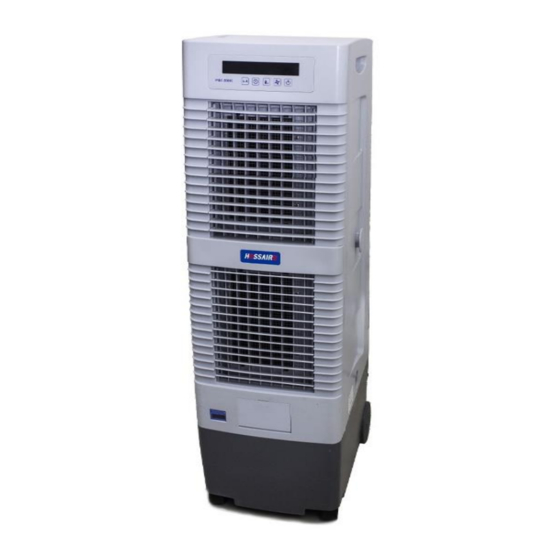

Manual for MC21A
SETUP INSTRUCTIONS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hessaire MC21A
Summary of Contents for Hessaire MC21A
- Page 1 Your evaporative cooler works same principle. The fan pulls hot outside air through the wet cooling pads, where the air is cooled by evaporation then discharged from cooler Manual for MC21A SETUP INSTRUCTIONS...
-
Page 2: Read This First
We have parts and expert support that can help you. We value your business and are here to help. We can ship any replacement or warranty parts to you quickly so your Hessaire mobile cooler can keep you cool. - Page 3 Use all precautions and disconnect from power source before performing any maintenance. Getting started Tools / Materials Contents: Needed: Evaporative Cooler Drill with #2 Phillip’s bit Hardware Bag (1) Or Phillip’s head Casters (4) screwdriver Operating Instructions Evaporative cooling works on the principle of heat absorption by moisture evaporation. Simply put, heat is removed from the air as water evaporates.
-
Page 4: Evaporative Cooler
3. Return transportation costs. All return transportation costs are the responsibility of the purchaser. Damaged Shipments: Hessaire is not responsible for damaged shipments or shortages resulting from carrier mishandling. Notify your carrier’s office immediately to file a claim. Keep damaged goods and containers for inspection until advised by the carrier as to disposal. -
Page 5: Section 3 Getting Started
Section 3 Getting started Key Operational Points: 1. Your cooler must be positioned in front of an open window or door if it is to operate effectively. 2. Always ensure that there is another open window or door through which the air can exhaust from the room. - Page 6 Safety Rules 1. Read and follow all instructions, cautions, and warnings. Failure to do so could result in personal injury, death or property damage. 2. Unit must be in the OFF position and UNPLUGGED from power receptacle before performing any maintenance. 3.
- Page 7 Section 4A Cooler Set Up and Operation Hessaire Coolers are pre-assembled and ready to operate. Simply remove the packaging and then carefully remove the unit from the box. Install Casters. Lock the 2 locking wheels before filling and turning on fan to keep the cooler from moving from the air velocity.
- Page 8 Connecting to a power supply. Plug the Hessaire cooler into any 115 volt power supply. It is permissible to use extension cords when needed. It is not recommended to use a GFCI circuit usually found in garage or patio areas. These outlets/circuits are sensitive and may trip inadvertently to the cooler in normal operation.
-
Page 9: Cooler Maintenance
Cleaning Cooler and Pads At regular intervals your Hessaire Mobile cooler should be shut down and disconnected from power supply. The water tank should be drained of dirty water and sprayed out with fresh water and refilled. - Page 10 Removal and Replacement of Xel50 Cooling Media. The cooling pads are made from a special resin impregnated craft paper specially designed for evaporative cooling. They will last many years if maintained properly and water quality is maintained. It is not necessary to remove the pads to clean them. Inspect the pads for deposits of calcium on the air entering side.
- Page 11 high or too low) or remove and replace a float that has failed to shut of water supply. Note: Be sure that the PSI of the supply water is within the 50 PSI spec. before determining the float has failed. 1.
- Page 12 Parts No. Parts name number Water Tank 6020064 Top Cover 6020068 Filter Screen 6020095 Rear Panel 6020003 6020096 Left Side Panel 6020098 Right Side Panel 6020097 Water Filling Door 6020076 Front Panel 6020099 Mid Panel 6020100 Louver Assembly 6020101 Oscillator Motor 6020057 Blower 6020052...
- Page 13 QUICK TROUBLESHOOTING TABLE Problem Cause/Remedy 1. Cooler fails to work at all 1.1 Check that the unit is plugged properly. 1.2 Check the POWER switch, push it to "ON". 1.3 The TIMER switch is "OFF", turn it to "ON". 1.4 Make sure cooler is not plugged into a tripped GFIC outlet. If so, reset GFCI or move to non GFCI outlet.
