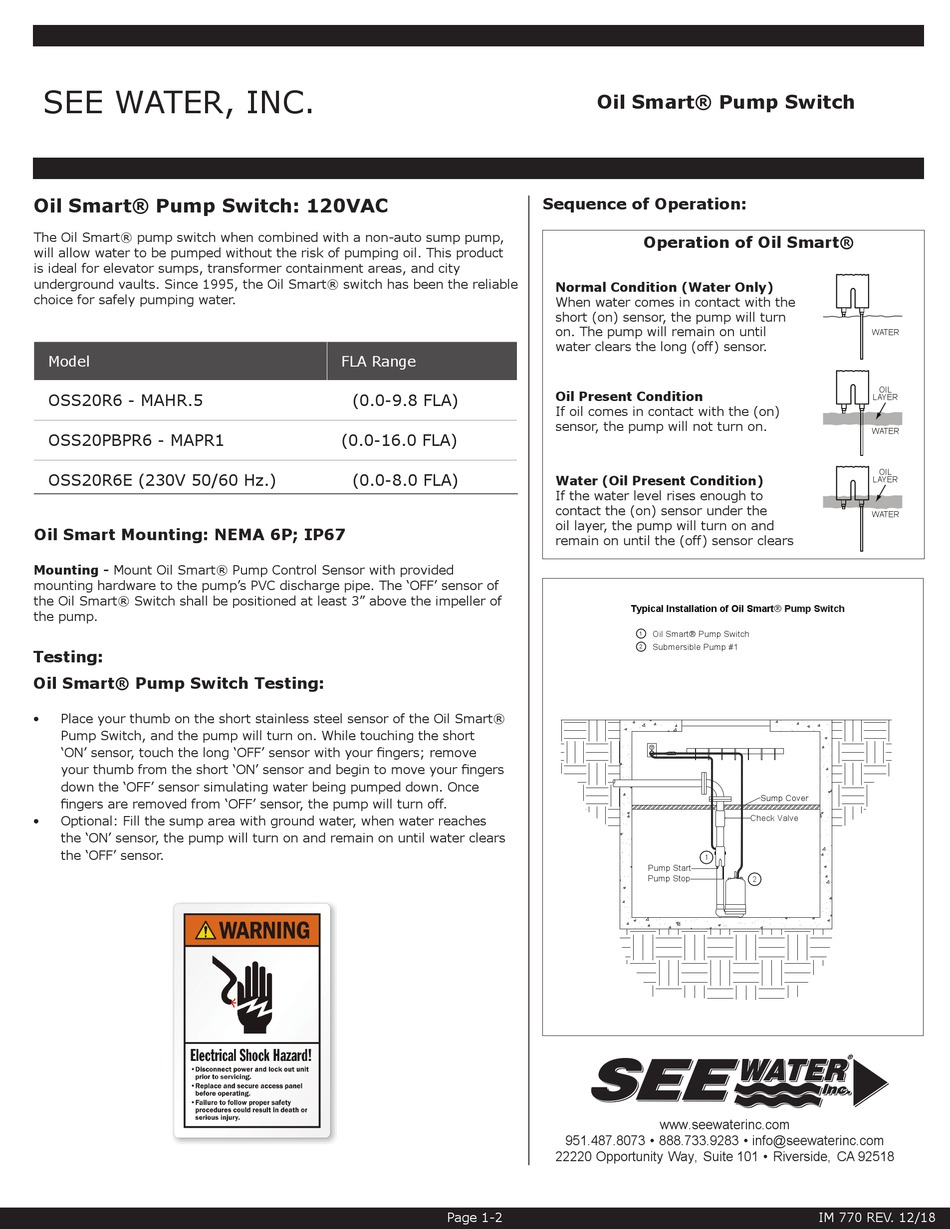

SEE WATER, INC.
Oil Smart® Pump Switch: 120VAC

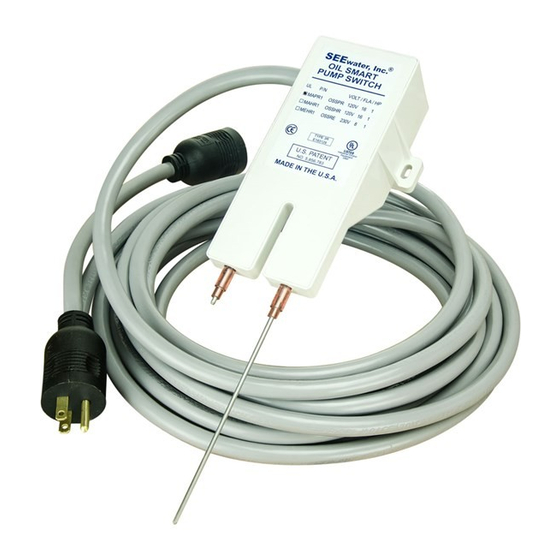

The Oil Smart® pump switch when combined with a non-auto sump pump,
will allow water to be pumped without the risk of pumping oil. This product
is ideal for elevator sumps, transformer containment areas, and city
underground vaults. Since 1995, the Oil Smart® switch has been the reliable
choice for safely pumping water.
Model
OSS20R6 - MAHR.5
OSS20PBPR6 - MAPR1
OSS20R6E (230V 50/60 Hz.)
Oil Smart Mounting: NEMA 6P; IP67
Mounting - Mount Oil Smart® Pump Control Sensor with provided
mounting hardware to the pump's PVC discharge pipe. The 'OFF' sensor of
the Oil Smart® Switch shall be positioned at least 3" above the impeller of
the pump.
Testing:
Oil Smart® Pump Switch Testing:
• Place your thumb on the short stainless steel sensor of the Oil Smart®
Pump Switch, and the pump will turn on. While touching the short
'ON' sensor, touch the long 'OFF' sensor with your fingers; remove
your thumb from the short 'ON' sensor and begin to move your fingers
down the 'OFF' sensor simulating water being pumped down. Once
fingers are removed from 'OFF' sensor, the pump will turn off.
• Optional: Fill the sump area with ground water, when water reaches
the 'ON' sensor, the pump will turn on and remain on until water clears
the 'OFF' sensor.
FLA Range
(0.0-9.8 FLA)
(0.0-16.0 FLA)
(0.0-8.0 FLA)
Page 1-2
Oil Smart® Pump Switch
Sequence of Operation:
Operation of Oil Smart®
Normal Condition (Water Only)
When water comes in contact with the
short (on) sensor, the pump will turn
on. The pump will remain on until
water clears the long (off) sensor.
Oil Present Condition
If oil comes in contact with the (on)
sensor, the pump will not turn on.
Water (Oil Present Condition)
If the water level rises enough to
contact the (on) sensor under the
oil layer, the pump will turn on and
remain on until the (off) sensor clears
Typical Installation of Oil Smart
Oil Smart Ò Pump Switch
1
Submersible Pump #1
2
1
Pump Start
Pump Stop
Your Trusted Source for Quality Control Panels.
www.seewaterinc.com
951.487.8073 • 888.733.9283 • info@seewaterinc.com
22220 Opportunity Way, Suite 101 • Riverside, CA 92518
WATER
OIL
LAYER
WATER
OIL
LAYER
WATER
Ò Pump Switch
Sump Cover
Check Valve
2
®
IM 770 REV. 12/18
