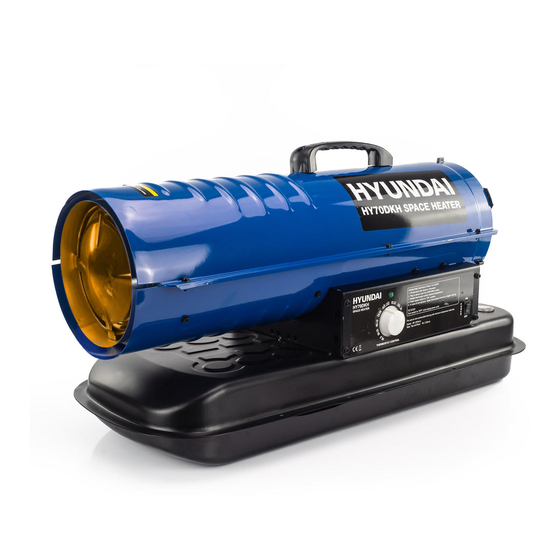

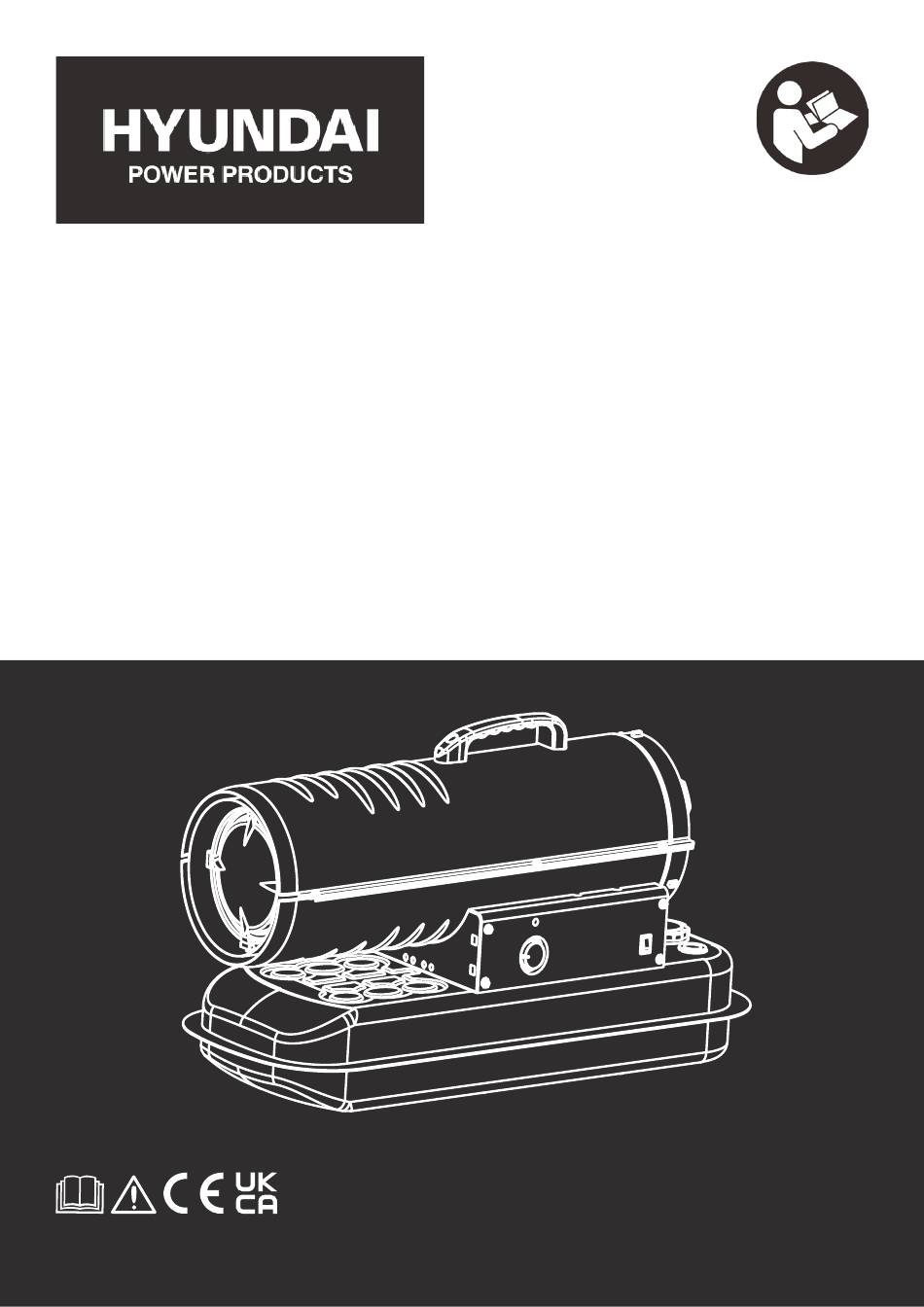

- Page 1 DIESEL (KEROSENE) FORCED AIR HEATER HY70DKH Instruction Manual www.hyundaipowerproducts.co.uk WARNING! Read and understand the instruction manual carefully before use.
- Page 2 THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Safety Information........4-15 Maintenance & Care......27-38 Understand Your Machine....4 Checking Your Machine....27 Personal Safety......4-5 Storage..........27 Inspect Your Machine.......5 Long Term Storage......28 Work Area.........6 Maintenance........29 During Use........6-7 Fuel / Fuel Tank.......29 Electrical Safety........8 Air Filter...........29 Carbon Monoxide......9 Fan Blades........30 Fuel Safety.........10-11 Nozzles..........31 Batteries..........12 Spark Plug........32... -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information • Never place any part of your body where it would be in danger if movement should occur during assembly, installation, and operation, maintenance, repairing or moving. • Start the machine carefully according to instructions and with feet away from the moving parts. •... -
Page 6: Work Area
Safety Information Work Area • Make sure you thoroughly inspect the entire work area. Any liquid spilled on the floor may result in you slipping. • You must only work in daylight or with good artificial light in good visibility conditions. Keep people, children and animals away from the working area. - Page 7 Safety Information WARNING! Risk Of Burns / Fire / Explosion • NEVER use fuels such as gasoline, benzene paint thinners, or other oil compounds in this heater (RISK OF FIRE OR EXPLOSION). • NEVER refill the heater’s fuel tank while heater is operating or still hot. This heater is EXTREMELY HOT while operating.
-
Page 8: Electrical Safety
Safety Information Electrical Safety WARNING! It is the responsibility of the owner to check this electrical product before use to ensure it is safe. You must inspect power cables, plugs, sockets, etc for signs of wear or damage. You must ensure this risk of electric shock is minimised by the installation of appropriate safety devices. -
Page 9: Carbon Monoxide
Safety Information Carbon Monoxide DANGER! Carbon Monoxide is a poisonous gas and can kill in minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside a confined space, such as but not limited to a house, garage, vehicle, boat or tent. CARBON MONOXIDE IS A COLOURLESS, ODOURLESS GAS. -
Page 10: Fuel Safety
Safety Information Fuel Safety CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF CHILDREN. General Safety General Safety • Do not smoke each time fuel is handled. •... - Page 11 Safety Information Fueling / De-Fueling • ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel, only outdoors. Do not smoke during this and each time fuel is handled. • Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine is running or when it is hot.
-
Page 12: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form. Should you come in to contact with electrolyte you should;... -
Page 13: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 14: General Safety
Safety Information General Safety IMPORTANT! Read and understand all of the directions in this manual before assembling, starting, or servicing the heater. Improper use of this heater can cause serious injury. Keep manual for future reference. DANGER! NOT FOR USE IN NON-ADEQUATELY VENTILATED ENCLOSED AREAS. WARNING! Fire, burn, inhalation and explosion hazard. -
Page 15: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. -
Page 16: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 17: Box Contents
Unboxing Box Contents User Manual Top Handle 2 x Screws 2 x Nuts www.hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk... -
Page 18: Features
Features HY70DKH Features www.hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk... - Page 19 Features HY70DKH Features Top Handle Upper Shell Fan Guard Lower Shell Fuel Cap Fuel Gauge Power / Reset Switch Thermostat Knob Fuel Tank Hot Air Outlet www.hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk...
-
Page 20: Assembly
Assembly Assembly Safety NOTE - Images may vary depending on model. NOTE - The machine may be supplied with some parts already assembled. Prior to assembly, check all items have been received. The mulching plug may already be installed for transport. We recommend that you fill out the information in the ‘Product Record’... -
Page 21: Handle Assembly
Assembly Step 1 : Handle Assembly Tools required : Medium Philips screwdriver. 1. Align the holes in the upper housing with the 2 holes in the handle as shown. 2. Insert and tighten screws securely with screw driver. Screw Handle Step 2 : Cordwrap Assembly 1. -
Page 22: Operation
Operation Fuel For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used, 1-K kerosene has been refined to virtually eliminate contaminants, such as sulfur. Which can cause a rotten egg odour during the operation of the heater. However, #1 or #2 fuel oil - Diesel may also be used if 1-K kerosene is not available. -
Page 23: Theory Operation
Operation Theory Operation Fuel System This heater is equipped with an air pump that operates off of the electric motor. The pump forces air through the air line connected to the fuel tank, drawing fuel to the nozzle in the burner head. -
Page 24: Fueling The Heater
Operation Fuelling The Heater CAUTION! NEVER FILL FUEL TANK INDOORS. ALWAYS FILL FUEL TANK OUTDOORS. BE SURE THAT THE HEATER IS ON LEVEL GROUND WHEN FUELLING, AND NEVER OVERFILL FUEL TANK. WARNING! NEVER REFUEL THIS HEATER WHILE IT IS HOT OR OPERATING, FIRE OR EXPLOSION COULD RESULT. -
Page 25: Starting Procedure
Operation Starting Procedure 1. Fill the tank with diesel (1-K kerosene) until fuel gauge point to “F”. 2. Be sure fuel cap is secure. 3. Plug power cord into the local correct plug. Grounded extension cord and plug extension cord into three prong 220-240V grounded outlet. -
Page 26: Stopping Procedure
Operation Stopping Procedure 1. Turn the power switch to “OFF” position and unplug the power cord. Restarting Procedure 1. Wait 10 seconds after shutting off the heater. 2. Turn the power switch to “ON” position. 3. Be sure to follow all starting procedure precautions. www.hyundaipowerproducts.co.uk... -
Page 27: Maintenance & Care
Maintenance & Care Checking Your Machine When checking your machine, we recommend you: • Check for worn or damaged parts • Make sure all nuts, screws and bolts are tight • Make sure all warning stickers are in place and not damaged If there are worn or damaged parts, never use the machine. -
Page 28: Long Term Storage
Maintenance & Care Long Term Storage Drain Fuel Tank 1. Drain fuel through the fuel cap opening using an approved siphon. 2. Using a small amount of diesel (1-K kerosene), rinse and swirl the diesel (1-K kerosene) inside of the fuel tank, empty the tank fully. 3. -
Page 29: Maintenance
Maintenance & Care Maintenance WARNING! Never service heater while it is plugged in or while hot! Use only original equipment replacement parts. The use of alternate or third party components can cause unsafe operating conditions, and will void your warranty. We suggest following a maintenance schedule as follows: Fuel / Fuel Tank Flush every 200 hours of operation or as needed. -
Page 30: Fan Blades
Maintenance & Care Fan Blades Blades should be cleaned at least once per heating season, depending on condition. Remove all accumulated dust and dirt with a damp cloth, taking care not to bend any of the fan blades. Be sure fan blades are dry before re-starting the heater. For fan removal, see below. Set Screw Motor Shaft Fan Blade... -
Page 31: Nozzles
Maintenance & Care Nozzles Nozzles should be cleaned or replaced at least once per heating season. Contaminated fuel could make this necessary immediately. To clean dirt from the nozzle, blow compressed air through nozzle front, it may be necessary to soak nozzle in clean diesel (1-K kerosene) to help loosen any particles. -
Page 32: Spark Plug
Maintenance & Care Spark Plug Clean and re-gap every 600 hours of operation, or replace as needed. After removing the spark plug, clean the terminals with a wire brush. Re-gap the terminals to 0.35cm. Screw Igniter Spark Plug Wire Burner Head www.hyundaipowerproducts.co.uk... -
Page 33: Photocell
Use a cotton swab dipped in water or alcohol to clean the lens of the photocell. Note the proper photocell position as noted in the diagrams. Photocell Photocell Lens Photocell Wire Circuit Board Installing Photocell: 1. Incorrect 2. Correct HY70DKH Only www.hyundaipowerproducts.co.uk... -
Page 34: Fuel Filter
Maintenance & Care Fuel Filter The fuel filter should be cleaned at least twice per heating season by rinsing it in clean diesel (1-K kerosene). Contaminated fuel could make this necessary immediately. NOTE: To remove the fuel filter, please draw out the rubber plug directly. Use of diesel may require additional maintenance. -
Page 35: Pump Pressure Adjustment
Maintenance & Care Pump Pressure Adjustment While heater is operating, turn relief valve clockwise to increase. Counter-clockwise to decrease. Use flat blade screw driver to turn valve. Correct pump pressure is 31Kpa / 4.5Psi For best measurement of pressure, test with full tank of fuel. Optimum pressure occurs when the nose cone is cherry red and there are no extending flames from the heater. -
Page 36: Fuse Replacement
Maintenance & Care Fuse Replacement STEP 1 - Switch Off and Remove Control Panel 1. Before working on the unit, YOU MUST ensure it is NOT connected to mains power supply. If unit is plugged into a power source, turn the machine switch to off position, turn the socket switch off, then remove from socket. - Page 37 Maintenance & Care STEP 2 - Remove and Replace Fuse 1. Locate the fuse on the control board. 2. Pull the fuse from its holder. 3. Gently insert a new 5 amp glass fuse into fuse holder. DO NOT use too much force, you may cause damage to the fuse and/or the holder.
-
Page 38: Troubleshooting
Maintenance & Care Troubleshooting Problem Possible Cause Solution Heater fires, but main 1. Incorrect pump pressure. 1. Adjust pump pressure. PCB shuts heater off 2. Dirty input output or lint filter. 2. Clean/replace air filter. after a short period of 3. -
Page 39: Technical Data
Technical Data Specifications Model HY70DKH Heat Output (kW) Fuel Consumption (L/Hr) Fuel Tank Capacity (L) Fuel Diesel or Kerosene Max. Outlet Air Temperature 393°C Pump Pressure (Kpa) Power Supply (V/Hz/A) 230/50/5 Phase Single Net Weight (kg) 15.23 Product Dimensions Length... -
Page 40: Wiring Diagram
Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: Space Heater SKU Code: HY70DKH Date of Issue: 14/05/2021 Regulations and Directives of Compliance • 2014/35/EU Low Voltage Directive • 2009/125/EC Energy-Related Products (ERP) • 2014/30/EU Electromagnetic Compatibility Directive •... -
Page 41: Recycling & Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 42: Useful Information
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. -
Page 43: Product Information
Product Information Product Record As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. The model number and serial number can be found on the grey specification sticker on your machine. - Page 44 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland www.hyundaipowerproducts.co.uk Licensed by Hyundai Corporation, Korea...
