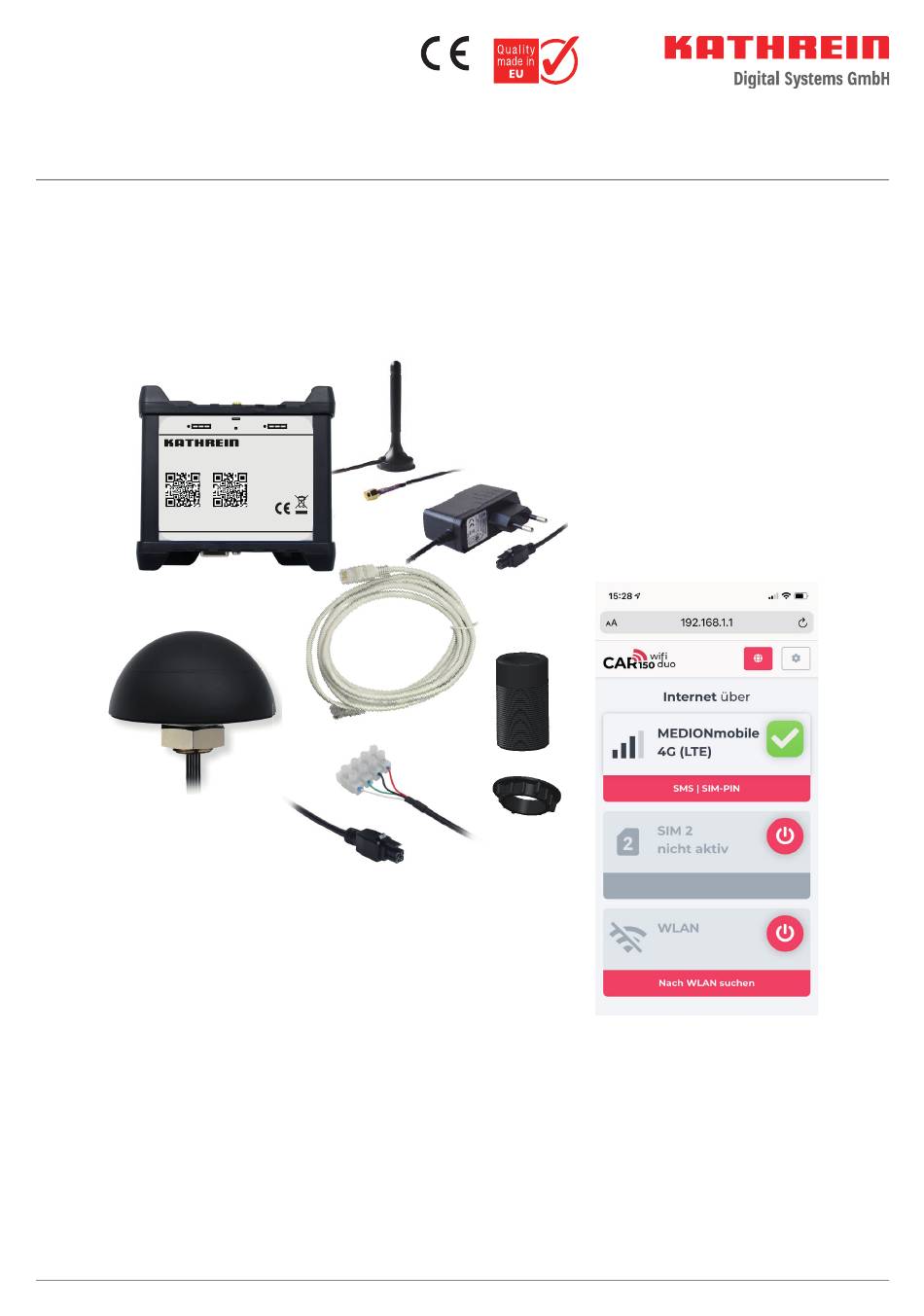

- Page 1 CAR 150 WiFi Duo 204500013 LTE/4G Dual-SIM WiFi Router Set RESET SIM 2 SIM 1 DE - 83022 Rosenheim CAR 150 WiFi Duo 204500013 SSID: Kathrein_XXXX Anmeldung: Passwort: XXXXXXXX http://192.168.1.1 Made in EU LAN 1 LAN 2 LAN 3 Instruction Manual...
-
Page 2: Table Of Contents
Tools required ...................................... 7 Dimensions external antenna, cable specifi cation ..........................7 Mounting the external antenna ................................7 ... using the Kathrein roof gland ..................................... 7 ... with nut and washers ......................................8 Getting Started ................................8 Connecting the router ..................................8 QR codes on the housing ..................................8... - Page 3 Technical Data ............................... 14 Open Source ................................15 Addresses ................................15 Service and support ................................... 15 Factory repair centre ..................................15 Service partners ....................................15 Disposal 3 / 20...
-
Page 4: About This Manual
A suitable data SIM card (not included in the scope of supply) is required to establish an Internet connection to the CAR 150 WiFi Duo. You are free to choose a provider. The choice of the most suitable provider for you depends on several factors, for example: ■... -
Page 5: Scope Of Supply
Notes Legal notes KATHREIN Digital Systems GmbH herewith declare that the CAR 150 WiFi Duo (order no. 204500013) is in conformity with Directive 2014/53/EC. The full text of the EC Declaration of Conformity is available at www.kathrein-ds.com. KATHREIN Digital Systems GmbH are not liable for product damage due to external infl uences, wear or improper handling, unauthorised repair, modifi... -
Page 6: Connections And Displays
► Risk of collision of the external antenna with objects due to the increase in vehicle height. ► Do not clean the vehicle in a car wash or with a high-pressure cleaner when the CAR 150 WiFi Duo is mounted. -
Page 7: Installation And Connection
Connection description: power supply plug 12 V (red cable) Ground (black cable) unallocated unallocated Installation and Connection Tools required ■ Power drill ■ Round fi le and/or sandpaper ■ Open-end or ring spanner (SW41) ■ Cleaning agents ■ Circular drill, ∅ 38 or 27 mm When positioning the external antenna and the router, make sure that they are no further than 2.8 m apart, as it is not possible to extend the cables of the external antenna. -
Page 8: Mounting The External Antenna
Mounting the external antenna ..using the Kathrein roof gland 1. Remove the pre-assembled nut (M27) and the two Auslieferungszustand: washers. Mutter und Scheiben vormontiert 1. Clean and mark the installation site. 2. Drill a ∅ 38 mm hole in the roof according to the marking. -
Page 9: With Nut And Washers
In this case, a ∅ 27 mm hole must be drilled. All further mounting steps can be seen at „Außenantenne montieren ...“ „... mit Kathrein-Dachdurchführung“ auf Seite 8. The only di erence to the installation with the ∅ 38 mm... -
Page 10: Open The Router's Web Interface
Another aspect is that the network coverage of the mobile phone providers also varies greatly. To solve this problem, the router of the CAR 150 WiFi Duo has two SIM card slots. This gives you the option of using the second card of your existing mobile phone contract and additionally a prepaid SIM card of your holiday destination. -
Page 11: After Successful Start-Up
After Successful Start-up Icons used in the web interface Click on this icon to select the transmission path (SIM1, SIM2, WiFi) for establishing an Internet connection. Transmission path selected, no connection to the Internet yet. Internet connection established without restriction. Registration is required for Internet use. -
Page 12: Via Wifi
... via WiFi If a WiFi network has already been selected, it can be accessed. If you want to use a new or di erent WiFi network for your Internet connection, select "Search for WiFi" or "Search for other WiFi" on the home screen. After the successful search, all available WiFi networks are displayed with the respective signal strengths. - Page 13 After selecting the desired WiFi network, enter the corresponding password or network key. The router will connect to the selected WiFi network. There are open WiFi networks where you do not need a password to connect. And there are WiFi networks where authentication is required to log on to the network. In this case, the following icon will pop up .
-
Page 14: Sim Settings
SIM settings In the SIM settings, you have the option of reading received SMS messages. This is important, for example, if your mobile phone provider informs you that your data volume is almost used up or the download speed has been reduced. You can also enter the PIN number of your SIM card, activate or deactivate data roaming and auto APN. -
Page 15: General Router Settings
General Router Settings Use this page to change the router’s WiFi network name and the Use this page to change the router password required for corresponding password. If you make changes here, the infor- opening the web interface. mation on the left QR code of the sticker on the router is no longer valid! Use this page to check whether the router software is up-to-date. -
Page 16: Troubleshooting
Troubleshooting Error: No Internet with SIM1/SIM2 (tick remains yellow) Reasons: – Data volume is used up (check SMS) – Contract expired (check SMS) – Network coverage poor/not available -> check signal level on home page – Check APN settings. Ask provider for APN settings Error: No Internet with WiFi (tick remains yellow) Reasons: –... - Page 17 Technical Data Type | Order No. CAR 150 WiFi Duo | 20110032 Router Antenna connections 2 x SMA for LTE/2 x RP-SMA for WiFi/1 x SMA for GPS 3 x LAN Ethernet connections 1 x WAN Other connections 1 x USB host, 1 x MicroSD...
- Page 18 Open Source The CAR 150 WiFi Duo contains open source software. Details can be found at “Router settings” -> “Licensing informa- tion”. Addresses Service and support Customer support Eiselauer Weg 13 89081 Ulm, Germany Phone: +49 731 270 909 70 Email: support@kathrein-ds.com...
- Page 19 For your notes...
- Page 20 For your notes...
