Brother Industries SUPER ACE+e Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

2.2001.
www.promelectroavtomat.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPER ACE+e and is the answer not in the manual?

Questions and answers

Евгений
April 9, 2025

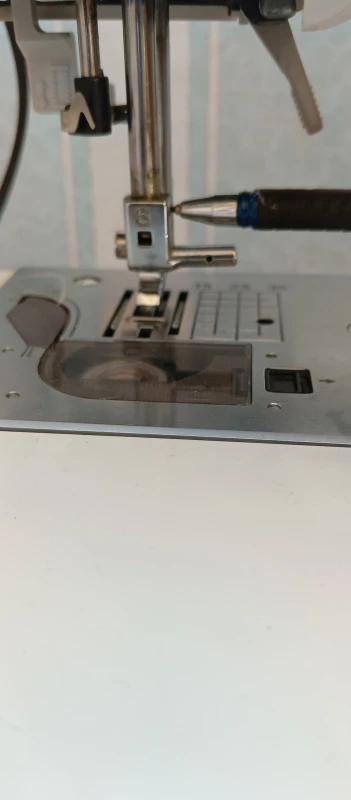

Добрый день, каким ключём снять держатель прижимной лапки

User image 67f6069b0f768
0
1 comments:
Mr. Anderson
April 10, 2025

The specific tool needed to remove the presser foot holder is not mentioned in the provided context.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Brother Industries SUPER ACE+e

Summary of Contents for Brother Industries SUPER ACE+e

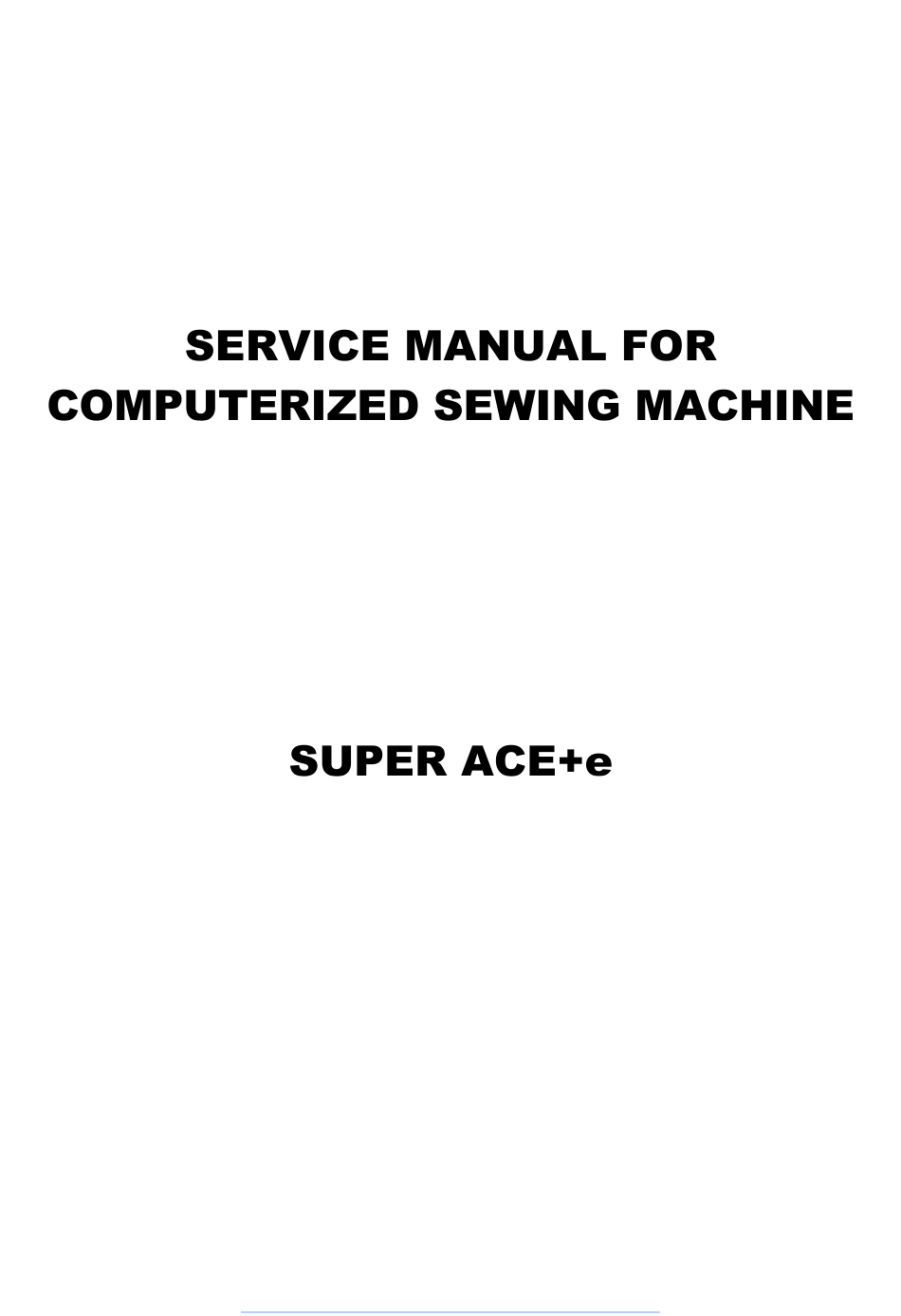

  • Page 1 2.2001. www.promelectroavtomat.ru...
  • Page 2 This service manual has been compiled for explaining repair procedures of SUPER ACE+e. This was produced based on up-to-date product specifications at the time of issue, but there may have been changes of specifications for the purpose of improvements. Contact manufacturer or local sales company for information concerning such changes.

  • Page 3: Table Of Contents

    1. MECHANICAL CHART ..................2 2. POWER TRANSMISSION CHART ..............3 3. ELECTRONIC PARTS ARRANGEMENT CHART........... 4 4. CONTROL SYSTEM BLOCK DIAGRAM ............4 5. MAIN MOTOR CONTROL................5 6. PATTERN GENERATOR ................. 5 7. AUTOMATIC THREAD TENSION..............6 8. OTHER ELECTRONIC COMPONENT FUNCTIONS ........7 www.promelectroavtomat.ru...

  • Page 4: Mechanical Chart

    MECHANICAL CHART EMBROIDERY UNIT MECHANISM (OPTION) www.promelectroavtomat.ru...

  • Page 5: Power Transmission Chart

    POWER TRANSMISSION CHART Generating mechanism of needle bar, thread take-up lever and zigzag movements Mechanism of feed dog and rotary hook movement www.promelectroavtomat.ru...

  • Page 6: Electronic Parts Arrangement Chart

    ELECTRONIC PARTS ARRANGEMENT CHART CONTROL SYSTEM BLOCK DIAGRAM www.promelectroavtomat.ru...

  • Page 7: Main Motor Control

    MAIN MOTOR CONTROL The main motor for the sewing machine is required to smoothly change from low speed to high speed without any fluctuations due to load or temperature changes. To fully comply with this requirement, this model adopts PWM control using FET.

  • Page 8: Automatic Thread Tension

    AUTOMATIC THREAD TENSION On former models, the operator adjusted the thread tension of the needle and bobbin threads by changing the pressure between the tension disks. On this model, however, the thread tension is calculated based on the horizontal and vertical movements of the embroidery frame, and the appropriate needle thread amount is fed by the thread tension pulse motor.

  • Page 9: Other Electronic Component Functions

    OTHER ELECTRONIC COMPONENT FUNCTIONS Start/stop switch ........used to start and stop (SS) the machine. If you want to start sewing at low speed, keep this switch depressed and start sewing. Backstitch switch ......... used for backstitching and lockstitching. Backstitching is performed at low speed in the reverse direction while the switch is pressed.
  • Page 10 1. DISASSEMBLING AND REASSEMBLING THE OUTER PARTS AND MAIN PARTS............9 2. LEAD WIRE ARRANGEMENT............... 22 www.promelectroavtomat.ru...
  • Page 11 DISASSEMBLING AND REASSEMBLING THE OUTER PARTS AND MAIN PARTS Remove the screw securing the face plate, and the face plate by sliding it to the left. Remove the screw securing the free arm cover, and the free arm cover by sliding it to the left. Remove the blind cap on the belt cover, the screw securing the belt cover, and the belt cover from below by sliding it to the right.
  • Page 12 8. Remove the presser holder and needle. 9. Remove the 14 connectors, the two screws, and the main PC board. 10. Remove the two screws and handle holder assembly. 11. Remove the screw and thread winding assembly. 12. Remove the motor belt and pull out the motor connector. Remove the two screws and the main motor. 13.
  • Page 13 -11- www.promelectroavtomat.ru...
  • Page 14 19. Remove the two screws and the thread cutter unit. 20. Remove the screw and the inner rotary hook bracket. 21. Remove the presser bar clamp screw. 22. Remove the presser bar by lifting it from above, and the presser bar clamp. 23.
  • Page 15 27. Remove the two screws securing the upper shaft metal, and the upper shaft assembly. 28. Remove the screw and the N.P. board assembly. 29. Remove the screw and the tension pulley holder. 30. Remove the two feed rod tension springs. 31.
  • Page 16 38. Attach the base plate using the three screws. 39. Attach the power supply unit assembly using the two screws and insert the inlet connector. 40. While attaching the timing belt, assembly the lower shaft assembly using the metal presser and screw. 41.
  • Page 17 -15- www.promelectroavtomat.ru...
  • Page 18 49. Attach the thread take-up shaft using the screw. 50. Insert the tension plate. 51. Attach the presser spring, washer and clip using the collar and screw. 52. Attach the lifter and the presser foot lifter with the presser foot shaft. 53.
  • Page 19 -17- www.promelectroavtomat.ru...
  • Page 20 57. Attach the ZPM holder assembly using the two screws. 58. Attach the needle bar supporter assembly using the two springs. (Insert into the needle bar clamp and needle bar crank rod) 59. Attach the needle bar supporter stud holder using the screw. (Insert the needle bar supporter arm into the pin on the needle bar supporter.) 60.
  • Page 21 -19- www.promelectroavtomat.ru...
  • Page 22 68. Attach the rear cover using the three screws. 69. Attach the needle plate assembly using the two screws. 70. Connect the four connectors, and attach the front cover using the three screws. 71. Insert the base cover into the base plate and attach using the two screws. 72.
  • Page 23 DISASSEMBLING AND REASSEMBLING THE EMBROIDERY UNIT (OPTION) Remove the screw and Y carriage cover. Remove the screw, and remove the side cover from the lower side. Remove the two screws and pull the main cover to the right. Remove the three screws and the base cover. Assembly Point Securely fit the bottom rear part of the side cover into the base cover.
  • Page 24 LEAD WIRE ARRANGEMENT -22- www.promelectroavtomat.ru...
  • Page 25 III. 1. SETTING THE TEST MODE ................24 2. TENSION OF MOTOR BELT AND TIMING BELT ........25 3. NEEDLE DOWN POSITION ADJUSTMENT ..........26 4. TIMING OF NEEDLE AND ROTARY HOOK (CLEARANCE BETWEEN THE NEEDLE AND THE ROTARY HOOK POINT) . 27 5.

  • Page 26: Setting The Test Mode

    SETTING THE TEST MODE BASIC TEST MODES To set the test mode, turn on the power switch while holding down the start/stop button and backtack button simultaneously. Numerals will appear on the touch panel. The respective test mode will be entered when the numeral is pressed.

  • Page 27: Tension Of Motor Belt And Timing Belt

    TENSION OF MOTOR BELT AND TIMING BELT STANDARD There should be a 4-6 mm slack in the motor belt when the center of the motor belt is pressed with a force of 2N (200g). There should be a 3-4 mm slack in the timing belt when it is pressed with a force of 2N (200g). ADJUSTMENT Timing belt Loosen the screw of the belt adjusting pulley.

  • Page 28: Needle Down Position Adjustment

    NEEDLE DOWN POSITION ADJUSTMENT STANDARD When test mode "4" is selected, the needle should be exactly at the middle of the needle plate hole in the needle down position. ADJUSTMENT Select test mode "4". Turn the balance wheel to move the needle to the needle down position. Loosen the screw securing the zigzag adjusting nut.

  • Page 29: Timing Of Needle And Rotary Hook

    TIMING OF NEEDLE AND ROTARY HOOK (CLEARANCE BETWEEN THE NEEDLE AND THE ROTARY HOOK POINT) STANDARD When test mode "5" is selected and the needle is raised 2.9-3.3 mm from its lowest position, the rotary hook point should be positioned at the right side of the needle. The clearance between the needle and the rotary hook point should be 0.1 mm or less, and they should never touch each other.

  • Page 30: Needle Bar Height

    NEEDLE BAR HEIGHT STANDARD When test mode "5" is selected, turn the balance wheel so that the needle meets the rotary hook point. At this time, the clearance between the upper end of the needle eye and the bottom of the rotary hook point should be 1.0-1.4 mm.

  • Page 31: Lower Shaft

    LOWER SHAFT Attach the bushing presser L temporarily so as the center of lower shaft is positioned higher by 1 mm against the center of eccentric metal. Install the outer rotary hook. Tighten the screw on the bushing presser L by turning the eccentric metal. Make sure that there is no backlash on the gears.

  • Page 32: Front/Back, Left/Right Position Of Feed Dog

    FRONT/BACK, LEFT/RIGHT POSITION OF FEED DOG STANDARD When test mode "6" is selected, the feed dog can be moved forward/backward and left/right. At this time, the feed dog should not contact the needle plate. When the front/back position is the maximum feed amount, the clearance between the feed dog and needle plate at the feed start position (when feed dog is at very front) should be 0.5 to 1.0 mm.

  • Page 33: Height Of Feed Dog

    HEIGHT OF FEED DOG STANDARD When the balance wheel is turned to raise the feed dog to its highest position, the standard height of the feed dog above the needle plate should be 0.9-1.1 mm. ADJUSTMENT Turn the balance wheel to raise the feed dog to its highest position. Loosen the screw securing the vertical feed roller shaft.

  • Page 34: Presser Bar Height

    PRESSER BAR HEIGHT STANDARD The clearance from the needle plate top to the bottom of the presser bar should be 7.0-7.5 mm. ADJUSTMENT Raise the presser foot lifter. Loosen the screw of the presser bar guide bracket. Adjust the height of the presser bar by moving it vertically. Tighten the screw of the presser bar guide bracket.

  • Page 35: Checking Detection Of Fabric Thickness (If A New Main Pc Board Is Installed, This Adjustment Must Be Performed.)

    CHECKING DETECTION OF FABRIC THICKNESS (If a new main PC board is installed, this adjustment must be performed.) STANDARD When the fabric thickness is set to 0 mm and 3 mm in test mode "2", the buzzer should sound twice if operation is normal.

  • Page 36: Embroidery Upper Thread Adjustment (Option)

    EMBROIDERY UPPER THREAD ADJUSTMENT (OPTION) STANDARD Select test mode 22. ADJUSTMENT Select test mode 22. The number of the current setting is displayed at the left of the setting keys. If embroidery thread tension is too low, press the setting with a higher value than current setting to tighten thread tension.

  • Page 37: Position Of Buttonhole Switch Lever

    POSITION OF BUTTONHOLE SWITCH LEVER STANDARD When the buttonhole lever is lowered, the clearance of front part of buttonhole foot is 1.5 mm and the presser foot lever is lowered BH 0 should touch BH 1. ADJUSTMENT Turn on power switch and select pattern Fit the buttonhole foot (A).

  • Page 38: Bobbin Winder

    BOBBIN WINDER STANDARD The thread should be wound parallel to the bobbin and around about 85-90% of the bobbin at low speed.(A) The clearance between the bobbin winder switch and the bobbin winder assembly should be 0.5-1.0 mm.(B) ADJUSTMENT 1. Loosen the bobbin winding guide screw. 2.

  • Page 39: Bobbin Thread Detector

    BOBBIN THREAD DETECTOR STANDARD When the amount of the bobbin thread has decreased until the bobbin diameter is 11.4-11.8 mm, the message "Bobbin thread is running out." should appear on the display. ADJUSTMENT Select test mode No.21 on the touch panel. Turn the balance wheel in its normal rotation direction, align the opening of the outer rotary hook with the photo diode, and make sure that "0.0"...

  • Page 40: Inner Rotary Hook Bracket Position

    INNER ROTARY HOOK BRACKET POSITION STANDARD When the inner rotary hook bracket and the rotary hook meet, the spring of the inner rotary hook bracket and the inner rotary hook should overlap each other by 1.9-2.1 mm. ADJUSTMENT Loosen the screw securing the inner rotary hook bracket. Adjust the position of the inner rotary hook bracket by moving it vertically and/or horizontally.

  • Page 41: Large One-Point Pattern Shape (Soft Adjustment)

    LARGE ONE-POINT PATTERN SHAPE (SOFT ADJUSTMENT) STANDARD When pattern adjustment "3" is selected in the test mode and the start/stop button is pressed, the vertical separation of the pattern outline should be 1 mm or less. ADJUSTMENT Select pattern adjustment "3" in the test mode. Press the start/stop button and sew the test pattern outline.

  • Page 42: Feed Adjustment (Vertical Feed)

    FEED ADJUSTMENT (VERTICAL FEED) STANDARD Adjustment of the pattern should be possible in test mode "3". ADJUSTMENT Loosen the screw securing the pulse motor. Rotate the pulse motor and adjust the pattern. * Make sure not to contact the main PC board during the adjustment. * Install presser foot N before the adjustment.

  • Page 43: Inner Rotary Hook Tension

    INNER ROTARY HOOK TENSION STANDARD While slowly pulling polyester thread #60 using a tension gauge, inner rotary hook tension should be 0.1-0.12N (10-12g). The difference between this and the tension for silk thread (#80) should be 0.02-0.03N (2-3g). ADJUSTMENT Pass polyester thread #60 through the inner rotary hook correctly, and pull it using the tension gauge. Adjust the tension by turning the screw to either the right or left using a screwdriver.

  • Page 44: Needle Threader

    NEEDLE THREADER USING THE NEEDLE THREADER There are a wide variety of different needles and sewing machine threads available. The right ones should be selected in accordance with the sewing conditions. The accessory needle threader is designed to make threading of needles easier, but it cannot handle every single circumstance of use (combinations of needle and thread) that may occur.

  • Page 45: (Checking The Hook Position In Horizontal Direction)

    NEEDLE THREADER (CHECKING THE HOOK POSITION IN HORIZONTAL DIRECTION) STANDARD The measure from inside of the hook guard to the center point of hook is 0.42 mm. CHECK As sewing needle HA X1 (#14) is standard, so prepare five brand-new sewing needles HA X1 (#14) and check by changing all of these.

  • Page 46: Needle Threader (Checking The Hook In Standard Position)

    NEEDLE THREADER (CHECKING THE HOOK IN STANDARD POSITION) STANDARD The clearance between the top of hook and the top of needle eye is 0 mm. Threading is possible when needle is located higher than 8 mm from the needle plate. CHECK (refer to illustration) Case A Hook position is too high.

  • Page 47: Timing Belt Tension For The X Direction

    EMBROIDERY UNIT ADJUSTMENTS (OPTION) TIMING BELT TENSION FOR THE X DIRECTION STANDARD There should be 4 ± 1 mm slack in the timing belt looped around the X driving shaft and the X tension pulley shaft, when the center of the belt is pressed by a force of 1.2N (120g) after the X carriage unit is moved all the way to the right.

  • Page 48: Timing Belt Tension For The Y Direction

    TIMING BELT TENSION FOR THE Y DIRECTION STANDARD There should be 4 ± 1 mm slack in the timing belt when the center of timing belt at the Y drive shaft and Y tension pulley is pressed with a force of 1.2N (120g) after the Y carriage is moved all the way forward. ADJUSTMENT Move the Y carriage all the way forward.
  • Page 49 1. When power is turned on, buzzer does not sound and nothing appears on display ..................48 2. After the power is turned on, pulse motors do not return to their home positions with respect to the needle position......48 3.

  • Page 50: Appears On Display

    ∗ You must turn off the power and remove connectors from printed circuit boards before measuring resistance. PROBLEM CHECK REMEDY 1. When power is 1) Has the display contrast been adjusted? 1) Adjust the contrast. turned on, 2) If the voltage between both inlet terminals is 2) Replace the power cord.

  • Page 51: Main Motor Does Not Run

    4. Main motor 1) Does balance wheel rotate easily? 1) Adjust mechanical positions does not run. to reduce the heavy torque. 2) Is main motor connector (CN2 on power supply unit) 2) Check connector connection. attached properly? 3) Is resistance of both ends on main motor connector 3) Replace main motor.

  • Page 52: Manual Operation Of Feed And Zigzag Pulse Motors Is Not Possible

    8. Manual 1) Do manual keys of feed and zigzag pulse motors turn 1) Replace LCD module. operation of off and on normally, and do the LCDs change? feed and zigzag 2) Are the resistances between the pins below of the 2) Replace feed pulse motor, pulse motors is feed and zigzag pulse motors normal?

  • Page 53: The Lcd Light Does Not Light

    15.The LCD light 1) Is the voltage between pins 4-5 20 to 30 VDC when 1) Replace the power board does not light. the connector (CN6) which is output from the power assembly. board is disconnected? 2) Is fuse blown? 2) Replace fuse after correctly defect that caused fuse to blow.
  • Page 54 Main PC board Power supply unit -52- www.promelectroavtomat.ru...
  • Page 55 LCD unit Other PC boards -53- www.promelectroavtomat.ru...
  • Page 56 SUPER ACE+e T1030146 www.promelectroavtomat.ru...
