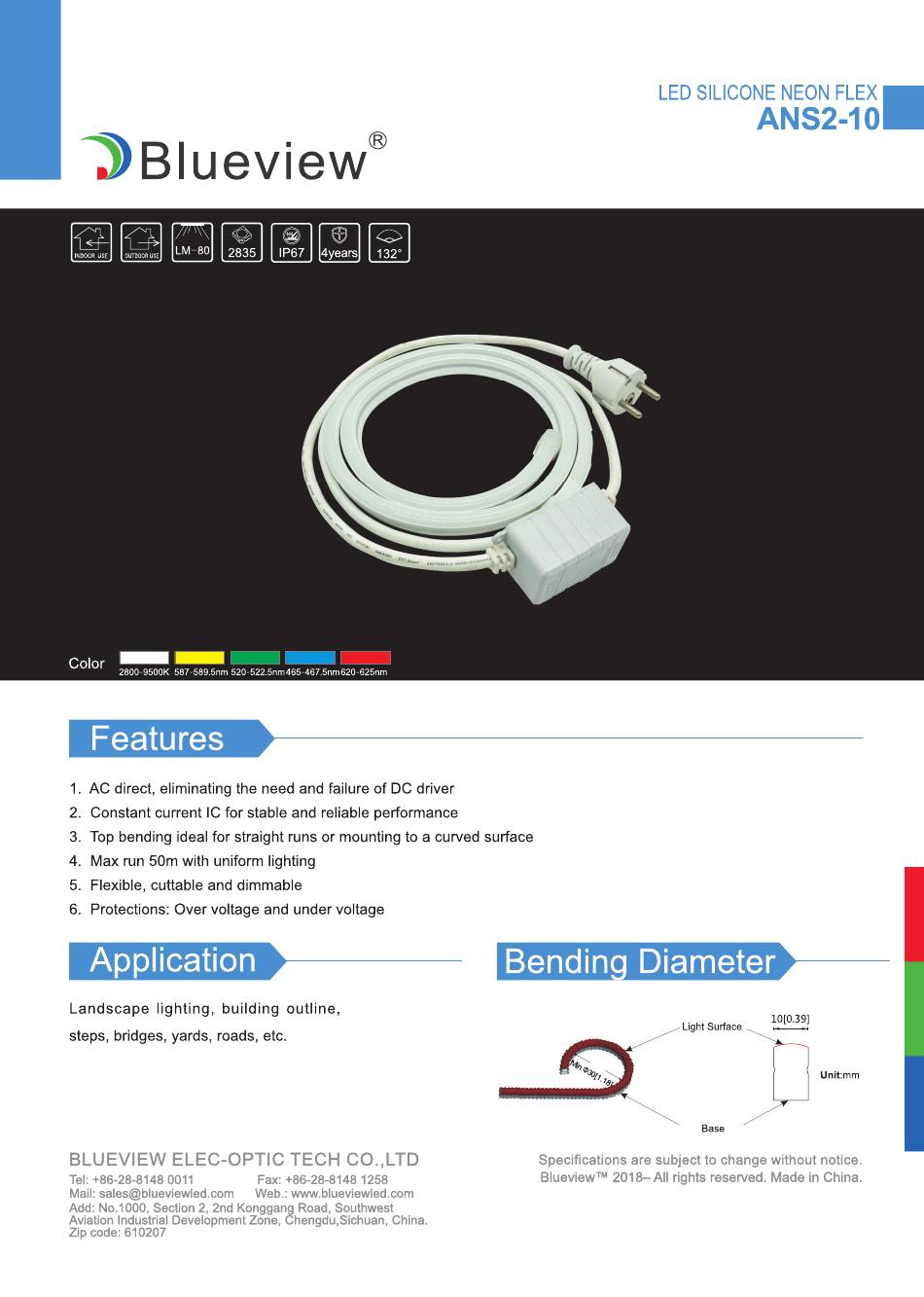

LED SILICONE NEON FLEX ANS2-10 Installation By clips Optical & Electrical Parameters Luminous Color Temperature Voltage Efficacy Power Flux[Typical] Model No. Wavelength Beam Angle (lm/m) (W/m) (K/nm) (lm/m) 4119K 290.4 ≥80 588.8nm 300.0 34.1 ANS2-10 523.4nm 331.7 37.7 463.9nm 66.3 7.53... - Page 3 LED SILICONE NEON FLEX ANS2-10 Length vs. power vs. voltage drop Working Length Rated Current Rated Voltage Rated Power Power Supply Voltage at the oltage at the Voltage Drop (AC V) Method(DC V) beginning(DC V) end (DC V) (DC V) 0.044...
- Page 4 LED SILICONE NEON FLEX ANS2-10 Luminous Intensity Distribution Diagram Unit：cd C0/180,117.6° AVERAGE BEAM ANGLE(50%)：115.7° C90/270,113.8°...
- Page 5 LED SILICONE NEON FLEX ANS2-10 Average Illumination Luminous Flux output：208.9ml 280402,981720 lx 3.01cm 70701,245430 lx 6.02cm 9.02cm 31156,109080 lx 12.03cm 17525,61358lx 11216,39269 lx 15.04cm 7789,27270 lx 18.05cm 5722,20035 lx 21.06cm 4381,15339 lx 24.07cm 3462,12120 lx 27.07cm 30.08cm 10cm 2804,9817 lx Height Eavg，Emax...
-
Page 6: Packaging Information
LED SILICONE NEON FLEX ANS2-10 Accessories End exit (FREE) End cap (FREE) Plastic clip (FREE) Grip Plate (Optional) Quantity(50m):3pcs Quantity(50m):3pcs Quantity(50m):100pcs Quantity(50m):100pcs 3.5cm Aluminum track Silicone glue (Optional) Screw (FREE) (Optional) Quantity(50m):1pcs Quantity(50m):100pcs Quantity(50m):100pcs Packaging Accessories Roll the product on the... - Page 7 LED SILICONE NEON FLEX ANS2-10 Installation 1.Tools Cutter Electric batch Brush 2.Accessories End exit (FREE) End cap (FREE) Plastic clip (FREE) Grip Plate (Optional) Quantity(50m):3pcs Quantity(50m):3pcs Quantity(50m):100pcs Quantity(50m):100pcs 3.5cm Aluminum track Silicone glue (Optional) Screw (FREE) (Optional) Quantity(50m):1pcs Quantity(50m):100pcs Quantity(50m):100pcs...
- Page 8 LED SILICONE NEON FLEX ANS2-10 3.Installation steps Installation of the end cap Solder the wire to the PCB board First put waterproof glue inside of the end Wipe off the excess glue and wait for the exit, then push into the tape light...
- Page 9 LED SILICONE NEON FLEX ANS2-10 5.Attentions Do not do live-line working for high voltage product. Follow the instructions of wiring diagram (first connect the load and then the power supply) to avoid short circuit. Make sure the correct connection of positive and negative poles between led module and power supply.
- Page 10 LED SILICONE NEON FLEX ANS2-10 Common Faults and Troubleshoot Warning Quick Guide Problems Reasons Solutions Do not disassemble or retrofit the light. Do not touch the surface of the No electric supply. Fix the short circuit problem. light with a sharp object.
