Summary of Contents for Milestone MHT-L1081

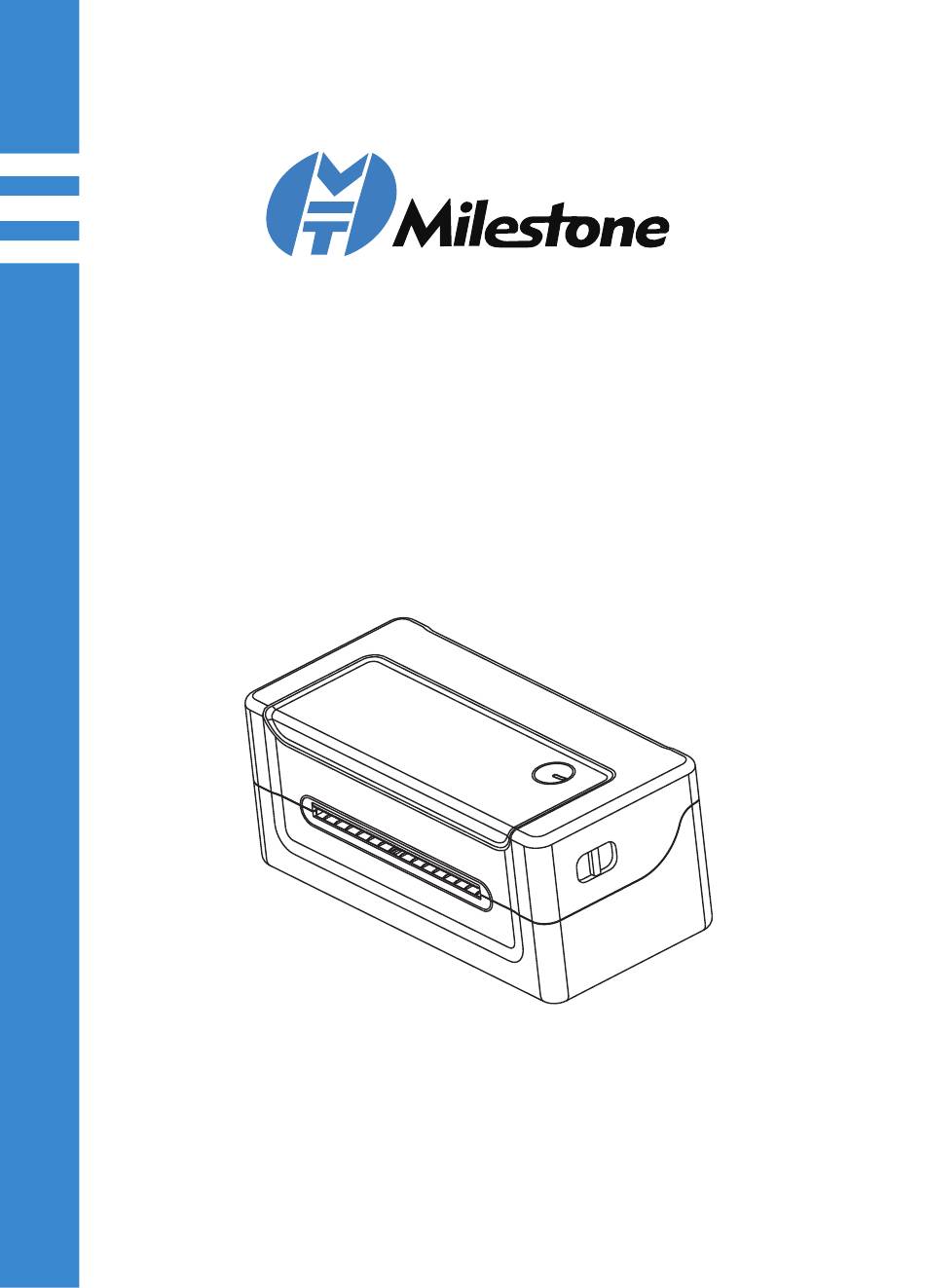

- Page 1 Thermal Label Printer Quick Installation Guide www.milestoneiot.com...
- Page 2 Appearance and Componrnts Front View Rear View 1.Upper Cover 1.Paper Guide 2.FEED Button 2.Power Interface 3.Paper Exit 3.USB Interface 4.Cover Opening Key 4.Power Switch 5.Heat Dissipation Port Inside View 1.Thermal Head Piece 2.Rubber Roller 3.Paper Guide Note: The interface is optional or customized, and the specific interface is subject to the actual object.
-
Page 3: Loading Paper
Loading Paper (1) Facing the back of the machine, hold the paper guide with both hands, and adjust the distance between the left and right guides according to the folded paper size. (2) Insert the folded paper into the paper guide. (3) Confirm that the printer has detected paper feeding, automatically feeds paper and delivers paper normally. -
Page 4: Printer Unpacking
Printer Unpacking Printer Unpacking Before use, make sure the accessories are included in the package(the following picture is an example). If any thing is missing, contact the supplier or manufacturer. Main machine Power adapter Power cord USB cable Quick Installation Guide Label printer: 1 set Power adapter: 1 pcs Power cord: 1 pcs... - Page 5 Printer Unpacking Connecting the Printer Connect the power line (1) Confirm that the power switch is in off (0) state. (2) Connect the power adapter to the printer. (3) Connect the power line to the power adapter. (4) Connect the other end of the power line to a nearby socket. Use the special power adapter for the printer.
- Page 6 Printer Unpacking Windows Driver Installation Connect the printer and the computer, and turn on the printer power. Open the printer driver Open the printer driver...
- Page 7 The driver has been successfully installed,piease click Finish to close the page. Open computer settings --> Devices --> Devices and printers.
- Page 8 Find the MHT-L1081 printer and set it as the default printer. And change the properties of the printer, such as paper size. But we recommend using 4x6" or 100*150mm paper size for better printing results. At this step, you have fully installed the printer, then please open the document and try to print a test.
- Page 9 Printer Unpacking Mac OS Driver Installation Open The Pinter Driver. If the computer prompts that the document cannot be verified, please open "Security and Privacy", agree to open the driver document, and continue the installation.
- Page 10 Open System Preferences Click Security&Privacy...
- Page 11 Click Open Anyway Click Open...
- Page 12 Back to the installation step, this step will verify the account security, enter the computer password or fingerprint to continue the installation. Click Contine Enter computer password...
- Page 13 At this step, the driver has been installed correctly, then we add the printer to the computer. Open “printers & scanners”, Add a Milestone MHT-L1081 Thermal Label Printer. Click Printer & Scanners. Click"+" to add a Printer.
- Page 14 Select the Printer Model MHT-L1081. OK, the printer has been installed successfully. At this step, you have fully installed the printer, then please open the document and try to print a test. Please use 4x6 labels and open the test document "USPS Test1.pdf"...
- Page 15 Printer Unpacking Frequently Asked Questions...
- Page 17 Printer Unpacking Product Specification List Printing method Thermal line printer Paper loading method Easy paper loading/auto paper feeding Printing speed Actual speed detection：150mm/s Printing paper width 104mm 203 dpi Effective resolution (300 dpi optional) Paper type Continuous paper, label paper, black label paper Thickness of printing paper 0.06-0.18mm Effective printing width...
- Page 18 Printer Unpacking Keys and Indicators Function description of buttons Button operation Corresponding functions Scenarios Press and hold + turn on the printer Print self-test page Power Off Standby Enter label specification learning mode Press and hold 3s Open the cover Restore factory settings Press and hold 10s Standby...
- Page 19 Printer Unpacking Printer Unpacking Print Self-Test Page Print Self-Test Page When the printer is initially installed or there are any problems with the printer, you can run self-test program to confirm the following status firmware version, printer parameter setting status, print quality, and related setting information of external devices, etc.
-
Page 20: Troubleshooting
Troubleshooting The table below shows common problems and solutions for operators. If you have followed the simple troubleshooting methods but the printer is still not functioning properly, please contact the customer service department of your dealer for assistance. Fault Phenomenon Cause Solution a. -
Page 21: Safety Warnings
Safety Warnings Warning: Do not touch the paper cutting knife or paper-tearing knife of the printer. Warning: The print head is a heating component. Do not touch the print head and its surrounding components when the printer is still warm in temperature. Warning: Do not touch the surface of the thermal print head and connectors, to avoid electrostatic damage to the print head. - Page 22 Please contact us in time. What kind of Gift?Two types for choose. Milestone 4x6 inch Thermal labels paper or 2in1 Rolls and stack label holders, which suitable and fits for your Devices. Which one you prefer? How to get the Gift? Contact us at Service@gzmht.com...
