Yeong Yang YY-0221 Technical Instruction

YY-0221 Cube Case
Technical Instruction

I. INTRODUCTION

1. This Cabinet

YY-02XX is a server cabinet configured on PS2 power supply or a PS2
sized redundant power supply that takes using as a Server/Raid system.
Compatible with extended ATX, ATX motherboard.

2. Component Checklist

If assembling this chassis by yourself, it is important to prepare all the
chassis components before starting. This will save a great deal of time
by not having to hunt down components. The following checklist
provides a guideline as to the necessary components for a chassis.
Standard Components
Chassis YY-0221
Power Supply PS2 PSU or Mini Redundant PSU
Optional required Components
Cooling Fan 9cm cooling fan, 3pcs maximum
Cooling Fan 12cm cooling fan, maximum 1pce
EMI Filter EMI filter for tailgates
I/O Shield Various I/O shield
EEB3.0 version
ZZ17-02101-B

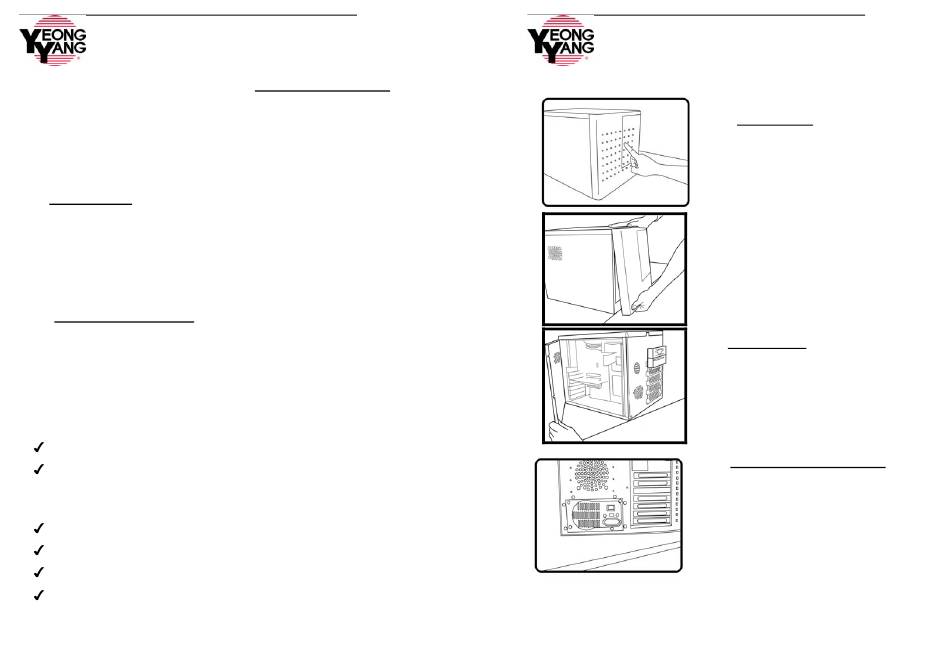

II. System Assembly and Disassembly

Push the door (pointed) to open the door
for devices' operation.
To assembly the front panel with
plugging two hooks of the bottom of
front panel, into the chassis body and
snaps the springs of front panel in.

2. Side Panels

There are two screws in each side, release
the screws, and open it like a door. There
is a fan space in the side panel, integrator
could figure it with or without fan depends
on system's request.

3. Power Supply Mounting

The chassis allows PS2 power supply with
bracket or mini redundant power supply.
Four screws are used to secure the power
supply to the cabinet backside.

1. Front Panel

ZZ17-02101-B
