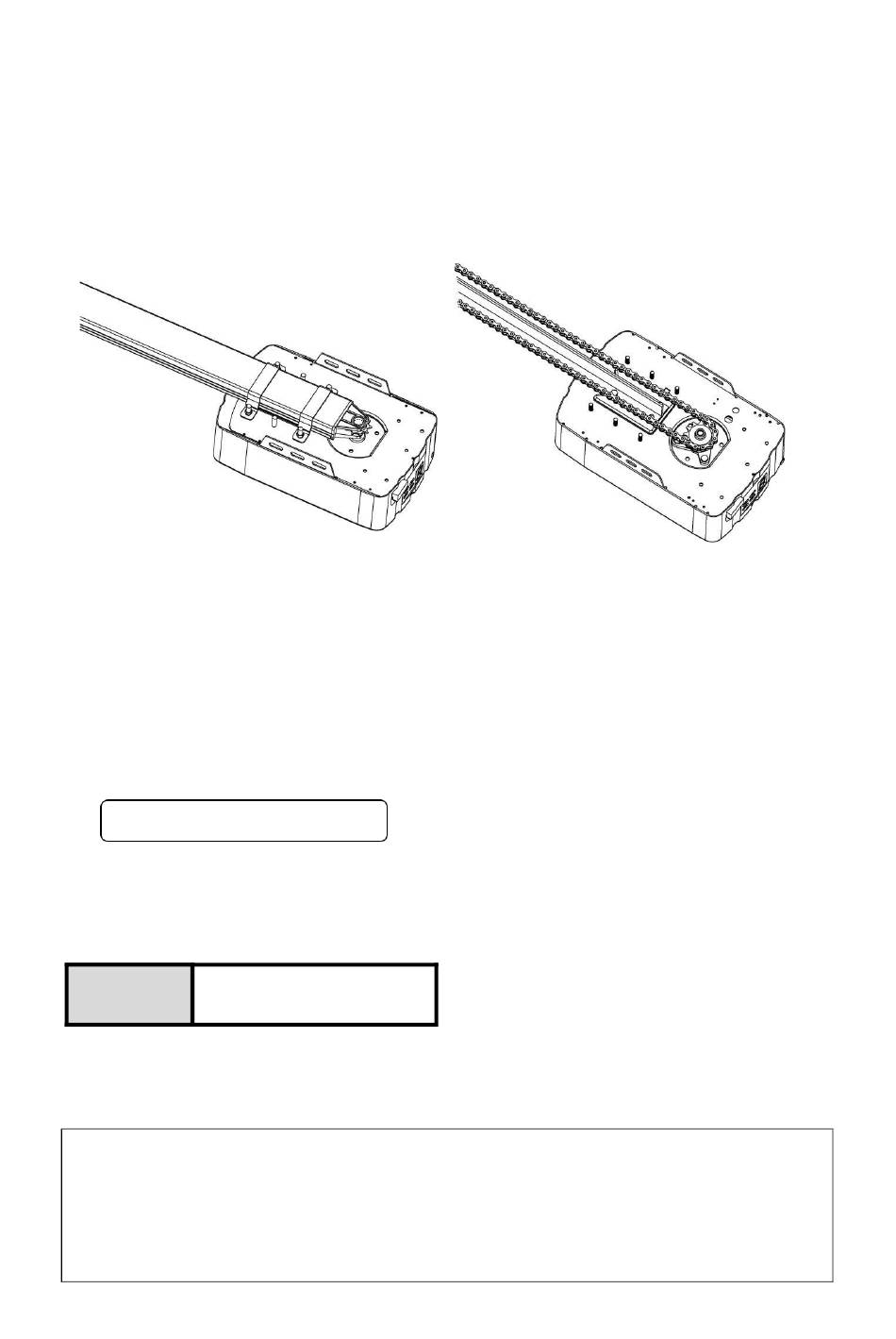

Garage Door Opener - C Rail & T Rail
Installation Instructions and User Guide
FS 1000
1000N
S/N
WARNING
Please read the manual carefully before installation and use.
The installation of your new door opener must be carried out by a technically qualified
or licensed person.
Attempting to install or repair the door opener without suitable technical qualification
may result in severe personal injury, death and / or property damage.
Advertisement
Table of Contents
Related Manuals for Force FS 1000
Summary of Contents for Force FS 1000
- Page 1 Garage Door Opener - C Rail & T Rail Installation Instructions and User Guide FS 1000 1000N WARNING Please read the manual carefully before installation and use. The installation of your new door opener must be carried out by a technically qualified or licensed person.
-
Page 2: Table Of Contents
CONTENTS Important Safety Recommendations....................1 Product Description & Features......................2 Pre-Installation Recommendations....................3 Installation (Wall Bracket & Door Bracket)..................4 Installation (Steel C-Rail)....................... 4-5 Installation (Sectional Steel C-Rail Assembly)................5-6 Battery Backup Assembly for C-Rail (optional)................ 6-7 Manual Disengagement for C-Rail..................7 Installation (Steel T-Rail)........................8 Installation (Sectional Steel T-Rail Assembly)................ -
Page 3: Important Safety Recommendations
5. For additional safety we strongly recommend the inclusion of Photo Beam. Although the opener incorporates a pressure sensitive Safety Obstruction Force system the addition of Photo Beam will greatly enhance the operating safety of an automatic garage door and provide additional peace of mind. -
Page 4: Product Description & Features
4. Self-learning open and close obstruction force The amount of opener power for different stages of the door's travel is learnt during setup and is constantly re-profiled. Opener force measurement automatically adjustment in a suitable range. 5. Electronic limit, simple adjustment. -
Page 5: Pre-Installation Recommendations
PRE-INSTALLATION RECOMMENDATIONS 1. Garage door must be able to be lifted and closed easily by hand and without much effort. A well balanced & sprung door is critical for proper installation. 2. The garage door opener can't compensate for a badly installed garage door and should not be used as a solution for a “hard to open”... -
Page 6: Installation (Wall Bracket & Door Bracket)
INSTALLATION INSTRUCTIONS Mount Wall Bracket and Door Bracket (Fig2) Wall Bracket - Close the garage door and measure the garage door width at the top and mark the center. Locate and mount the wall bracket 2cm-15cm above the door on the inside wall. - Page 7 STEP3 (Fig.3, Fig.4) Lift and support the opener head (with a ladder) so it is positioned centrally and level. Fix the opener and track on ceiling by Iron bracket A & B. WARNING: Do not allow children around the door, opener or supporting ladder serious injury and/or damage may result from failure to follow this warning.
-
Page 8: Battery Backup Assembly For C-Rail (Optional)
3. As Fig.9, release the nut & spring. 4. Tight the nut to the right position as shown in Fig.10, cut the plastic tape, cut the plastic thread on sprocket, then whole rail assembled finished. Battery backup Assembly For C-Rail (optional) Option 1 - Top Fixed STEP1 (Fig.11) Assemble the battery &... -
Page 9: Manual Disengagement For C-Rail
Option 2 - Side Fixed STEP1 (Fig.13) Assemble the battery & battery bracket like the photo, fix by screws supplied. STEP2 (Fig.14) Join the battery to opener, find the Fig.14. Figure 13 Figure 14 MANUAL DISENGAGEMENT FOR C-RAIL The opener is equipped with a manual release cord to disengage shuttle and move door by hand while holding the handle down (Fig 15). -
Page 10: Installation (Steel T-Rail)
Installation (Steel T-Rail) Figure 17 STEP1 (Fig. 17) Attach the opener head to the steel T-Rail. STEP2 (Fig. 17) Place the steel T-rail and opener head assembly centrally on the garage floor, with the open head furthest away from the door. Lift the front of the rail up to the door bracket. Insert the pivot pin and secure it with the split pin supplied. - Page 11 Sectional Steel T-Rail Assembly STEP1:Connect the T-Rail Sections Align the T-Rail sections on the floor. Connect these rails together with the rail T-Rail couplers as shown (Back) All rail pieces must be aligned properly T-Rail (Center) M8 Locknut x 8 Rail Coupler M8*16 Carriage bolt x 8 T-Rail...
- Page 12 STEP3: Install the Trolley Motor Unit Please note arrow& (Back) DOOR marking, indicates this side to the door Slide trolley from the back of the T-rail assembly STEP4: Attached the T-Rail to the Opener Raise the pulley end of the rail so the rail can sit on the motor unit properly.
- Page 13 STEP5: Prepare the Chain Lay down the chain on the floor, as shown. Do not twist the chain. Chain Connector Chain To Door To Motor Unit STEP6: Align the Chain on the Sprocket Starting aligning the chain on the sprocket. Wrap the chain around the sprocket.
- Page 14 STEP8: Tighten the Chain To avoid twisting the chain, use pliers to hold the chain while tightening the chain connector. Then use a flat screwdriver to tighten the chain connector by rotating it. Chain Tighten or Loosen Chain Connector Chain Tighten or Loosen Locknuts Tighten or Loosen...
-
Page 15: Installation (Sectional Steel T-Rail Assembly)
STEP9: Insert the trolley into chain connector Insert the trolley into chain connector Ensure chain passes through the trolley guides into the chain connector until you hear a click where the chain connector is completely seated into the trolley. Congratulations! Now the T-rail assembly is already finished. -
Page 16: Battery Backup Assembly For T-Rail (Optional)
Battery backup Assembly for T-Rail (optional) Option - Side Fixed STEP1 (Fig.20) Assemble the battery & battery bracket like the photo, fix by screws supplied. STEP2 (Fig.21) Join the battery to opener, find the Fig.21. Figure 20 Figure 21 MANUAL DISENGAGEMENT FOR T-RAIL The opener is equipped with a manual release cord to disengage shuttle and move door by hand while holding the handle down (Fig 22). -
Page 17: Exchange Between T-Rail&C-Rail
EXCHANGE BETWEEN T-RAIL AND C-RAIL Change T-Rail to C-Rail STEP1: Take off the sprocket bearing base. STEP2: Fix the motor shaft sleeve and then attach the C-Rail to the opener. STEP3: Assemble the 2 “U” Hanging brackets with 6mm nuts supplied. Change C-Rail to T-Rail STEP1: Take off the 2 “U”... -
Page 18: Programming Instructions
Now press the SET button to confirm the close position. CAUTION: The door will now cycle open and close to set the travel limits and force sensitivity adjustments. The door is now set for normal operation. 2. PROGRAMMING HAND TRANSMITTERS NOTE: Hand transmitters that are supplied with the door opener are pre-programmed. - Page 19 The unit is now in force adjustment mode. Press the UP button to increase the force setting or the DOWN button to decrease the force setting. The minimum force is 1 and it can be adjusted upward.
- Page 20 Programming Motor Reversal Function The function can be applied to swing doors 1. After you set this function, the swing door will open outwards. When you open the door, the trolley will move forward. When you close the door, the trolley will move backwards.
- Page 21 Setting Function For standard function motor: a) Press and hold SET Button until “ ” appears on the display, next short press the UP/Down Button to choose the function open or close. Then press SET Button to confirm. Figure “0” means, the function is closed. Figure “1”...
-
Page 22: Terminal Introduction And Application
Photo beam connection (optional) – Fig.19,Fig.20 Switch control connection (optional) – Fig.19 Remark: 1. Flash (Caution Light) should be less than 25W. 2. PB (External Push Button) should be " NO". Figure 19 Figure 20 Other terminal introduction and application The O/S/C interfaces available. - Page 23 Figure 21 Figure 22...
-
Page 24: Maintenance
MAINTENANCE 1. No particular maintenance is required for the logic circuit board. Check the door at least twice a year if it is properly balanced, and all working parts are in good working condition or not. Check the reversing sensitivity at least twice a year, and adjust if it is necessary. Make sure that the safety devices are working effectively (photo beams, etc.) 2. -
Page 25: Technical Specifications
TECHNICAL SPECIFICATIONS FS 1000 Input voltage 220 - 240V / 110 - 127V, 50–60 Hz Max. pull force 1000 N Max. door area 15.0 ㎡ Max. door weight (Balanced) 100kg Max. door height 2400 - 3500mm Drive Chain / Belt... -
Page 26: Parts Listing For C-Rail Opener
PARTS LISTING FOR C-RAIL OPENER Item Description Item Description Item Description Control Panel Cover U Hanging Bracket Chain/Belt connection Opener Middle Cover Click Bracket Release Cord LED Light Cover Mounting Bracket Caution Card PCB(1) Chain / Belt Release Handle PCB(2) Chain Wheel Transmitter DC Gear Motor... -
Page 27: Parts Listing For T-Rail Opener
PARTS LISTING FOR T-RAIL OPENER Item Description Item Description Item Description LED Light Cover C Rail - Steel Trolley Assy Control Panel Cover Chain Connector POM Protective Cover PCB(1) Threaded Shaft Chain Pivot Pin Opener Middle Cover Release Handle Chain Wheel DC Gear Motor Track Ending Bracket Motor Shaft Sleeve... -
Page 28: Common Fault & Solutions
Common Fault & Solutions Fault appearance Fault cause Solutions 1. Power supply 1. Check whether the motor socket is energized No any working for openers 2. Plug wire is loosing 2. Check whether Fuse tube is broken LCD screen is not bright 3. - Page 29 The door is not installed correctly traveling upper limit before the door closed There is some block on its moving 2. Increased force number for automatic reverse completely In operation with automatic protect function 1.Check the block position of the door and re-set the limit...
