Summary of Contents for Elgato KEY LIGHT AIR

  • Page 1 REVIEWERS GUIDE...
  • Page 2: Table Of Contents

    CONTENTS 1. KEY LIGHT AIR AT A GLANCE 2. ADVANTAGES OF KEY LIGHT AIR 3. ASSEMBLING KEY LIGHT AIR 4. PANEL BACK 5. SOFTWARE INSTALLATION DESKTOP • WINDOWS • macOS 6. CONTROL CENTER OVERVIEW DESKTOP 7. SOFTWARE INSTALLATION SMARTPHONE • iOS •...
  • Page 3: Key Light Air At A Glance

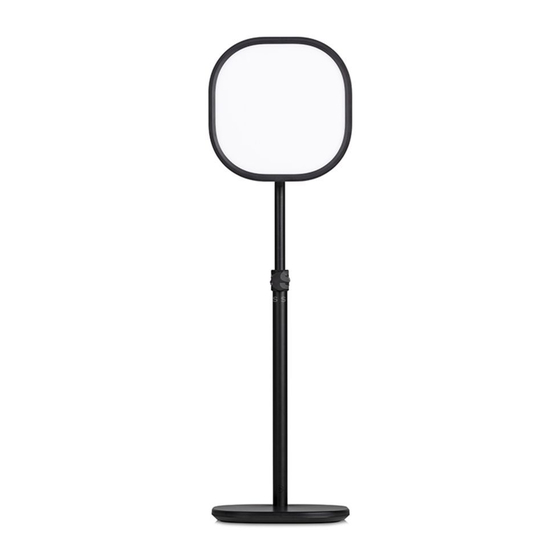

    KEY LIGHT AIR AT A GLANCE An app-controlled, edge-lit LED panel with a small footprint, Key Light Air provides optimum illumination, flexibility and comfort. • Control wirelessly via the app on Mac / Windows / iPhone / Android • 1400-lumen output and completely dimmable •...
  • Page 4: Advantages Of Key Light Air

    Wi-Fi enabled Small form factor Switch on/off and fine-tune light settings via Key Light Air has a compact profile, the Control Center app on Mac, Windows, slotting into any setup and saving space. iPhone and Android without needing to ever A Telescopic Pole and Ball Head easily manually touch Key Light Air.
  • Page 5: Assembling Key Light Air

    Screw the ball mount into the Insert the pole into the ball mount included screw. threaded socket on Key Light Air. socket and tighten the knob. Minimum 60 cm / 24 in Connect the power supply and run the cable through the clip and rail.
  • Page 6: Panel Back

    PANEL BACK RESET-Button Power plug ¼ “ thread mount I = On / 0 = Off...
  • Page 7: Software Installation Desktop

    2. Open Control Center and click on 3. Select the Key Light Air which will 1. Download and install the + icon. If Key Light Air is found, a be paired and click on connect. Elgato Control Center. Turn on Key Light Air.
  • Page 8 SOFTWARE INSTALLATION DESKTOP – WINDOWS 4. Select the Wi-Fi network which 5. Enter the password of the Wi-Fi 6. Key Light Air will turn off and on Key Light Air will be paired with. The network and click on connect. The again if pairing was successful.
  • Page 9 2. Under the New Accessory, select the 3. Choose which Wi-Fi network Key Light 1. Open the Wi-Fi settings Key Light Air. It may take a moment for Air will join. If it is the same one the Mac on the Mac. Turn On Key Light Air.
  • Page 10 SOFTWARE INSTALLATION DESKTOP – macOS 4. It may take a few minutes to pair Key Light Air to 5. macOS will notify if Key Light Air was paired successfully. the Wi-Fi network. Key Light Air will now appear in Control Center.
  • Page 11: Control Center Overview Desktop

    CONTROL CENTER OVERVIEW DESKTOP Control Center is a Windows / macOS app designed to control all aspects of Key Light Air. It lives in the system tray / menu bar for quick access. Pair new Key Light Air Open Control Center settings •...
  • Page 12 SOFTWARE INSTALLATION SMARTPHONE – iOS 1. Open the Wi-Fi settings 2. At the bottom of the 3. Select the network that 4. Key Light Air will now of the iOS device. Turn on Wi-Fi settings, under “Set Key Light Air will be paired pair with the selected Key Light Air.
  • Page 13: Software Installation Smartphone

    Key Light Air, scan the information page will open. off and on again if the to the Key Light Air. Turn on QR code below or enter Enter the network name connection is successful.
  • Page 14: Control Center Overview Smartphone

    App settings Control Center for iOS / Android is an app designed to control all • View app information aspects of Key Light Air quickly and • Add new device instructions Link easily from your mobile device. accessory controls • Reveal hidden accessories Key Light Air Settings •...
  • Page 15: Works With Stream Deck

    WORKS WITH STREAM DECK Part of any professional broadcaster setup, Stream Deck adds another element of control to Key Light Air. Effortlessly turn Key Light Air on or off, change the brightness or color temperature at the press of a key.
  • Page 16: Compatible With Multi Mount

    COMPATIBLE WITH MULTI MOUNT Position your light at any angle, while keeping your workspace tidy and your workflow optimal. Affix the Flex Arm Kit for ultimate reach and three-dimensional maneuverability.
  • Page 17: Product Details

    205 x 205 x 35 mm / 205 x 205 x 18 mm, padded iOS 12.1 (or newer) 8.07 x 8.07 x 1.37 in • Weight: 1000 g / 2.20 lbs • Elgato Stream Deck • Weight: 550 g / 1.21 lbs • Elgato Multi Mount...
  • Page 18: Contact Information

    CONTACT INFORMATION Region Contact Phone Email Technical Marketing Specialist Philipp Eggebrecht philipp.eggebrecht@corsair.com Worldwide PR Director Harry Butler +1 510-657-8747 ext. 486 harry.butler@corsair.com PR - USA and Canada Justin Ocbina +1 510-657-8747 ext. 268 justin.ocbina@corsair.com PR – UK/NL Pascal Bregeon pascal.bregeon@corsair.com PR –...
  • Page 19 KEY LIGHT AIR TROUBLESHOOTING Key Light Air is not found by Control Center for pairing After pairing successfully Key Light Air is not found by Control Center 1. Check that the computer has a Wi-Fi adapter and that it is enabled.
  • Page 20 /elgatogaming /elgatogaming /elgatogaming /elgatogaming...
