The majority of the portable devices manufactured by BEINAT S.r.l. can be used in conjunction with a printer, in order
to certify, using a slip, the result of the test preformed.
The printer is mainly used to check gas detection probes, for pressure gauges and to issue the declaration of conformity.
BEINAT S.r.l. adopted this type of thermal printer as an innovative solution compared to the systems that use an impact-
based system. The elegant design, dimensions, and small weight, together with its flexibility make this printer a useful
working tool.
The printer can be interfaced with serial RS232 and IRDA transmission, and it is ideal to print the system control and
verification report, thus self-certifying your own work.
The size and weight are extremely small.
The automatic paper-load with "six-load" system is patented. Moreover, it is complete with paper-out sensor.
Thank you for choosing the BEINAT S.r.L. digital tool, model STM001.
This manual was designed to help you obtain the best results and efficiency from the product.
Important Note
Read these instructions carefully before use and always keep them within hands reach while using the
instrument.
The illustrations and texts shown on the screens in this manual may differ from those actually displayed
The brand products BEINAT S.r.L.
2006/66/EC RAEE 2003/96/EC
User Guide
comply with European Directives ROHS 2002/95/EC, REACH 1907/2006, BATTERIES AND ACCUMULATORS
Portable Printer STM001
Electric connections also available on
Channel: Beinat gas solutions
Belonging
to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STM001 and is the answer not in the manual?

Questions and answers

Summary of Contents for BEINAT STM001

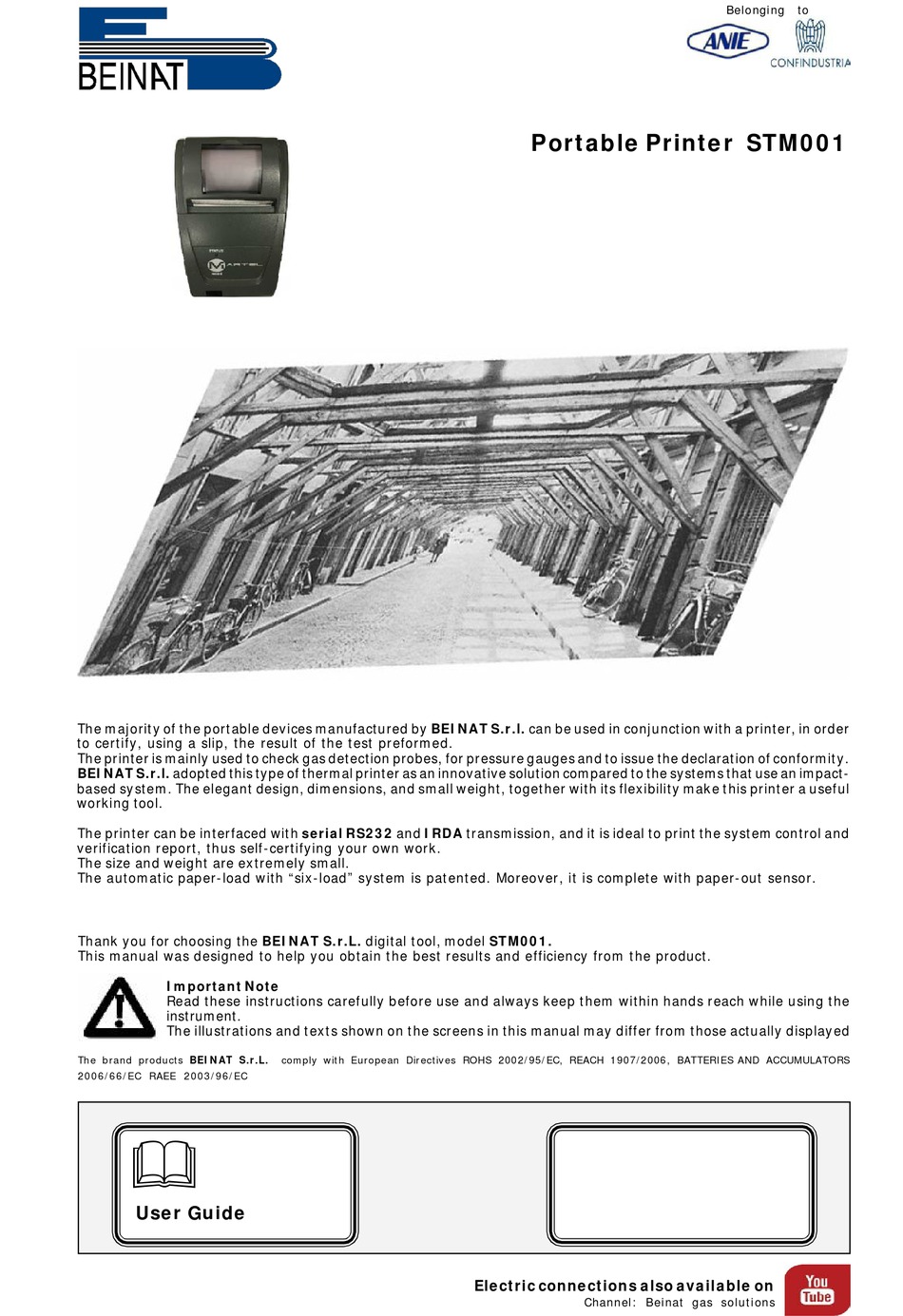

  • Page 1 Belonging Portable Printer STM001 The majority of the portable devices manufactured by BEINAT S.r.l. can be used in conjunction with a printer, in order to certify, using a slip, the result of the test preformed. The printer is mainly used to check gas detection probes, for pressure gauges and to issue the declaration of conformity.
  • Page 2 BEINAT S.r.l. for terminal input/output connection. Precautions In order to achieve long and satisfactory use of your STM001 printer, use and store it by respecting the following precautions. CHECK the integrity of the printer after having removed it from the box.
  • Page 3 Technical Specifications Power supply .................. 4,8 Vdc through the built-in batteries Type of batteries ....................Rechargeable stylus AA Consumption during printing ....................925 mA Battery duration ......................100 m of paper Autonomy ........................1h 30 min Paper roll size ......................57.5 mm ± 1 mm Paper-out sensors .........................
  • Page 4 Date of purchase: Serial number: La Beinat S.r.l. following the purpose of improving its products, reserves the right to change the technical, aesthetic and functional characteristics at any time and without giving any notice. BEINAT S.r.l. Via Fatebenefratelli 122/C 10077, S. Maurizio C/se (TO) - ITALY Tel.
