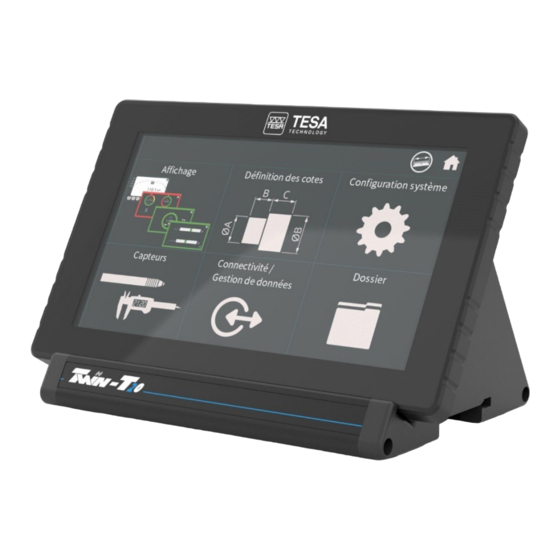

Hexagon TESATRONIC TWIN-T20 Quick Start Manual
  1. Manuals
  2. Brands
  3. Hexagon Manuals
  4. Monitor
  5. TESATRONIC TWIN-T20
  6. Quick start manual

Hexagon TESATRONIC TWIN-T20 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

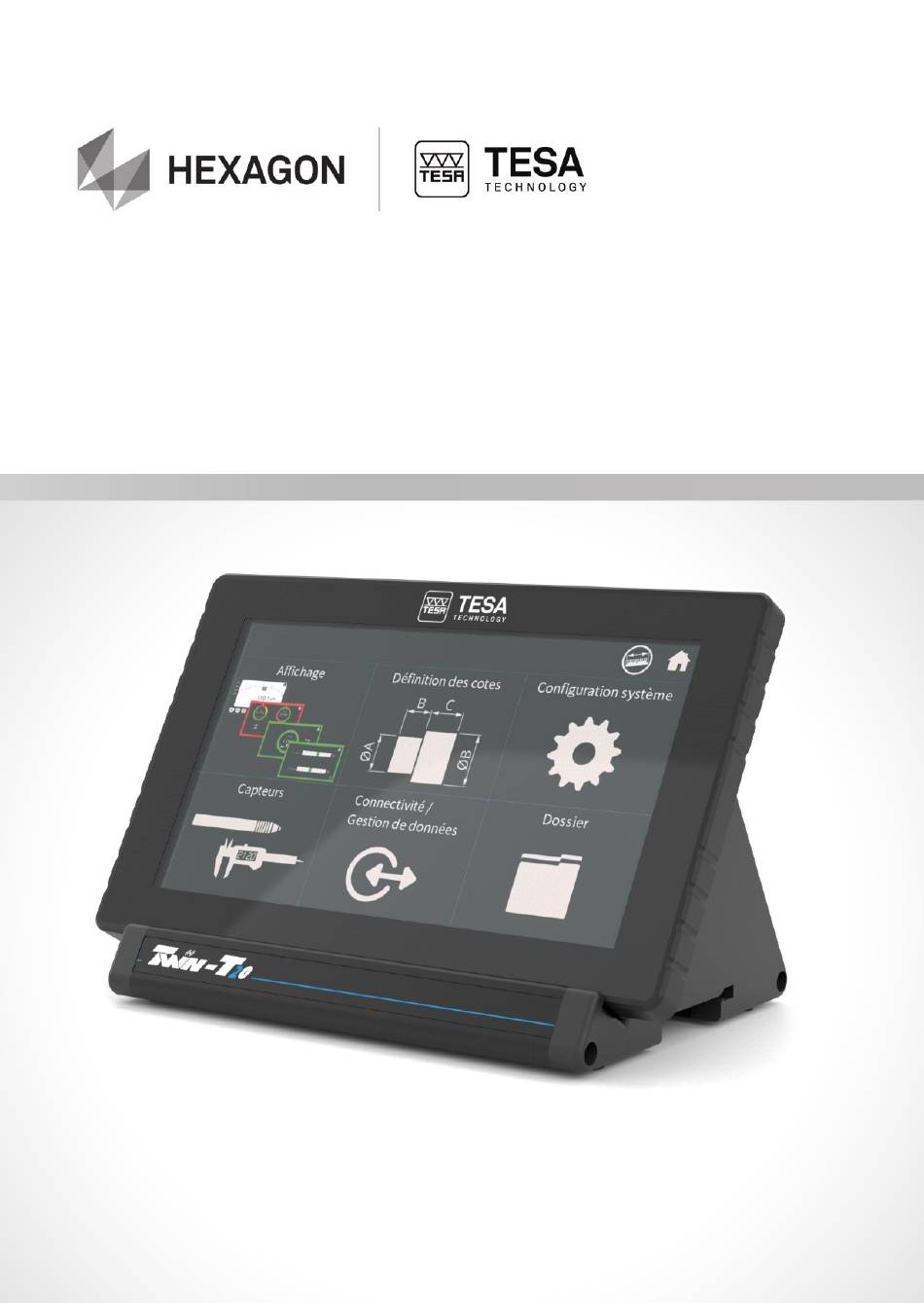

Quickstart manual
TESATRONIC Displays
TWIN-T20
04430014
Version 1, March 2021
This document is confidential and only to be used internally by the company that has purchased one of the displays
mentioned above. Before duplicating or transmitting it to third parties without any connection to the use of these
instruments, an official request has to be sent to TESA.
©2021 Hexagon AB and/or its subsidiaries and affiliates. All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TESATRONIC TWIN-T20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hexagon TESATRONIC TWIN-T20

  • Page 1 This document is confidential and only to be used internally by the company that has purchased one of the displays mentioned above. Before duplicating or transmitting it to third parties without any connection to the use of these instruments, an official request has to be sent to TESA. ©2021 Hexagon AB and/or its subsidiaries and affiliates. All rights reserved...

  • Page 3: Table Of Contents

    Quickstart manual for TESA TWIN-T20 TABLE OF CONTENTS INTRODUCTION Acknowledgements Warning Copyright (document) Registered design Symbols SPECIFICATIONS Specifications PRESENTATION General description Delivery contents UNPACKING Step 1 Step 2 Step 3 INSTALLATION, SECURITY & MAINTENANCE Thermal stability Cleaning Opening elements Recycling Compatibility SIMPLIFIED USER MANUAL Starting...

  • Page 4: Introduction

    1.3 Copyright The content of this document has been created subject to subsequent modifications (document) without prior notice. All rights are reserved to ©2021 Hexagon AB and/or its subsidiaries and affiliates. 1.4 Registered design Design of the device is protected by registered design DM212520.

  • Page 5: Presentation

    Quickstart manual for TESA TWIN-T20 3. PRESENTATION 3.1 General description 10 11 No. Description TLC cap Touch screen RS 232 serial port Sub-D 9S TESA-BUS port Sub-D 9S 2x USB-A host for measuring instruments 2x DIN45322 connectors for TESA HB probes 2x M12 connectors for TESA digital probes Power supply connector 15-24V 2x USB-A host for peripherals (keyboard, memory stick, QR code reader)

  • Page 6: Unpacking

    Quickstart manual for TESA TWIN-T20 4. UNPACKING We recommend keeping the original packaging for transport to avoid any deterioration. 4.1 Step 1 4.2 Step 2 4.3 Step 3 LDPE (Low density Polyethylene)

  • Page 7: Installation, Security & Maintenance

    Quickstart manual for TESA TWIN-T20 5. INSTALLATION, SECURITY & MAINTENANCE 5.1 Thermal stability The display must be switched ON 30 minutes prior to starting measurements. 5.2 Cleaning Only use a dry, lint-free cloth for cleaning the instrument. Do not use aggressive solvents. 5.3 Opening elements If a person who is not authorised opens the device, the warranty period is automatically void.

  • Page 8: Display Types

    Quickstart manual for TESA TWIN-T20 6.4 Display types Choose the display type you want and to apply Nota: The “Galvanometer type” is limited to 1 measure- ment display and erase the second one if existing 6.5 Measurement definition You can rename the part and the sequence here You can create a new sequence here...

  • Page 9: Measurement Settings

    Quickstart manual for TESA TWIN-T20 You can rename the measurement here 6.5.1 Measurement settings Resolution choice with 6 digits Units choice displayed Operating mode choice : - Static: display continuously the measurement value - Min: display the minimum value of the measurement - Max: display the maximum value of the measurement - Max-Min: display the difference between max.
  • Page 10 Quickstart manual for TESA TWIN-T20 Nota: if selected, the setting to master value is accessible on the measuring page Calibration to the master value is done using “Calibration” button on the measuring screen. Icon becomes when validated. Touch this area through the different possibilities: ext. Ø, int. Ø, distance or angle. +0.2 In this example, the required measurement is 10 -0.1...

  • Page 11: Sorting

    Quickstart manual for TESA TWIN-T20 6.5.2 Sorting Sliding the first measurement setting page, you have access to the sorting page. Add up to 8 categories using + 6.5.3 Advanced Sliding the second measurement setting page, you have access to the advanced options.

  • Page 12: Configurable Softkey And Footswitches

    Quickstart manual for TESA TWIN-T20 6.6.6 Configurable soft- 1x softkey accessible in the measuring page + 1x jack footswitch + 2x USB key and footswitches footswitches are configurable in these 2 pages sliding previous page: Configurable softkey + Configurable USB jack footwitch footwitches Choices for configuration:...

  • Page 13: Connectivity

    Quickstart manual for TESA TWIN-T20 6.8 Connectivity Choice of transferred data Information about transferred data format Choice on measurements to be transferred: - Transferable measurement (see 6.5.3 chapter) of the sequence - Measurements of the sequence - transferable part dimensions (see 6.5.3 chapter) - Dimensions of the part - Measurement 1.1 - Measurement 1.2...

  • Page 14: Fonts Copyrights

    Quickstart manual for TESA TWIN-T20 7. FONTS COPYRIGHTS 7.1 Noto This device may use the following Fonts Software: Noto. This Font Software is part of the noto project and licensed under the SIL Open Font License, Version 1.1. Visit google.com/get/noto for more information about the project. The SIL Open Font License is copied in Annex A and is also available with a FAQ at: http://scripts.sil.org/ 7.2 Open sans This device may use the following Font Software: Open Sans.

  • Page 15: How To Switch To One Sequence To Another

    Quickstart manual for TESA TWIN-T20 Use “+” button to create a second sequence Use right side arrow to displace the measurement 1.2 in the second sequence. 9.2 How to switch to one sequence to another? Use “+” button to display “sequence” key. Then, use “sequence”...
  • Page 16 Quickstart manual for TESA TWIN-T20 ANNEX A: SIL OPEN FONT LICENSE V1.1 SIL OPEN FONT LICENSE Version 1.1 - 26 February 2007 PREAMBLE The goals of the Open Font License (OFL) are to stimulate worldwide development of collaborative font projects, to support the font creation efforts of academic and linguistic communities, and to provide a free and open framework in which fonts may be shared and improved in partnership with others.
  • Page 17 Quickstart manual for TESA TWIN-T20 ANNEX B: APACHE LICENSE V2.0 Apache License, Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION 1. Definitions. «License» shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.
  • Page 18 Quickstart manual for TESA TWIN-T20 (d) If the Work includes a «NOTICE» text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works;...
  • Page 20 TESA Technology Bugnon 38 – CH-1020 Renens – Switzerland Tel. +41(0)21 633 16 00 – Fax +41(0)21 635 75 35 www.tesatechnology.com – tesa-info@hexagon.com Modification rights reserved – Printed in Switzerland – 4412.053.2105 – ME4499051...
