HydraSim
The ULTIMATE Trauma Bleeding Simulation System (TBSS)
FIELD EXPEDIENT BLEEDING SIMULATION SYSTEM
FEBSS HydraSim
The ULTIMATE Trauma Bleeding Simulation System (TBSS)
DEDICATED TO THE "WARFIGHTER MEDIC
//
HydraSim
®
Information and Instructions
®
HydraSim
SP
//
SP
®
P a t e n t e d
TM
"
™
Made in USA
TM
DropLeg
DropLeg
P a t e n t e d
™
Made in USA
Advertisement
Summary of Contents for SKEDCO HydraSim FEBSS

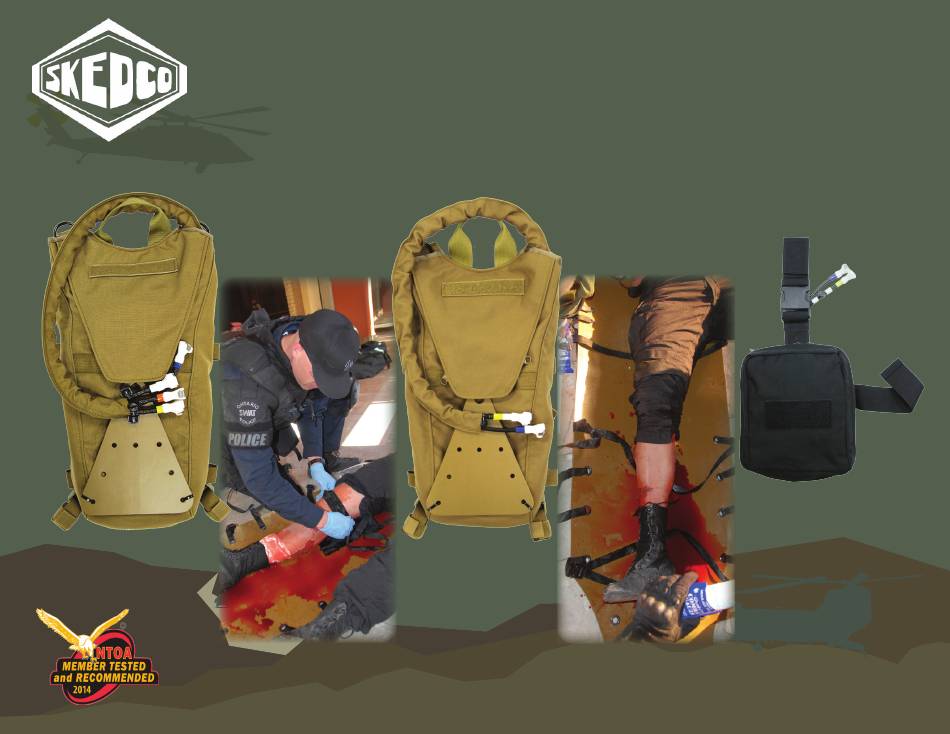

- Page 1 FIELD EXPEDIENT BLEEDING SIMULATION SYSTEM ® FEBSS HydraSim HydraSim DropLeg ® ® Information and Instructions SAVING LIVES SINCE 1981 WWW.SKEDCO.COM DropLeg ® ® HydraSim HydraSim P a t e n t e d ™ The ULTIMATE Trauma Bleeding Simulation System (TBSS) Made in USA DEDICATED TO THE “WARFIGHTER MEDIC...
-
Page 2: Packing List
Packing List ® FEBSS HydraSim Multi-Port Basic Kit FS-2000B-CB FEBSS HydraSim Basic Kit ® -- Coyote Brown Color-- NSN: 6910-01-623-8532 ® FEBSS HydraSim Remote Control Transmitters FS-2000B-BL FEBSS HydraSim Basic Kit 1–Re-chargeable Battery Pack ® FS-2001-CB FS-2001-BL 1–Battery Charger -- Black Color -- FS-1002 NSN: 6910-01-623-8639 NSN: 6910-01-623-8652... - Page 3 Packing List ® FEBSS HydraSim Single-Port Basic Kit FS-2500B-CB FEBSS HydraSim SP Basic Kit ® -- Coyote Brown Color-- NSN: 6910-01-625-8171 ® FEBSS HydraSim Remote Control Transmitters FS-2500B-BL FEBSS HydraSim SP Basic Kit ® 1–Re-chargeable Battery Pack 1–Battery Charger -- Black Color -- FS-1002 ®...
- Page 4 Packing List FEBSS DropLeg Basic Kit FS-3000B-BL FEBSS DropLeg Basic Kit -- Black Color -- ® FEBSS HydraSim Remote Control Transmitters 1–Re-chargeable Battery Pack 1–Battery Charger DropLeg system FS-1002 NSN: 6910-01-566-4378 FS-3001 ® 1– MultiSim Injury Fabrication Kit 2–Simulaid Simulation 1–...
- Page 5 Additional Techline Trauma “Plug and Play” Bleeding Injuries 1–Packable Multiple GSW to the abdomen 1–Packable GSW to the Groin T3M901 T3M055 1–GSW to Bicep 1–Packable GSW to the thigh T3M908 T3M010...
-
Page 6: Getting Started
Getting Started ® Charge the HydraSim Battery • A red indicator light shows that the battery is charging. Charging time ranges from 4 hours to 5 Connect the battery to charger hours depending on the battery’s voltage level. – the indicator light will change from orange to red in about •... - Page 7 About the HydraSim Control System ® To increase realism, the arterial control system within the HydraSim , HydraSim ® ® SP, and DropLeg pulsates at approximately 60 pulses per minute. If bleeding continues the pulsation rate will increase to nearly 200 pulses per minute to simulate the body compensating for blood loss.
- Page 8 FEBSS Transmitter. White = Venous All HydraSim ® transmitters supplied from Skedco are already Orange = Arterial (Non-functional in Single Port) assigned to the corresponding system. To assign additional Yellow = Arterial...
- Page 9 Removing a FEBSS Transmitter from the HydraSim ® • To remove a transmitter from operating the HydraSim ® insert a medium sized paperclip into the hole on the back of the transmitter marked “ADD” and quickly release. A LED will blink when the button is released.
- Page 10 Using the Refill Tank: Remove the pump assembly from Remove the refill tank from the Field Add roughly half of the Simulaids Blood the refill tank by turning it counter- Pack and fill with cold water to the Powder to the full refill tank – using less clockwise.
- Page 11 Pressurize the Refill Tank: To operate the pump, unlock the pump handle by turning it counter-clockwise. Be careful not To create pressure, pump the handle 20-30 times or until pressure to loosen the pump from the tank. release is heard from the pressure governor. As the fluid level goes down, additional compressions of the pump handle will be needed to maintain fluid movement.
- Page 12 Filling the HydraSim ® • Pressurize the Refill Tank. • Connect the color coded BLUE flow control handle to the color coded BLUE refill port. • Once connected, squeeze the yellow flow control lever and lock it into place by pushing it forward – simulated blood will flow into the HydraSim ®...
- Page 13 Live Casualty Simulation: During live casualty simulation, it’s recommended that the live simulated casualty operate the HydraSim . This allows the ® casualty to control the amount of pressure applied to their simulated wounds during the training exercise. If dressings and tourniquets are too loose during application, the casualty has the ability to keep their simulated wounds bleeding.
- Page 14 The user is responsible for remotely activating and deactivating bleeding wounds during the simulation exercise. Skedco also offers a manikin modification and repair kit in order to retrofit hollow manikin simulators. Contact Skedco for more information.
- Page 15 Maintenance Guidelines SKEDCO INC. products are designed to last and we stand behind our one year factory warranty. However, any tampering or activity outside the instructed use will void the warranty for this product. Normal wear and tear is taken into account regarding our warranty. Items and situations not covered include: Discolorations and staining, rips or tears of external equipment, and batteries.
- Page 16 Operation Gothic Serpent October 3, 1993 Mogadishu, Somalia SKEDCO INC. ® PO Box 3390 Tel: 503.691.7909 10505 SW Manhasset Drive Fax: 503.691.7973 Tualatin, OR 97062 Order: 800.770.SKED (7533) Web Site: www.skedco.com E-mail: skedco@skedco.com Copyright 2013 Skedco Inc. All rights reserved...
