Preston Cinema Systems Revolution Manual

Motor drive system

P r e s t o n

C i n e m a

S y s t e m s

Revolution Motor Drive System

Table of Contents

Need help?

Do you have a question about the Revolution and is the answer not in the manual?

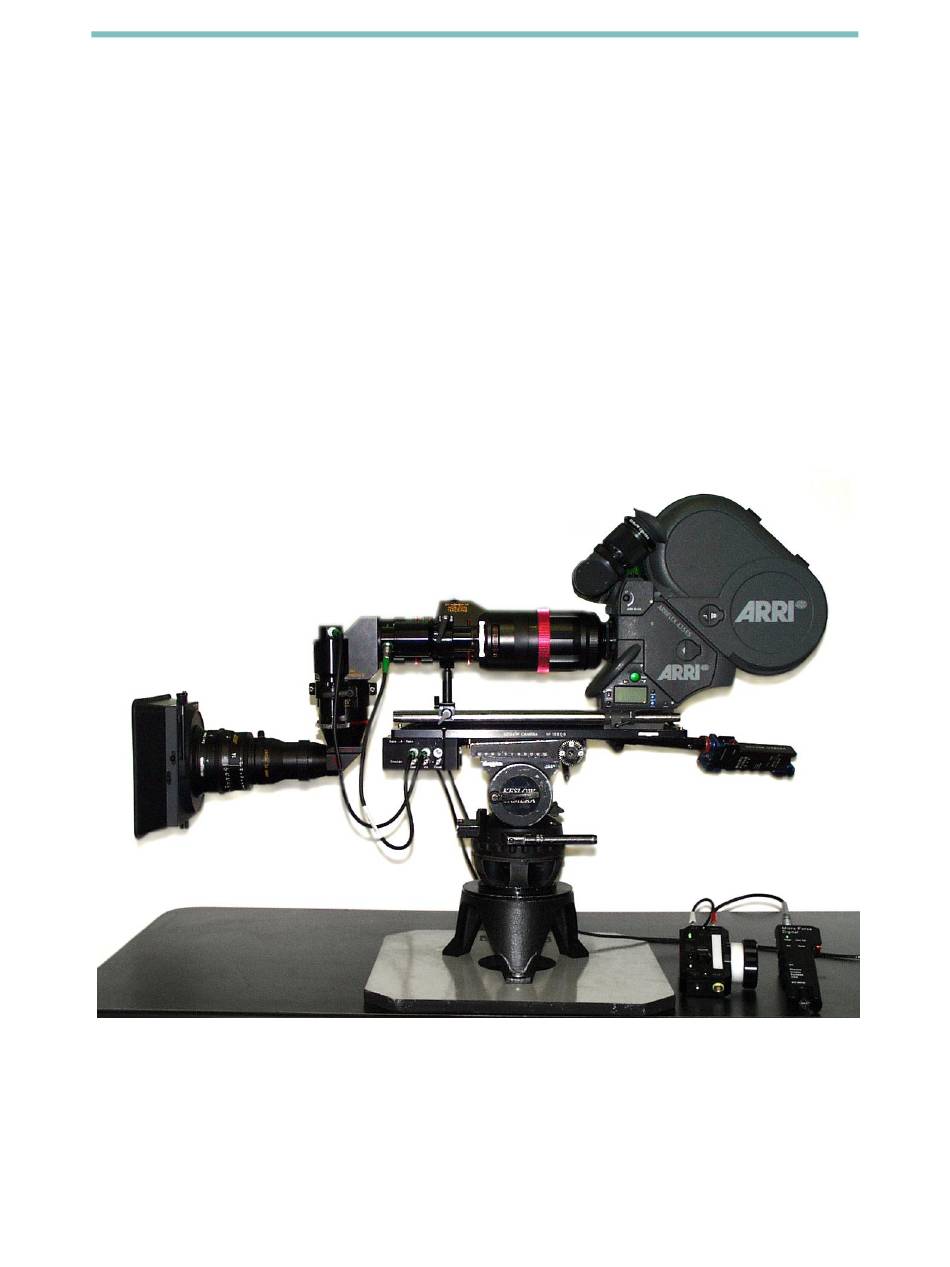

Page 1 P r e s t o n C i n e m a S y s t e m s Revolution Motor Drive System...
Page 2 • • • • Pan Bracket & Clamp - Eccenter - Kipp Handle (10-32 thread) Revolution lens setup: Requirements: • Hand Unit, MDR, and Micro Force with cables for each. • Hand Unit and MDR must have Snorkel Lens Software and 2 position switch Operation: •...
Page 3 P r e s t o n C i n e m a S y s t e m s Pan Bracket 1. Install the eccenter in the bracket as shown above. 2. Attach the Kipp handle to the bracket. (do not tighten yet.) 3.
Page 4 1. Install the Horizon bracket to the lens with the four included 4-40 x 5/16” cap head screws 2. Screw the Revolution Support Post into the bottom of the Horizon Bracket. 3. Install the eccenter in the bracket as shown above. Attach the motor gear with the three 4-40 x 3/8"...
Page 5 P r e s t o n C i n e m a S y s t e m s Connections for Hard Wire Operation: 1. Make sure the Snorkel switch on the Hand Unit is enabled 2. MDR is set to "Cable" mode 3.
